Skid Control Buzzer: Inspection: Inspection

CHECK SKID CONTROL BUZZER ASSEMBLY
1. Apply negative battery voltage to terminal 1, and positive battery voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.

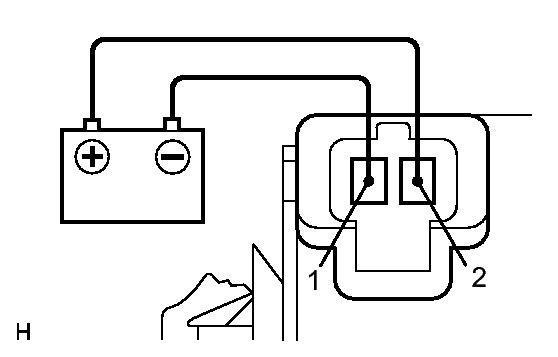

  Fig 1: Checking Skid Control Buzzer Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK

  Skid control buzzer sounds.

  If the result is not as specified, replace the skid control buzzer assembly.
