Audio System, LEXUS Navigation System, Multi-Display (w/o LEXUS Navigation System) and Parking Assist (Rear View Monitor): Notes

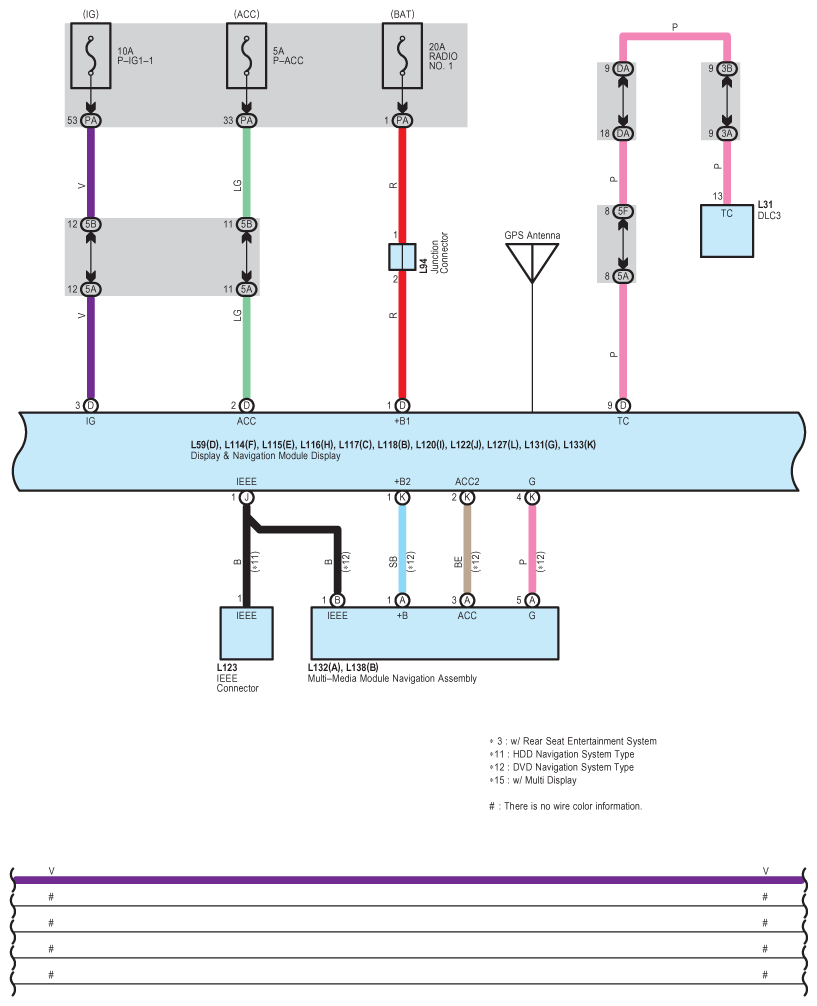

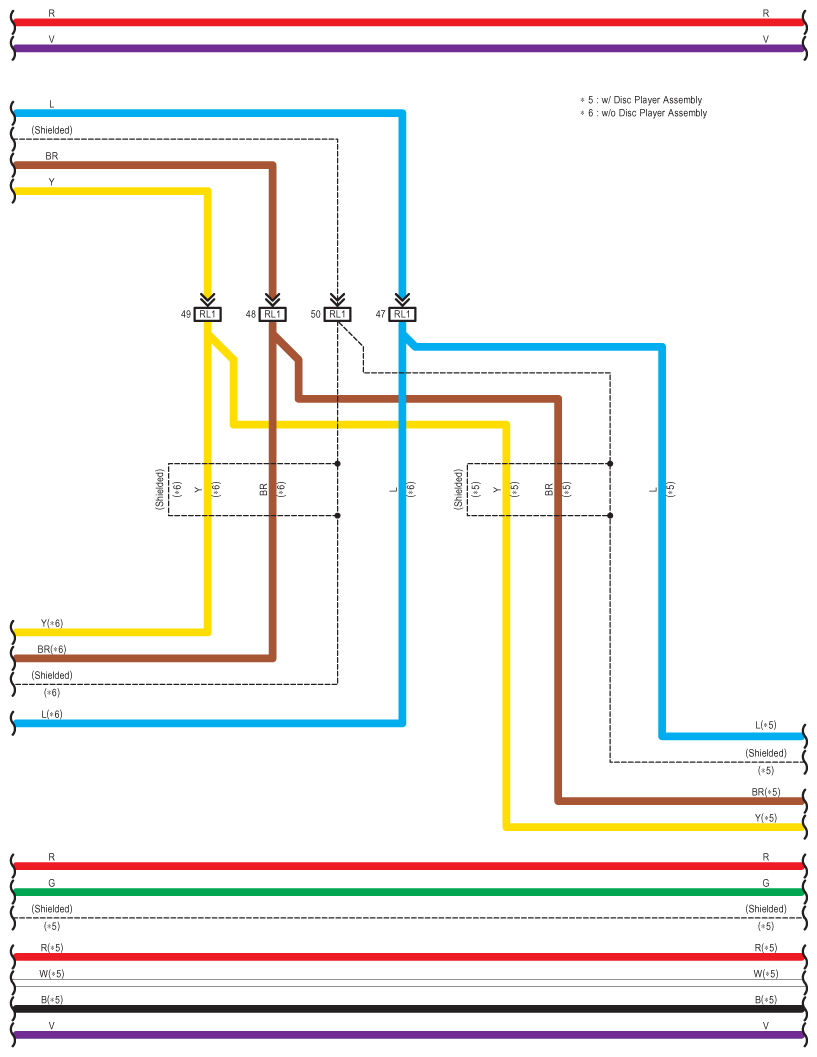

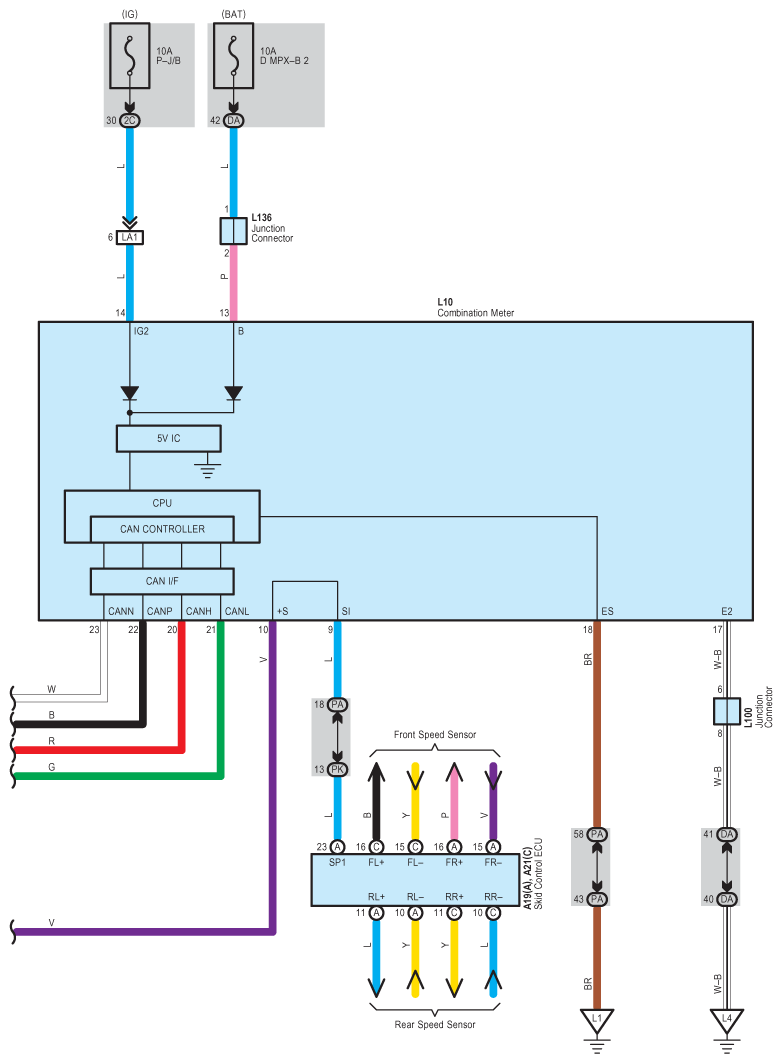

Fig 1: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (1 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

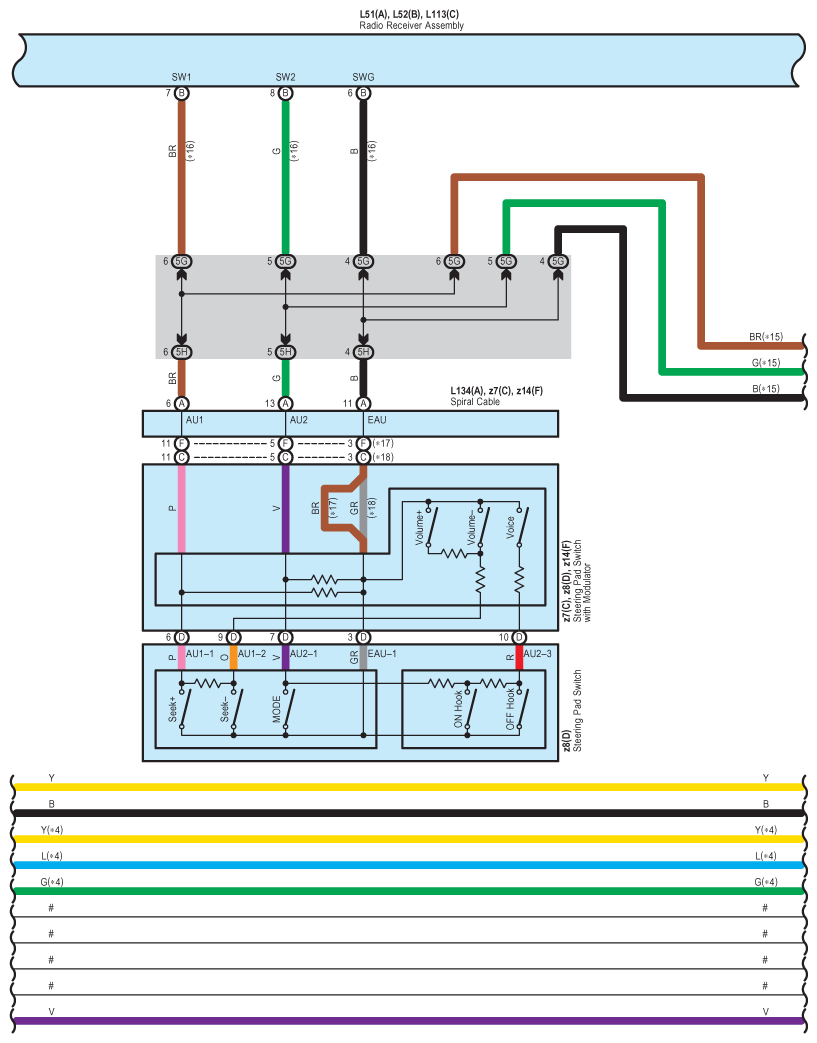

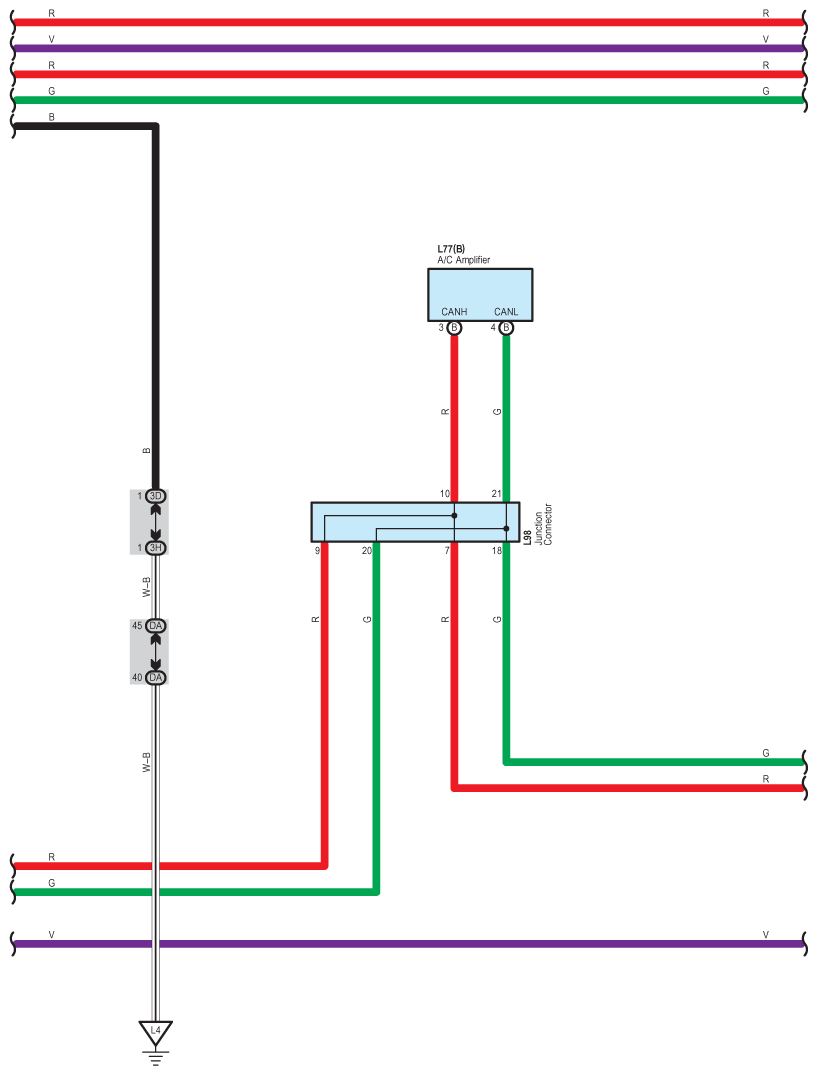

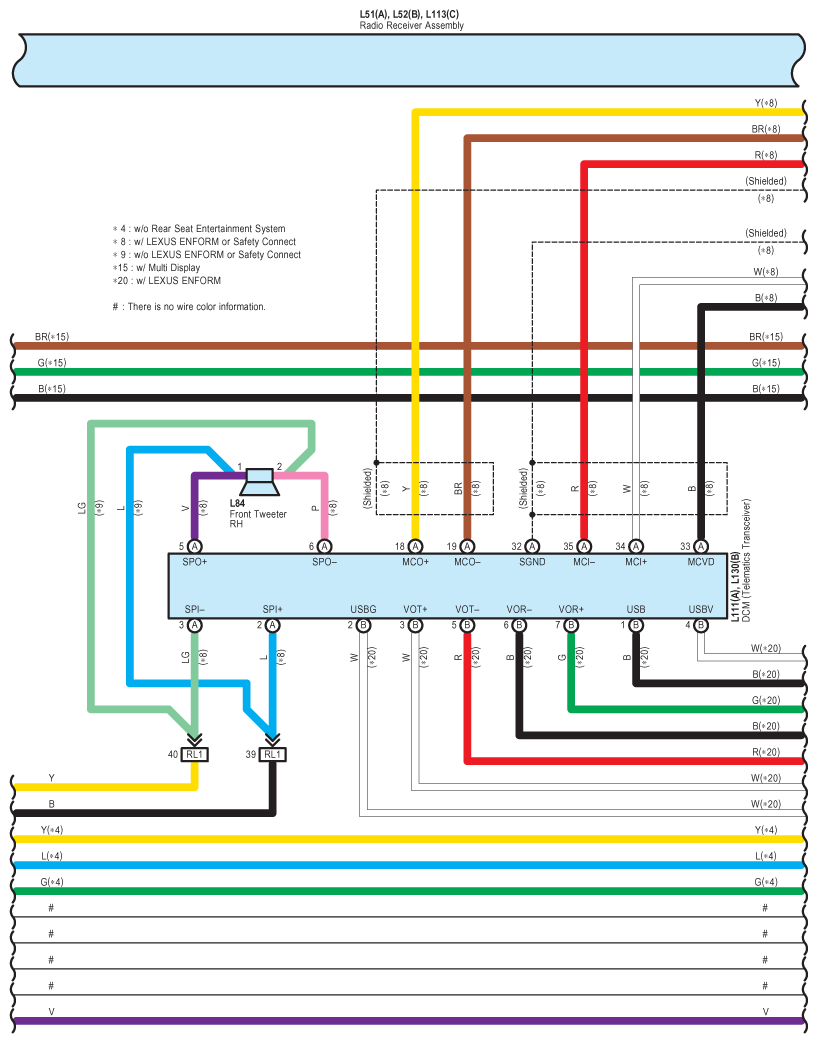

Fig 2: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (2 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

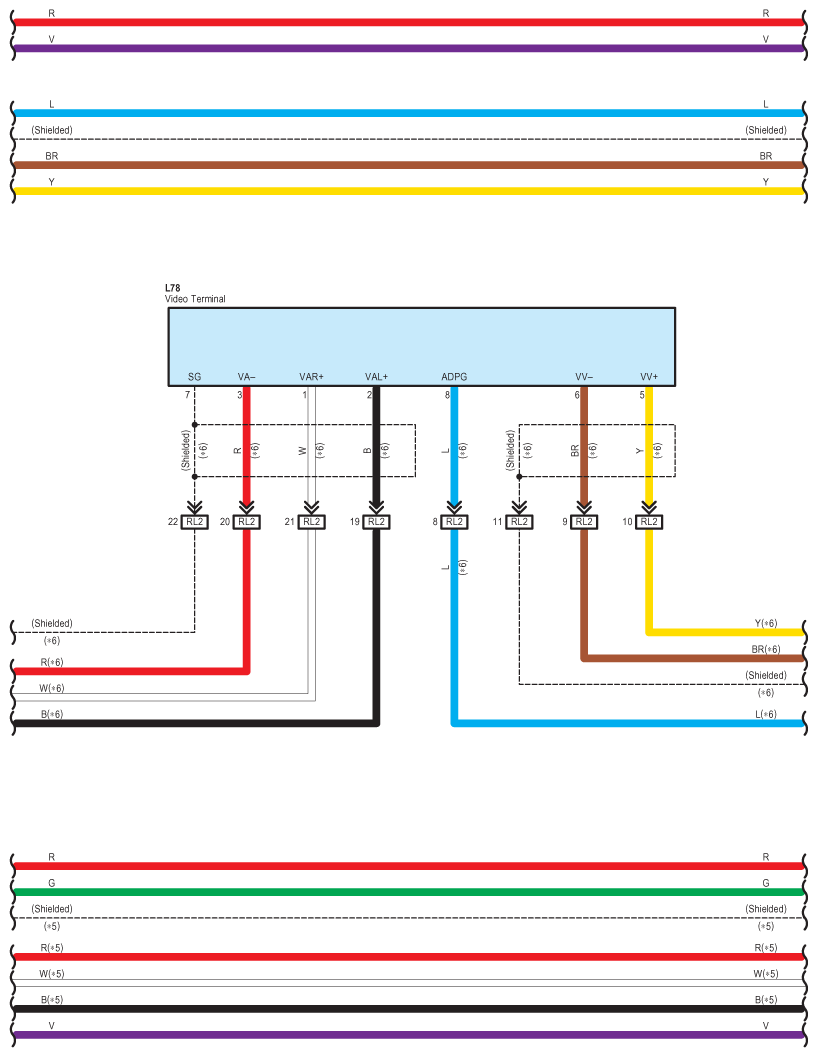

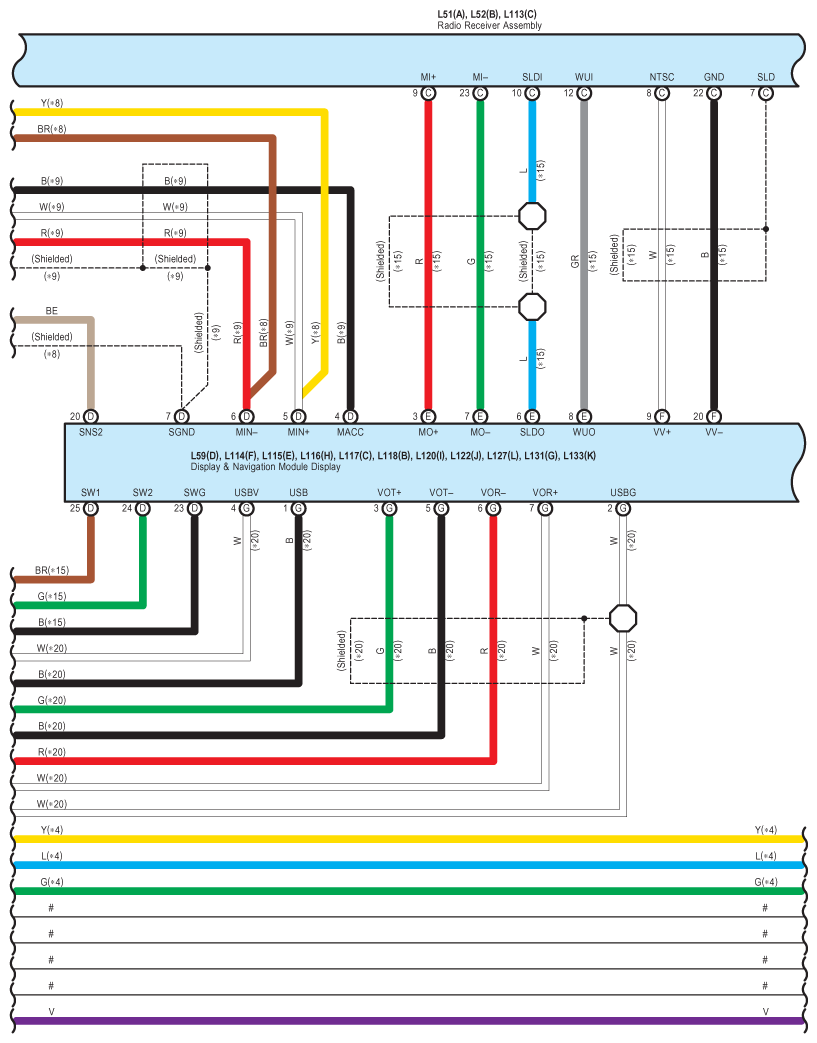

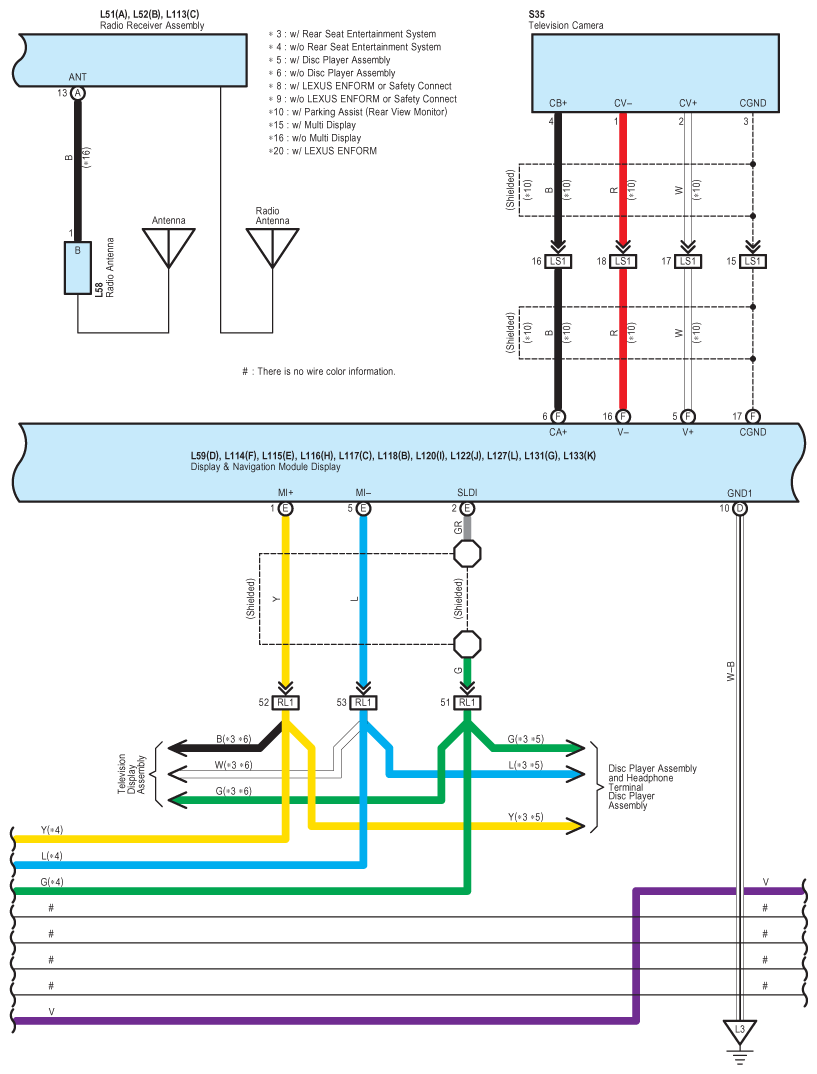

Fig 3: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (3 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

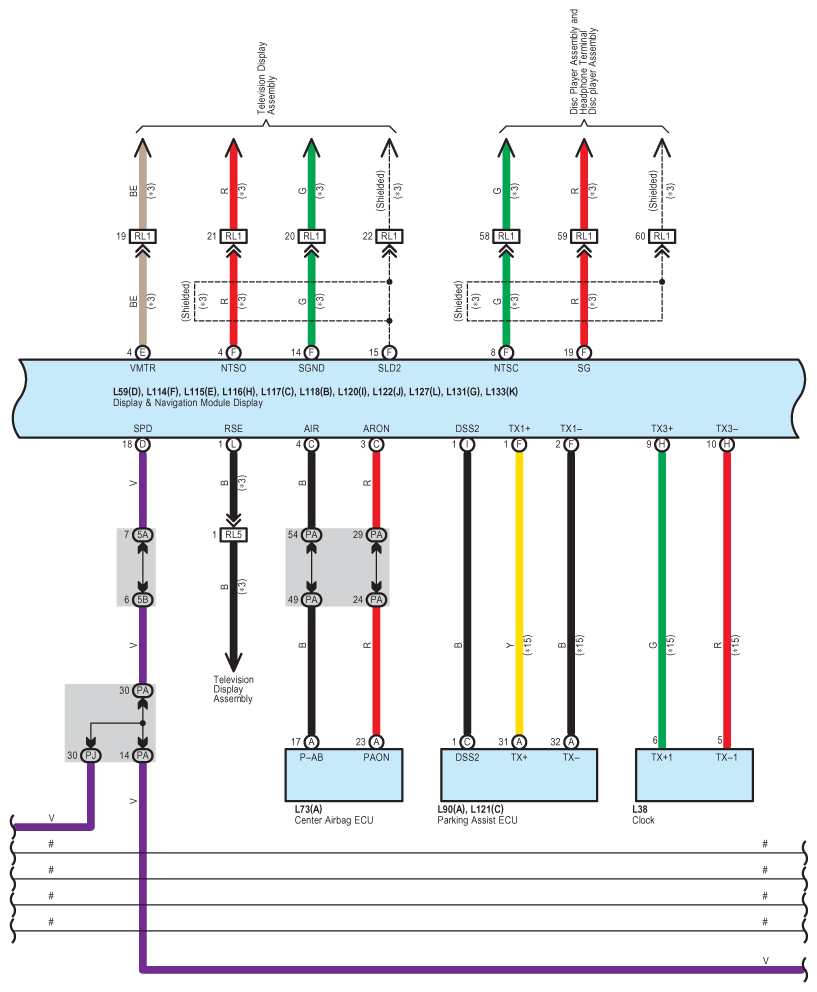

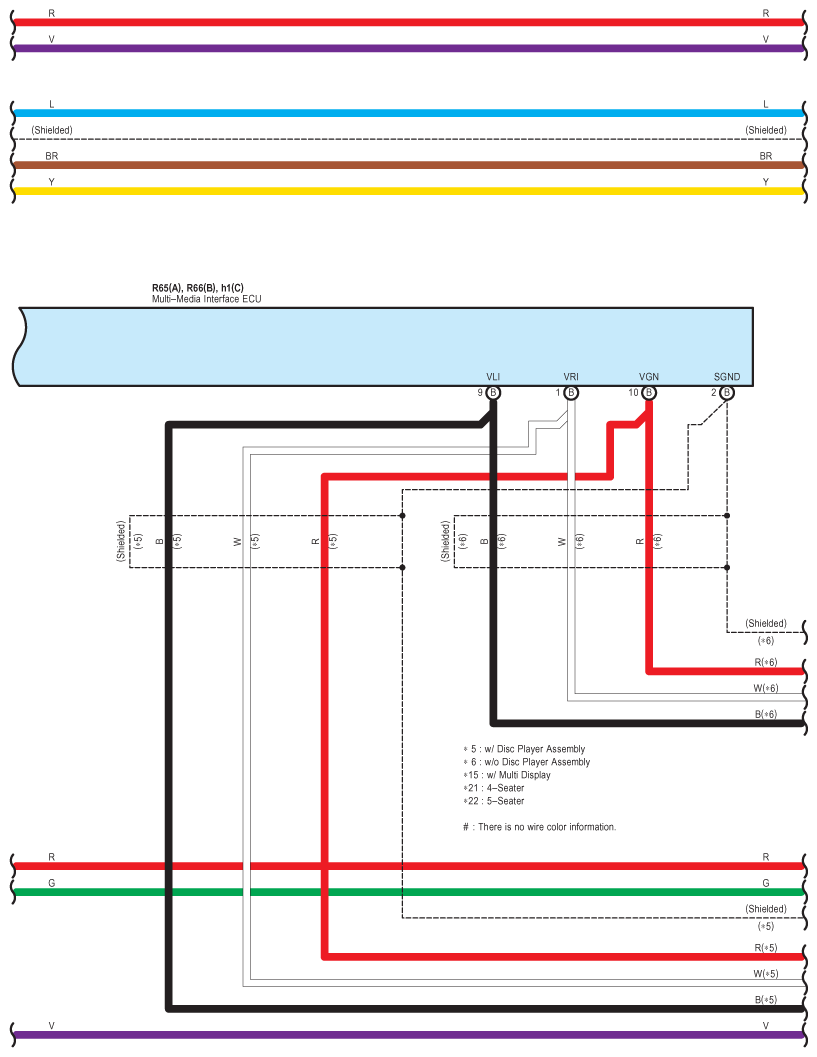

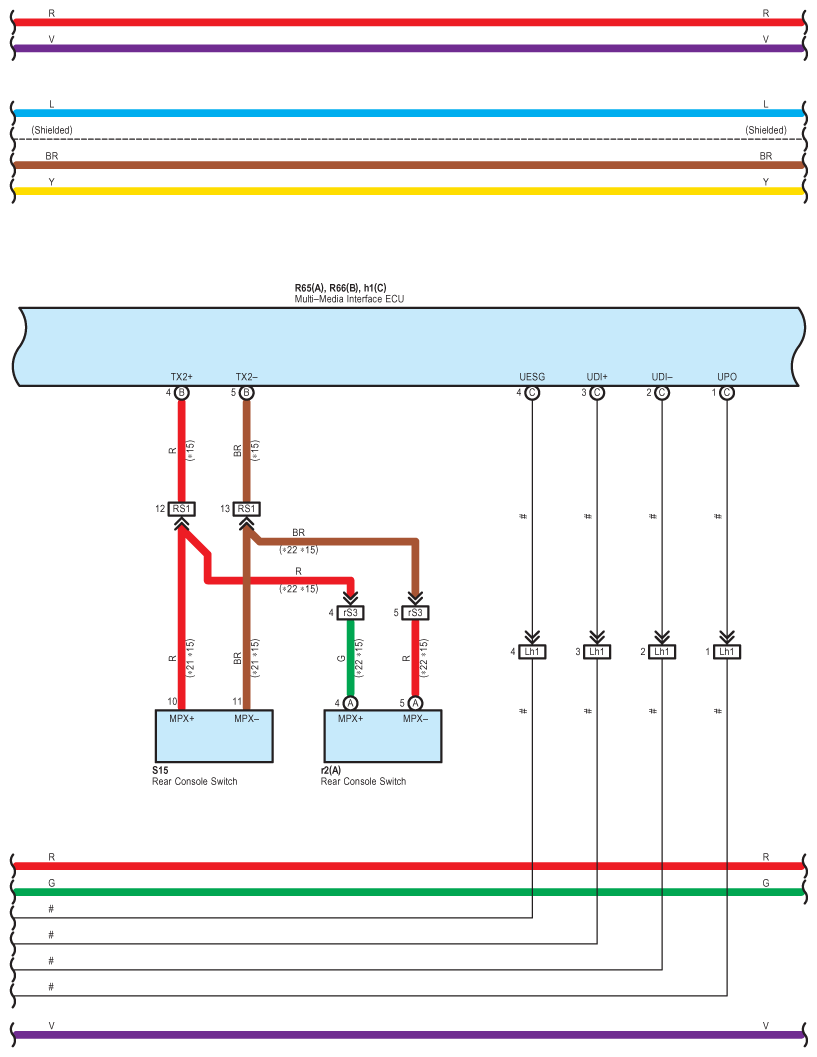

Fig 4: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (4 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

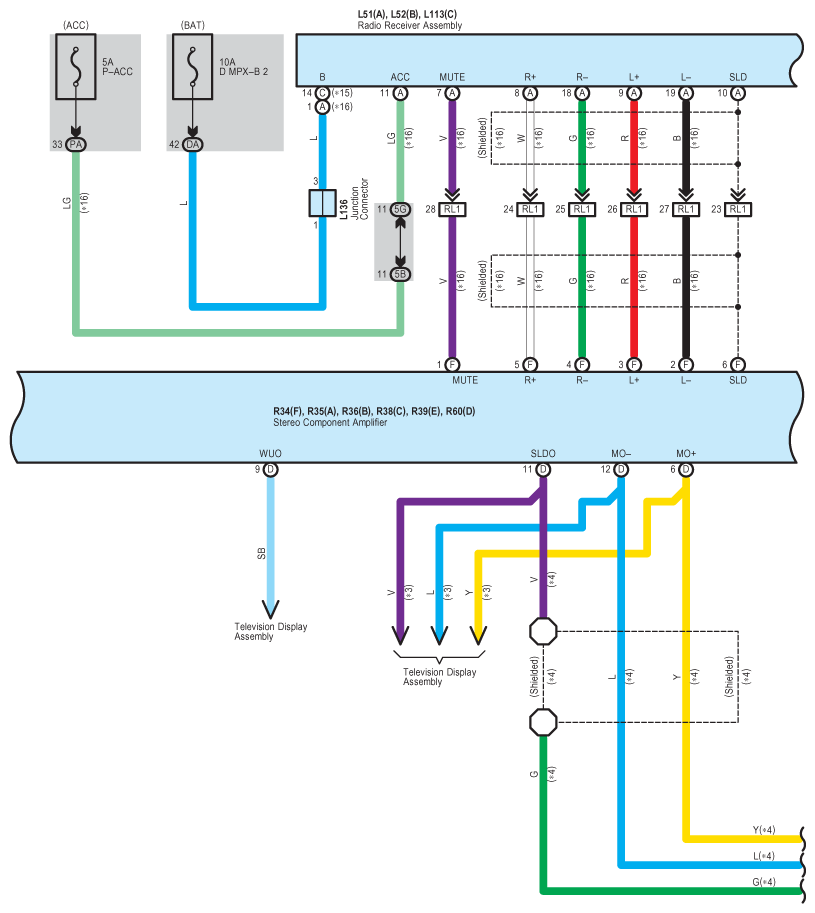

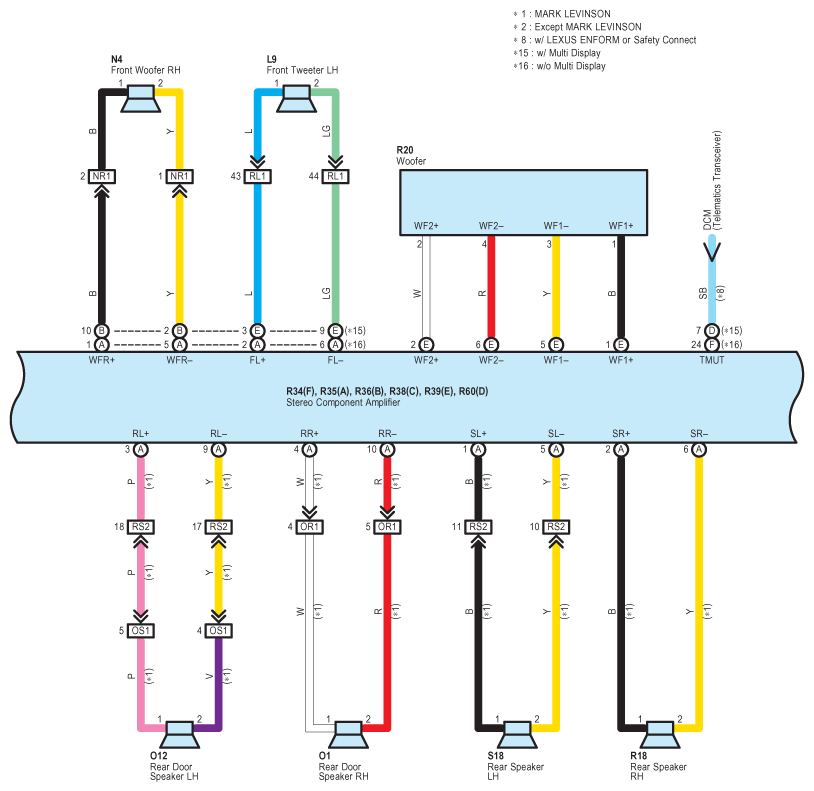

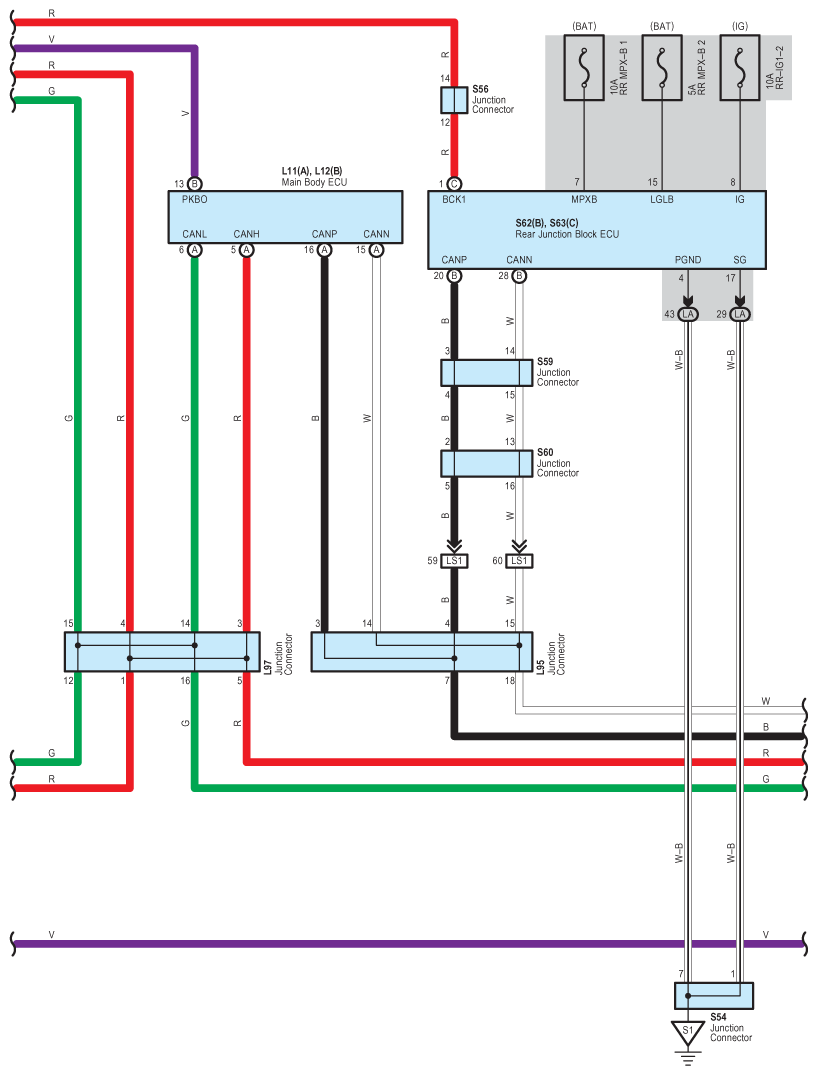

Fig 5: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (5 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

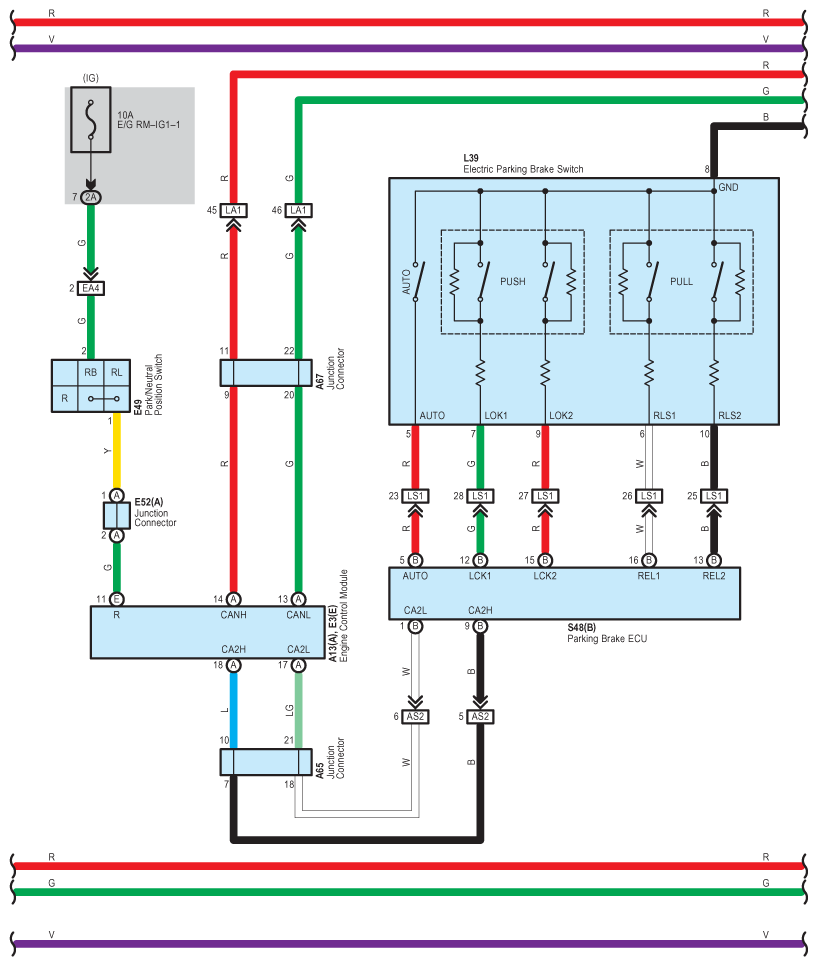

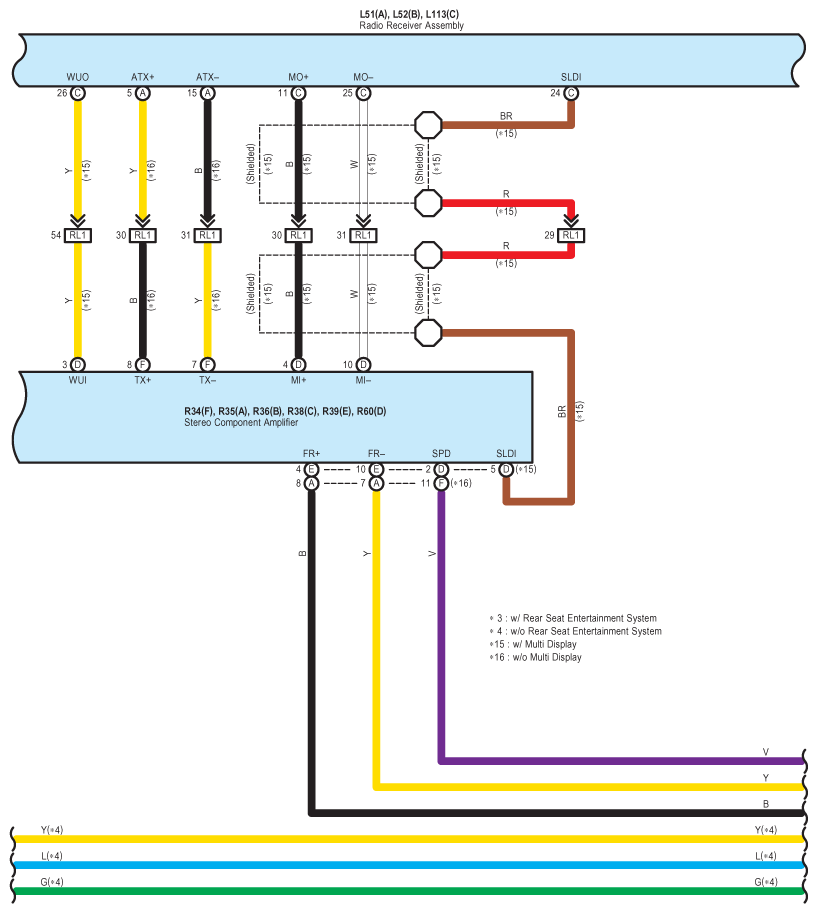

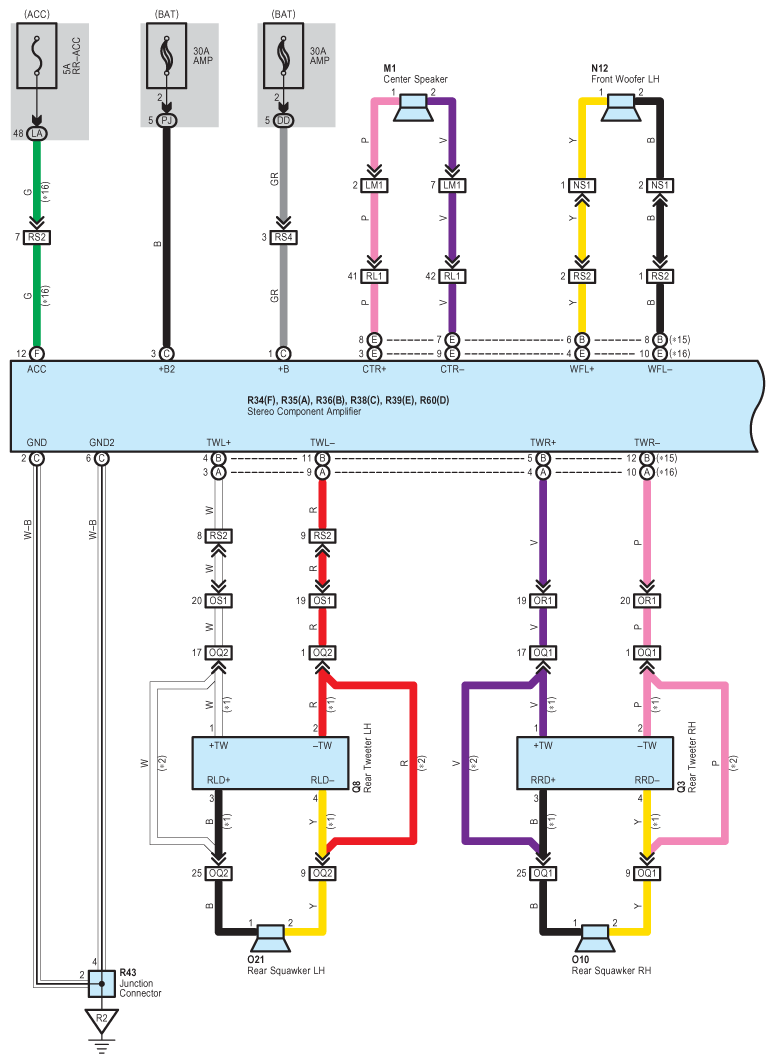

Fig 6: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (6 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

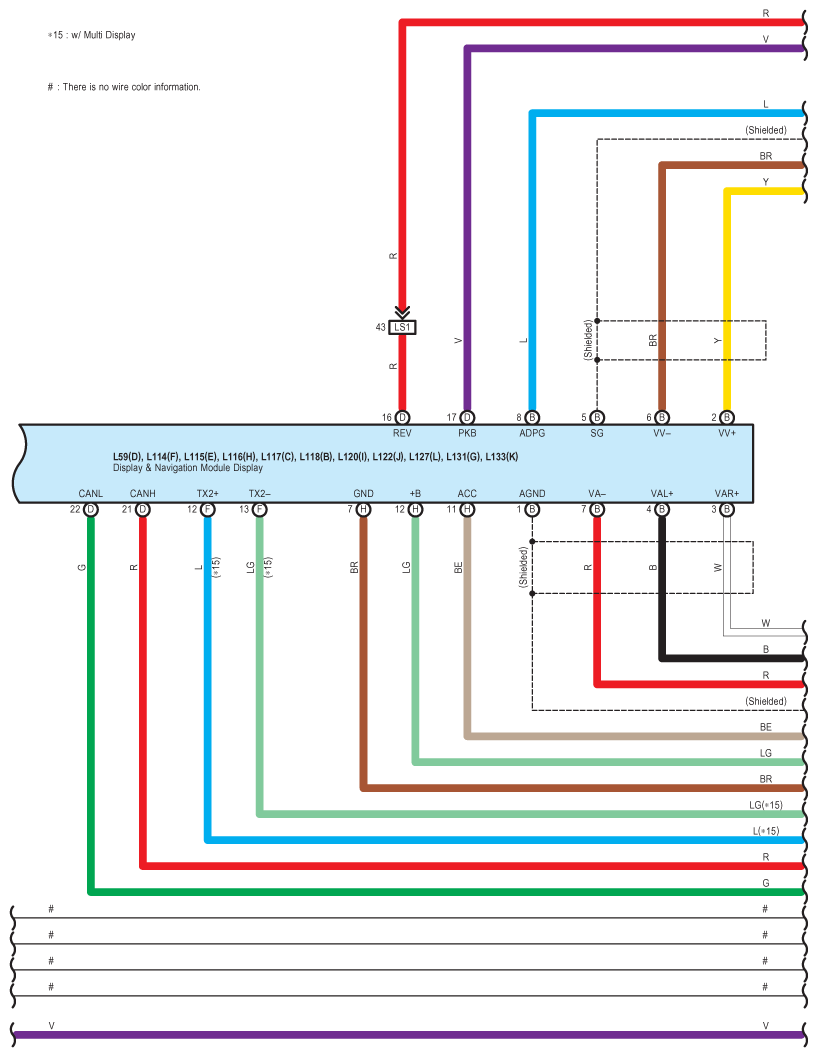

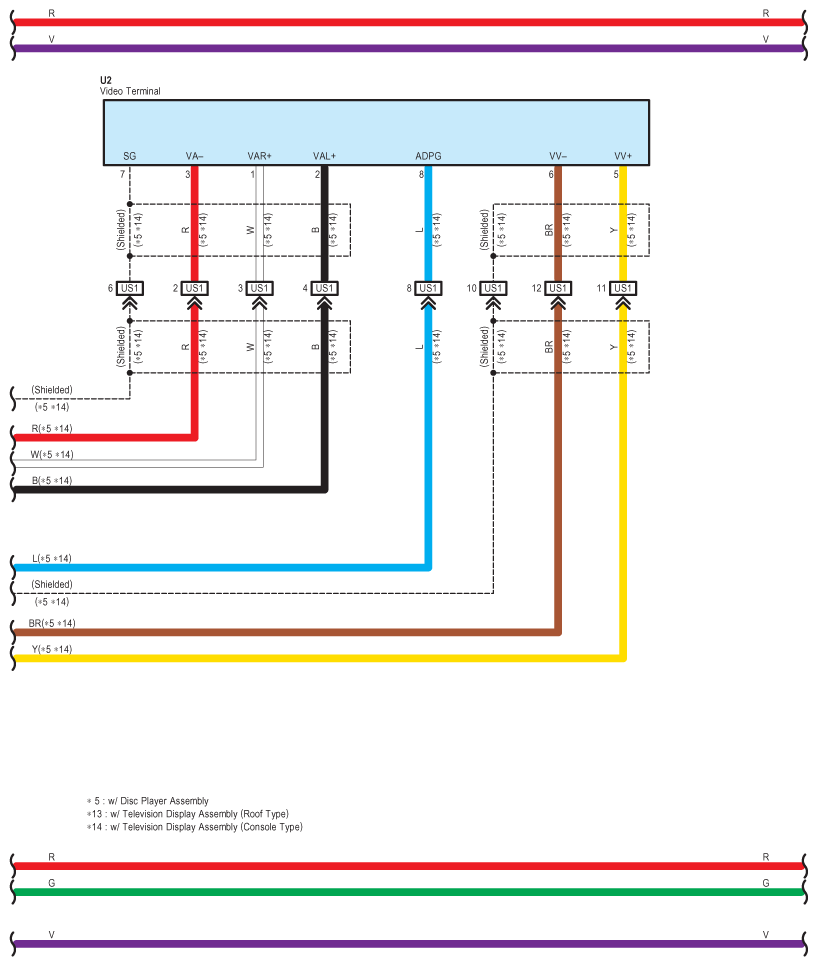

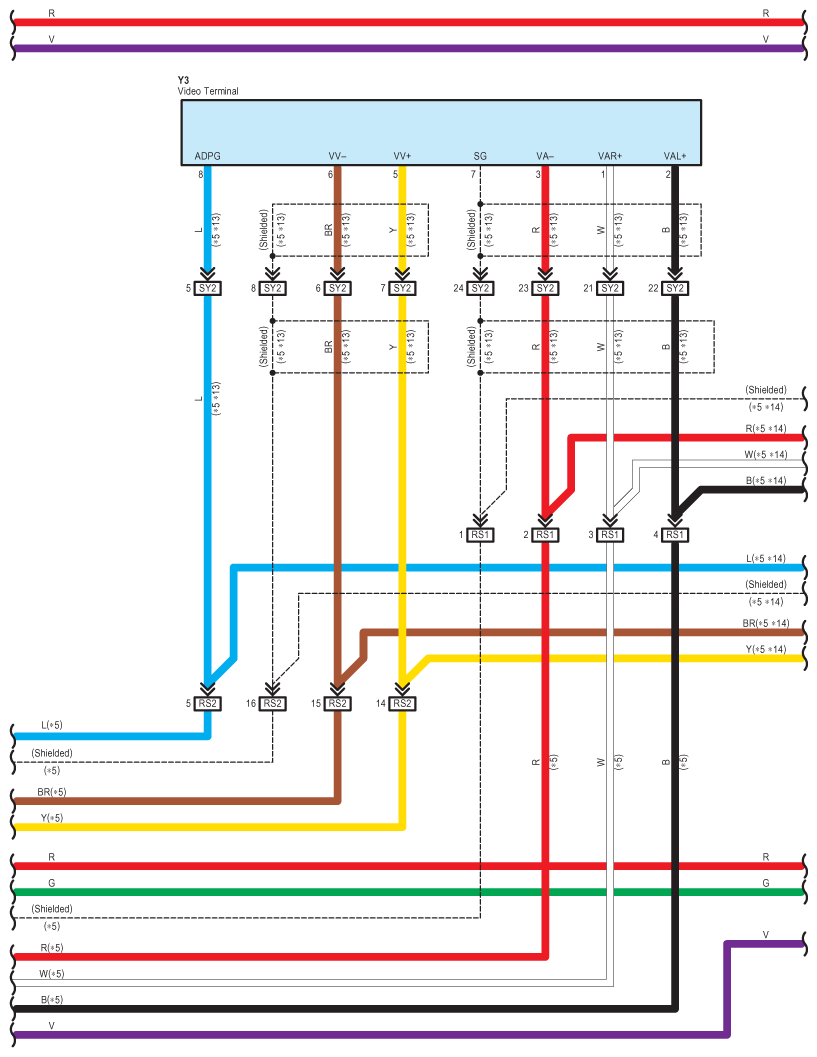

Fig 7: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (7 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

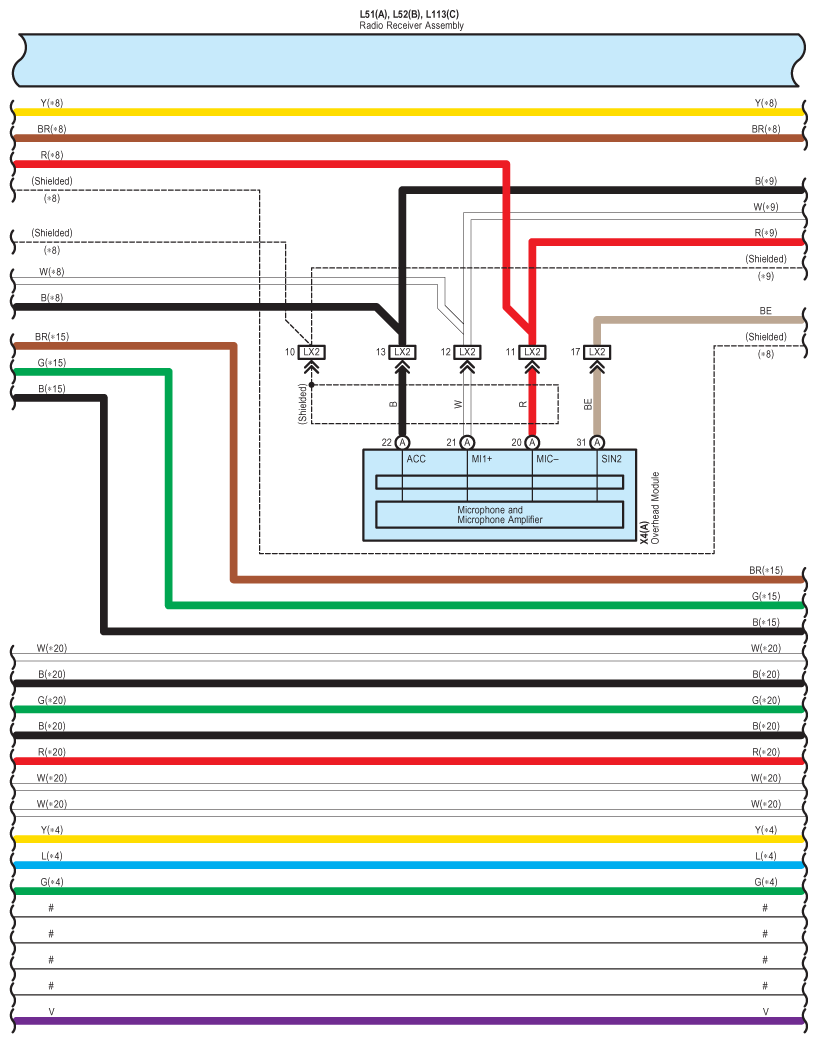

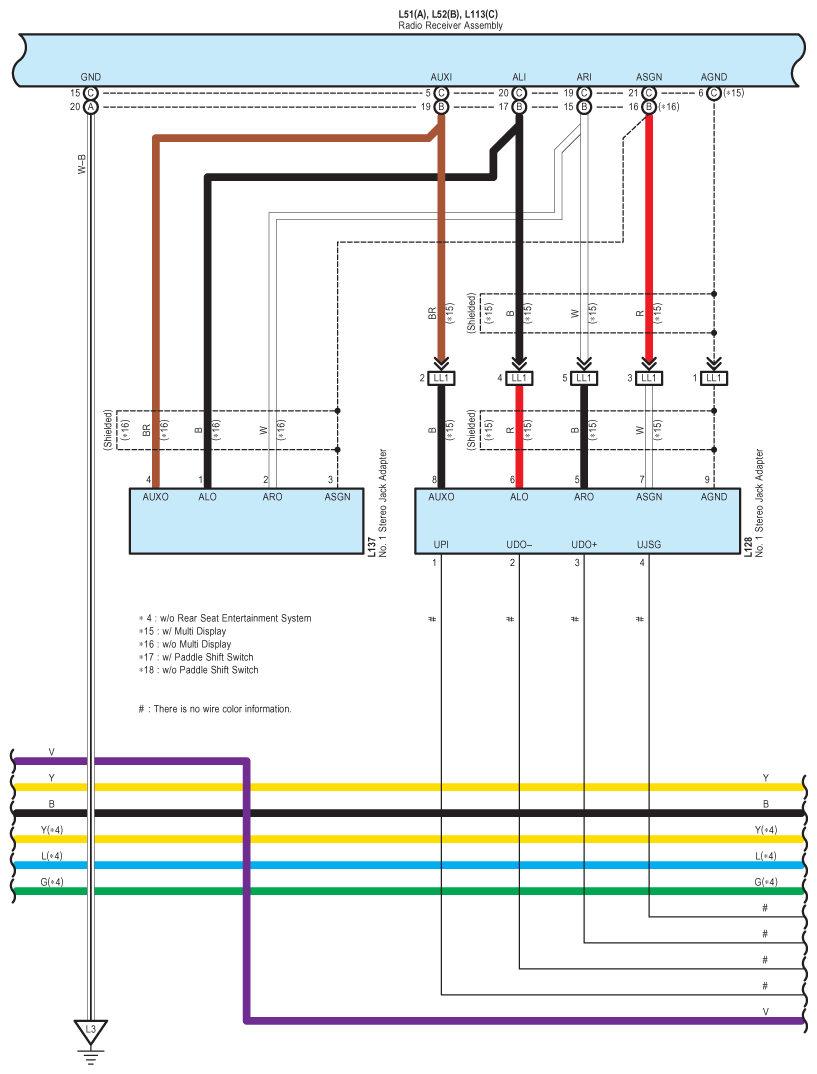

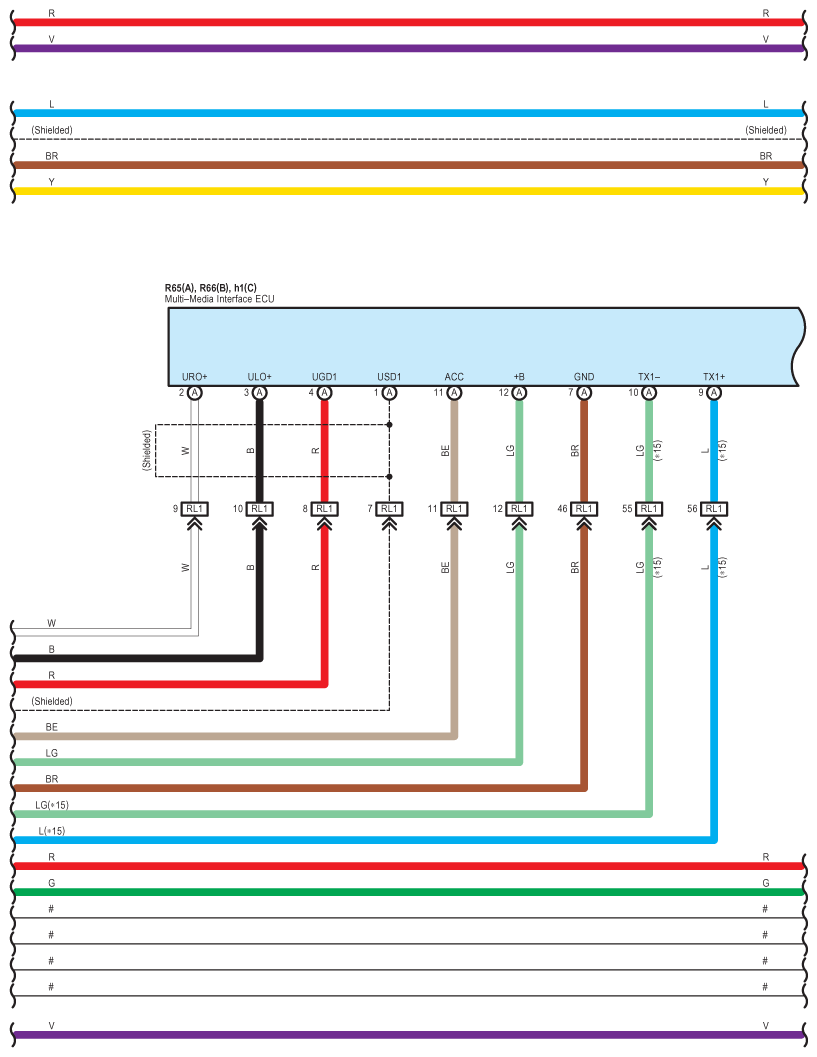

Fig 8: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (8 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (9 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (10 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (11 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (12 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (13 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (14 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (15 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (16 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (17 Of 24)

Fig 18: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (18 Of 24)

Fig 19: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (19 Of 24)

Fig 20: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (20 Of 24)

Fig 21: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (21 Of 24)

Fig 22: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (22 Of 24)

Fig 23: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (23 Of 24)

Fig 24: Audio System, LEXUS Navigation System, Multi-Display (W/O LEXUS Navigation System) And Parking Assist (Rear View Monitor) - Wiring Diagram (24 Of 24)
