Power Seat (Driver's Seat): Notes

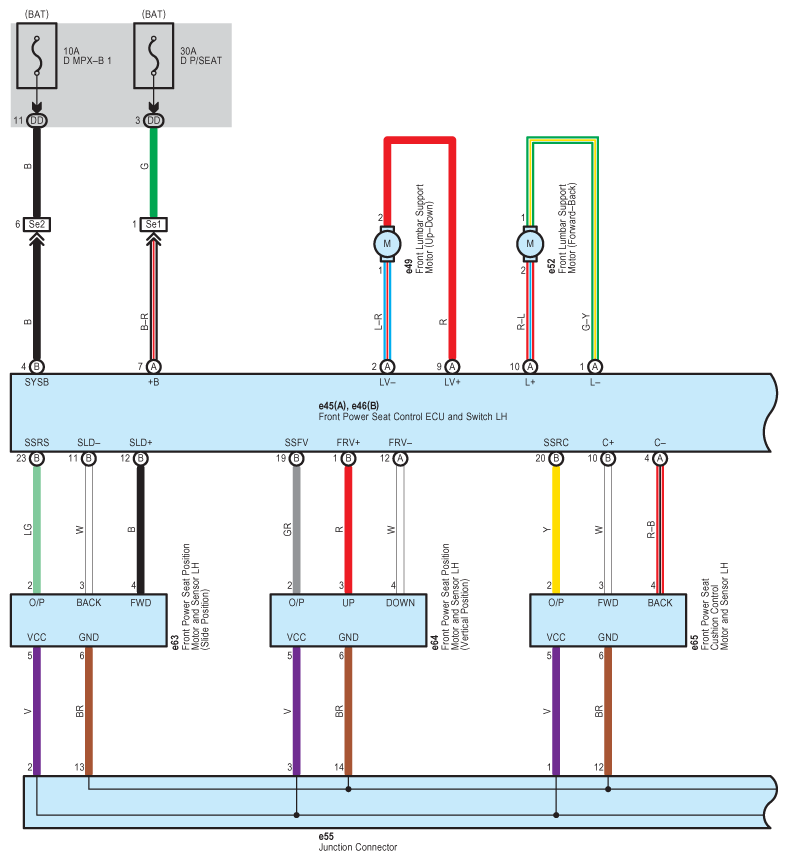

Fig 1: Power Seat (Driver's Seat) - Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

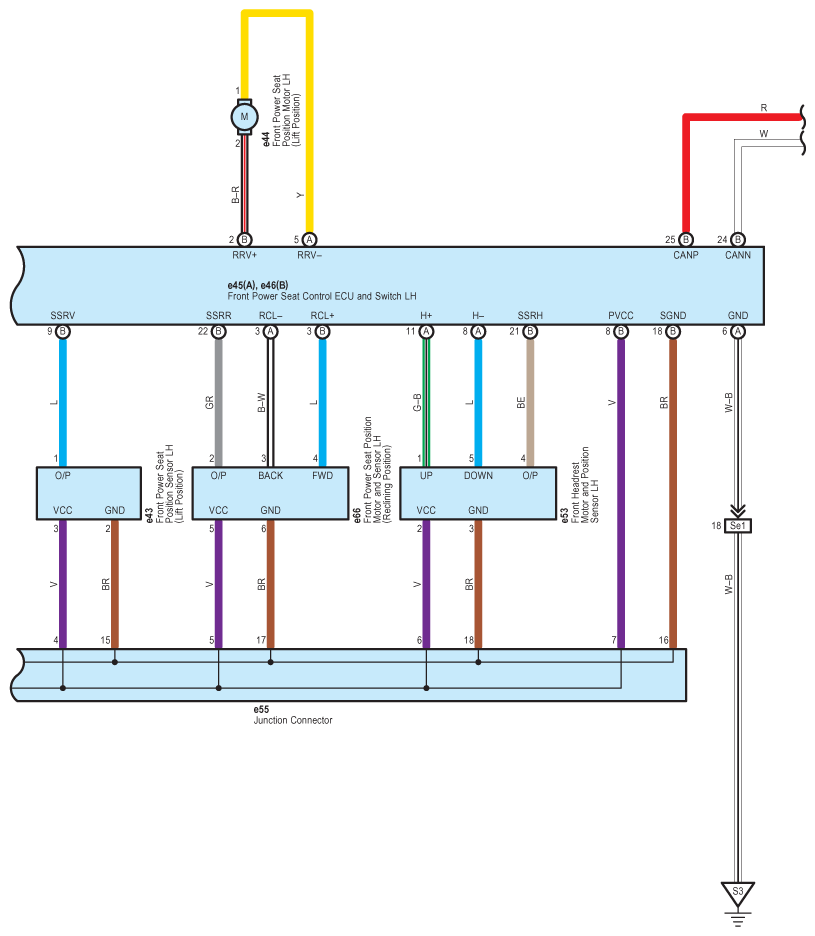

Fig 2: Power Seat (Driver's Seat) - Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

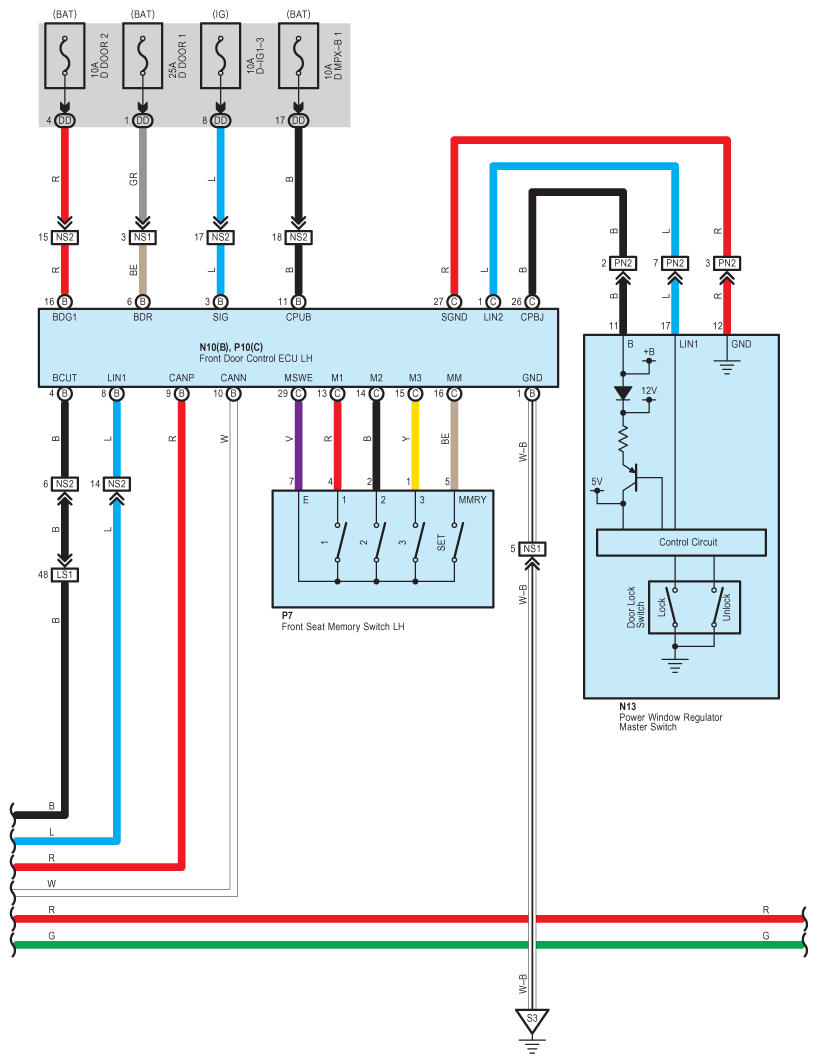

Fig 3: Power Seat (Driver's Seat) - Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

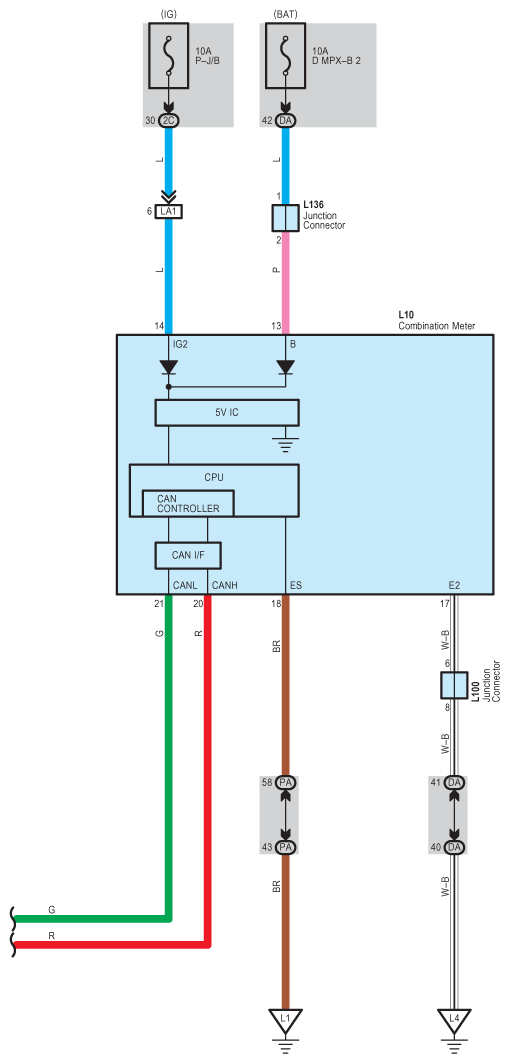

Fig 4: Power Seat (Driver's Seat) - Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

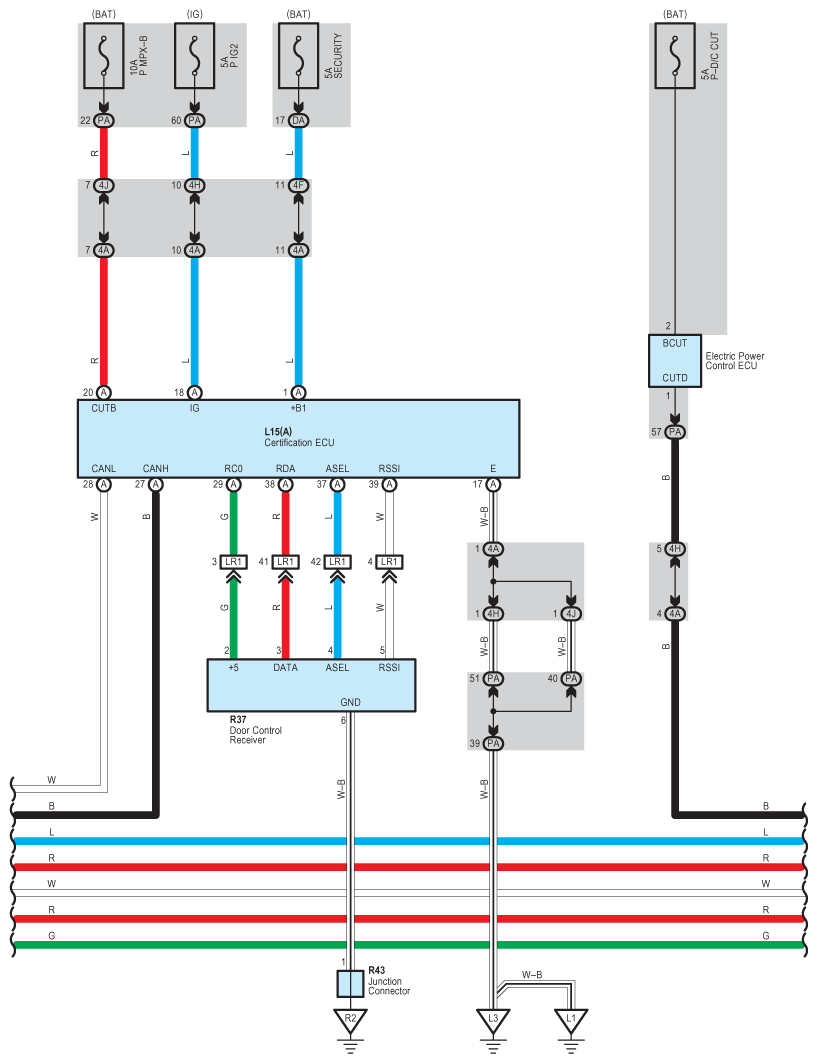

Fig 5: Power Seat (Driver's Seat) - Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Power Seat (Driver's Seat) - Wiring Diagram (6 Of 8)

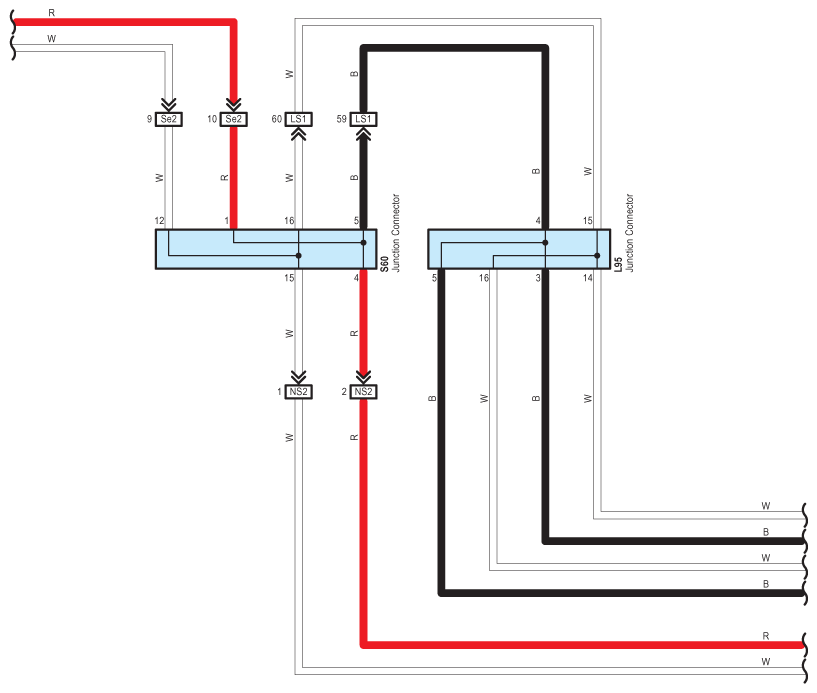

Fig 7: Power Seat (Driver's Seat) - Wiring Diagram (7 Of 8)

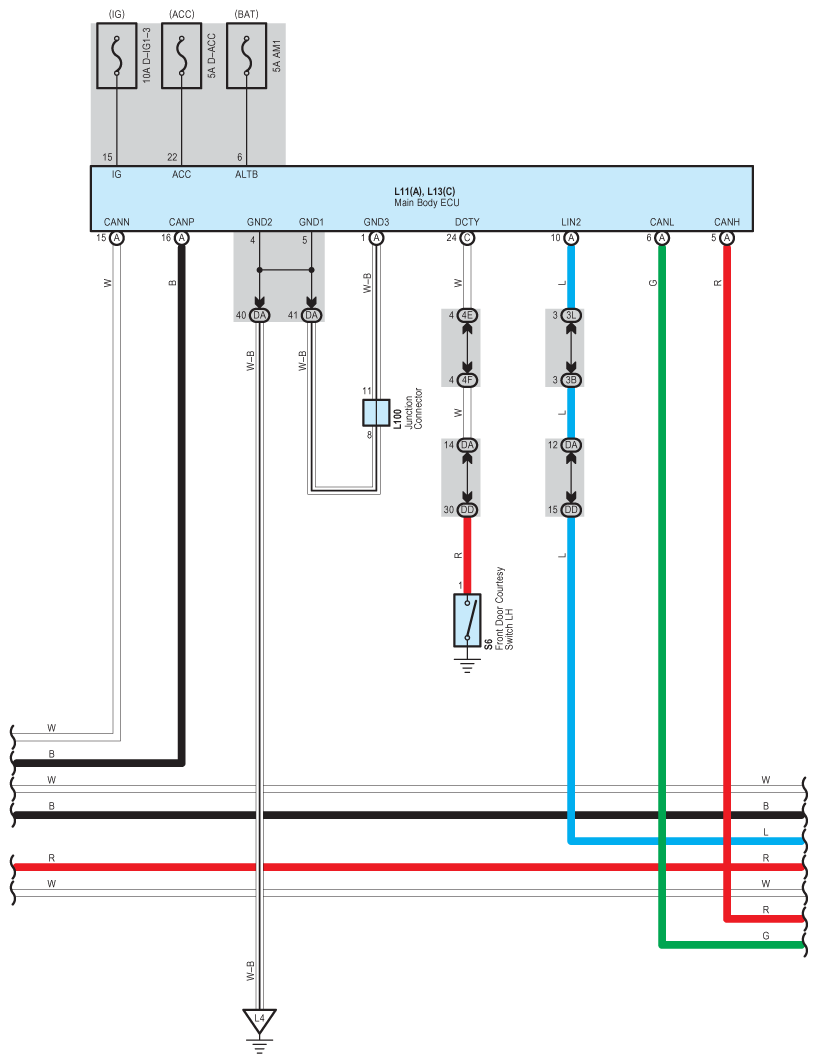

Fig 8: Power Seat (Driver's Seat) - Wiring Diagram (8 Of 8)
