Fuel Pressure Sensor: Inspection: Inspection

INSPECT FUEL PRESSURE SENSOR

Check the fuel pressure sensor output voltage.

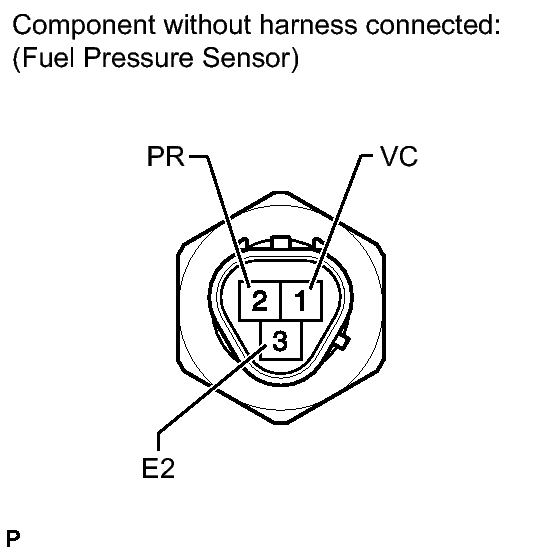

Fig 1: Identifying Fuel Pressure Sensor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage according to the value(s) in the table below.

Standard voltage

Tester Connection	Condition	Specified Condition
2 (PR) - 3 (E2)	Apply 5 V between terminals 1 (VC) and 3 (E2)	Approximately 0.5 V

If the result is not as specified, replace the fuel pressure sensor.

HINT:

The above voltage is output when pressure is not applied (0 kPa (0 kgf/cm² , 0 psi)) to the sensor.
