Intake Manifold: Installation: Installation

INSTALL INTAKE MANIFOLD
1. Install 2 new gaskets to the intake manifold.
2. Temporarily install the intake manifold with the 2 nuts and 8 bolts. Then tighten the 2 nuts and 8 bolts uniformly in the order shown.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

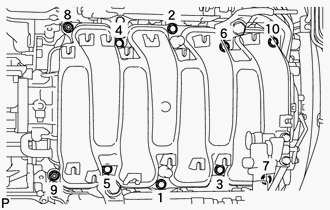

  Fig 1: Identifying Intake Manifold Bolts Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the PCV hose to the intake manifold.

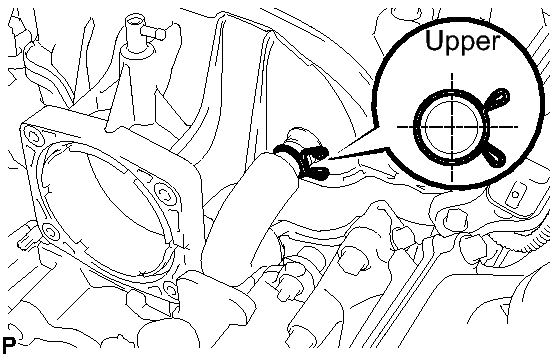

  Fig 2: Identifying PCV Hose And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Make sure that the clip is facing as shown.
INSTALL PURGE VSV

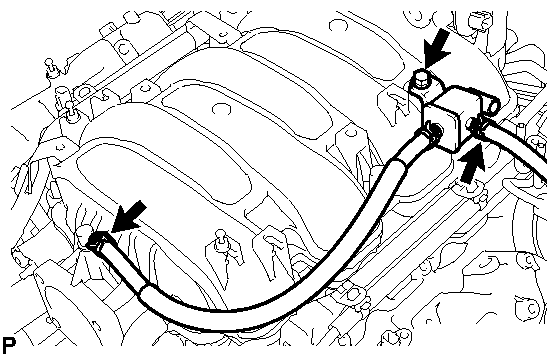

Fig 3: Identifying Fuel Vapor Feed Hose And No. 2 Fuel Vapor Feed Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the purge VSV with the bolt.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
2. Connect the fuel vapor feed hose to the intake manifold.
3. Connect the No. 2 fuel vapor feed hose to the purge VSV.
INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY
1. Install the water by-pass pipe to the intake manifold with the 2 bolts.

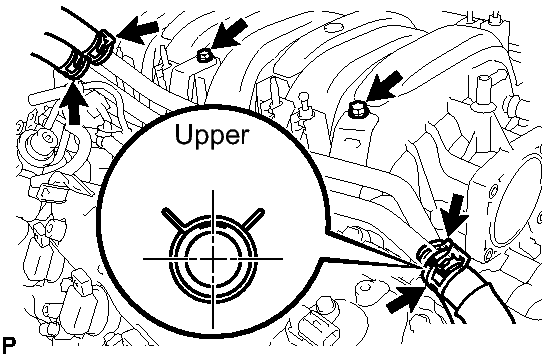

  Fig 4: Identifying Heater Water Inlet Hose And Water By-Pass Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the heater water inlet hose, heater water outlet hose, water inlet hose, and No. 3 water by-pass hose to the water by-pass pipe with the 4 clamps.
  NOTE: Make sure that the No. 3 water by-pass hose clamp is facing as shown.
INSTALL INJECTOR DRIVER

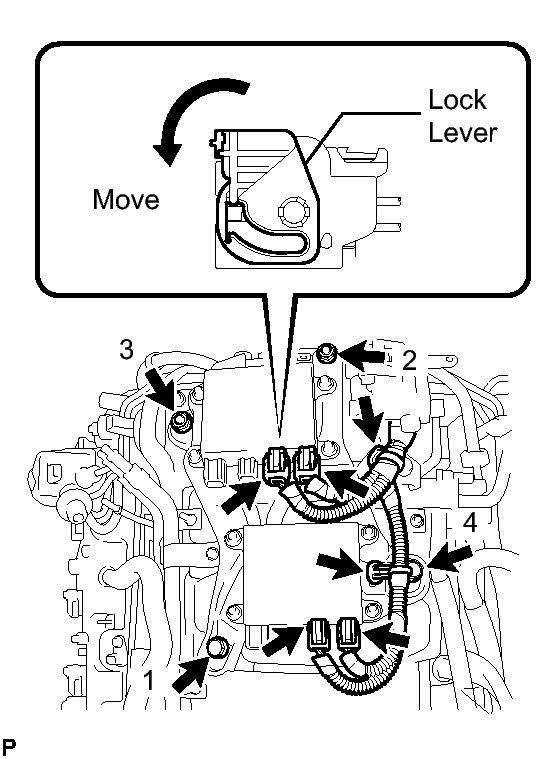

Fig 5: Identifying Injector Driver Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the injector driver to the intake manifold by installing the 2 bolts and 2 nuts in the order shown.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the 4 wire harness connectors to the injector driver. Then move the lock lever as shown to lock the connectors.
3. Connect the 2 clamps to the injector driver.
CONNECT ENGINE WIRE
1. for 2WD:
  1. Connect the engine wire harness connectors.
    HINT:

    To connect the injector driver connectors, move the lock lever to lock the connector.
  2. Connect the engine wire harness to the +B terminal of the generator assembly with the nut.
    Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
  3. Connect the 6 engine wire harness clamps.
  4. Connect the engine wire to the fusible link block assembly with the nut.
    Torque: 13 N*m (127 kgf*cm, 10 ft.*lbf)
  5. Connect the engine wire harness ground with the bolt.
    Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
  6. Install the 4 engine wire harness clamp brackets with the 4 bolts.
    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  7. Connect the engine wire harness with the 4 nuts.
    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

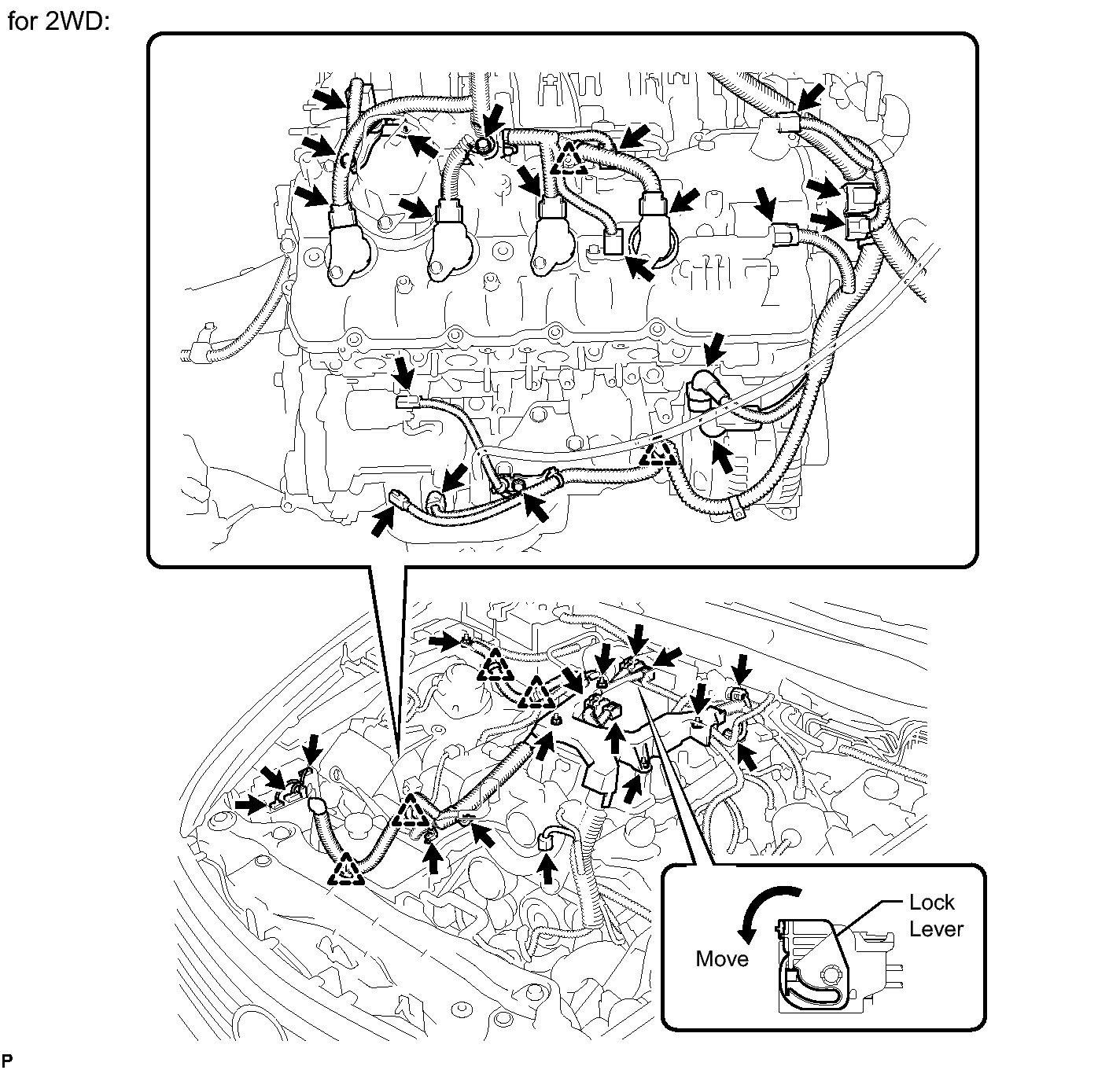

    Fig 6: Identifying Engine Wire Harness Clamps, Brackets With Fasteners (2WD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for AWD:
  1. Connect the engine wire harness connectors.
    HINT:

    To connect the injector driver connectors, move the lock lever to lock the connector.
  2. Connect the engine wire harness to the +B terminal of the generator assembly with the nut.
    Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
  3. Connect the 6 engine wire harness clamps.
  4. Connect the engine wire to the fusible link block assembly with the nut.
    Torque: 13 N*m (127 kgf*cm, 10 ft.*lbf)
  5. Connect the engine wire harness ground with the bolt.
    Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
  6. Install the 3 engine wire harness clamp brackets with the 3 bolts.
    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  7. Connect the engine wire harness with the 4 nuts.
    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

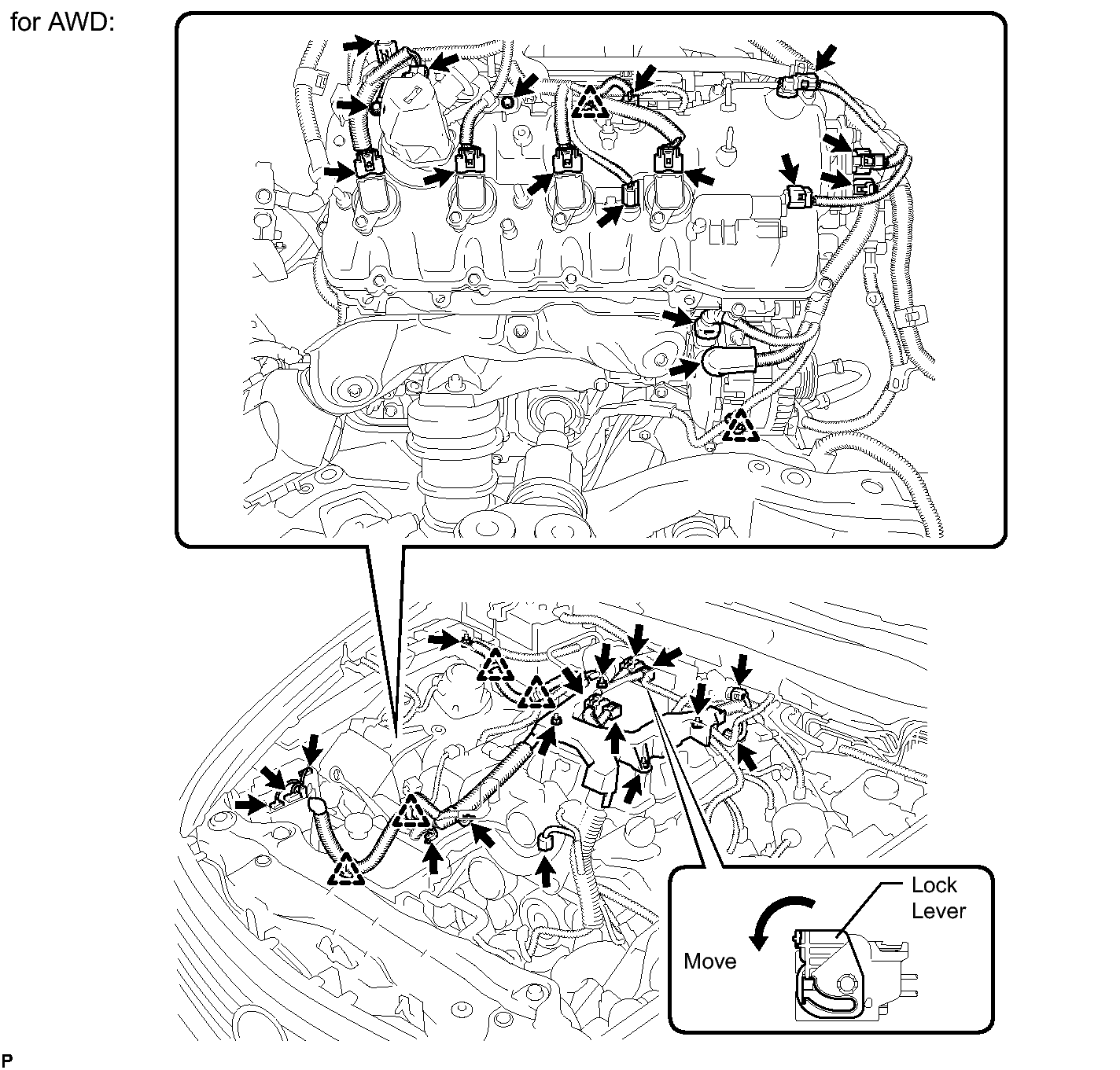

    Fig 7: Identifying Engine Wire Harness Clamps, Brackets With Fasteners (AWD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

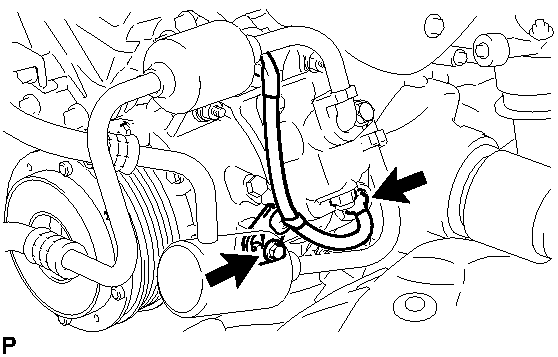

  8. Connect the wire harness bracket with the bolt.

    Fig 8: Identifying Bolt And Wire Harness Bracket
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  9. Connect the cooler compressor connector.
  10. Install the clamp bracket with the bolt.

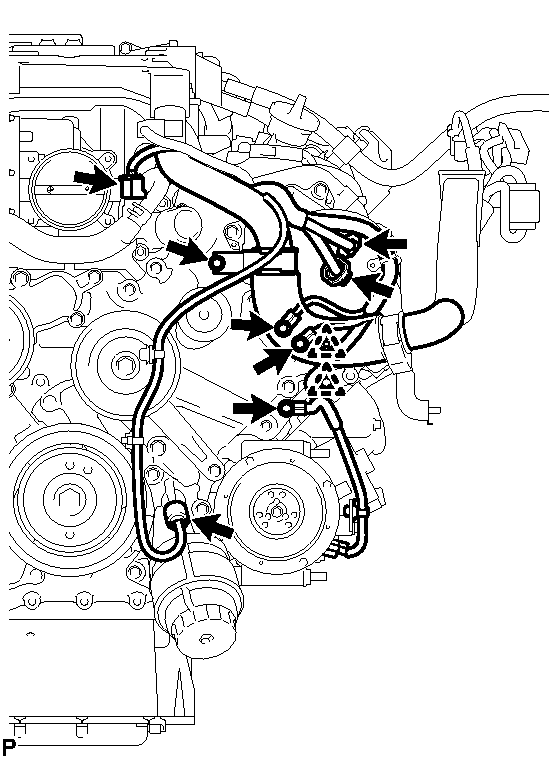

    Fig 9: Identifying Camshaft Timing Control Motor Connectors, Bolts And Clamps
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  11. Connect the 2 clamps and 3 ground wires with the 3 bolts.
    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  12. Connect the 2 camshaft timing control motor connectors (for Bank 1).
  13. Connect the oil pressure sensor connector.
  14. Connect the engine coolant temperature sensor connector.
  15. Connect the clamp and install the 2 clamp brackets with the 2 bolts.

    Fig 10: Identifying Camshaft Timing Control Valve Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
  16. Connect the No. 8 engine wire connector.
  17. Connect the fuel pump connector (for high pressure).
  18. Connect the 2 VVT sensor connectors.
  19. Connect the 4 ignition coil connectors.
  20. Connect the camshaft timing control valve connector.
INSTALL AIR CLEANER ASSEMBLY LH
1. Install the air cleaner case with the 2 nuts and clip.

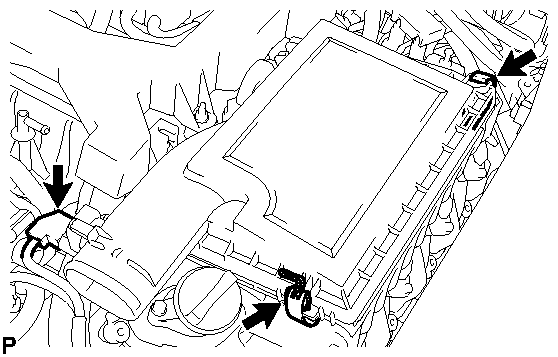

  Fig 11: Identifying Air Cleaner Case Nuts And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Install the air cleaner filter element to the air cleaner case.
3. Install the air cleaner cap with the 2 clamps.

  Fig 12: Identifying Air Cleaner Cap With Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the MAF meter connector.
INSTALL AIR CLEANER ASSEMBLY RH
1. Install the air cleaner case with the 2 nuts and clip.

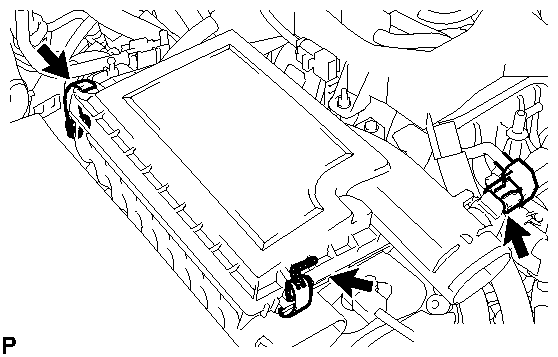

  Fig 13: Identifying Air Cleaner Case Nuts And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Install the air cleaner filter element to the air cleaner case.
3. Install the air cleaner cap with the 2 clamps.

  Fig 14: Identifying MAF Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the MAF meter connector.
INSTALL THROTTLE BODY . Refer to INSTALLATION - Step 1
INSTALL INTAKE AIR CONNECTOR PIPE . Refer to INSTALLATION - Step 2
INSTALL NO. 1 AIR CLEANER INLET . Refer to INSTALLATION - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 6
INSPECT FOR ENGINE COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL ENGINE ROOM SIDE COVER RH . Refer to INSTALLATION - Step 102
INSTALL AIR CLEANER INLET COVER . Refer to INSTALLATION - Step 7
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 8
INSTALL NO. 2 ENGINE UNDER COVER . Refer to INSTALLATION - Step 96
INSTALL FRONT SUSPENSION MEMBER PROTECTOR LOWER . Refer to INSTALLATION - Step 95
INSTALL NO. 1 ENGINE UNDER COVER . Refer to REPLACEMENT - Step 11
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
