STARTER (For AWD): Components: Illustration

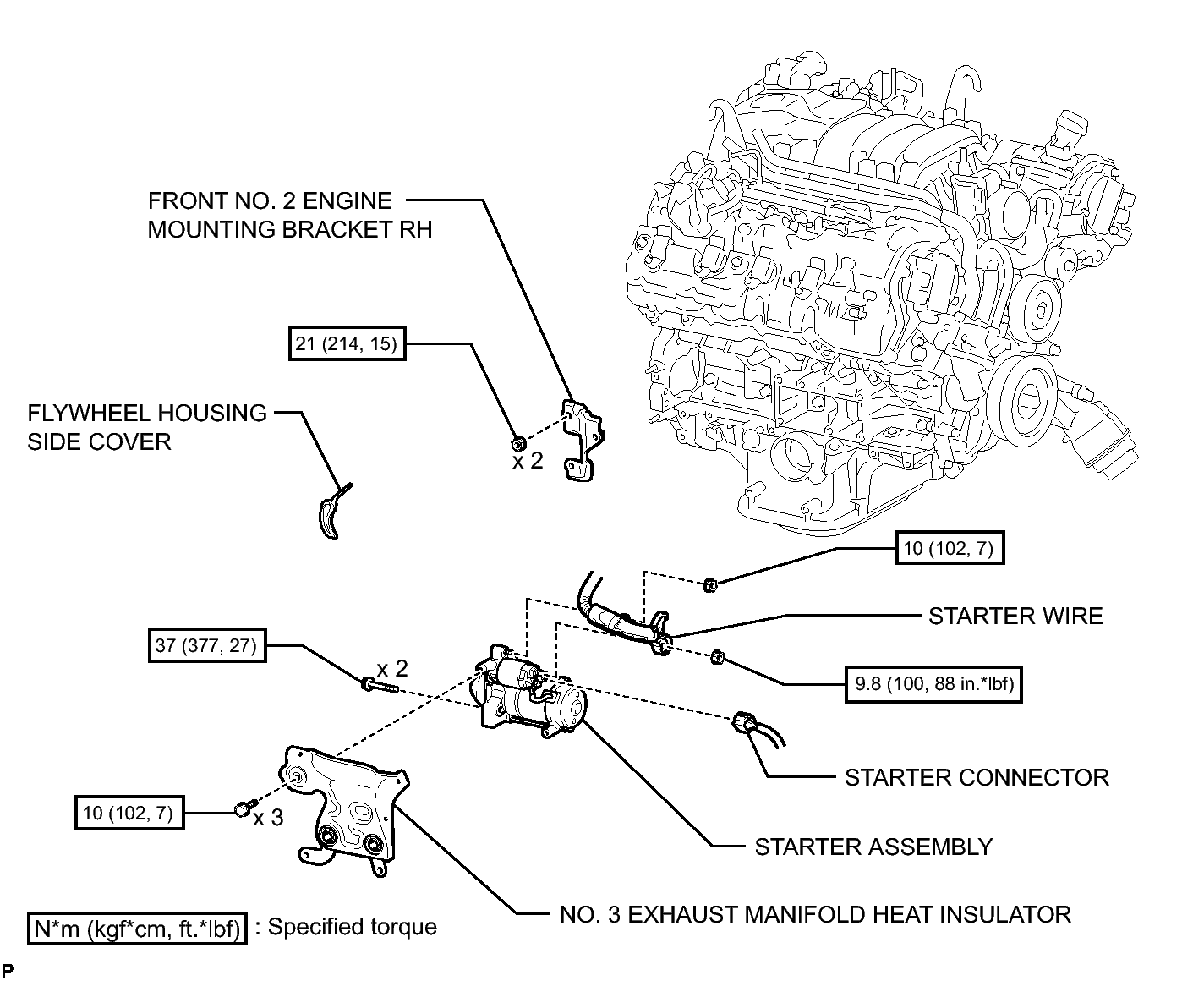

Fig 1: Identifying Starter (For AWD) Replacement Components With Torque Specifications (1 Of 2)
GTY288361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

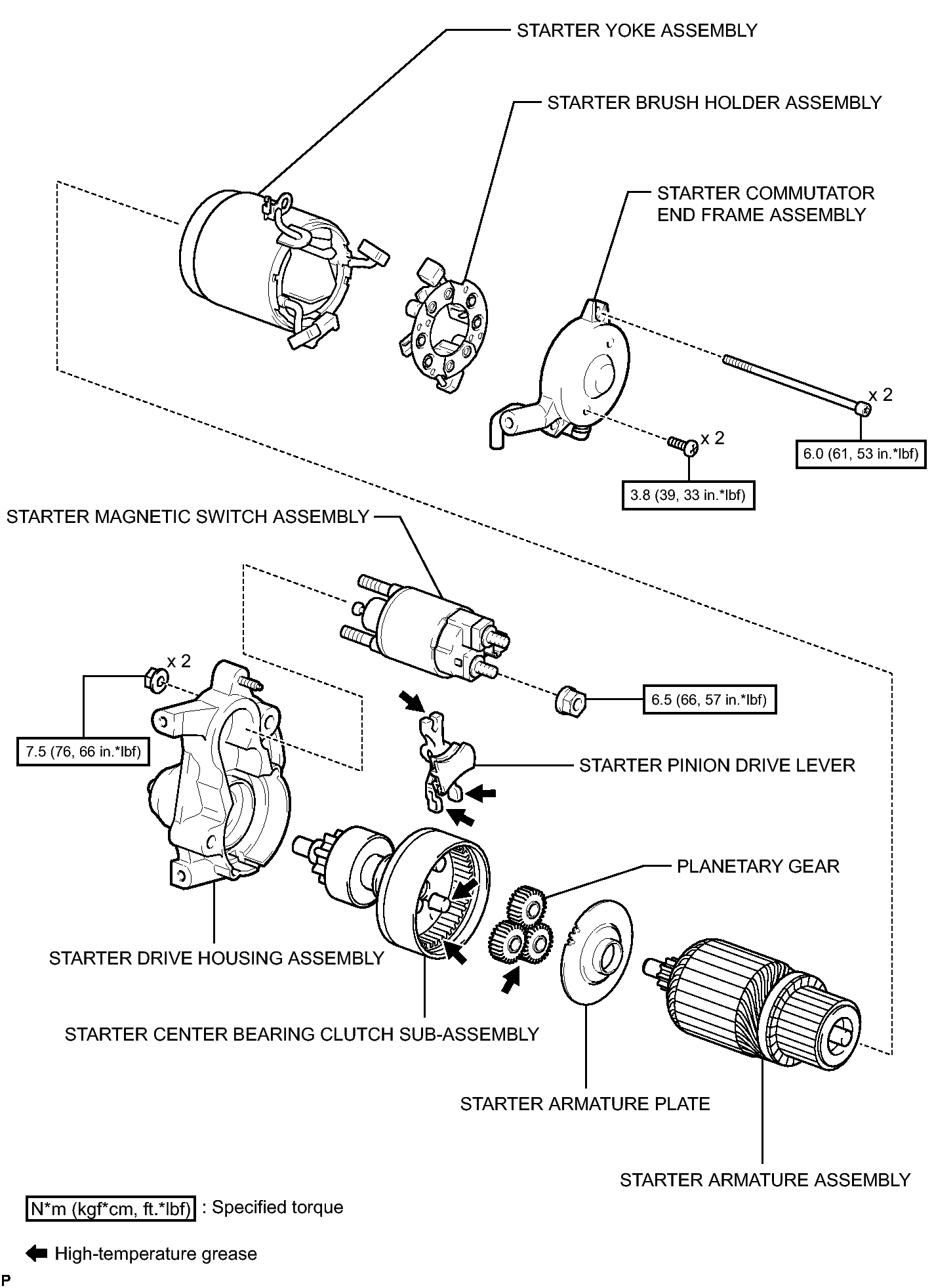

Fig 1: Identifying Starter (For AWD) Replacement Components With Torque Specifications (2 Of 2)
GTY288446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
