Child Restraint Seat Tether Anchor: Installation: Installation

INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
1. for 4-Passenger with Ottoman:
  Install the 2 child restraint seat tether anchor brackets with the 2 bolts.

  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)
2. Except 4-Passenger with Ottoman:
  Install the 3 child restraint seat tether anchor brackets with the 3 bolts.

  Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)

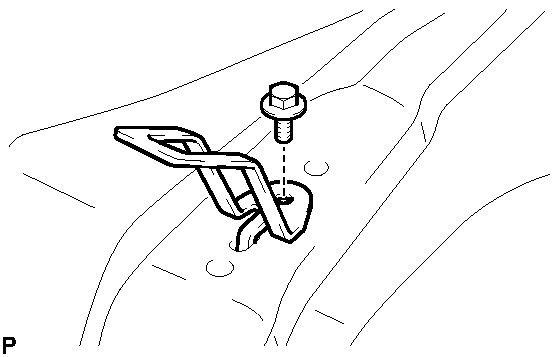

  Fig 1: Identifying Bolts And Child Restraint Seat Tether Anchor Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) . Refer to INSTALLATION - Step 8
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) See step 10
INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER
1. Attach the 2 clips and 2 claws, and install the anchor cover.

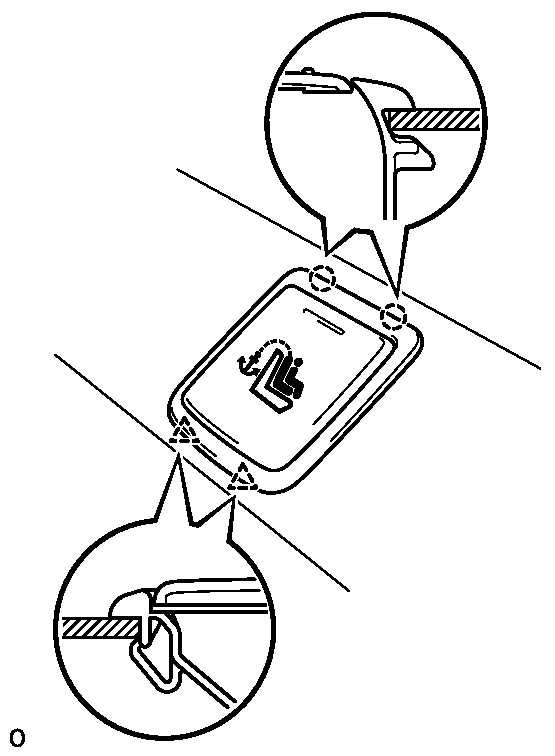

  Fig 2: Identifying Clips, Claws And Anchor Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE GARNISH INNER LH . Refer to INSTALLATION - Step 21
INSTALL ROOF SIDE GARNISH INNER RH . Refer to INSTALLATION - Step 22
INSTALL REAR SEAT SIDE GARNISH LH . Refer to INSTALLATION - Step 21
INSTALL REAR SEAT SIDE GARNISH RH . Refer to INSTALLATION - Step 24
INSTALL REAR DOOR SCUFF PLATE LH
1. for Standard Body:
  Install the rear door scuff plate. Refer to INSTALLATION - Step 31 .
2. for Long Body:
  Install the rear door scuff plate. Refer to INSTALLATION - Step 34 .
INSTALL REAR DOOR SCUFF PLATE RH
1. for Standard Body:
  Install the rear door scuff plate. Refer to INSTALLATION - Step 32 .
2. for Long Body:
  Install the rear door scuff plate. Refer to INSTALLATION - Step 35 .
INSTALL REAR SEAT ASSEMBLY
1. for Power Seat:
  Install the rear seat. Refer to INSTALLATION .
2. for Ottoman:
  Install the rear seat. Refer to INSTALLATION .
3. for Fixed Seat Type:
  Install the rear seat. Refer to INSTALLATION .
