Steering Control Ecu: Installation: Installation

INSTALL STEERING CONTROL ECU
1. Install the ECU with the 3 screws.

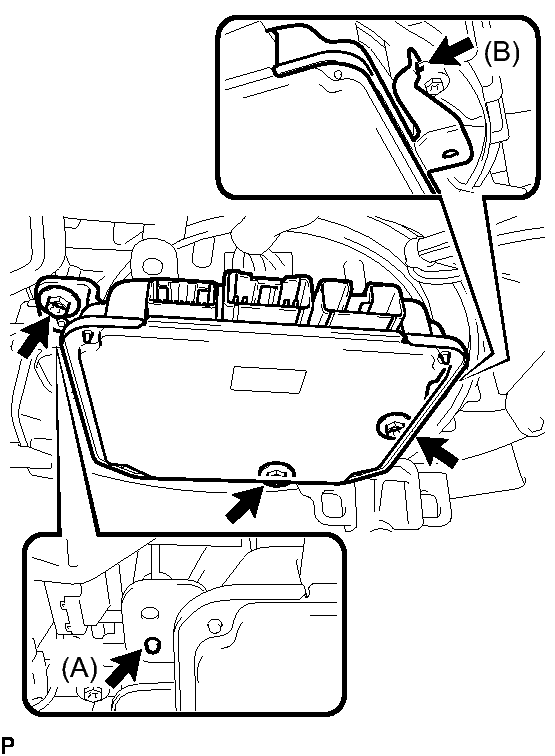

  Fig 1: Identifying Steering Control ECU Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  HINT:
  - Securely attach the hook (B) of the ECU to the blower.
  - Align positioning boss (A) of the blower with the hole of the ECU.
2. Connect the 3 ECU connectors.

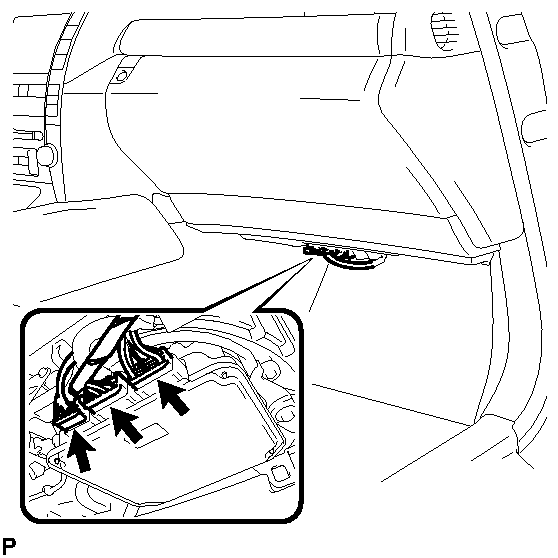

  Fig 2: Identifying ECU Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 22
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
CHECK SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
PERFORM INITIALIZATION
Refer to INITIALIZATION

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION
Refer to CALIBRATION
