Engine Switch: Removal: Removal

  1. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL - Step 1
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
    NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
  3. REMOVE INSTRUMENT SIDE PANEL LH  . Refer to REMOVAL - Step 8
  4. REMOVE NO. 1 INSTRUMENT CLUSTER MOLDING  . Refer to REMOVAL - Step 9
  5. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  6. REMOVE ENGINE SWITCH
    1. Disconnect the switch connector.

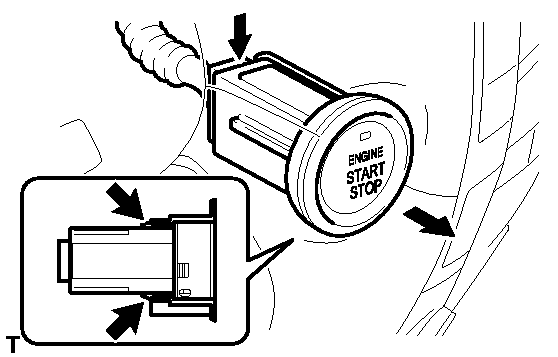

      Fig 1: Identifying Claws And Switch
      GTY263026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 claws and remove the switch.
