Service Data





SERVICE SPECIFICATIONS: 2UR-FSE ENGINE MECHANICAL: SERVICE DATA

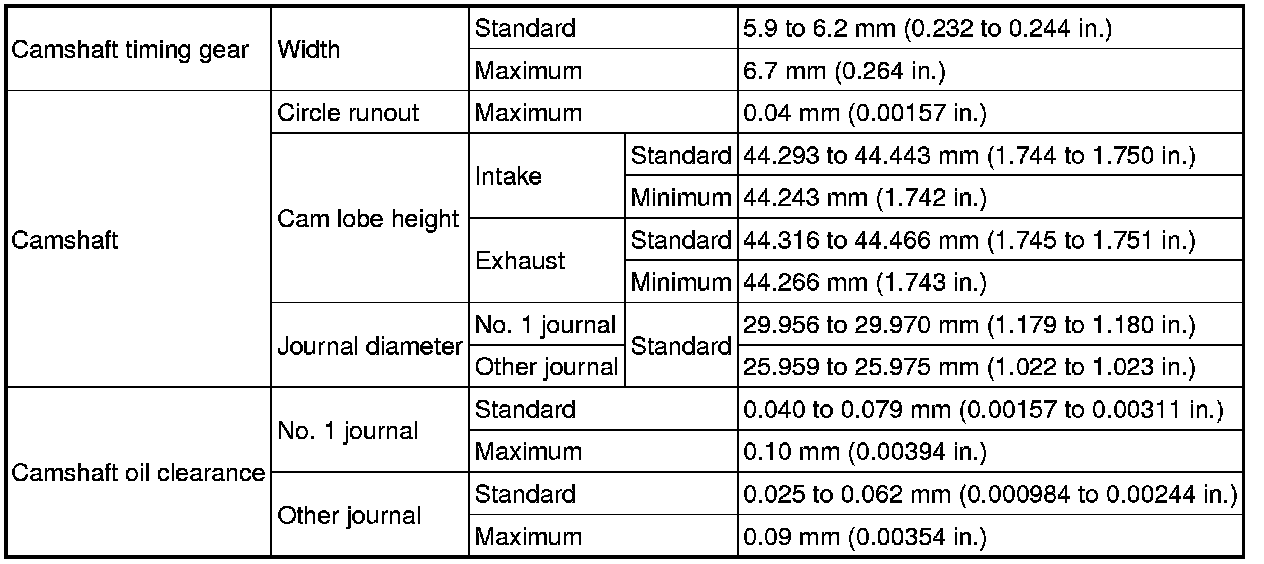

CAMSHAFT

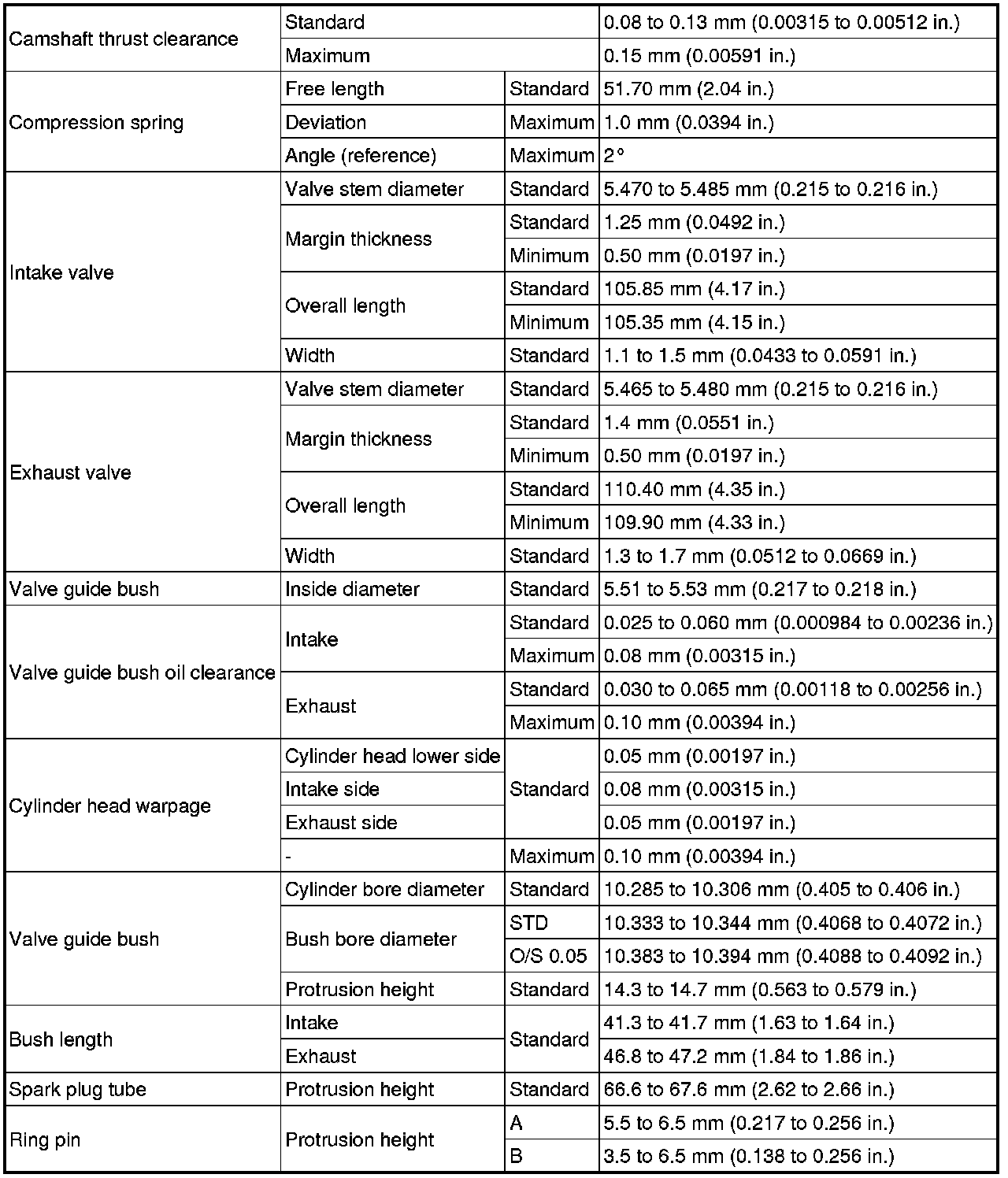

CYLINDER HEAD

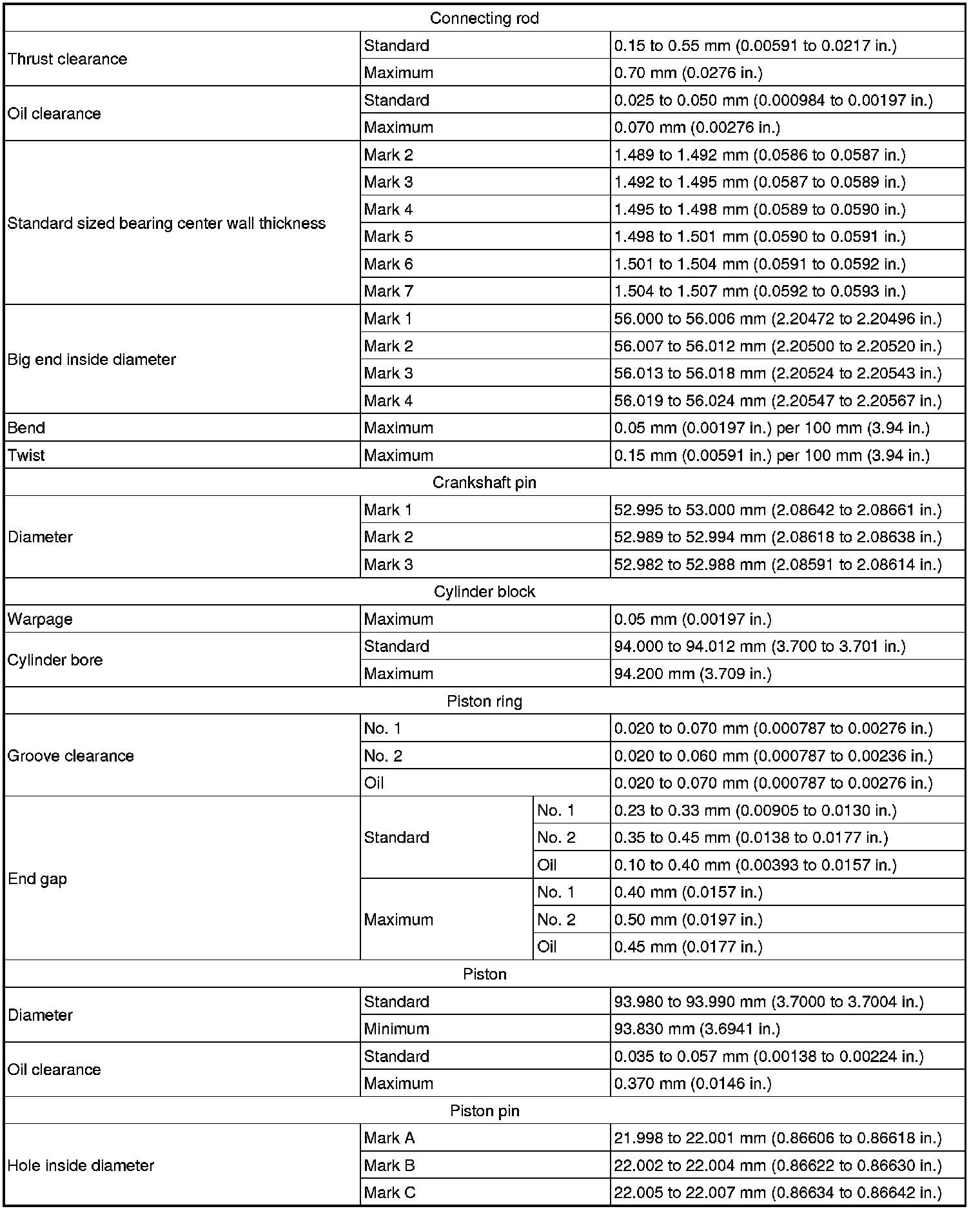

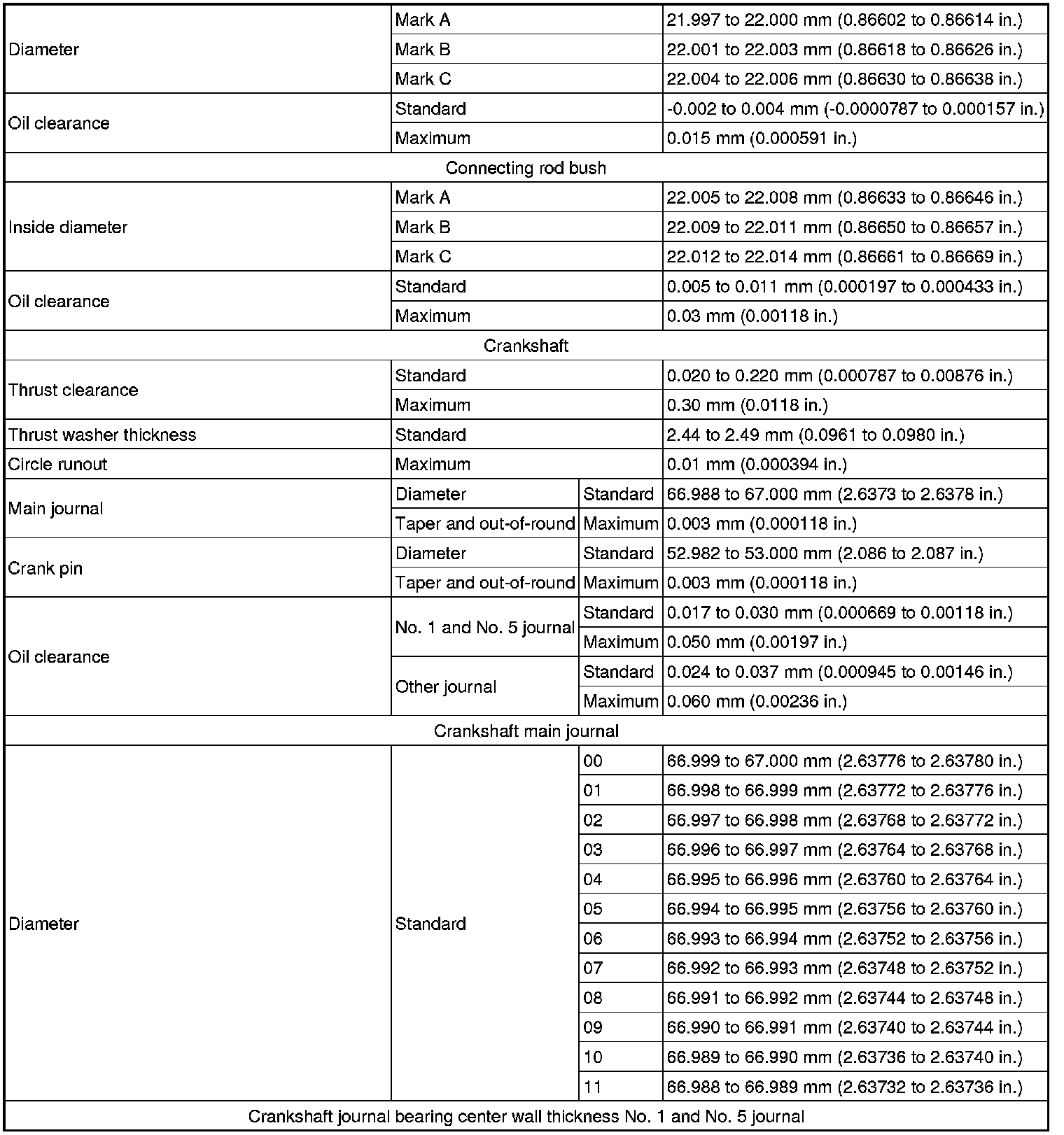

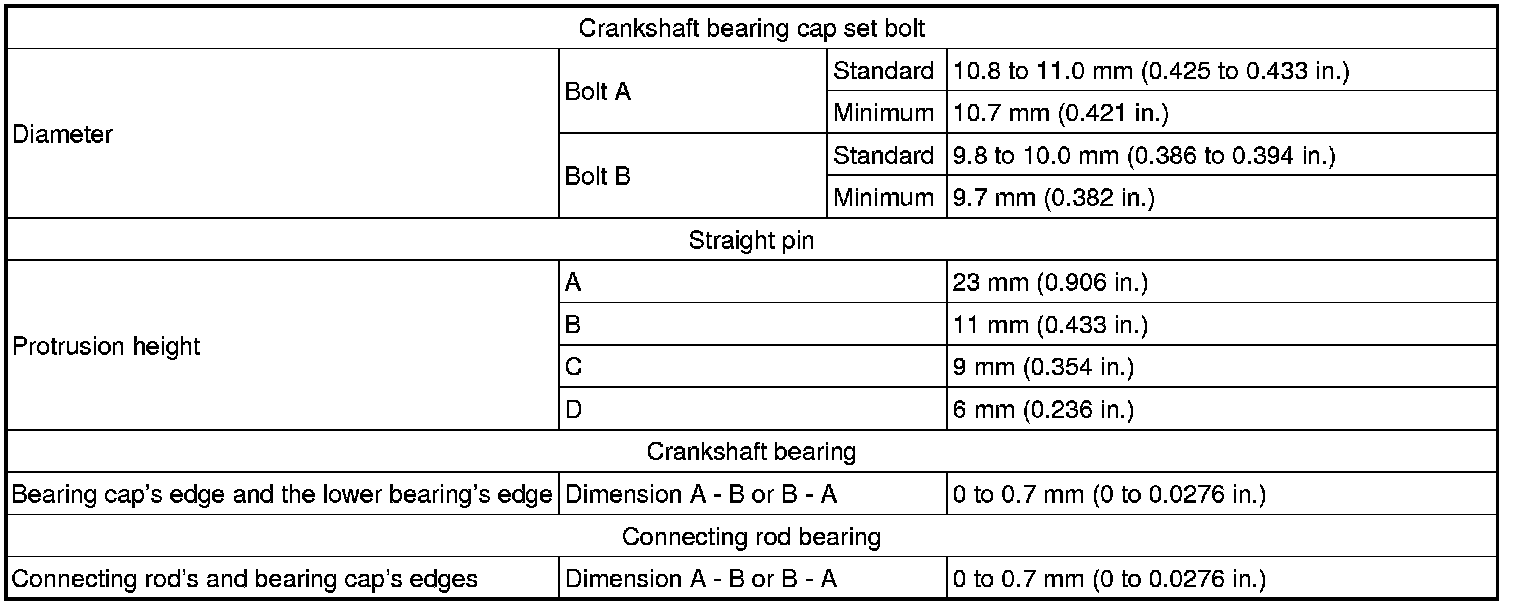

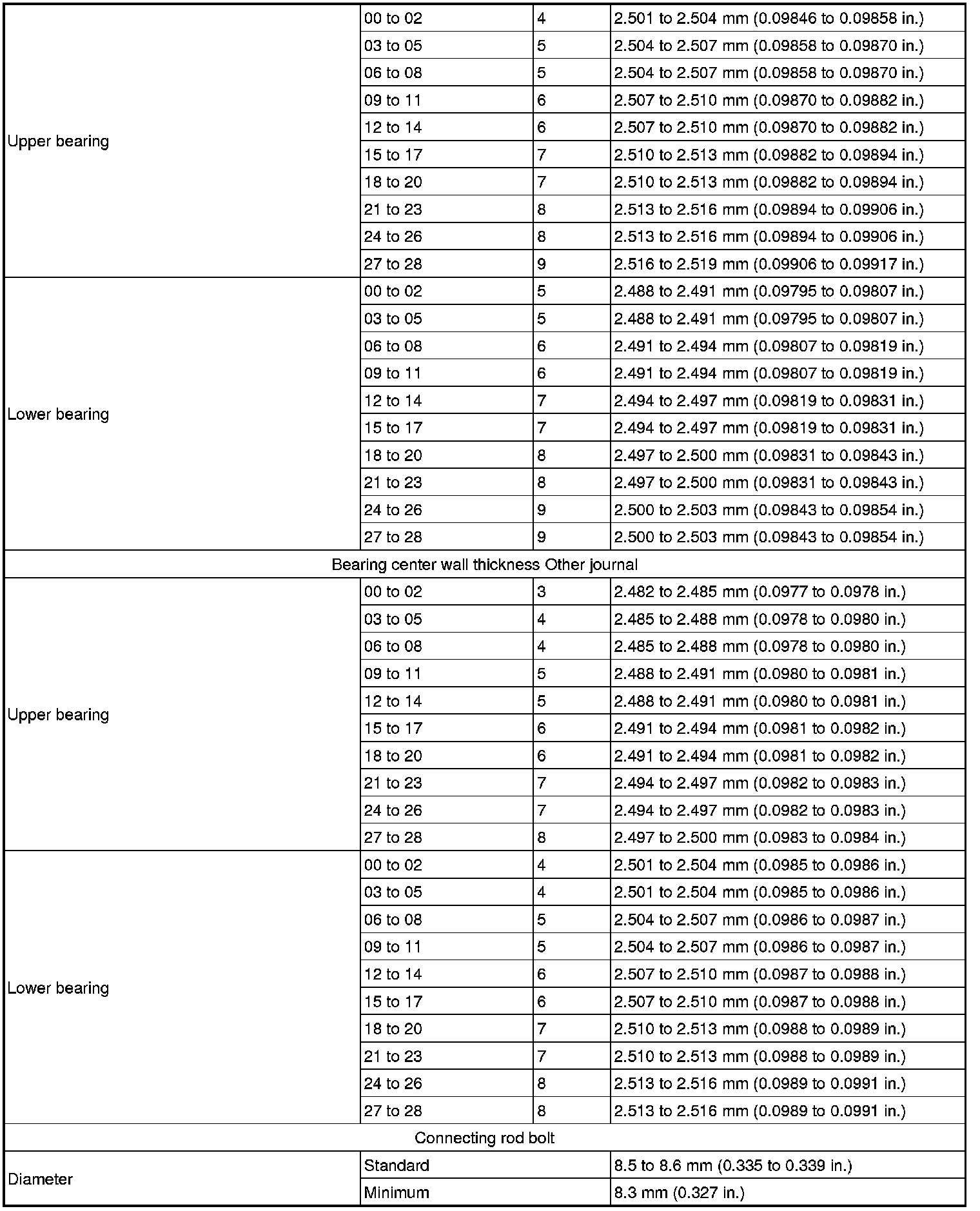

CYLINDER BLOCK

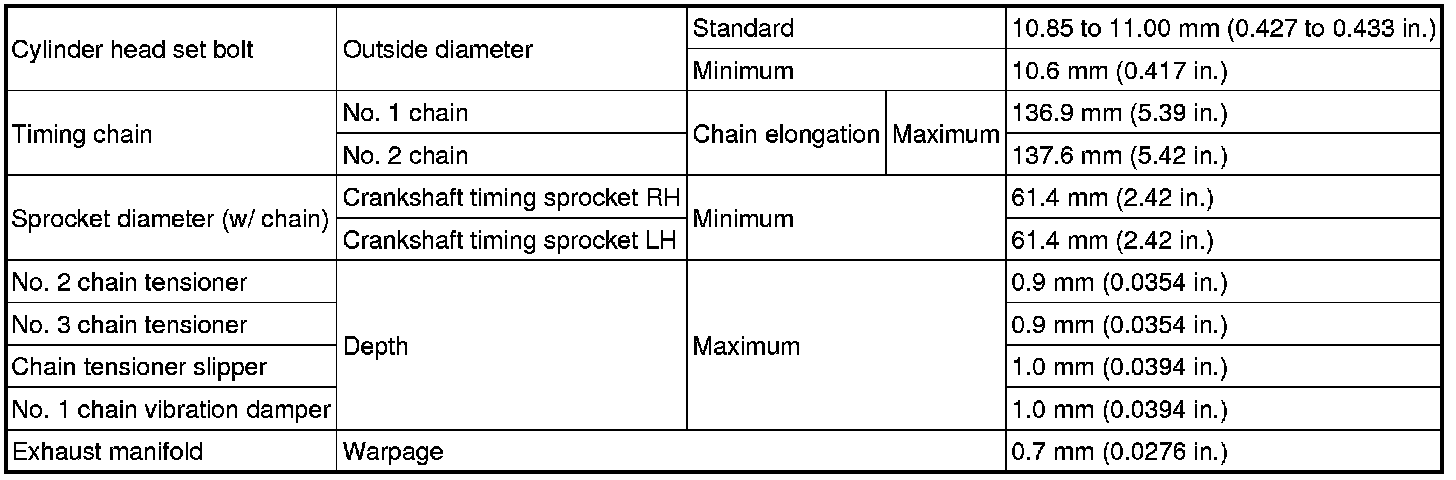

ENGINE UNIT
