Power Switch: Installation: Installation

  1. INSTALL POWER SWITCH

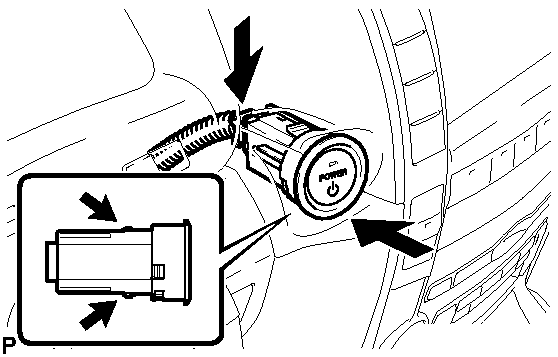

      Fig 1: Identifying Power Switch & Connector (Installation)
      GTY143428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 claws to install the switch.
    2. Connect the switch connector.
  2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 27
  3. INSTALL NO. 1 INSTRUMENT CLUSTER MOLDING  . Refer to INSTALLATION - Step 28
  4. INSTALL INSTRUMENT SIDE PANEL LH  . Refer to INSTALLATION - Step 29
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  6. INSTALL BATTERY SERVICE HOLE COVER LH  . Refer to INSTALLATION - Step 15
  7. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
