Steering Column Assembly: Installation: Installation

INSTALL STEERING COLUMN ASSEMBLY (TILT STEERING GEAR ASSEMBLY WITH MOTOR)
1. Install the steering column assembly with the 4 nuts.

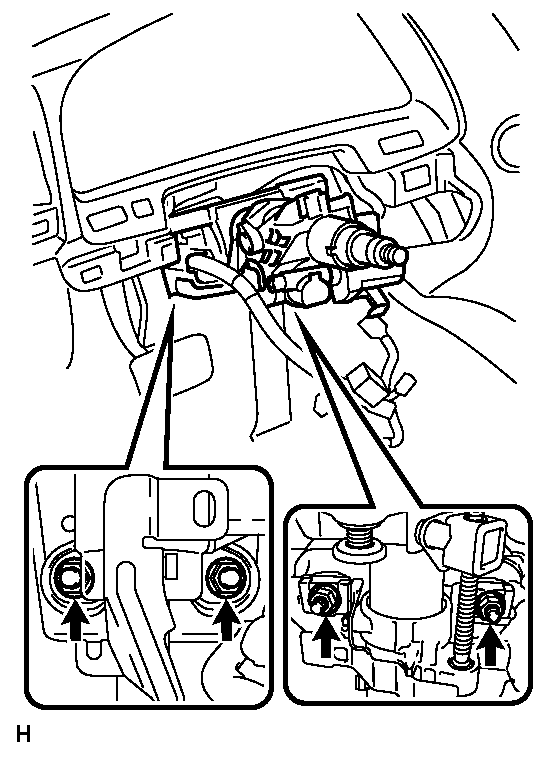

  Fig 1: Locating Steering Column Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)
2. Connect the connectors and wire harness clamps to the steering column assembly.
INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
1. Install the clamp to the steering column hole cover.

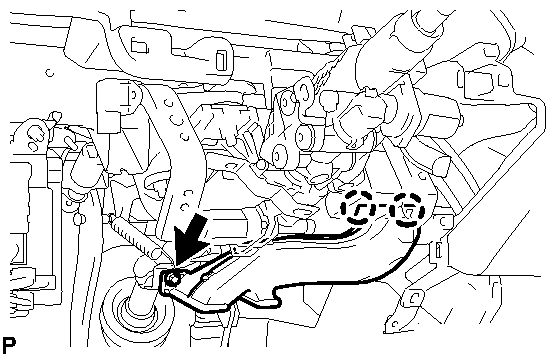

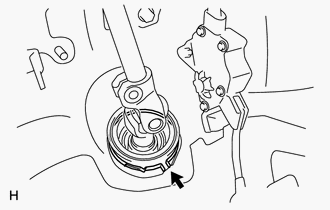

  Fig 2: Locating Steering Column Hole Shield Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering column.

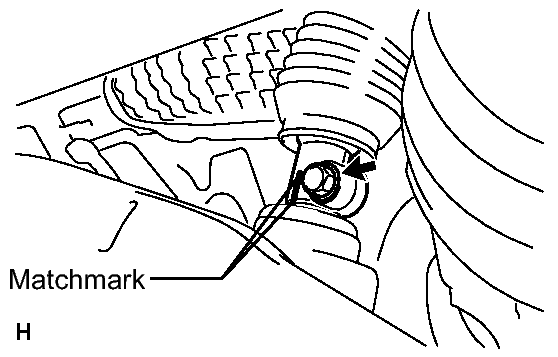

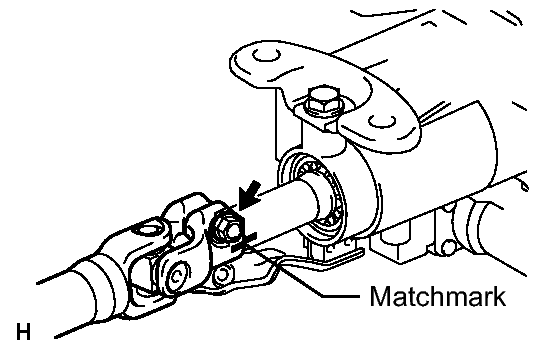

  Fig 3: Identifying Matchmarks Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
4. Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering link.
5. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
PLACE FRONT WHEELS FACING STRAIGHT AHEAD
INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY

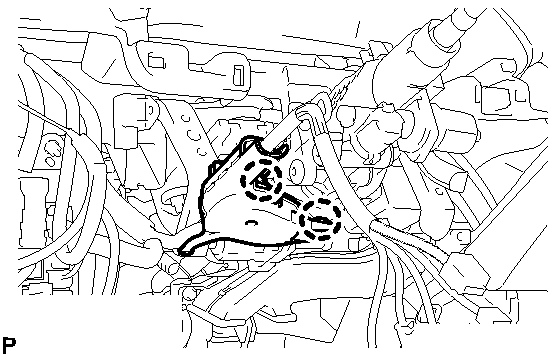

Fig 5: Locating Bolt And Air Duct
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Attach the 2 claws to install the air duct.
2. Install the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
3. Attach the 2 claws and install the wiring harness protector.
INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY . Refer to INSTALLATION - Step 27
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 24
INSTALL INSTRUMENT PANEL FINISH PANEL END LH . Refer to INSTALLATION - Step 8
INSTALL NO. 1 INSTRUMENT CLUSTER MOLDING . Refer to INSTALLATION - Step 28
INSTALL INSTRUMENT SIDE PANEL LH . Refer to INSTALLATION - Step 29
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 26
INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
1. Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.

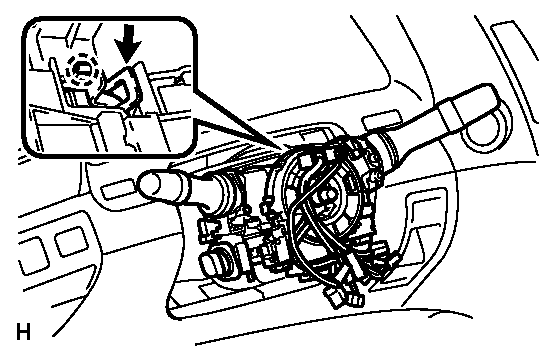

  Fig 7: Identifying Clamp At Rear Of Turn Signal Switch With Spiral Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
INSTALL TILT AND TELESCOPIC SWITCH
1. Attach the claw to install the switch.

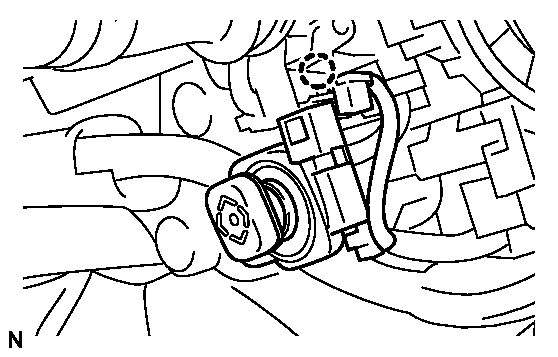

  Fig 8: Identifying Tilt And Telescopic Switch Connector With Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the switch connector.
INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)
1. Attach the claw to install the upper steering column cover.

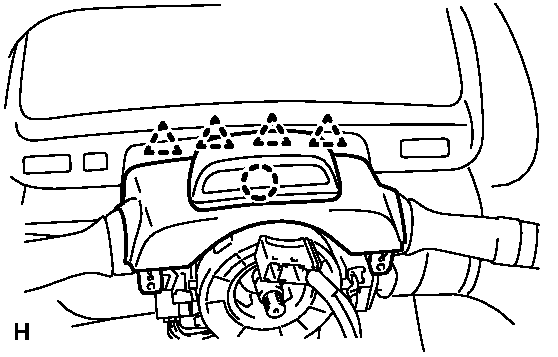

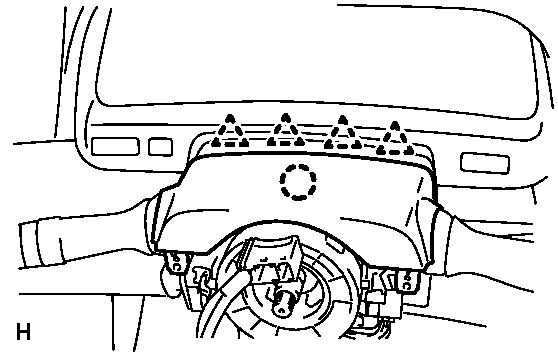

  Fig 9: Identifying Clips On Steering Column Cover Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 4 clips to install the upper steering column cover onto the instrument cluster finish panel.
3. Attach the 2 claws to install the lower steering column cover.

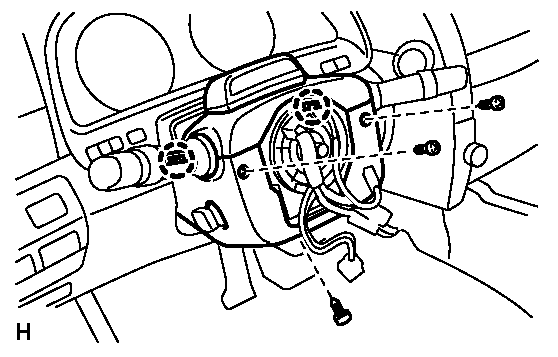

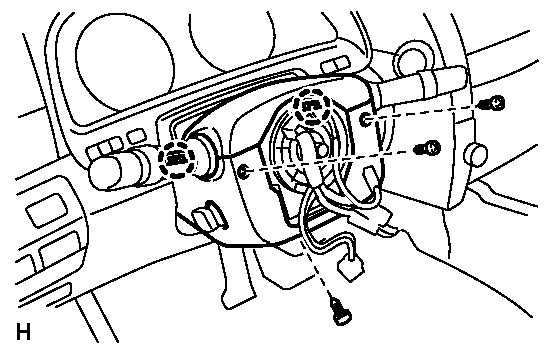

  Fig 10: Identifying Steering Column Cover Lower Screws And Claws (W/O Driver Monitor Camera)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the tilt and telescopic switch.
4. Install the 3 screws.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)
1. Connect the driver monitor connector.
2. Attach the claw to install the upper steering column cover.

  Fig 11: Identifying Clips On Steering Column Cover Upper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 4 clips to install the upper steering column cover onto the instrument cluster finish panel.
4. Attach the 2 claws to install the lower steering column cover.

  Fig 12: Identifying Steering Column Cover Lower Screws And Claws (W/ Driver Monitor Camera)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the tilt and telescopic switch.
5. Install the 3 screws.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
ADJUST SPIRAL CABLE SUB-ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL STEERING WHEEL ASSEMBLY
1. Align the matchmarks on the steering wheel assembly and steering main shaft assembly.

  Fig 13: Identifying Matchmarks On Steering Wheel Assembly And Steering Main Shaft Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
INSPECT STEERING WHEEL CENTER POINT
INSPECT STEERING PAD
1. Inspect the steering pad. Refer to ON-VEHICLE INSPECTION .
INSTALL STEERING WHEEL PAD . Refer to INSTALLATION - Step 1
INSTALL NO. 2 STEERING WHEEL COVER LOWER . Refer to INSTALLATION - Step 3
INSTALL SWITCH AND VOLUME CASE . Refer to INSTALLATION - Step 2
CHECK FRONT WHEELS FACING STRAIGHT AHEAD
INSTALL FRONT WHEELS
Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter. Refer to CUSTOMIZE PARAMETERS .
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL BATTERY SERVICE HOLE COVER LH . Refer to INSTALLATION
INSTALL DECK TRIM SIDE BOARD LH (w/o Spare Tire) . Refer to INSTALLATION - Step 16
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY . Refer to INSTALLATION - Step 17
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light. Refer to DIAGNOSIS SYSTEM .
