Height Control Compressor: Installation: Installation

  1. INSTALL HEIGHT CONTROL COMPRESSOR
    1. Install the 3 bushes and bracket to the height control compressor with the 3 bolts.

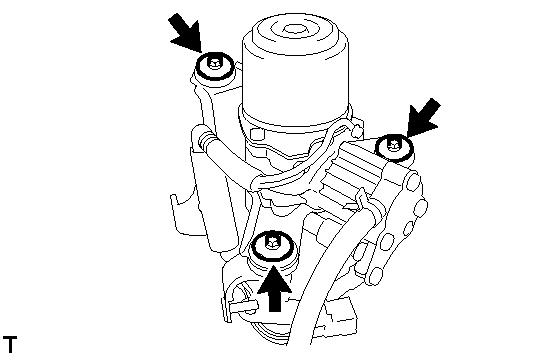

      Fig 1: Locating Bolts, Bushings & Bracket
      GTY125892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.9 N*m (60 kgf*cm, 52 in.*lbf)

    2. Push the connector into the housing until a clicking sound is heard.
    3. Attach the 3 clamps.
    4. Install the height control compressor with the bolt and 2 nuts.

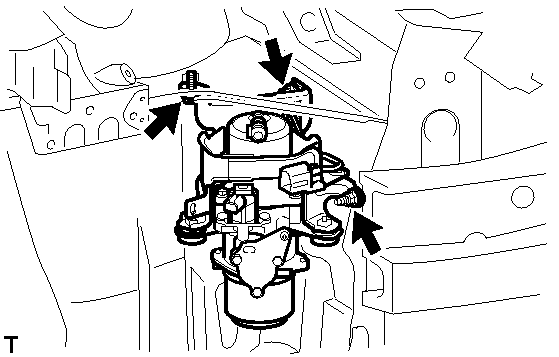

      Fig 2: Locating Height Control Compressor Bracket Bolts
      GTY125706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 19 N*m (195 kgf*cm, 14 ft.*lbf)

    5. Connect the height control tube (Type 2). Refer to PRECAUTION .
    6. Connect the height control filter to the bumper reinforcement.
    7. Connect the 2 connectors and attach the 2 clamps.

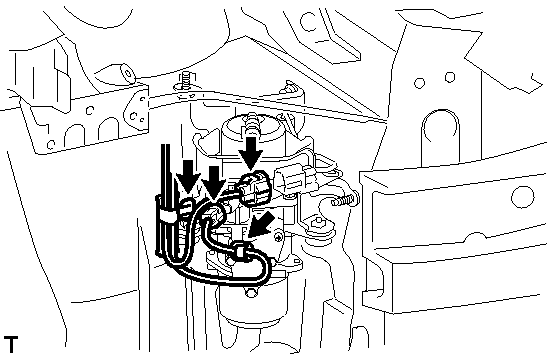

      Fig 3: Locating Connectors And Clamps
      GTY111000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

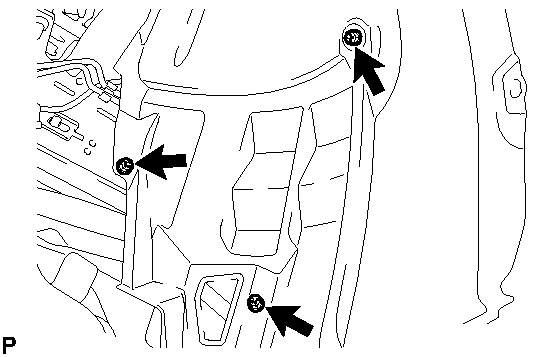

      8. Fig 4: Locating Fender Liner Screws
      GTY132684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the fender liner with the 3 screws.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  3. INSTALL BATTERY SERVICE HOLE COVER LH  . Refer to INSTALLATION - Step 15
  4. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
  5. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light. Refer to DIAGNOSIS SYSTEM .
  6. INSPECT FOR AIR LEAK
    1. Inspect for air leak. Refer to OPERATION CHECK .
  7. INSTALL FRONT BUMPER COVER  . Refer to INSTALLATION - Step 10
  8. INSTALL FRONT FENDER LINER LH  . Refer to INSTALLATION - Step 11
  9. INSTALL FRONT FENDER LINER RH  . Refer to INSTALLATION - Step 12
  10. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH  . Refer to REMOVAL - Step 8
  11. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH  . Refer to INSTALLATION - Step 14
  12. INSTALL RADIATOR GRILLE ASSEMBLY  . Refer to INSTALLATION - Step 1
  13. INSTALL FRONT FENDER WHEEL OPENING MOLDING LH  . Refer to INSTALLATION - Step 1
  14. INSTALL FRONT FENDER WHEEL OPENING MOLDING RH  . Refer to INSTALLATION - Step 16
  15. INSTALL COOL AIR INTAKE DUCT SEAL  . Refer to INSTALLATION - Step 36
  16. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 95
  17. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 91
  18. INSTALL ENGINE ROOM SIDE COVER RH  . Refer to INSTALLATION - Step 92
  19. INSTALL FRONT WHEEL RH

    Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)
