Brake Actuator: Components: Illustration

Fig 1: Identifying Brake Actuator Replacement Components (1 Of 6)
GTY279372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

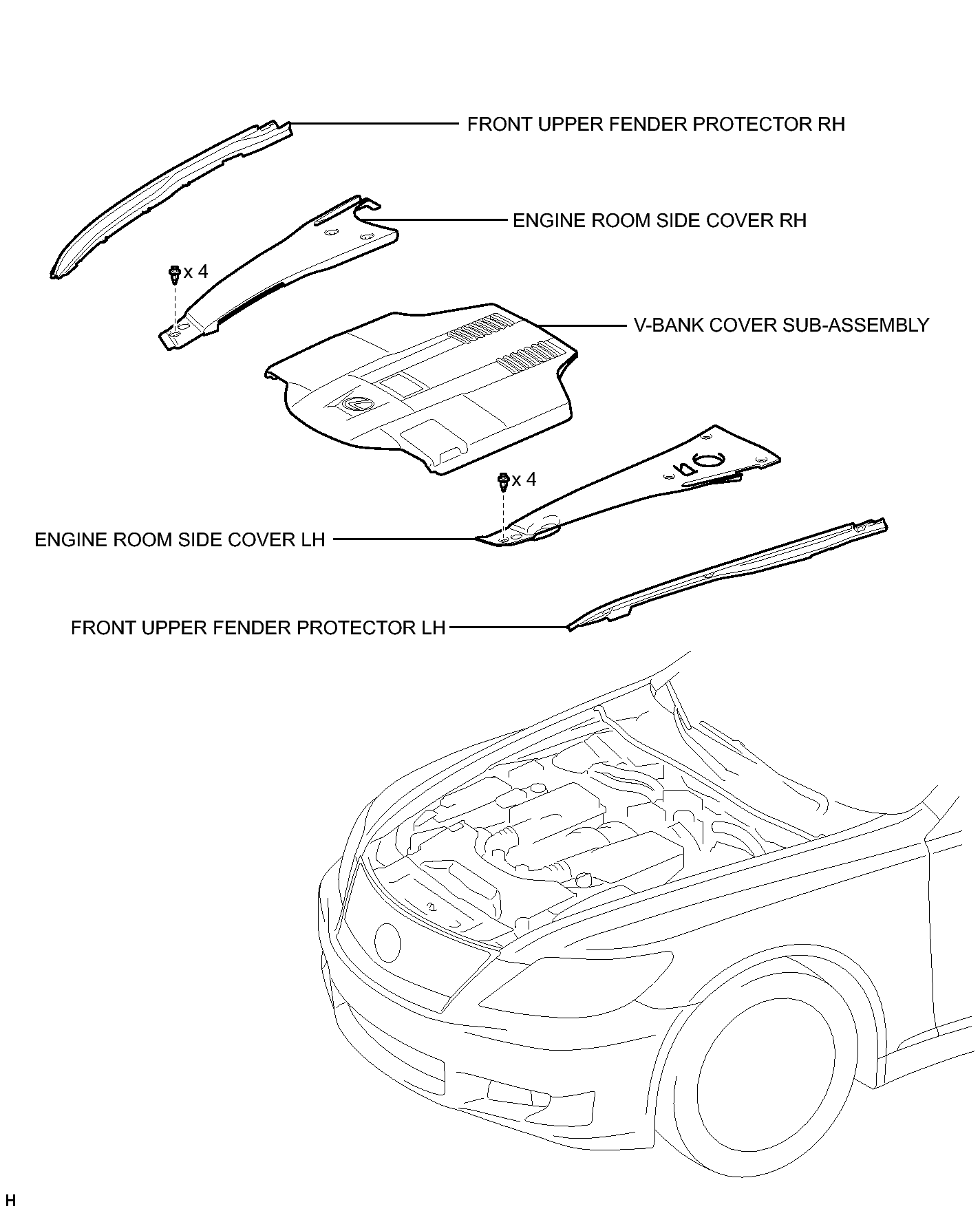

Fig 1: Identifying Brake Actuator Replacement Components (2 Of 6)
GTY287500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

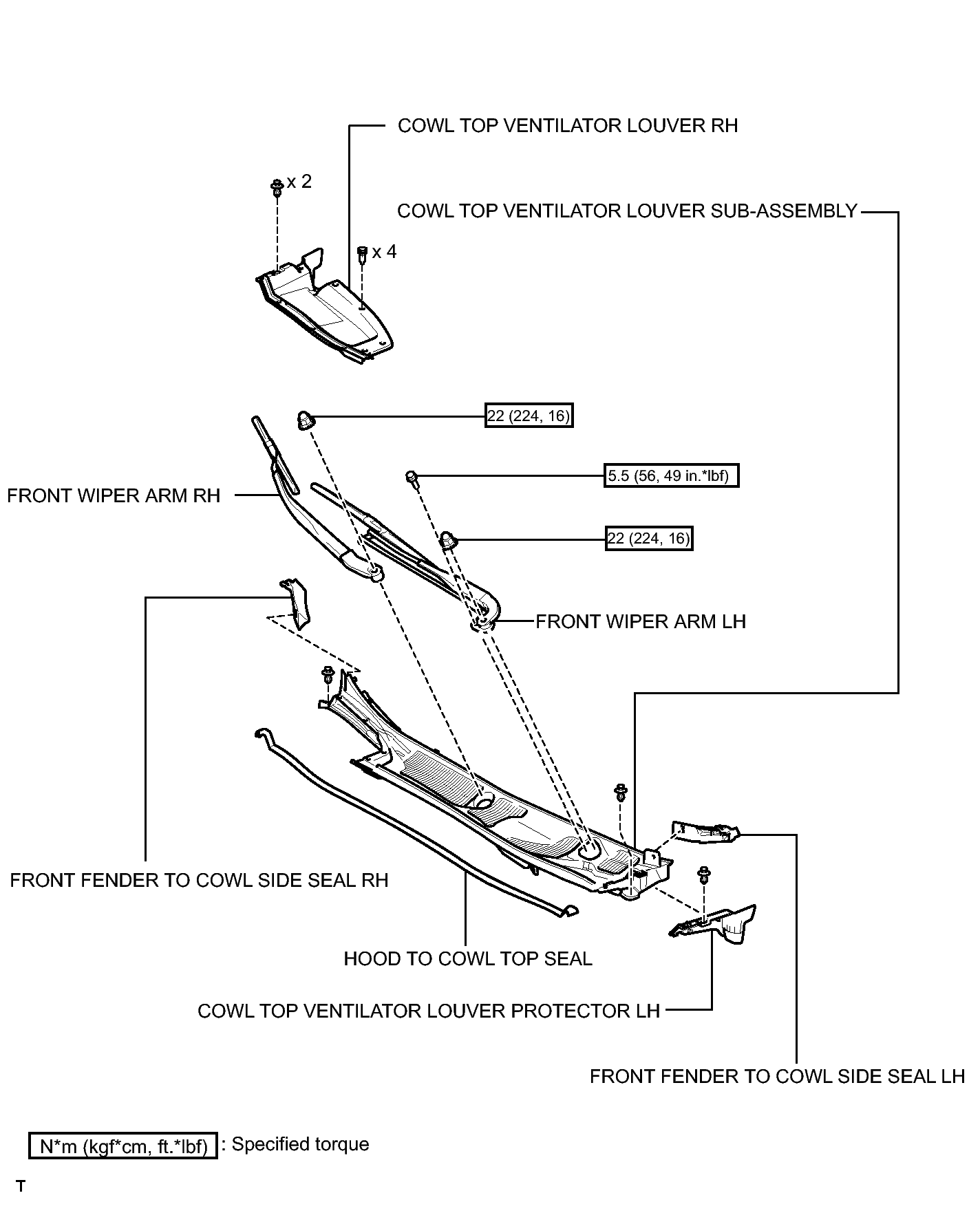

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (3 Of 6)
GTY110589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

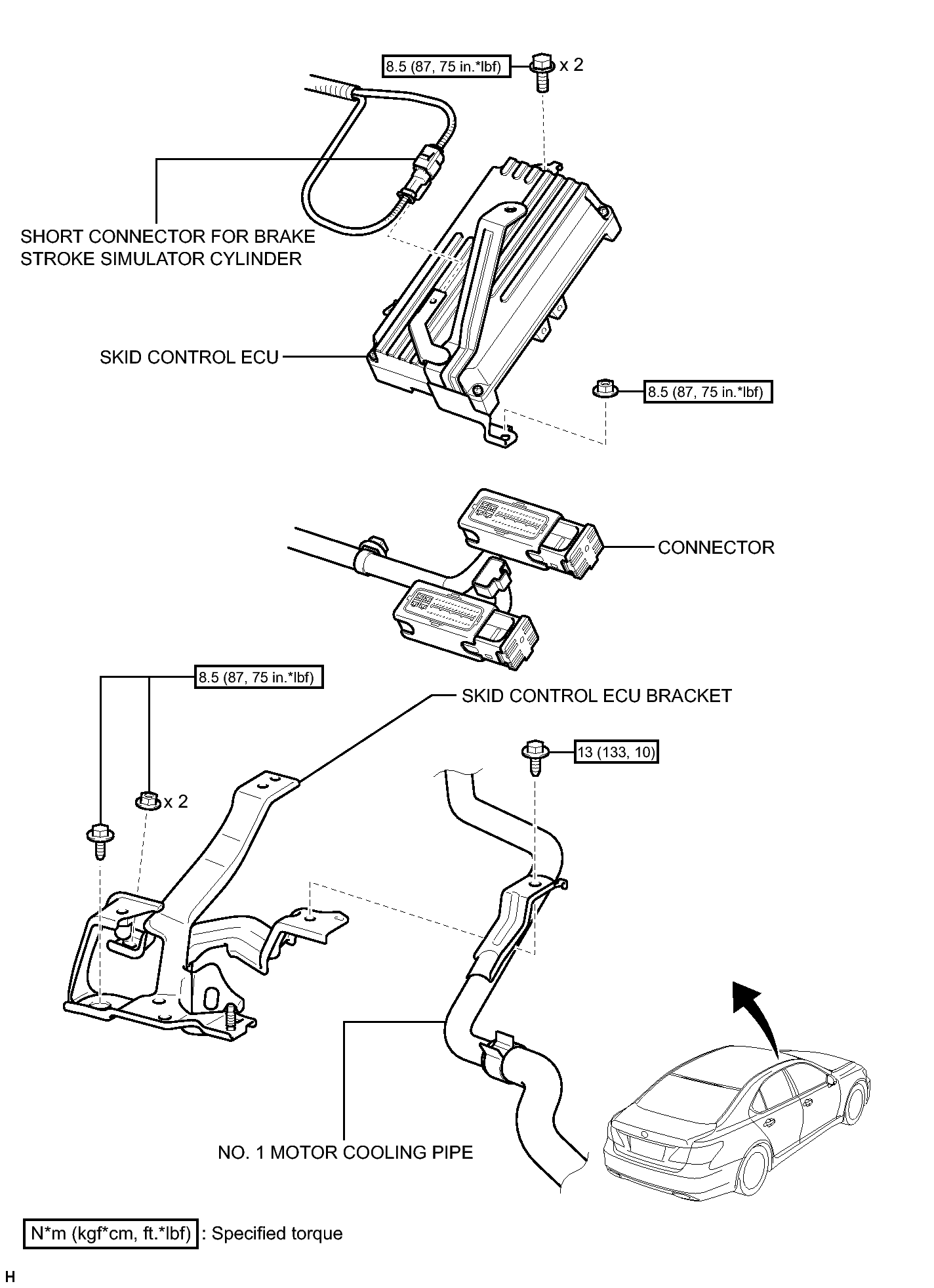

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (4 Of 6)
GTY261990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

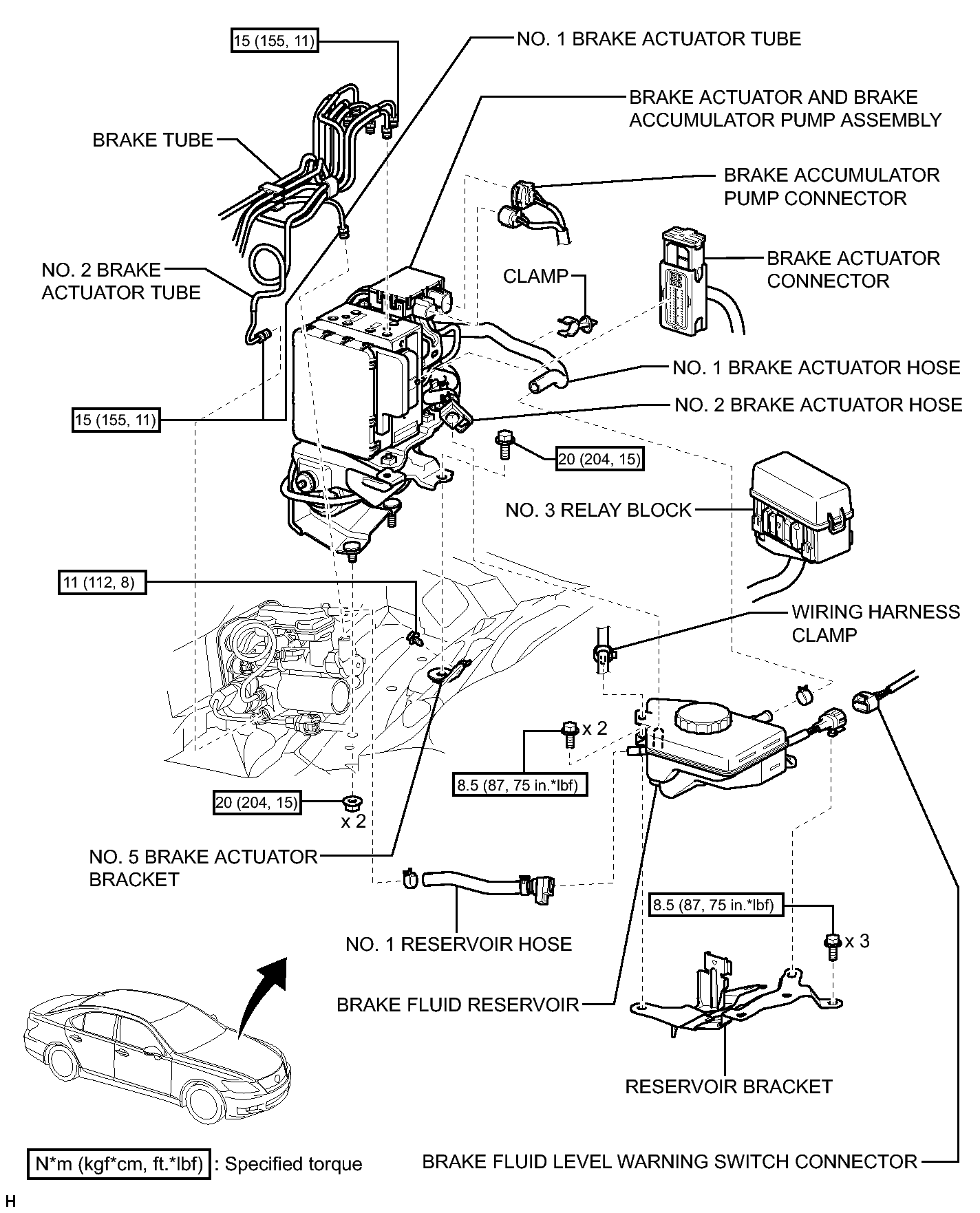

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (5 Of 6)
GTY283368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

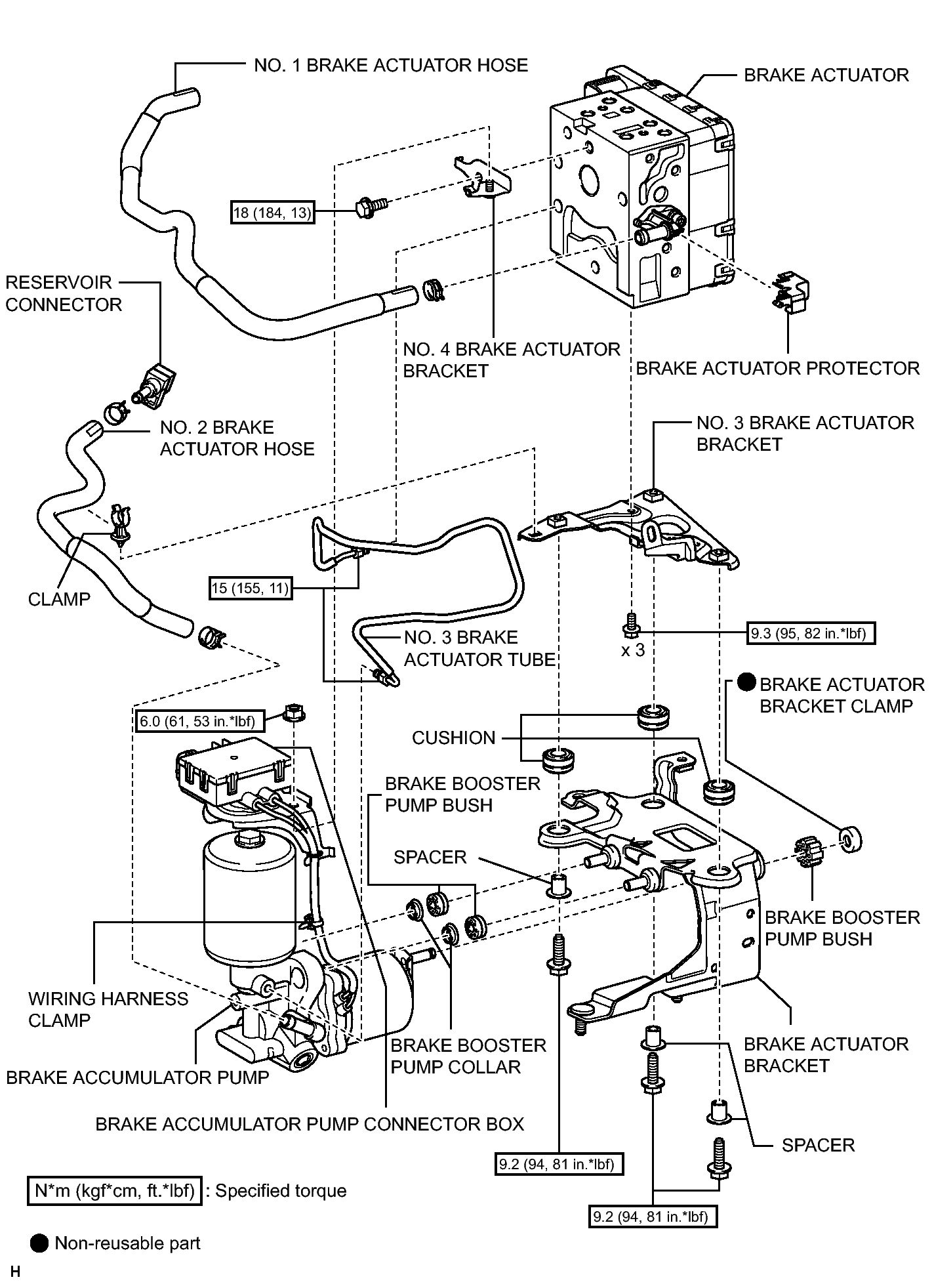

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (6 Of 6)
GTY261198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
