Skid Control Buzzer: Components: Illustration

Fig 1: Identifying Skid Control Buzzer Replacement Components (1 Of 3)
GTY279372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Skid Control Buzzer Replacement Components With Torque Specifications (2 Of 3)
GTY152611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

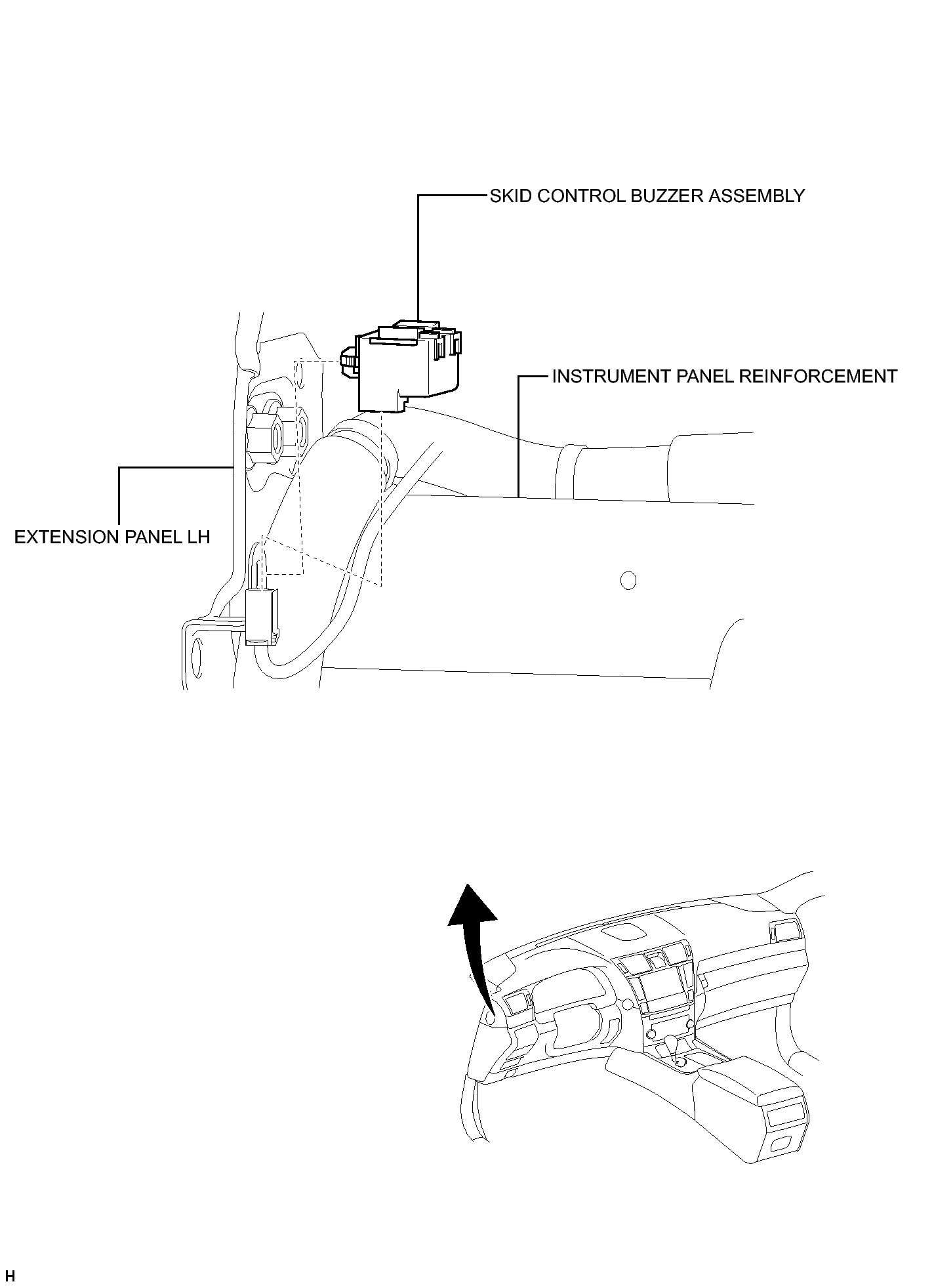

Fig 1: Identifying Skid Control Buzzer Replacement Components (3 Of 3)
GTY260597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
