POWER SOURCE (Current Flow Chart)

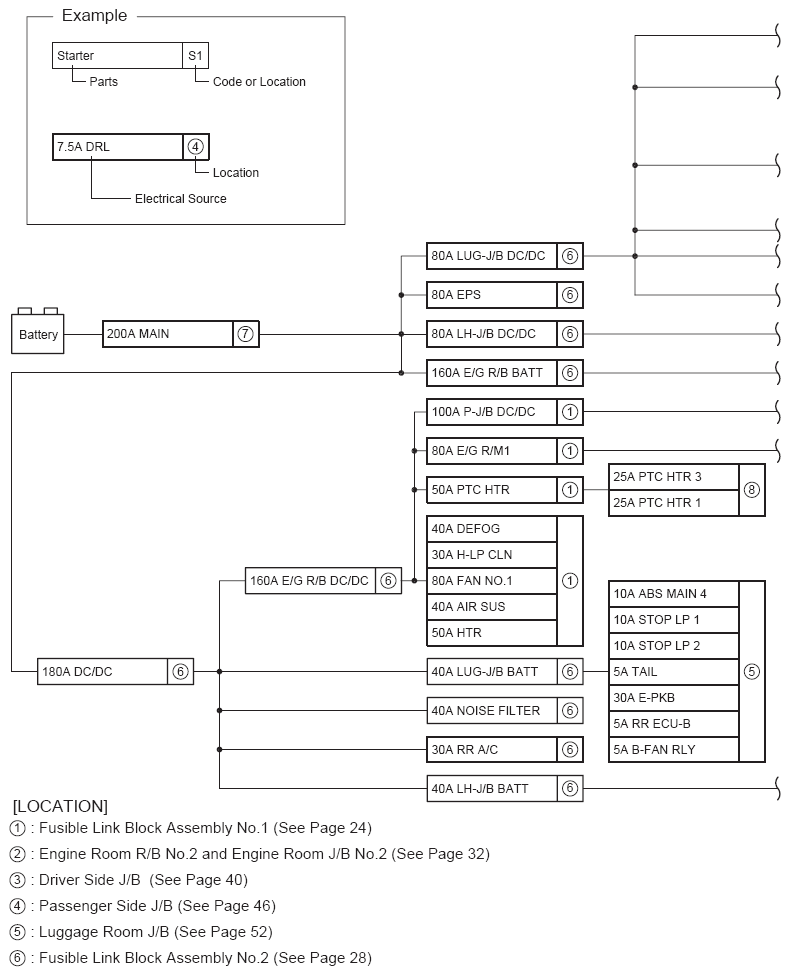

Fig 1: Power Source Current Flow Chart (1 Of 4)
G08937181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

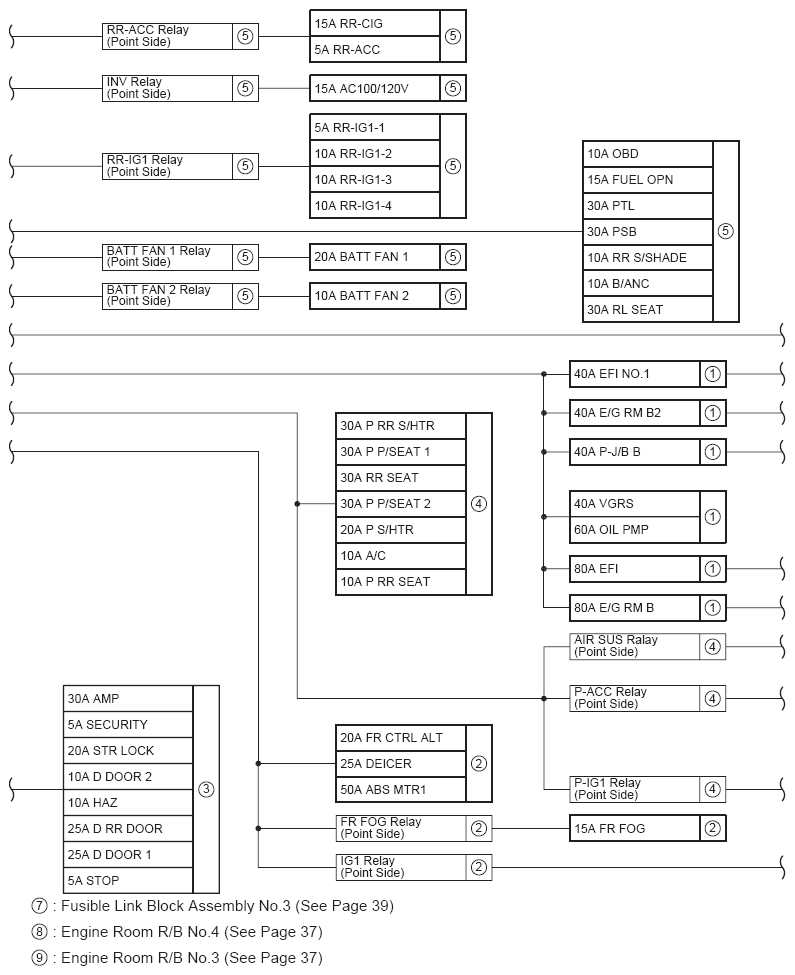

Fig 2: Power Source Current Flow Chart (2 Of 4)
G08937182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

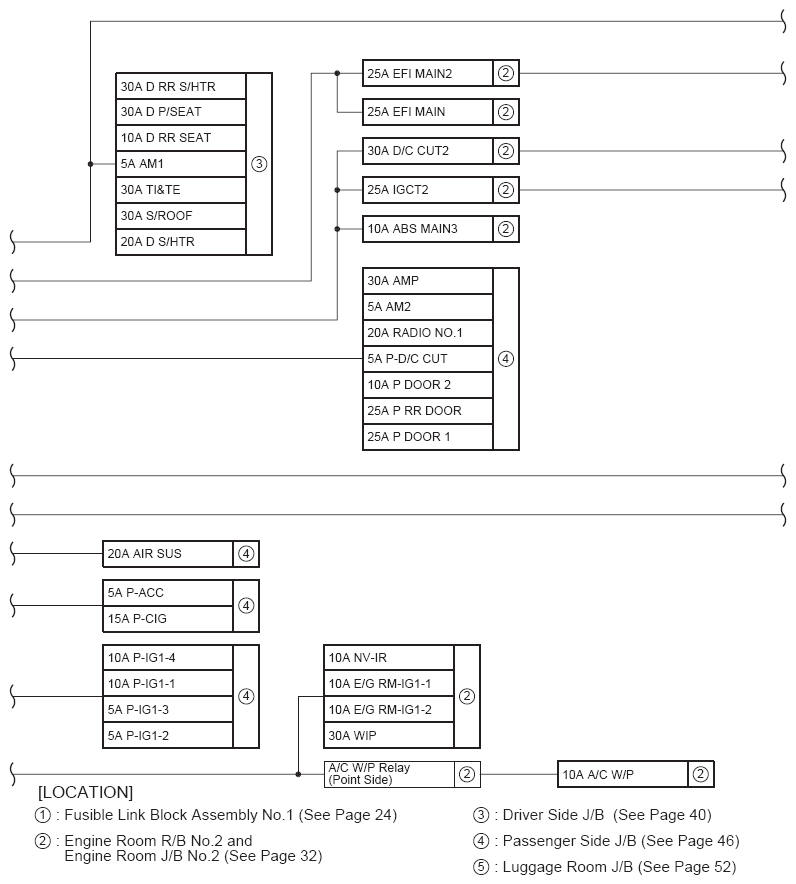

Fig 3: Power Source Current Flow Chart (3 Of 4)
G08937183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

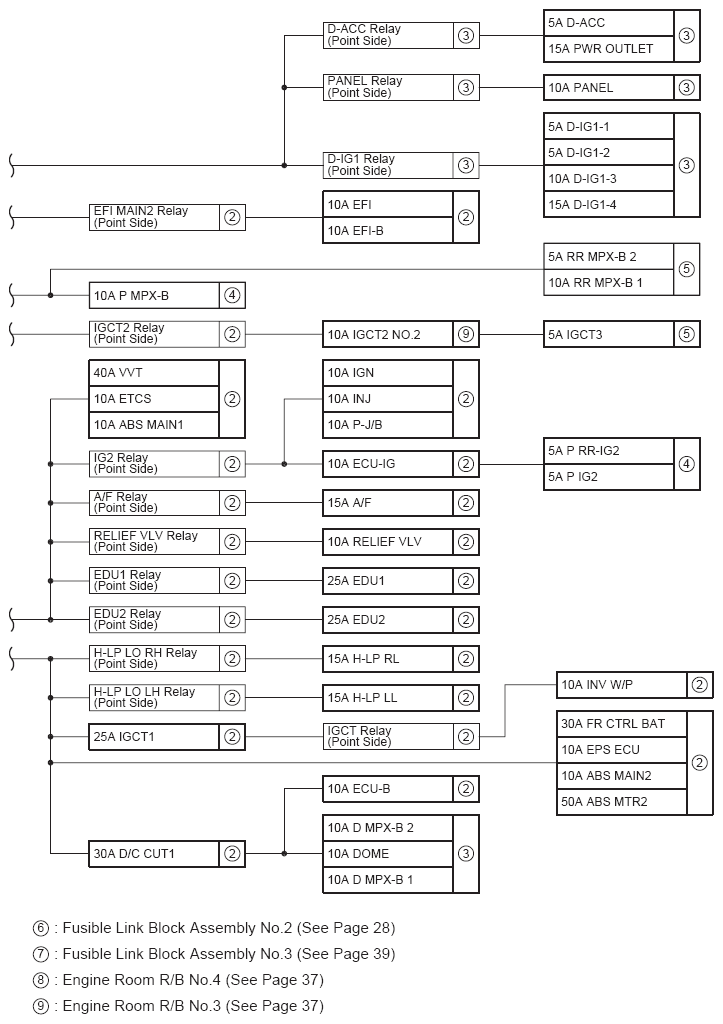

Fig 4: Power Source Current Flow Chart (4 Of 4)
G08937184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
