Air Suspension: Notes

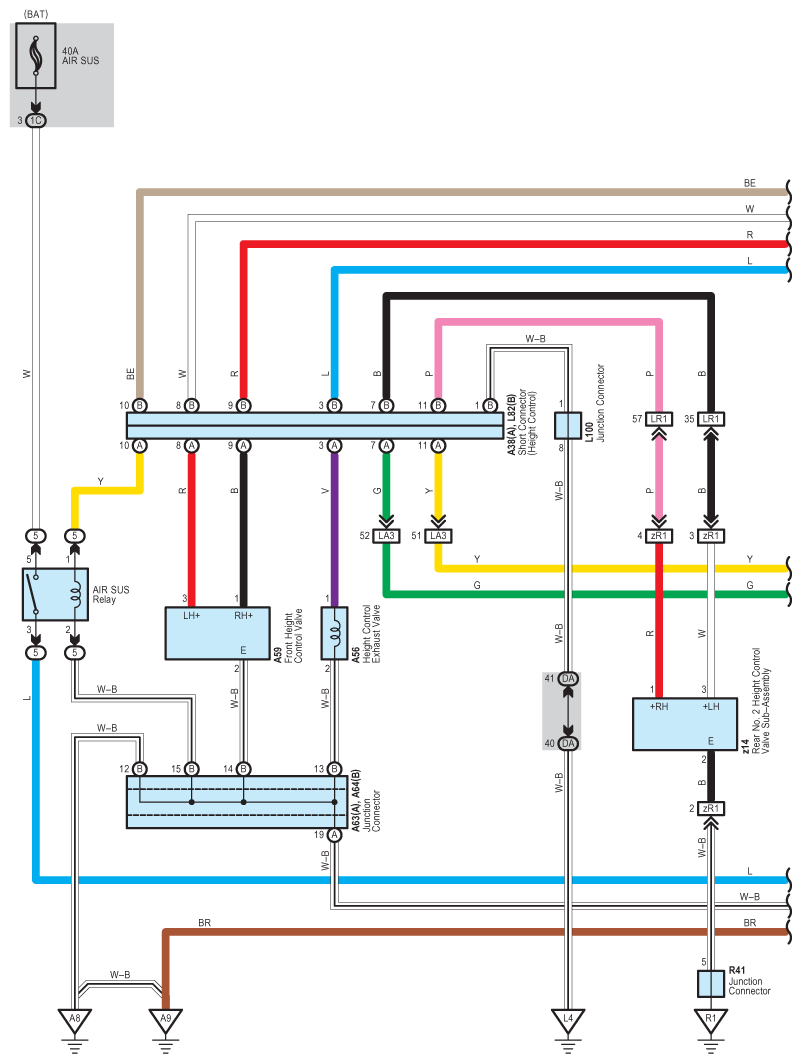

Fig 1: Air Suspension - Wiring Diagram (1 Of 9)

G08936882

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

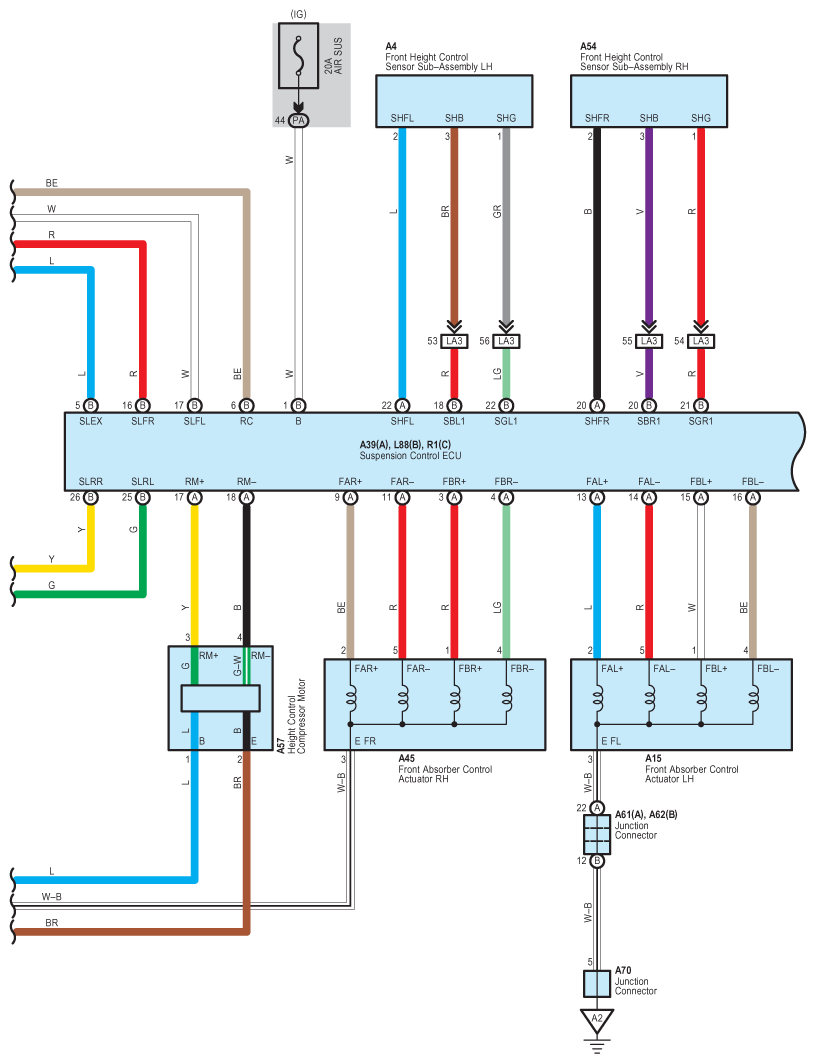

Fig 2: Air Suspension - Wiring Diagram (2 Of 9)

G08936883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

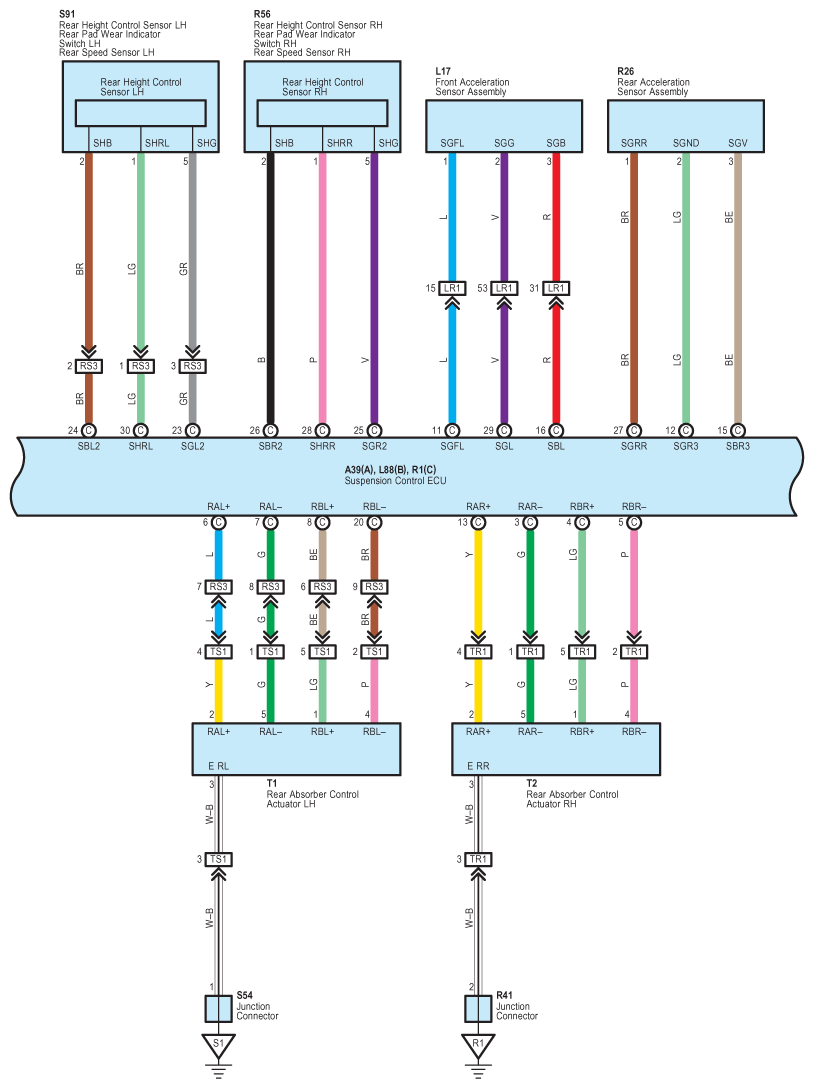

Fig 3: Air Suspension - Wiring Diagram (3 Of 9)

G08936884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

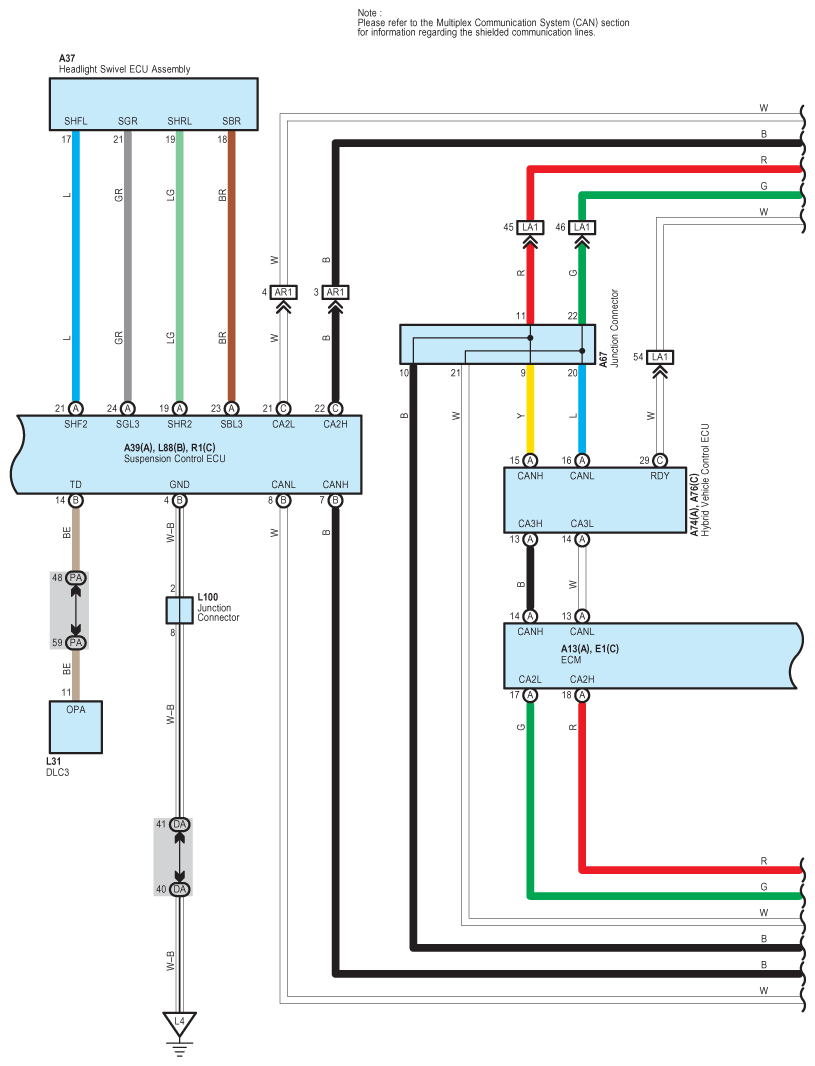

Fig 4: Air Suspension - Wiring Diagram (4 Of 9)

G08936885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Air Suspension - Wiring Diagram (5 Of 9)

G08936886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Air Suspension - Wiring Diagram (6 Of 9)

G08936887

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

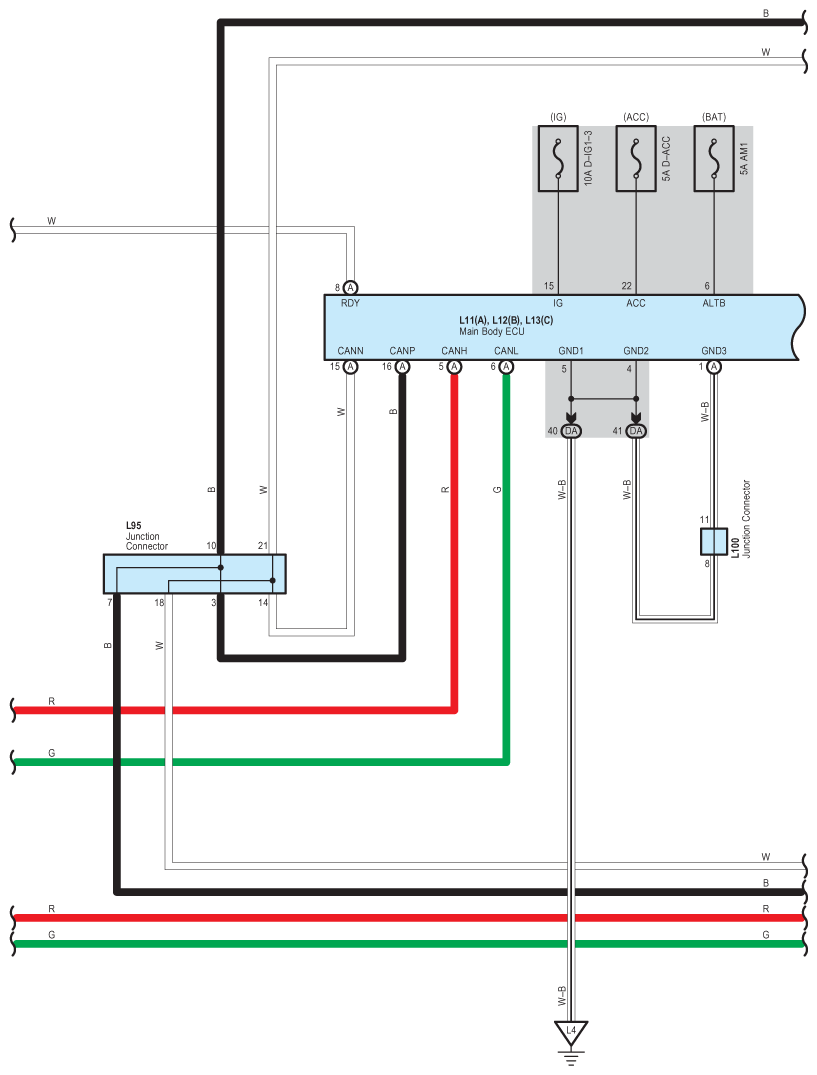

Fig 7: Air Suspension - Wiring Diagram (7 Of 9)

G08936888

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

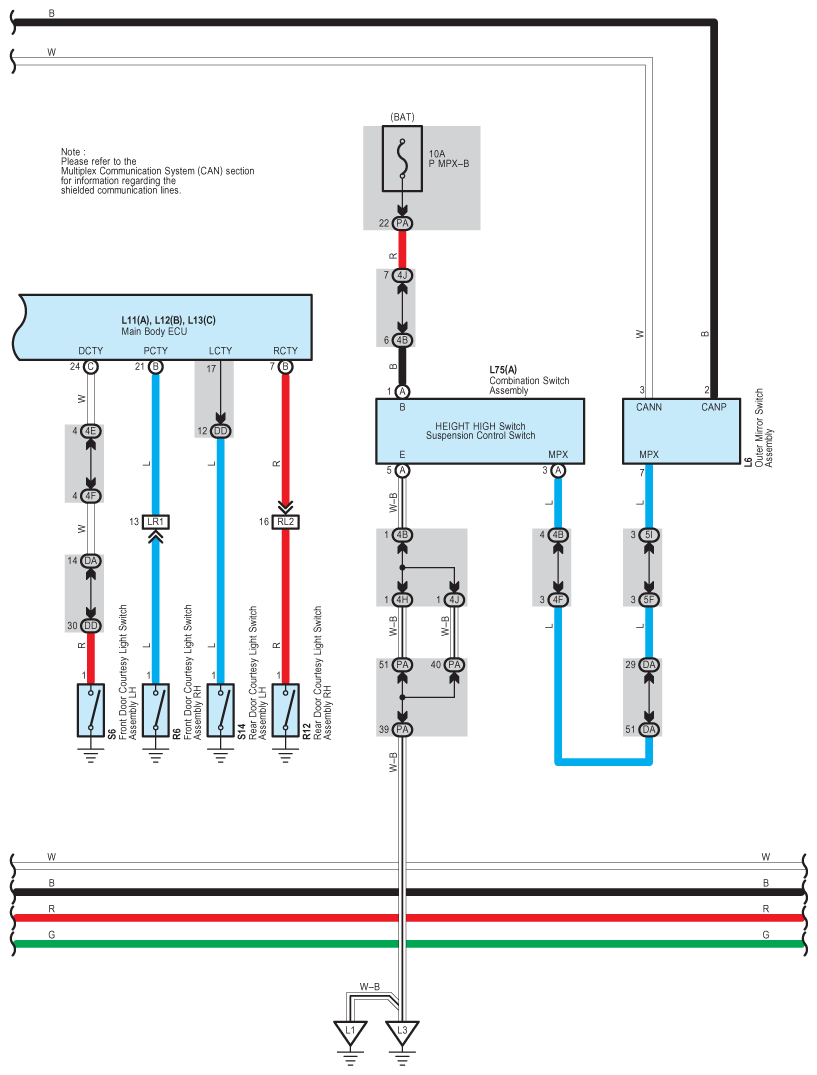

Fig 8: Air Suspension - Wiring Diagram (8 Of 9)

G08936889

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

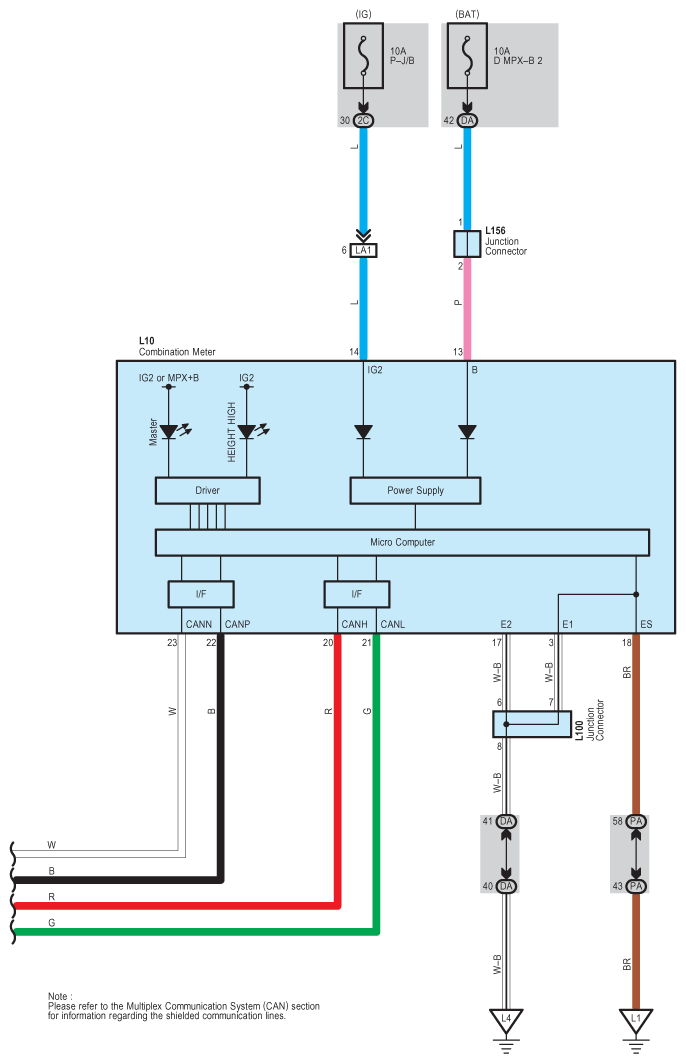

Fig 9: Air Suspension - Wiring Diagram (9 Of 9)

G08936890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
