Power Shoulder Belt Anchorage: Notes

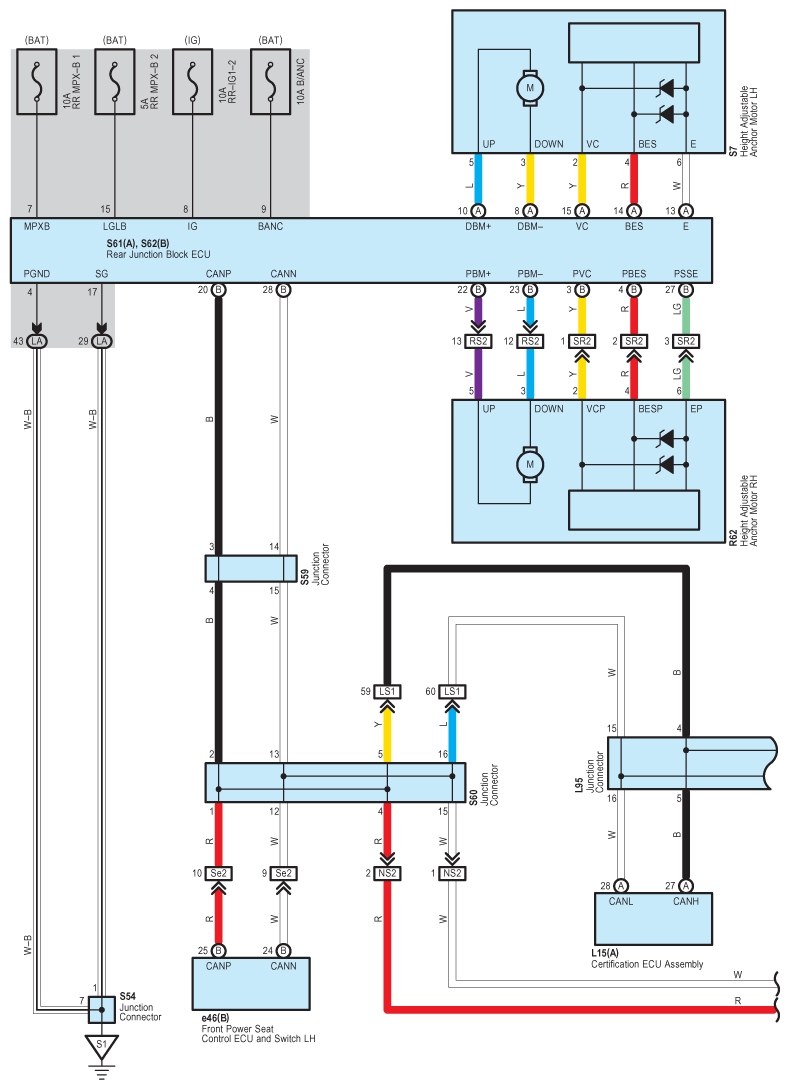

Fig 1: Power Shoulder Belt Anchorage - Wiring Diagram (1 Of 4)
G08937053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

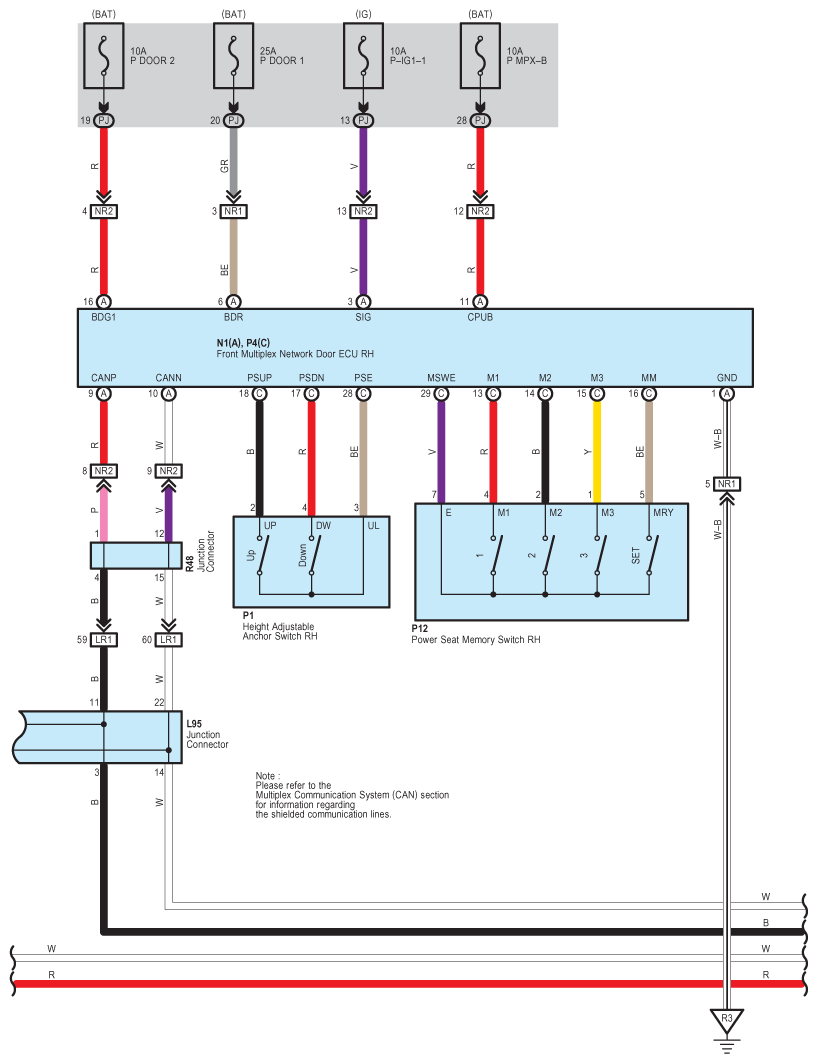

Fig 2: Power Shoulder Belt Anchorage - Wiring Diagram (2 Of 4)
G08937054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

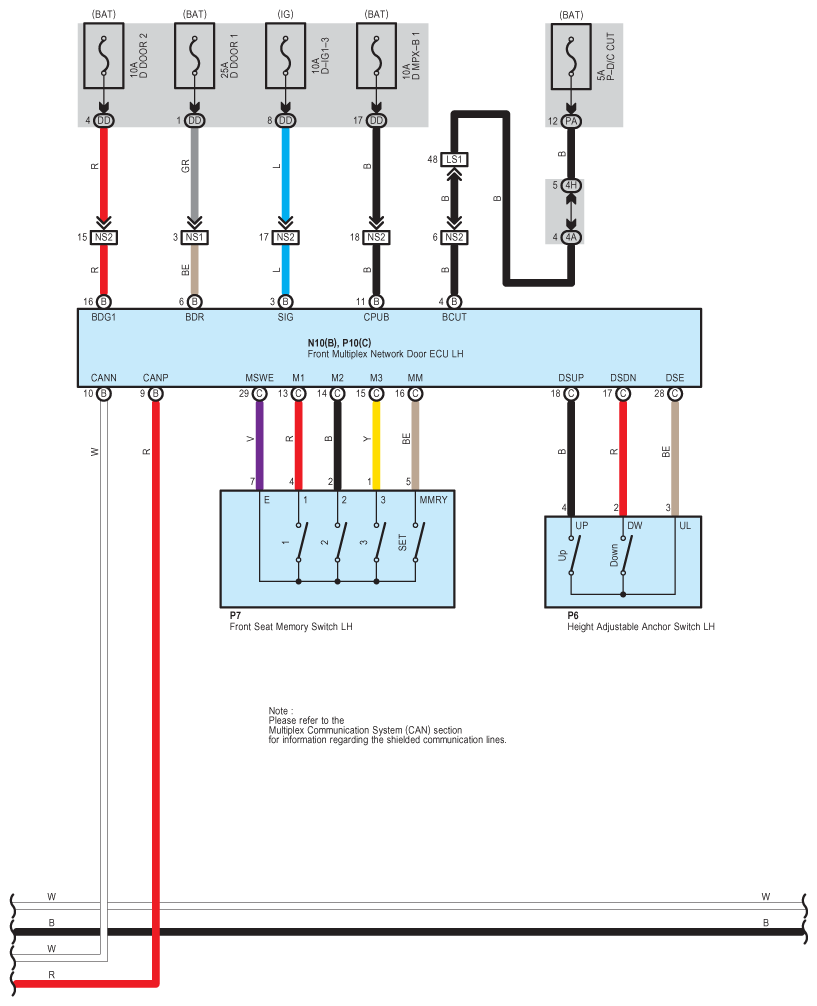

Fig 3: Power Shoulder Belt Anchorage - Wiring Diagram (3 Of 4)
G08937055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Power Shoulder Belt Anchorage - Wiring Diagram (4 Of 4)
G08937056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
