Power Tilt and Power Telescopic: Notes

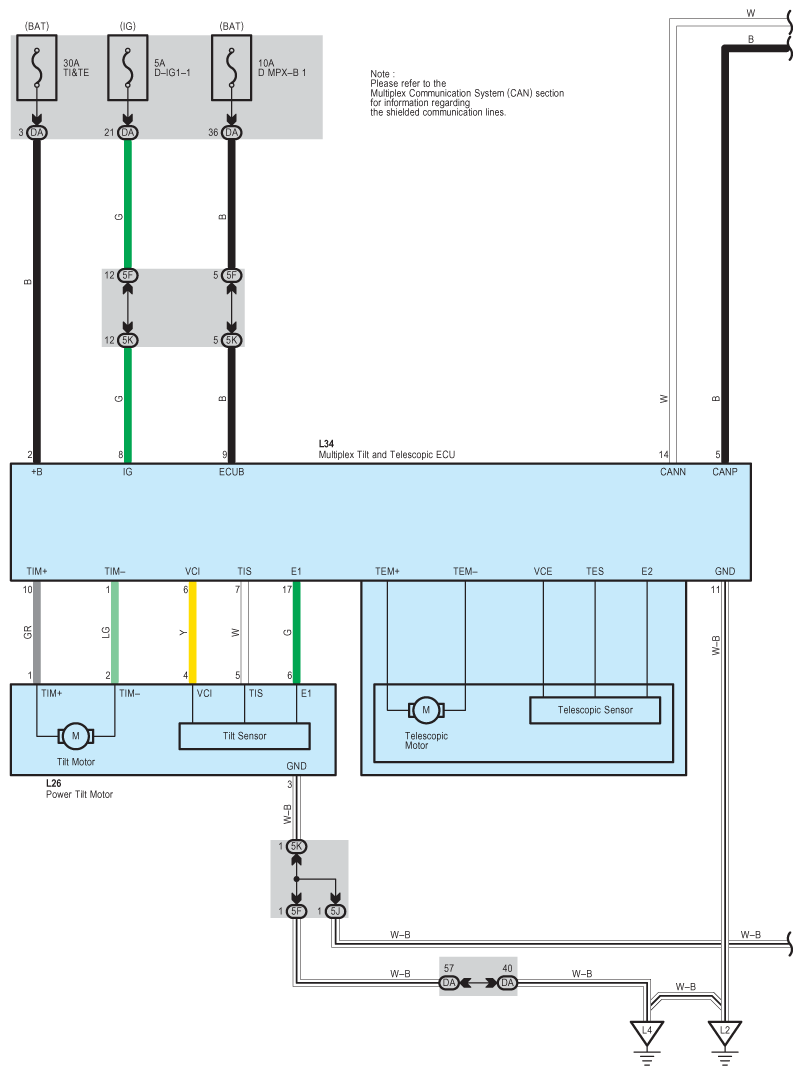

Fig 1: Power Tilt And Power Telescopic - Wiring Diagram (1 Of 7)
G08937046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Tilt And Power Telescopic - Wiring Diagram (2 Of 7)
G08937047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

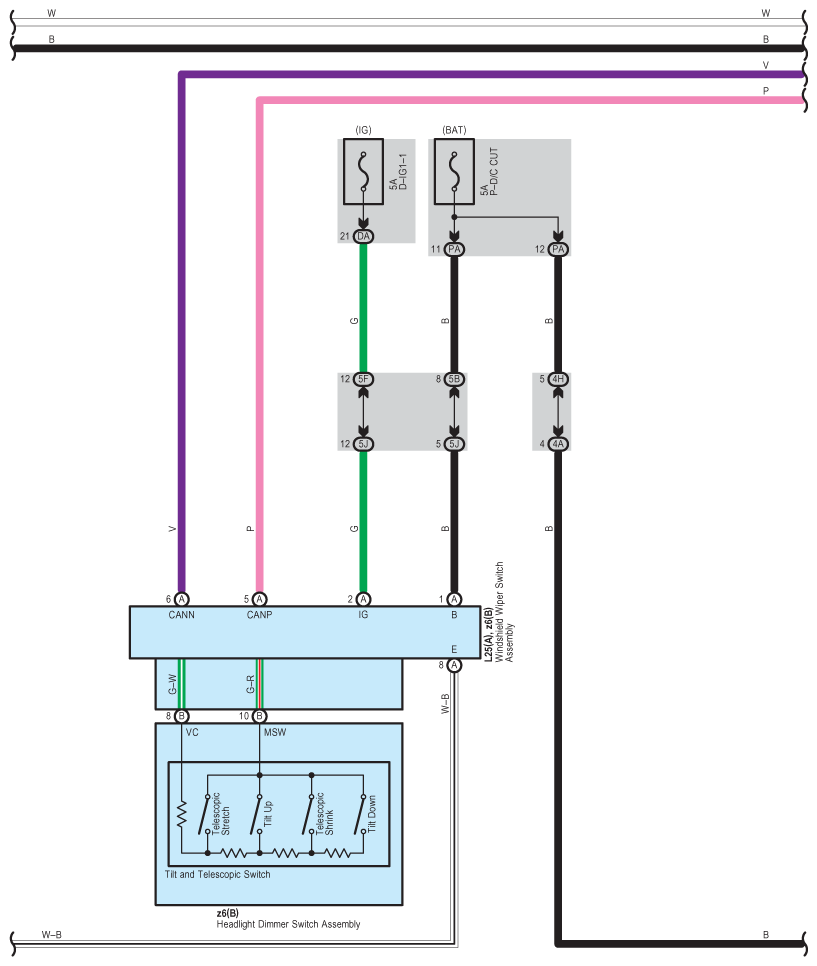

Fig 3: Power Tilt And Power Telescopic - Wiring Diagram (3 Of 7)
G08937048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

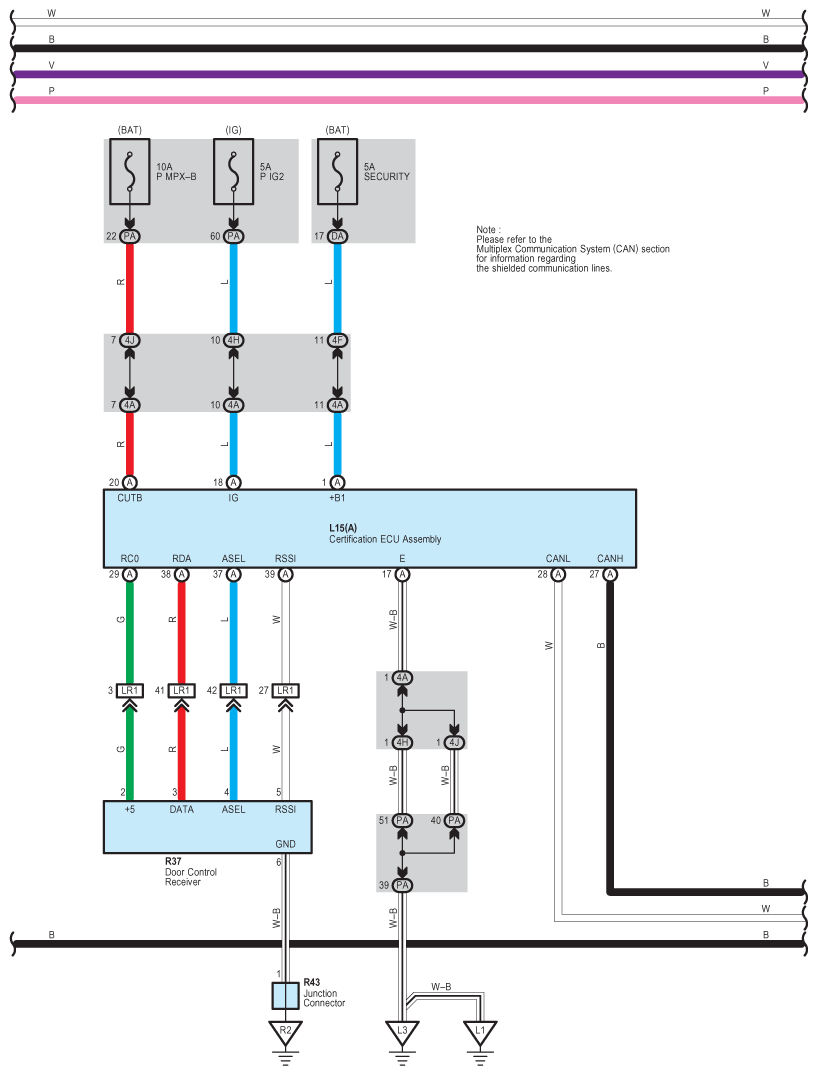

Fig 4: Power Tilt And Power Telescopic - Wiring Diagram (4 Of 7)
G08937049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

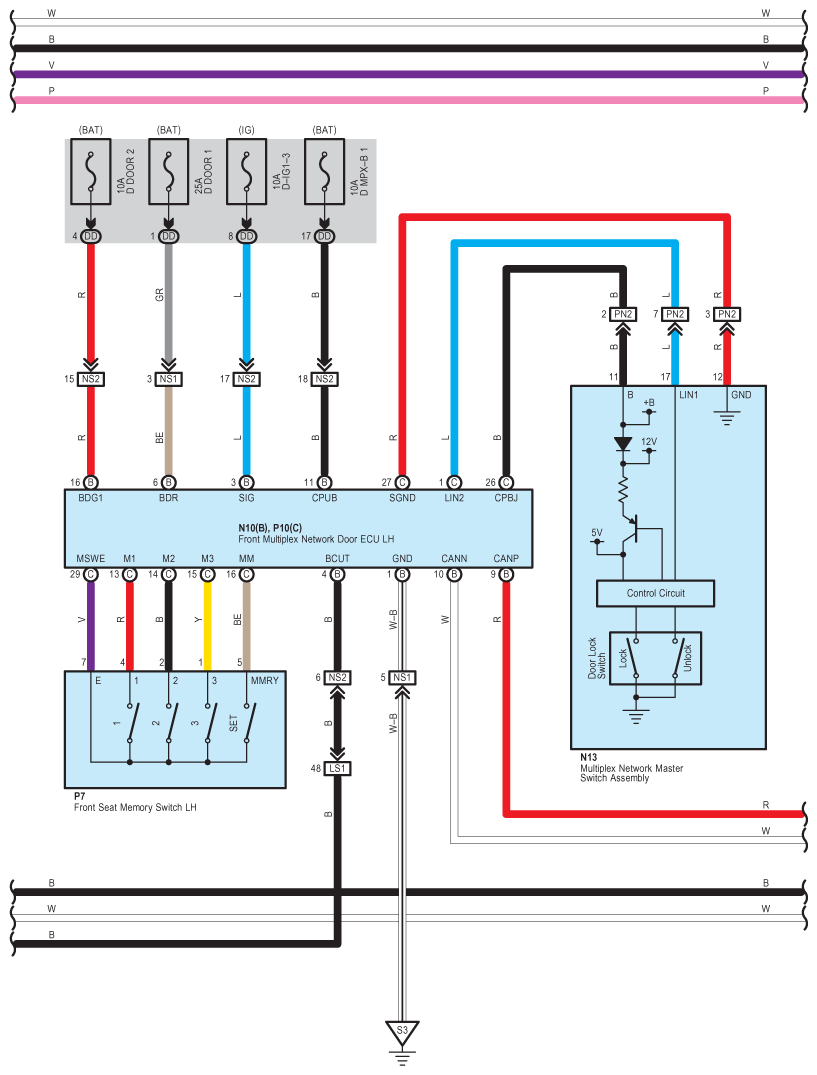

Fig 5: Power Tilt And Power Telescopic - Wiring Diagram (5 Of 7)
G08937050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

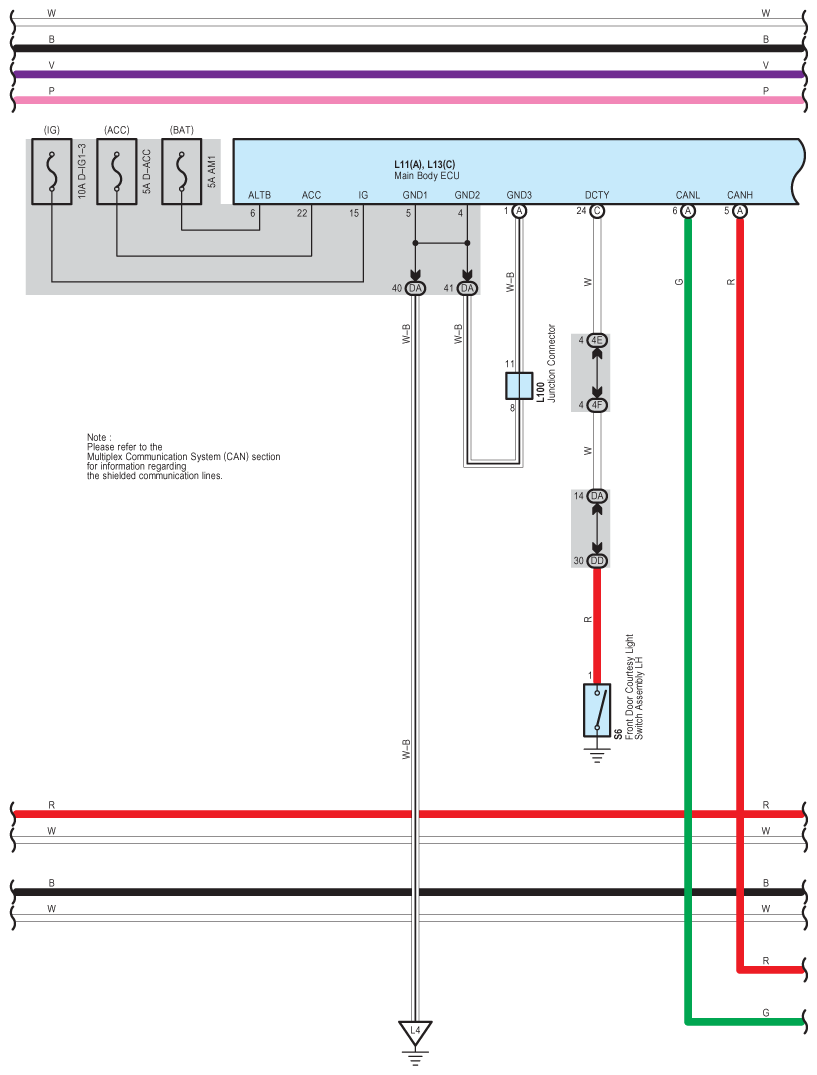

Fig 6: Power Tilt And Power Telescopic - Wiring Diagram (6 Of 7)
G08937051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

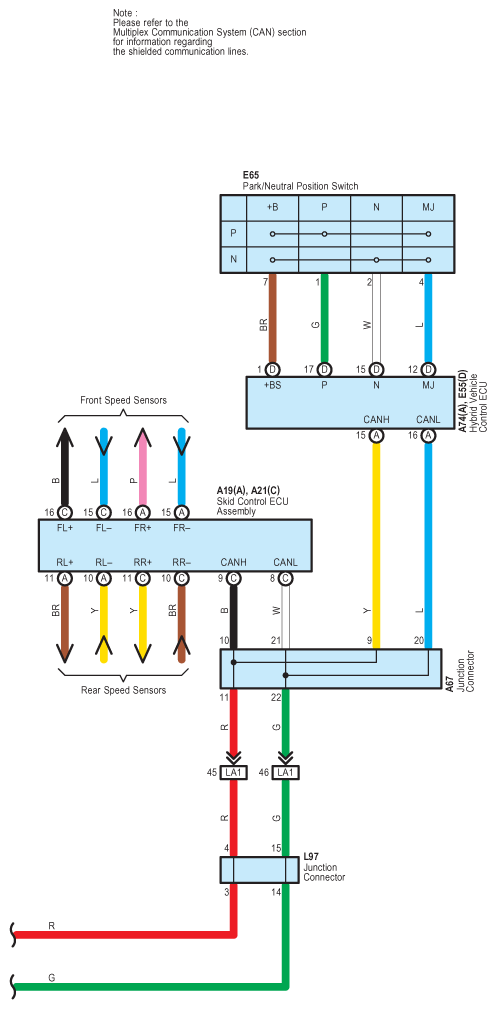

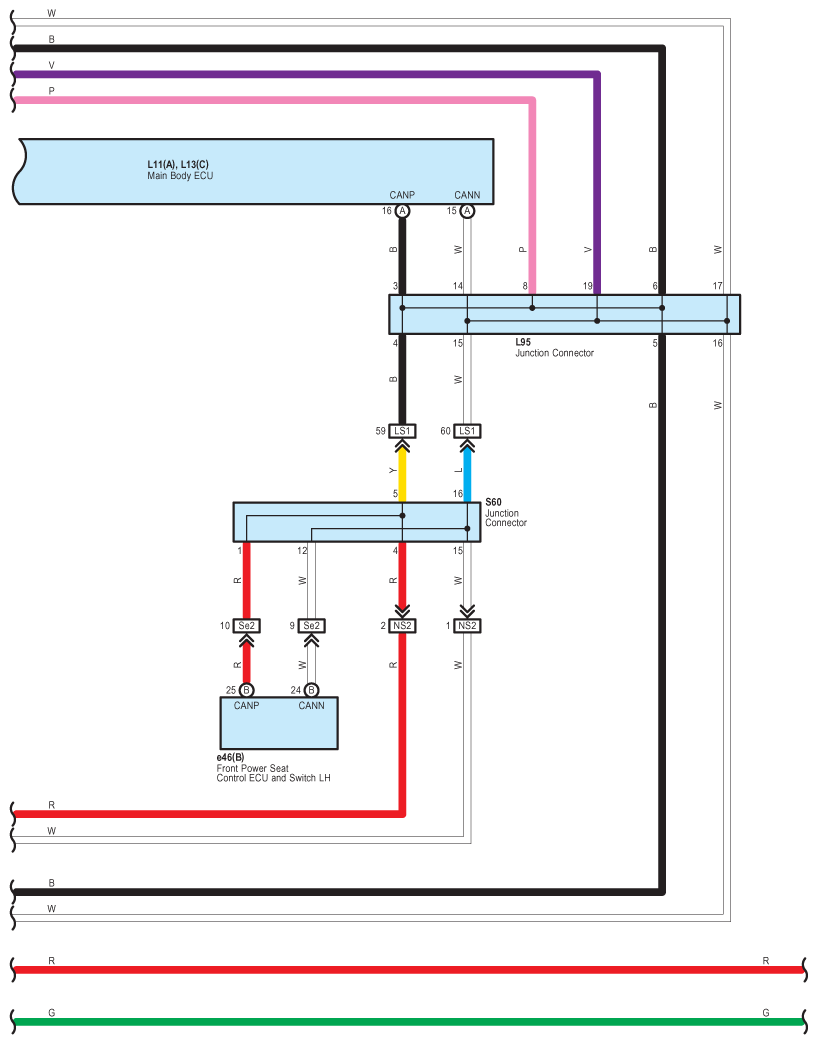

Fig 7: Power Tilt And Power Telescopic - Wiring Diagram (7 Of 7)
G08937052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
