Theft Deterrent: Notes

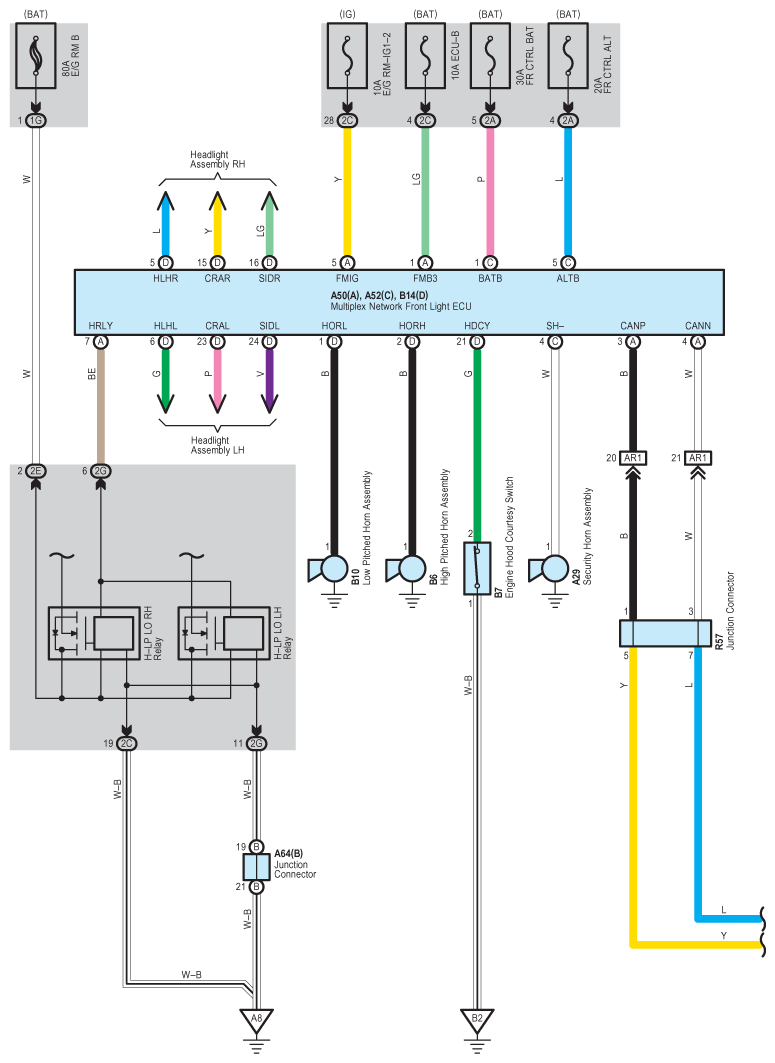

Fig 1: Theft Deterrent - Wiring Diagram (1 Of 10)

G08936840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

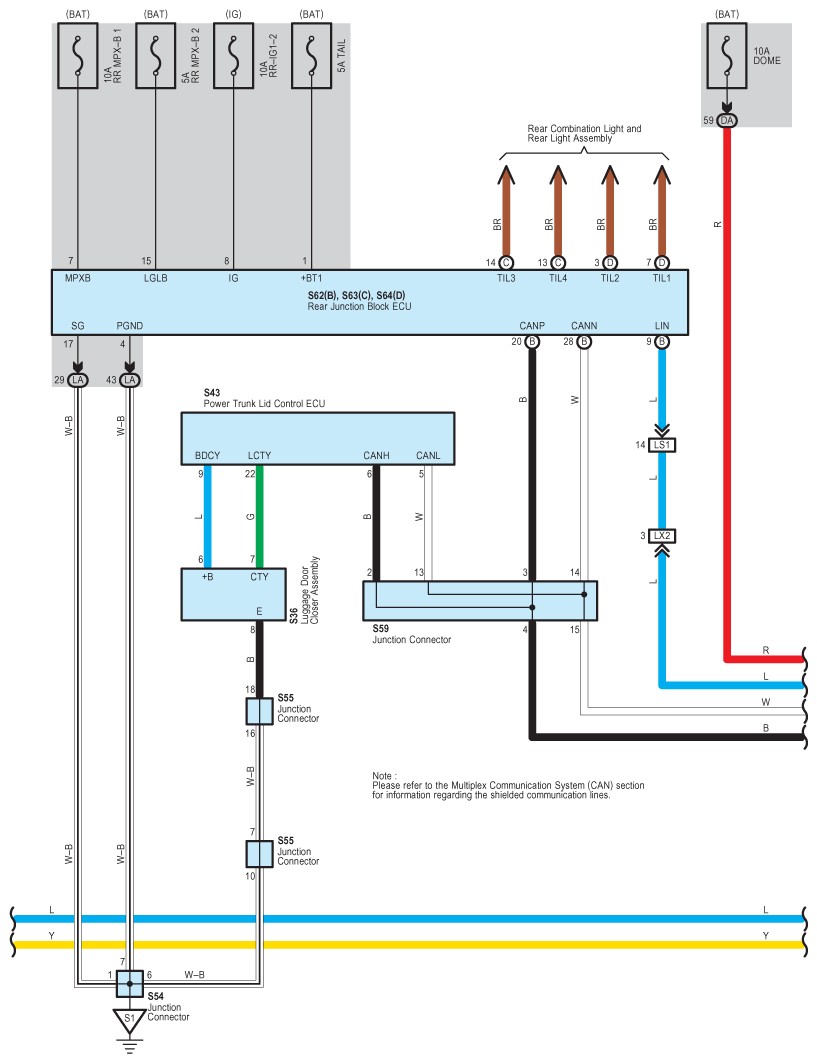

Fig 2: Theft Deterrent - Wiring Diagram (2 Of 10)

G08936841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Theft Deterrent - Wiring Diagram (3 Of 10)

G08936842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

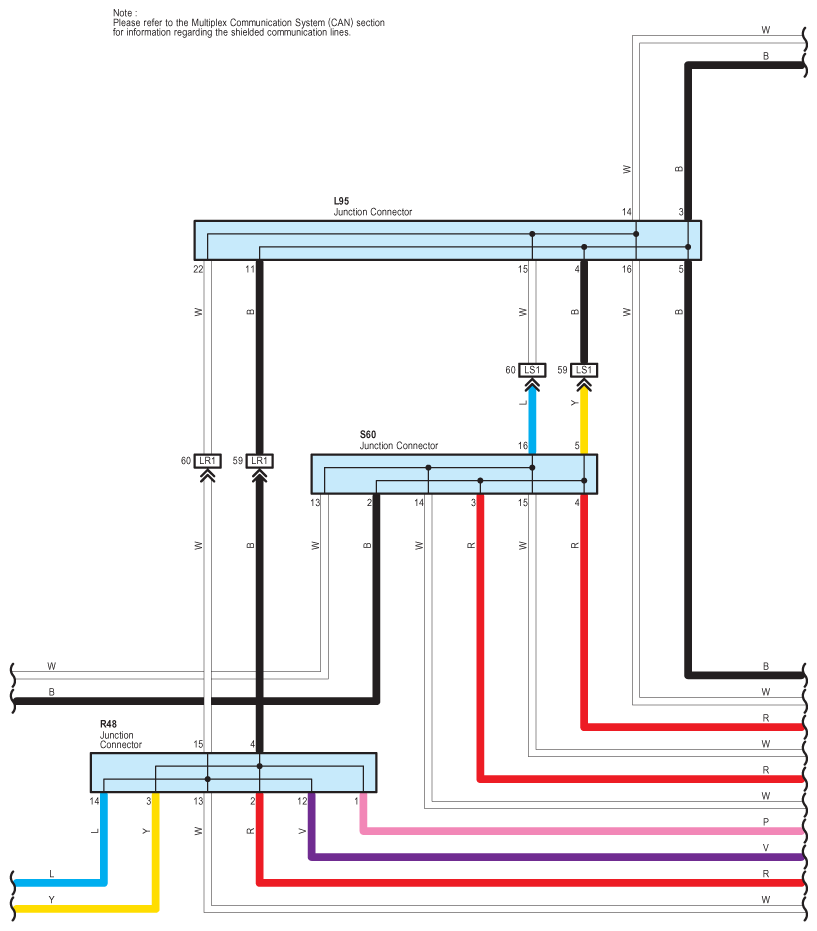

Fig 4: Theft Deterrent - Wiring Diagram (4 Of 10)

G08936843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

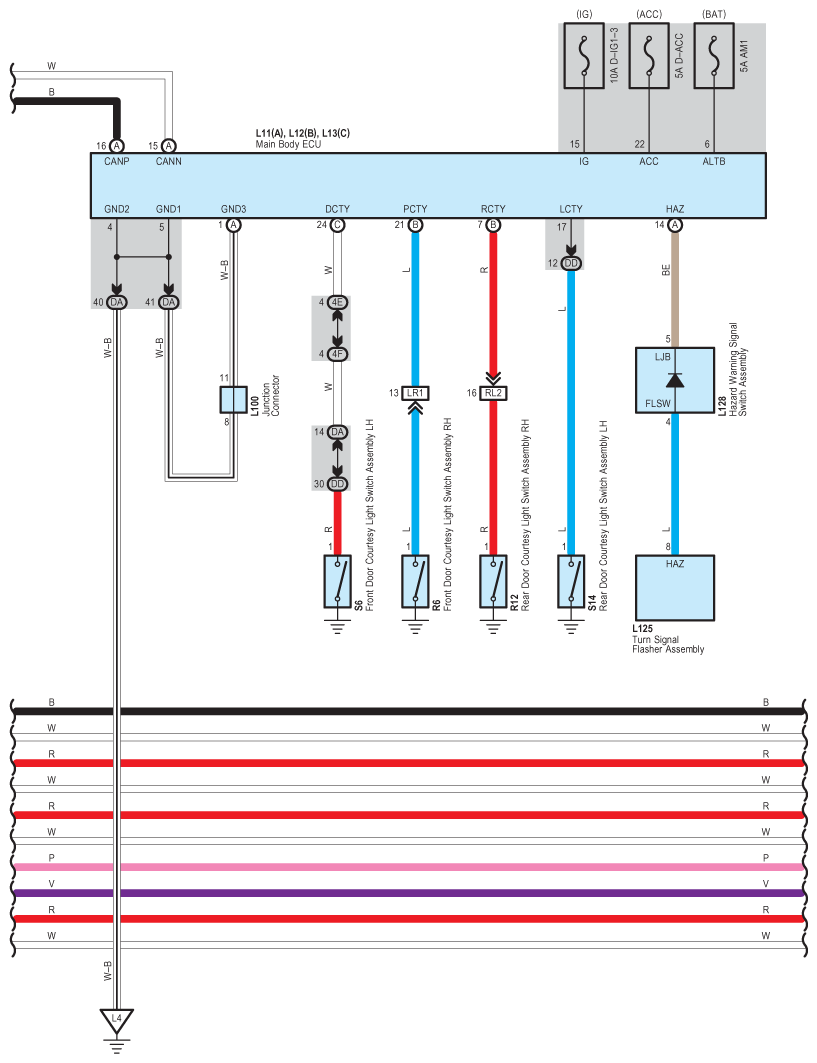

Fig 5: Theft Deterrent - Wiring Diagram (5 Of 10)

G08936844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

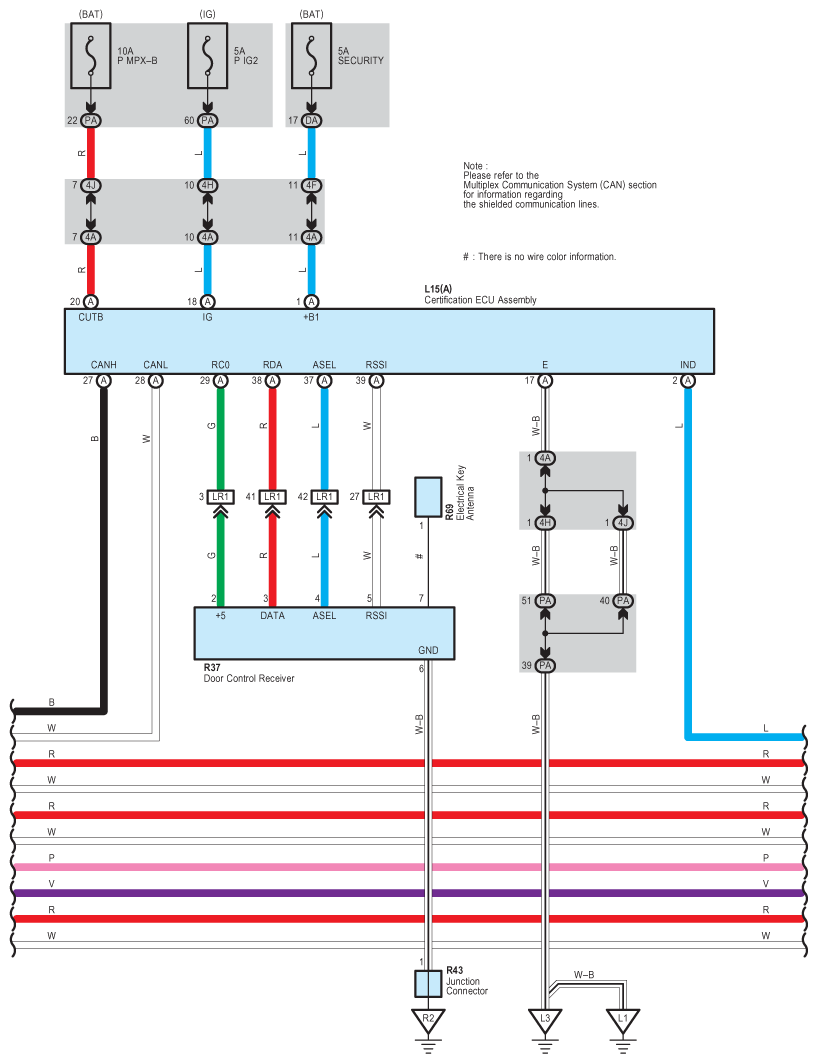

Fig 6: Theft Deterrent - Wiring Diagram (6 Of 10)

G08936845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

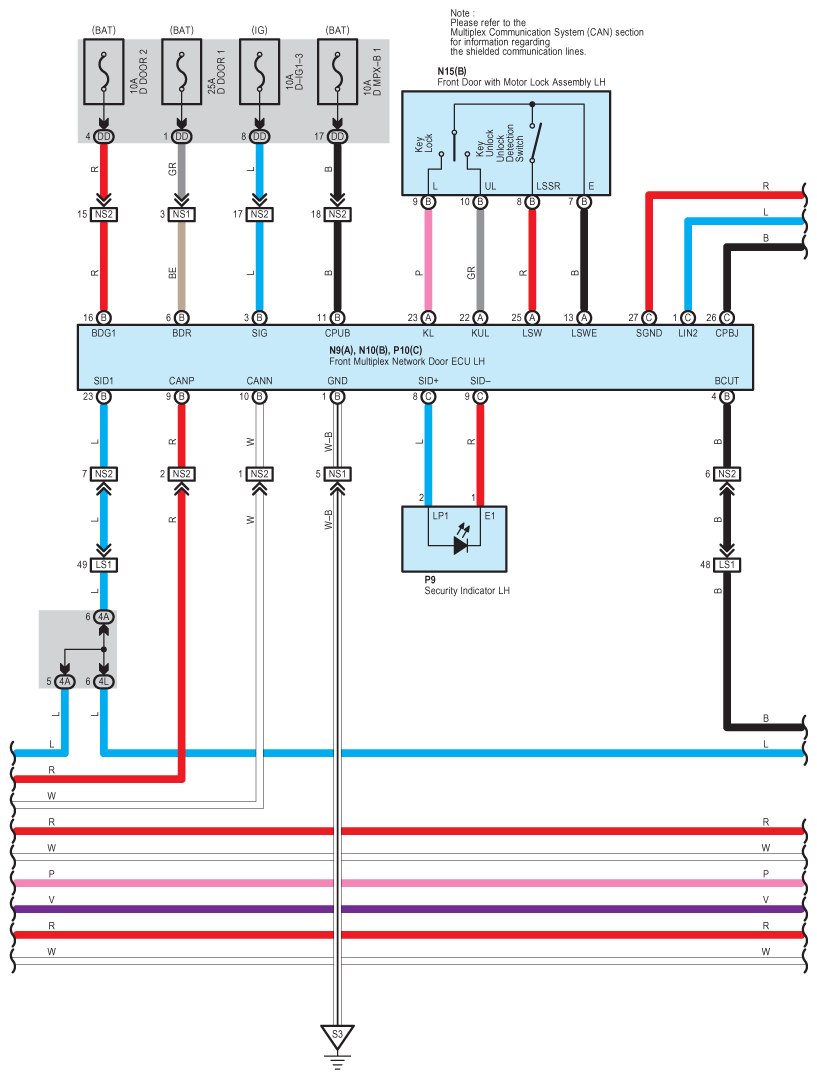

Fig 7: Theft Deterrent - Wiring Diagram (7 Of 10)

G08936846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

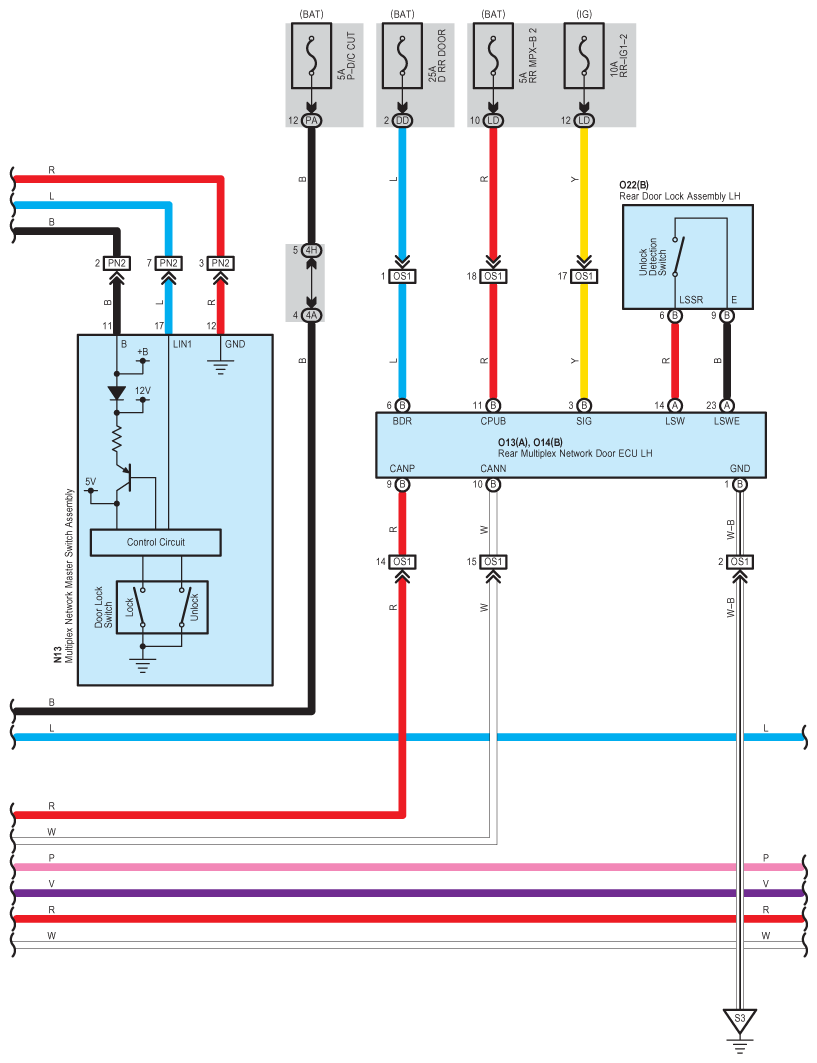

Fig 8: Theft Deterrent - Wiring Diagram (8 Of 10)

G08936847

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

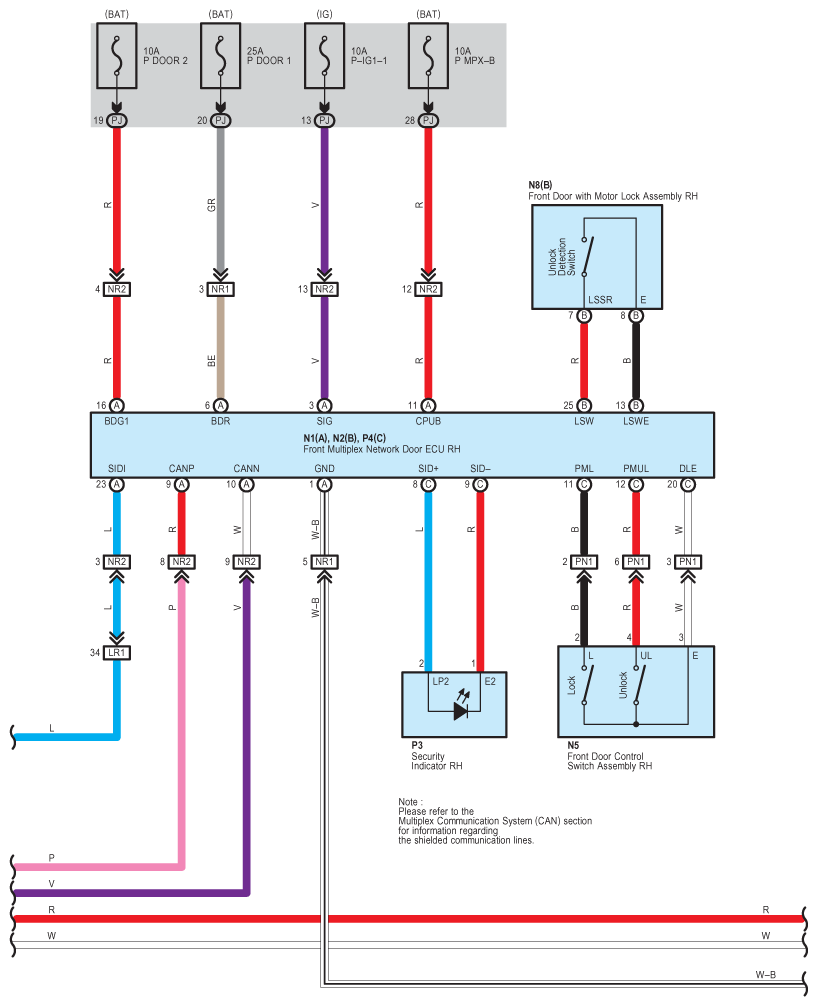

Fig 9: Theft Deterrent - Wiring Diagram (9 Of 10)

G08936848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

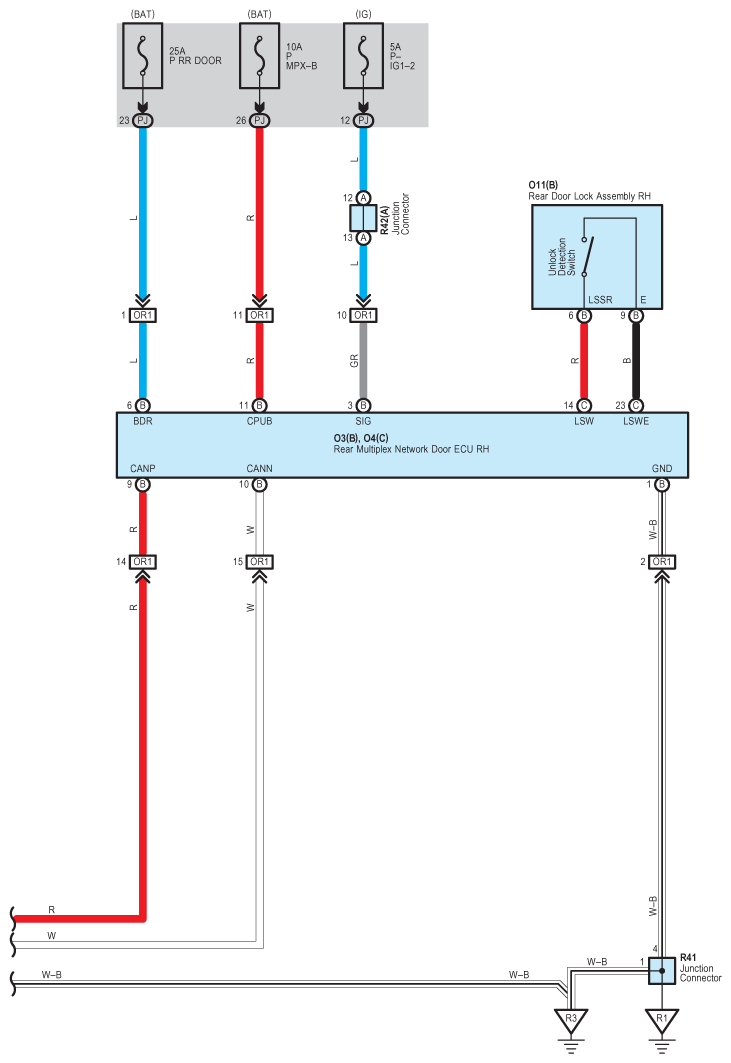

Fig 10: Theft Deterrent - Wiring Diagram (10 Of 10)

G08936849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
