Vibration Seat: Notes

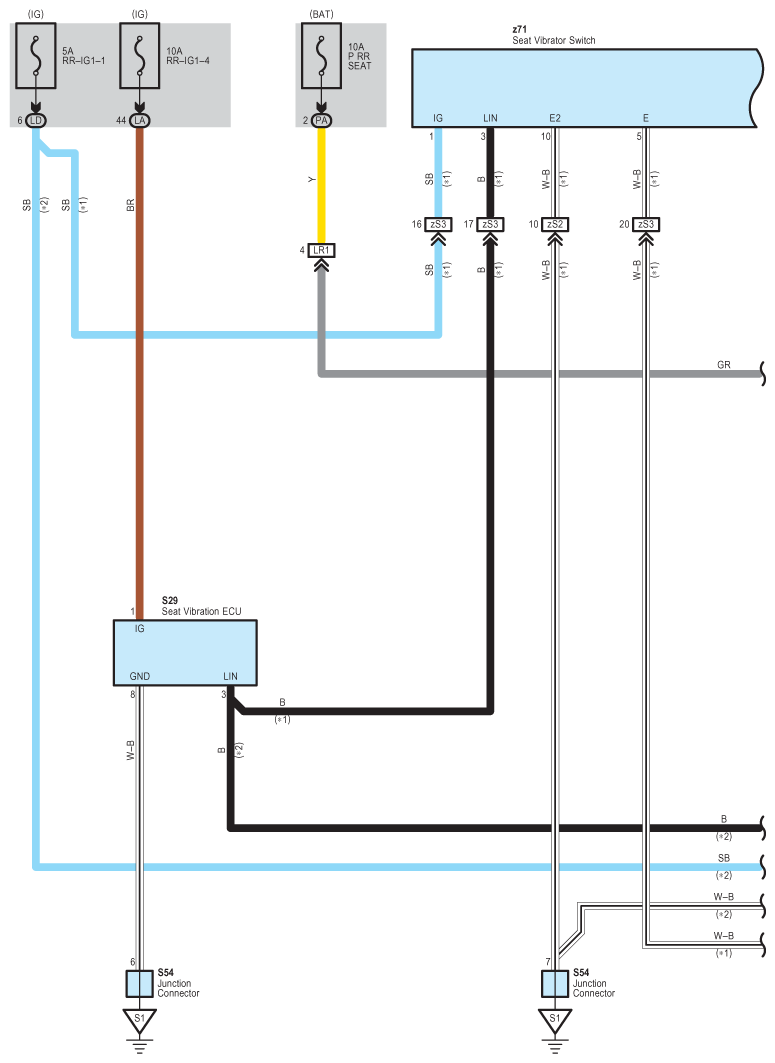

Fig 1: Vibration Seat - Wiring Diagram (1 Of 3)
G08937037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

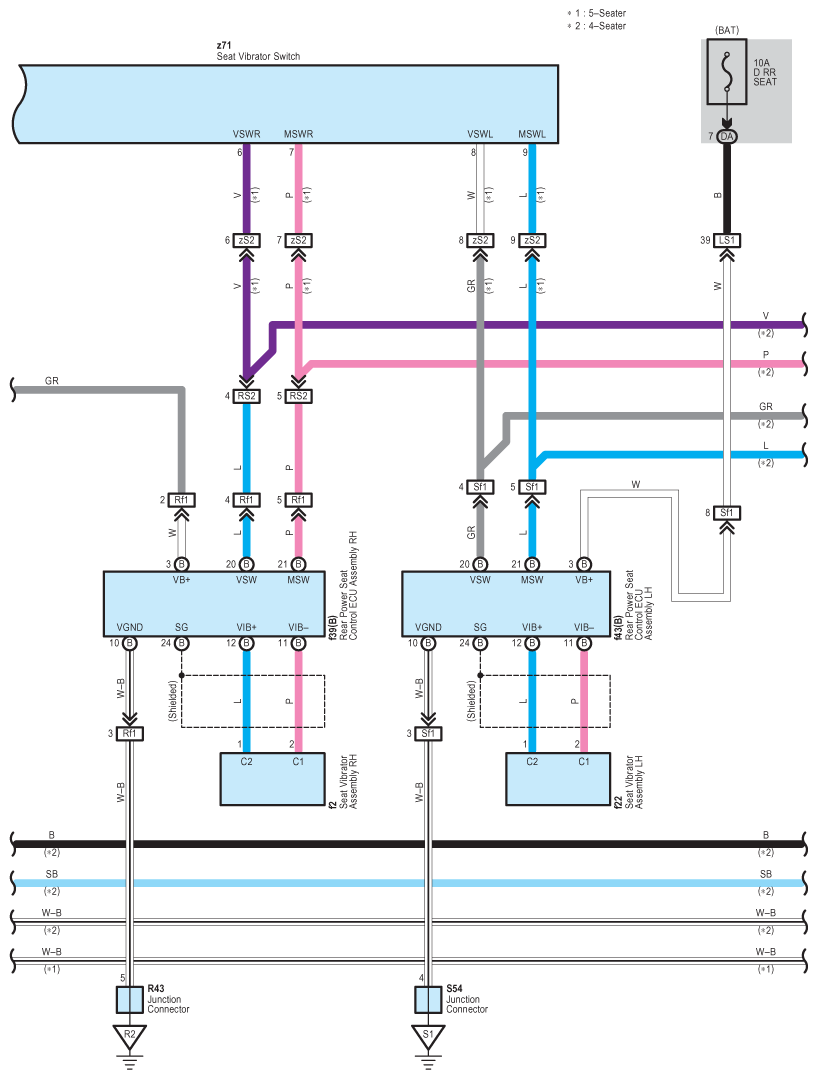

Fig 2: Vibration Seat - Wiring Diagram (2 Of 3)
G08937038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

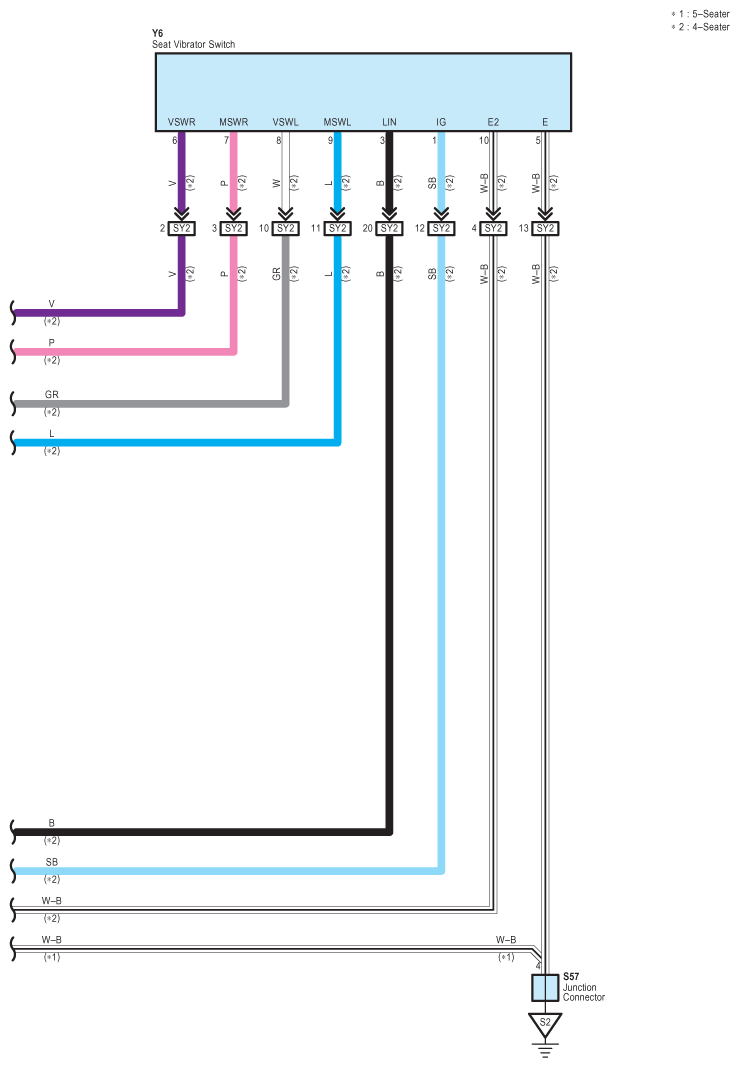

Fig 3: Vibration Seat - Wiring Diagram (3 Of 3)
G08937039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
