Wiper and Washer: Notes

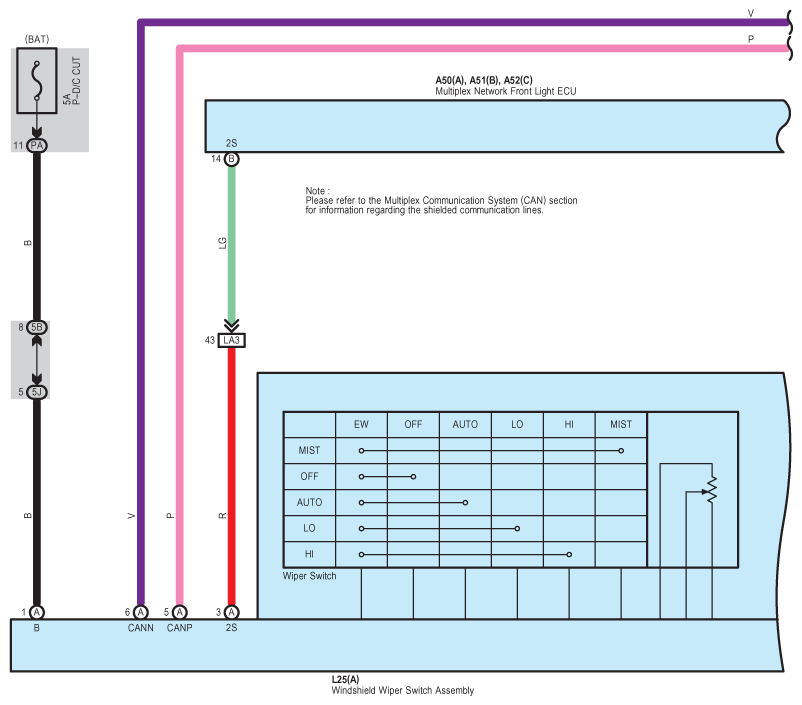

Fig 1: Wiper And Washer - Wiring Diagram (1 Of 4)
G08936816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

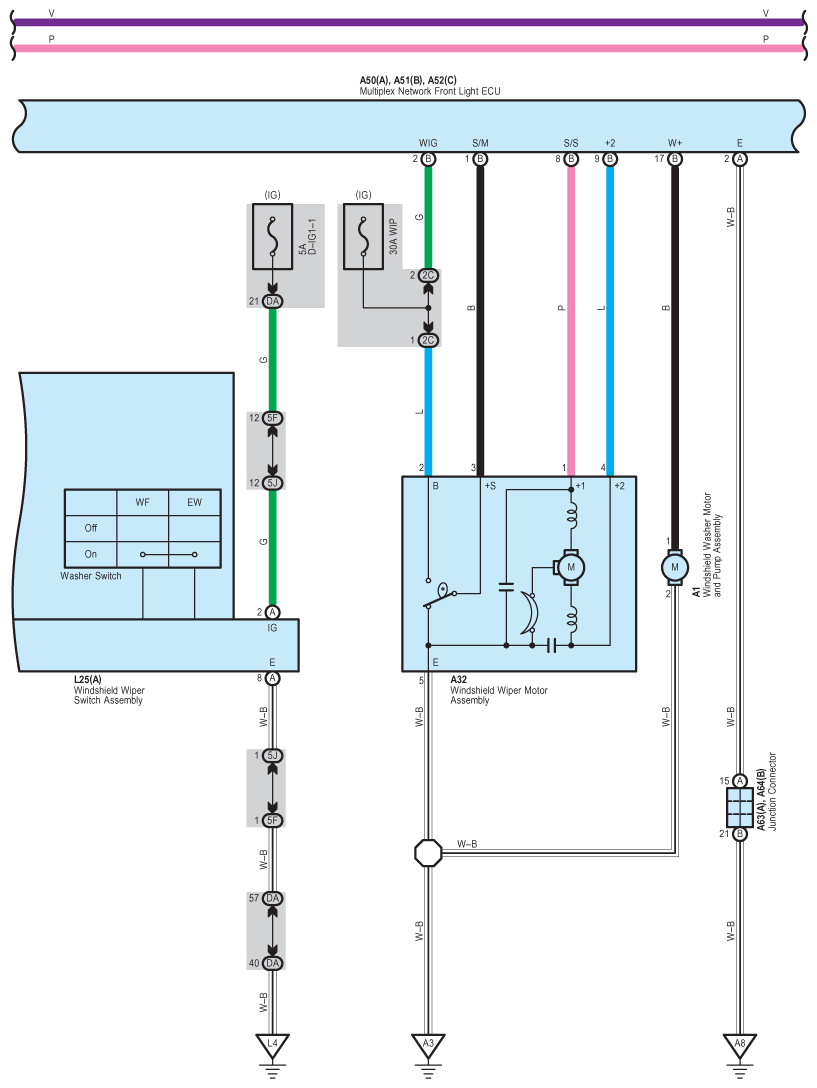

Fig 2: Wiper And Washer - Wiring Diagram (2 Of 4)
G08936817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

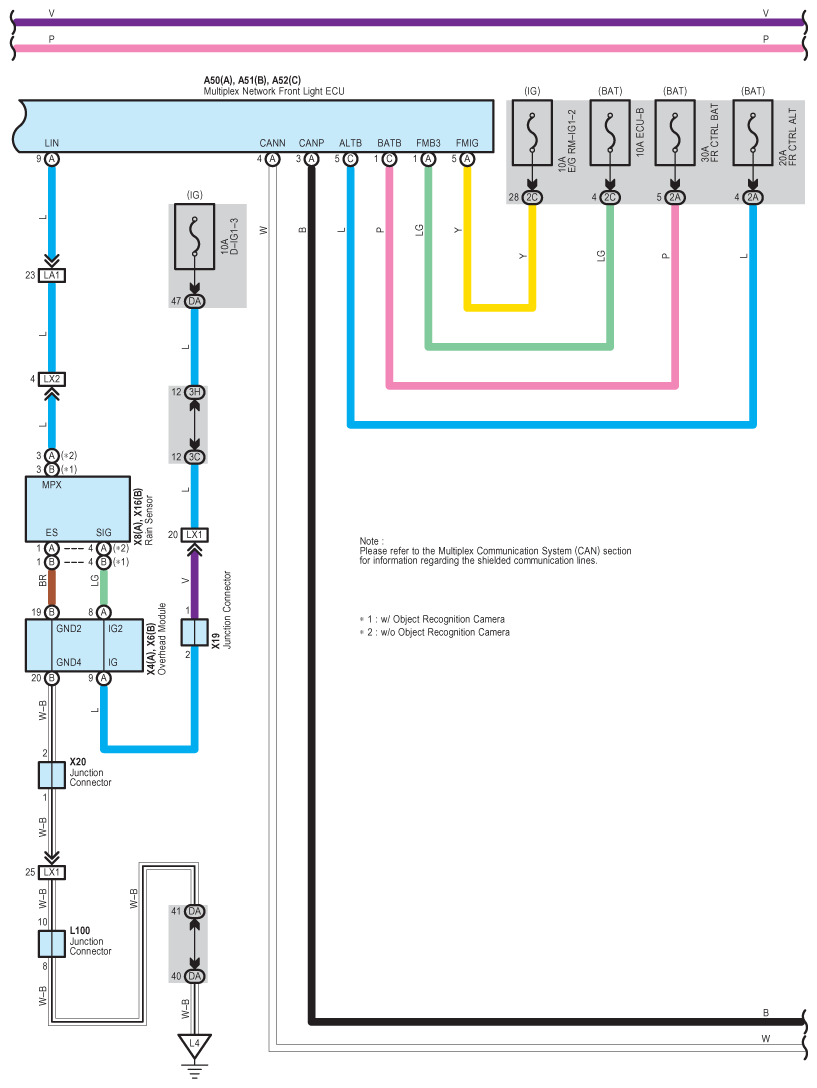

Fig 3: Wiper And Washer - Wiring Diagram (3 Of 4)
G08936818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Wiper And Washer - Wiring Diagram (4 Of 4)
G08936819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
