Remote Touch: Reassembly: Reassembly

WARNING: This page is about a different car, the 2012 Lexus CT 200h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL INTEGRATION PANEL SUB-ASSEMBLY
INSTALL COVER ASSEMBLY LH
1. Engage the 2 clips to install the cover assembly LH.

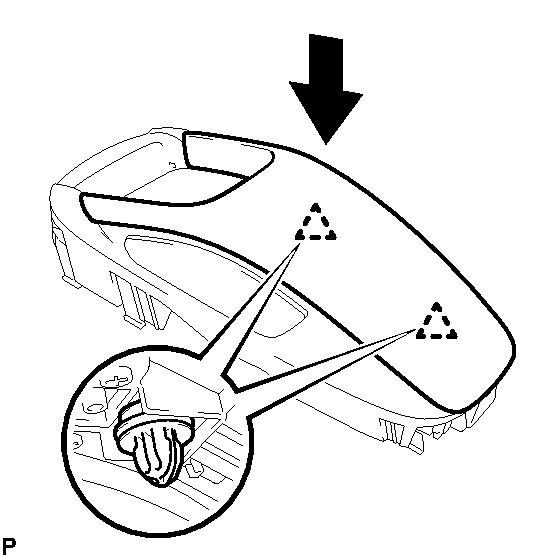

  Fig 1: Engaging Clips Cover Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DOME COVER
1. Install the dome cover as shown in the illustration.

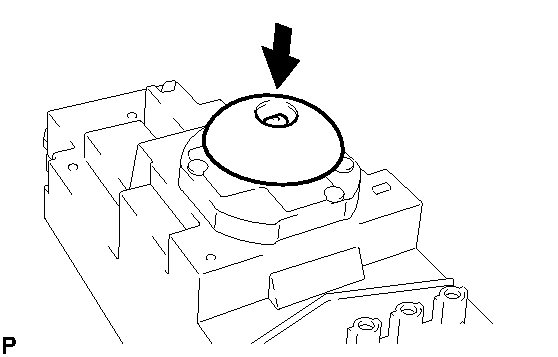

  Fig 2: Identifying Dome Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REMOTE OPERATION BOARD
1. Connect the connector.

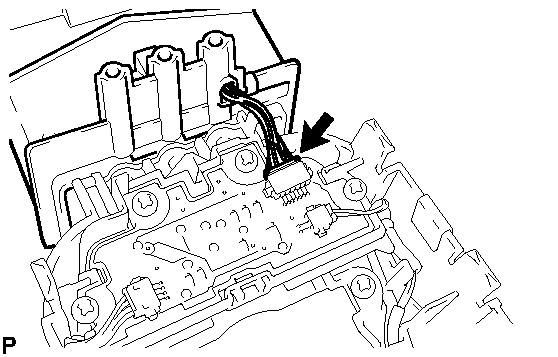

  Fig 3: Identifying Remote Operation Board Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 3 screws.

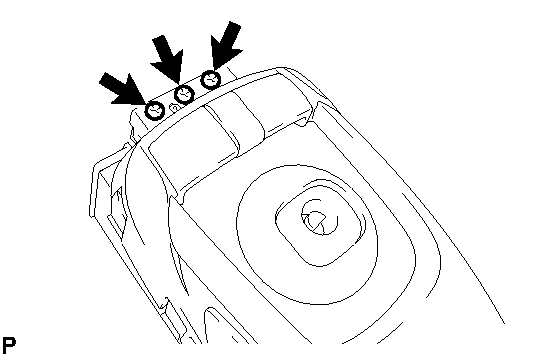

  Fig 4: Identifying Remote Operation Board Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

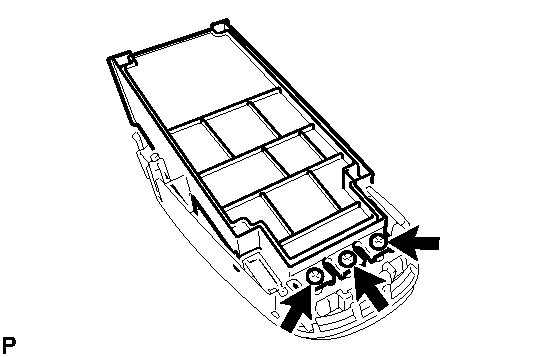

3. Install the 3 screws to install the remote operation board.

  Fig 5: Identifying Remote Operation Board Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SWITCH KNOB
1. Install the switch knob as shown in the illustration.

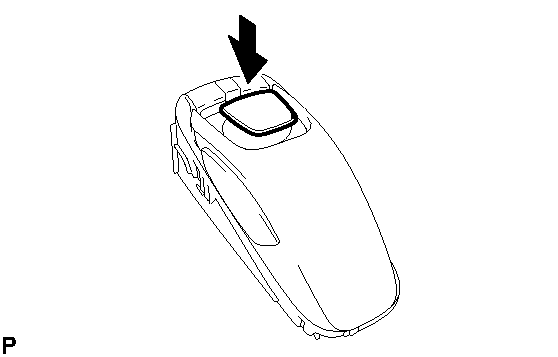

  Fig 6: Identifying Switch Knob
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
