Skid Control Buzzer: Inspection: Inspection
- INSPECT SKID CONTROL BUZZER

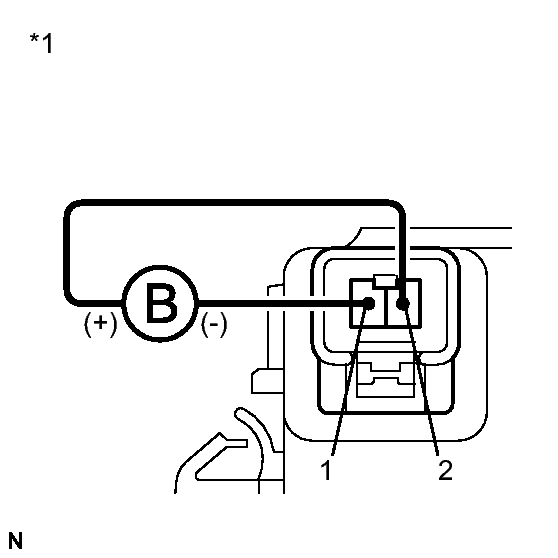

- Connect a negative (-) lead from the battery to terminal 1 of the skid control buzzer and a positive (+) lead to terminal 2, and then check that the buzzer sounds.TEXT IN ILLUSTRATION
*1 Component without harness connected (Skid Control Buzzer) OK
The skid control buzzer sounds.
If the result is not as specified, replace the switch.
- Connect a negative (-) lead from the battery to terminal 1 of the skid control buzzer and a positive (+) lead to terminal 2, and then check that the buzzer sounds.
