Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Rear View Monitor w/LEXUS Navigation System): Notes

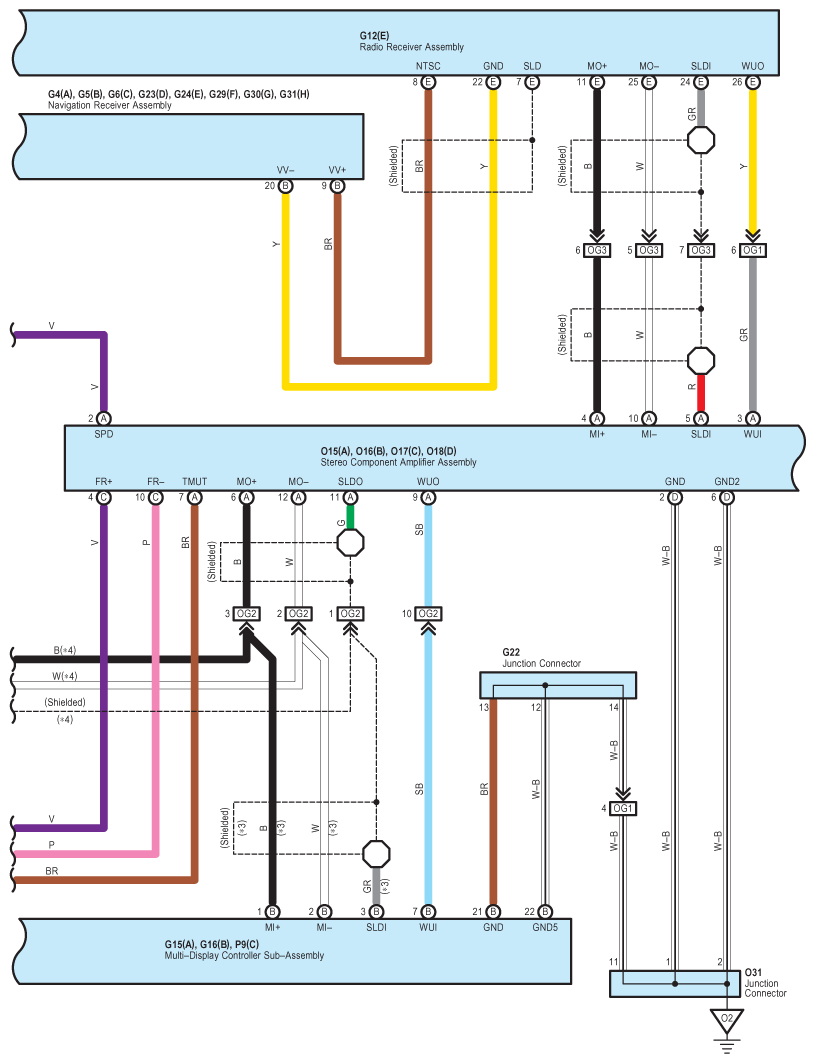

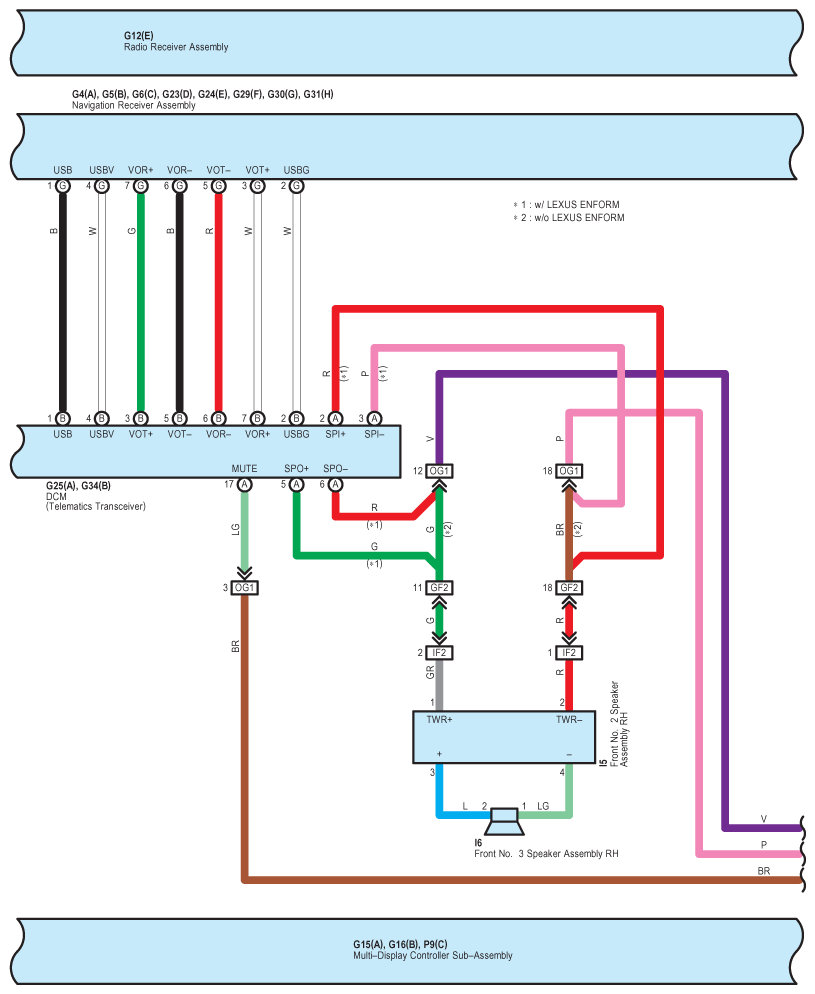

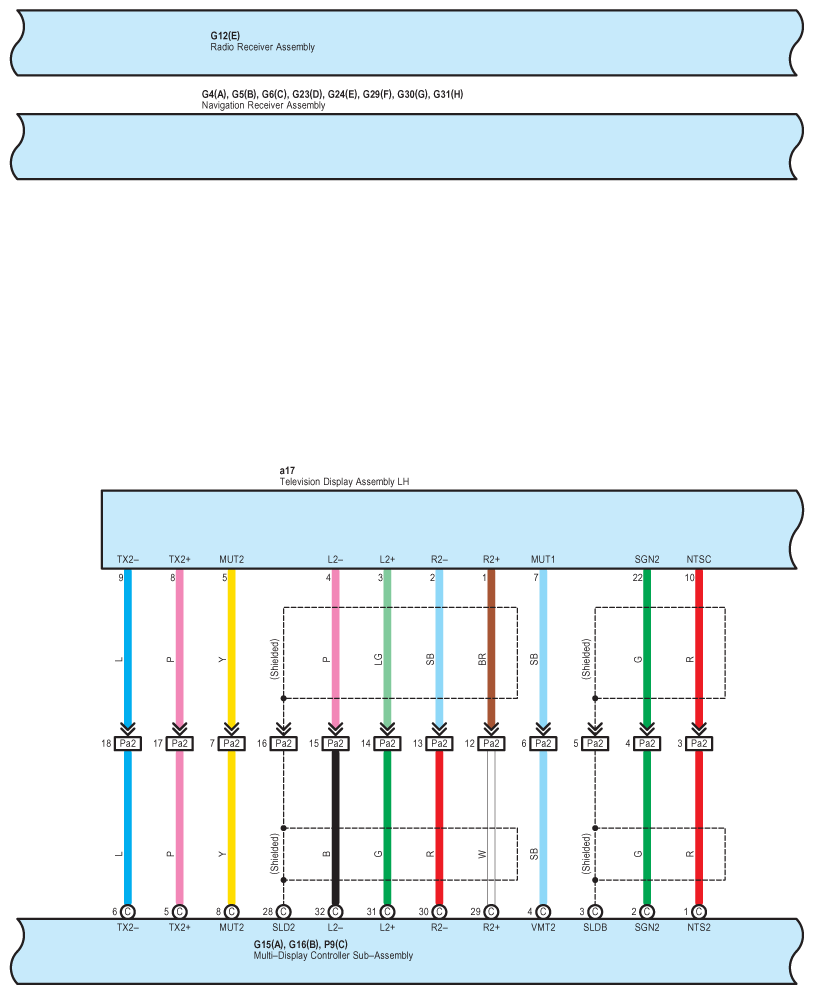

Fig 1: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (1 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

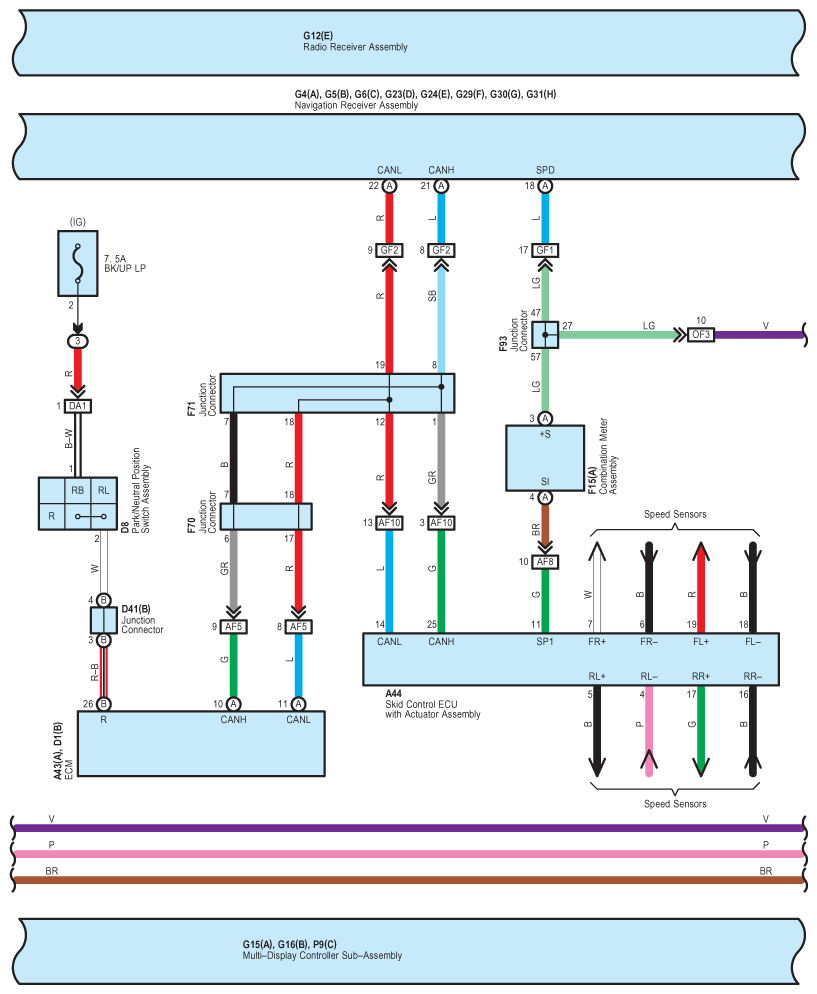

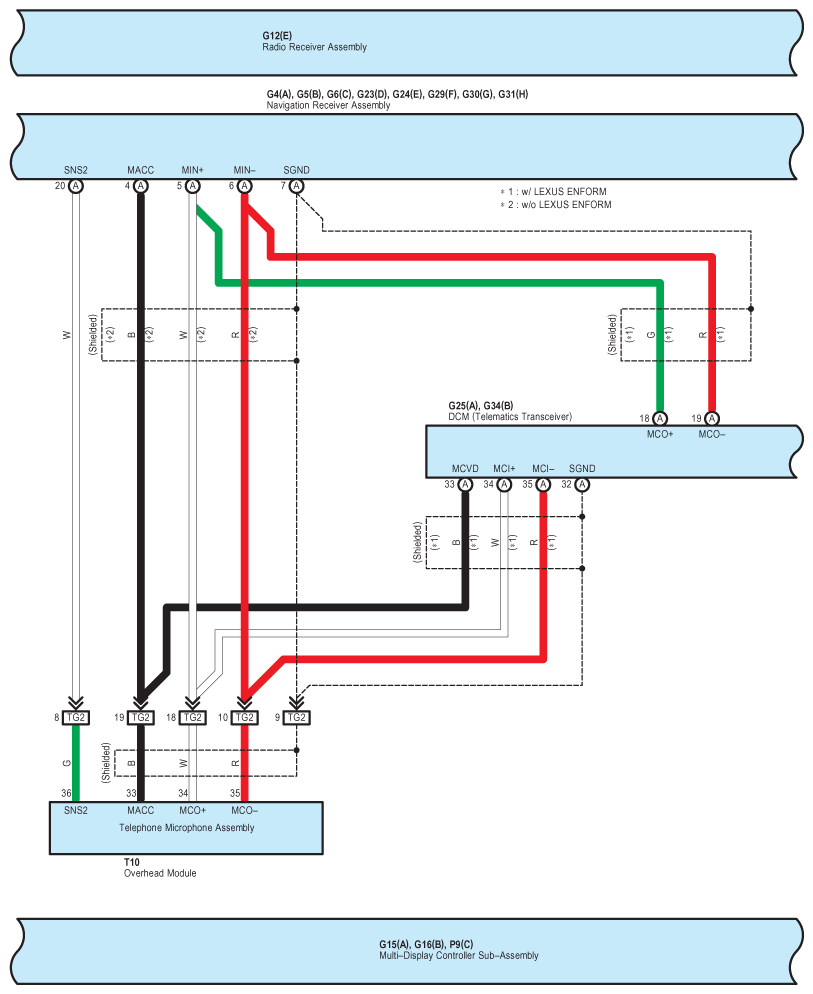

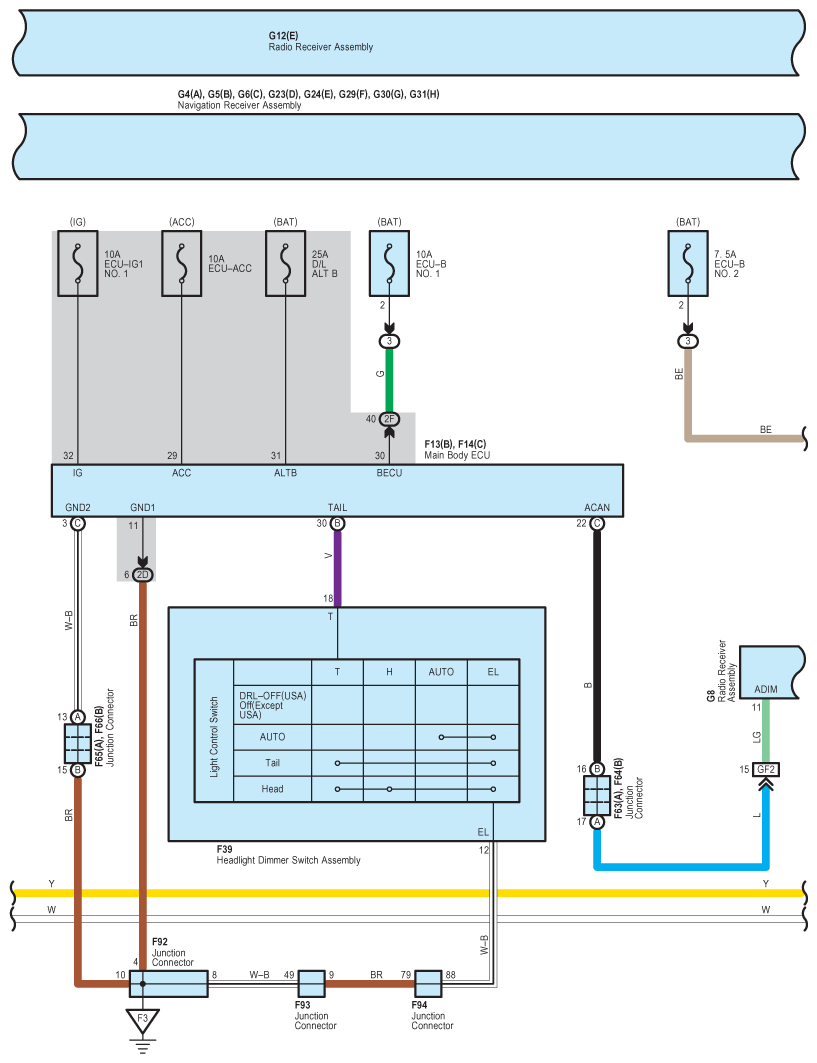

Fig 2: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (2 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

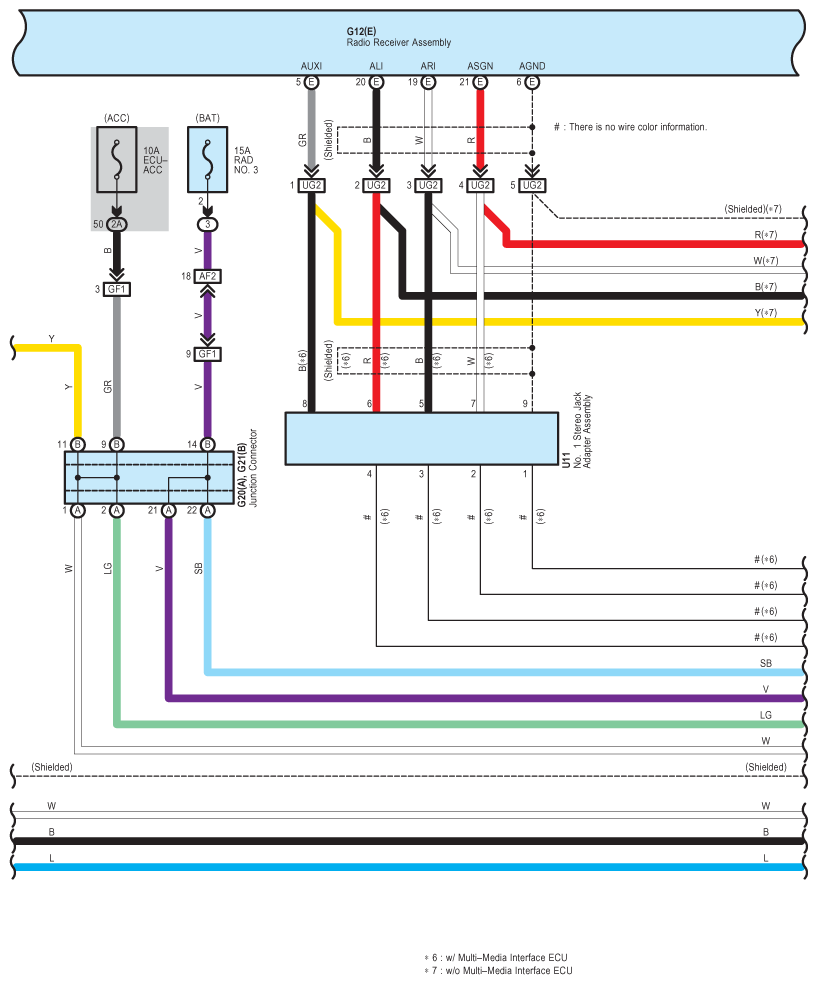

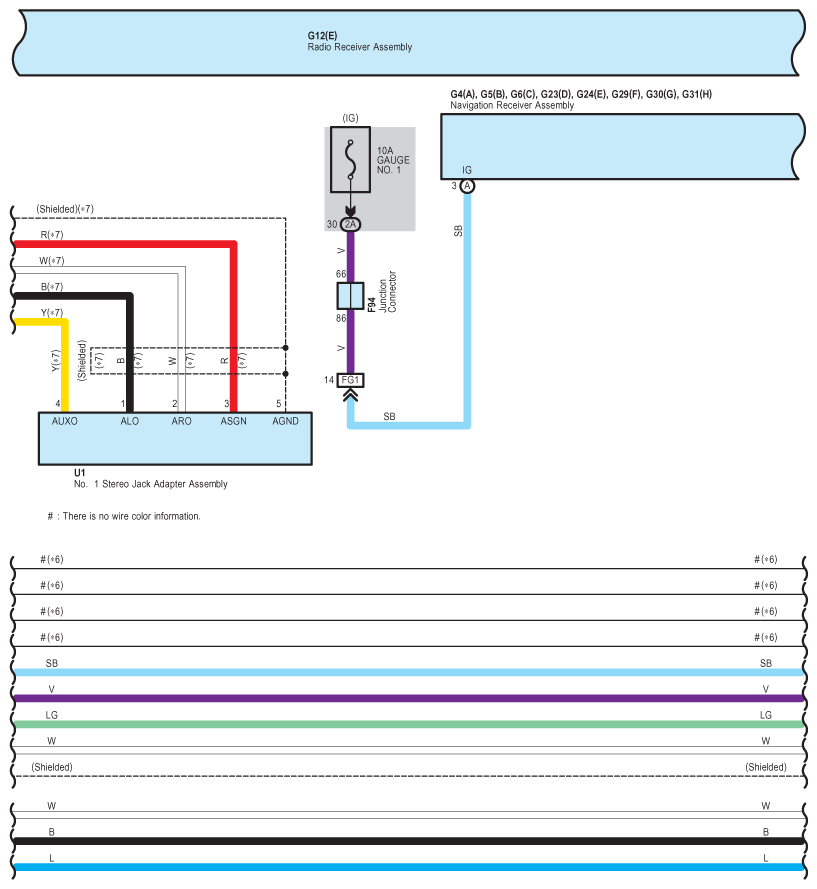

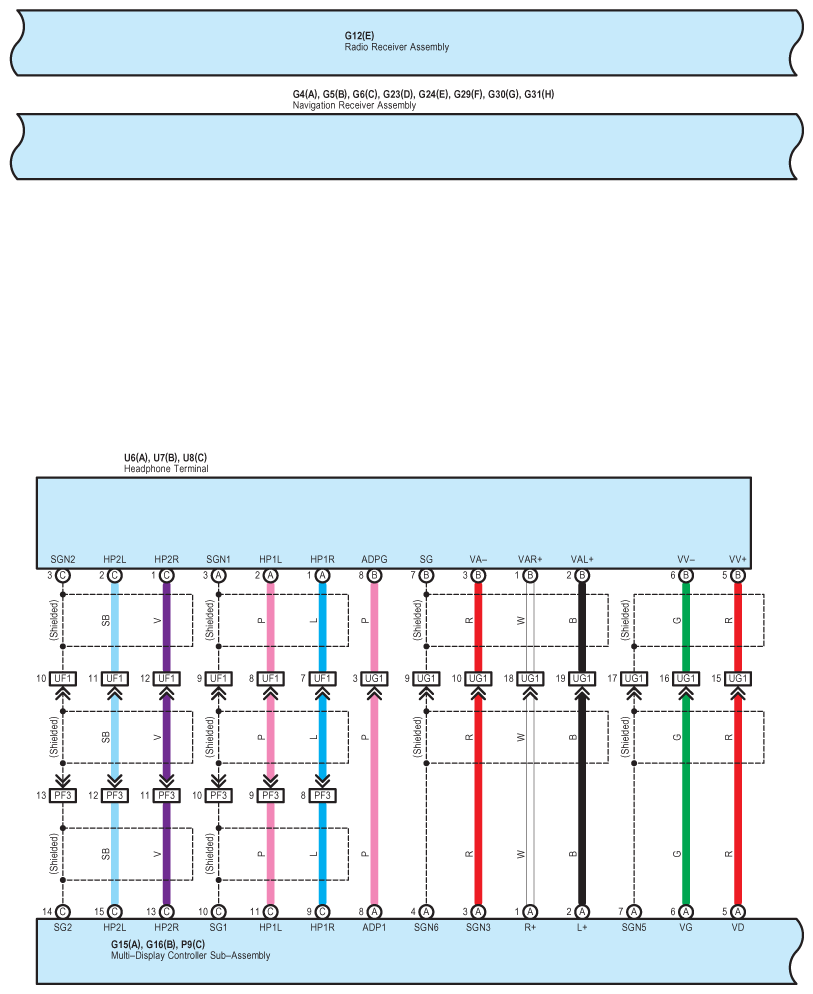

Fig 3: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (3 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

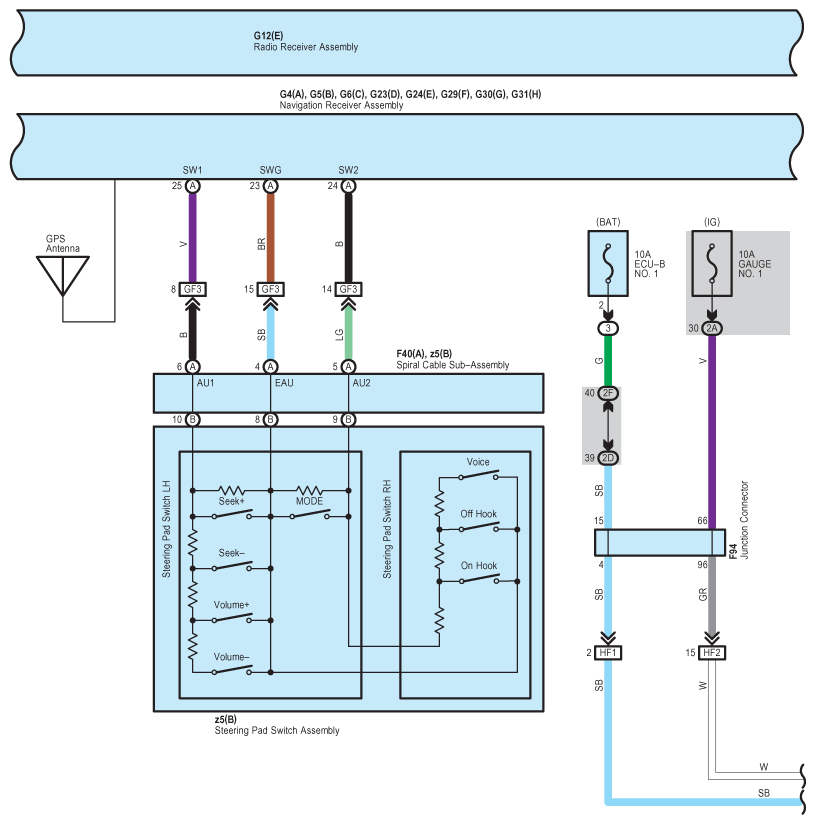

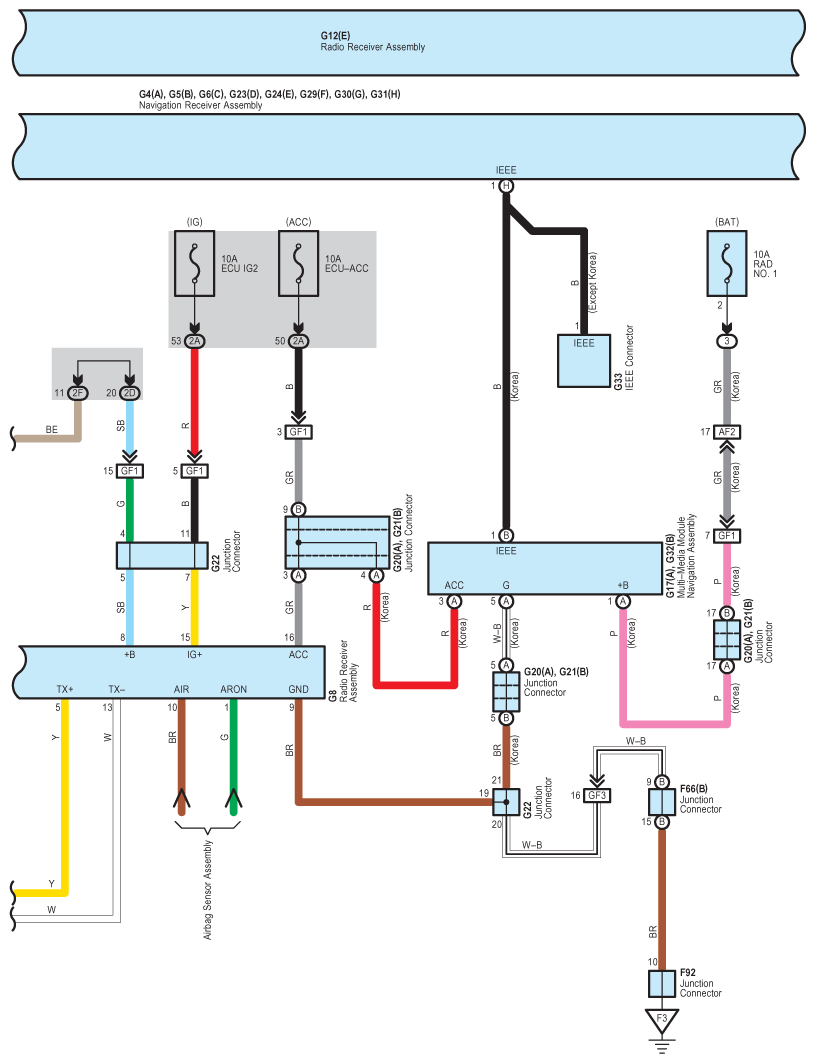

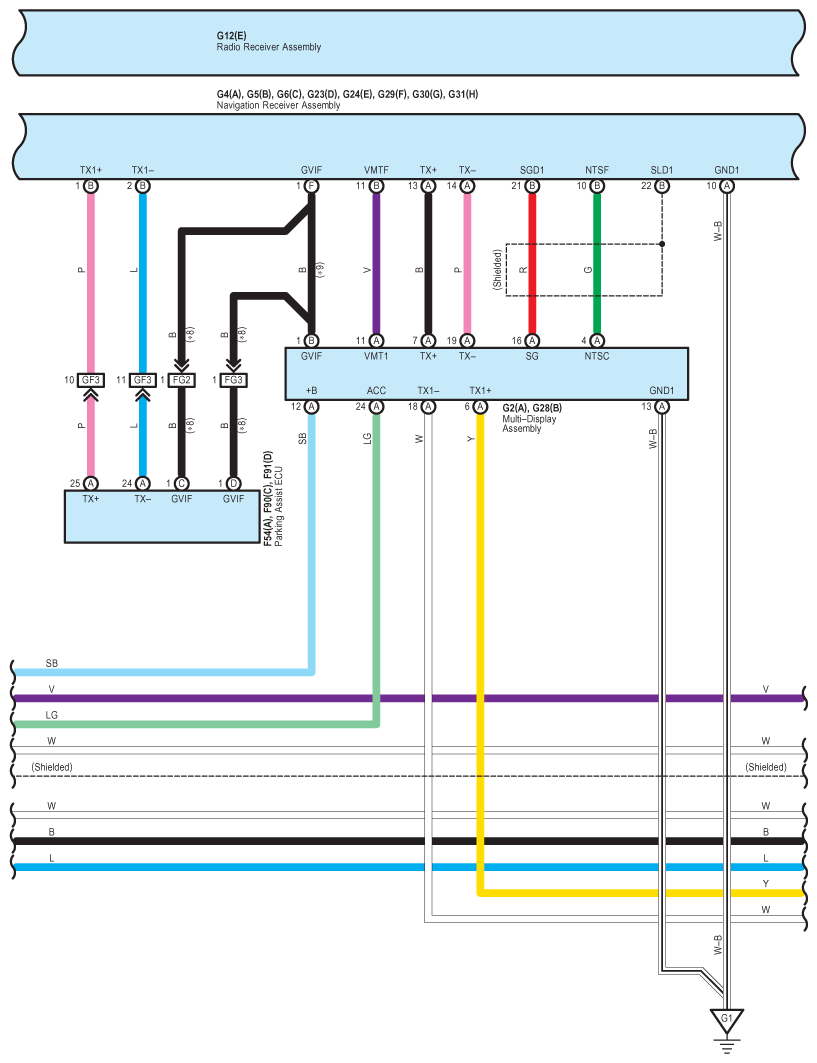

Fig 4: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (4 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

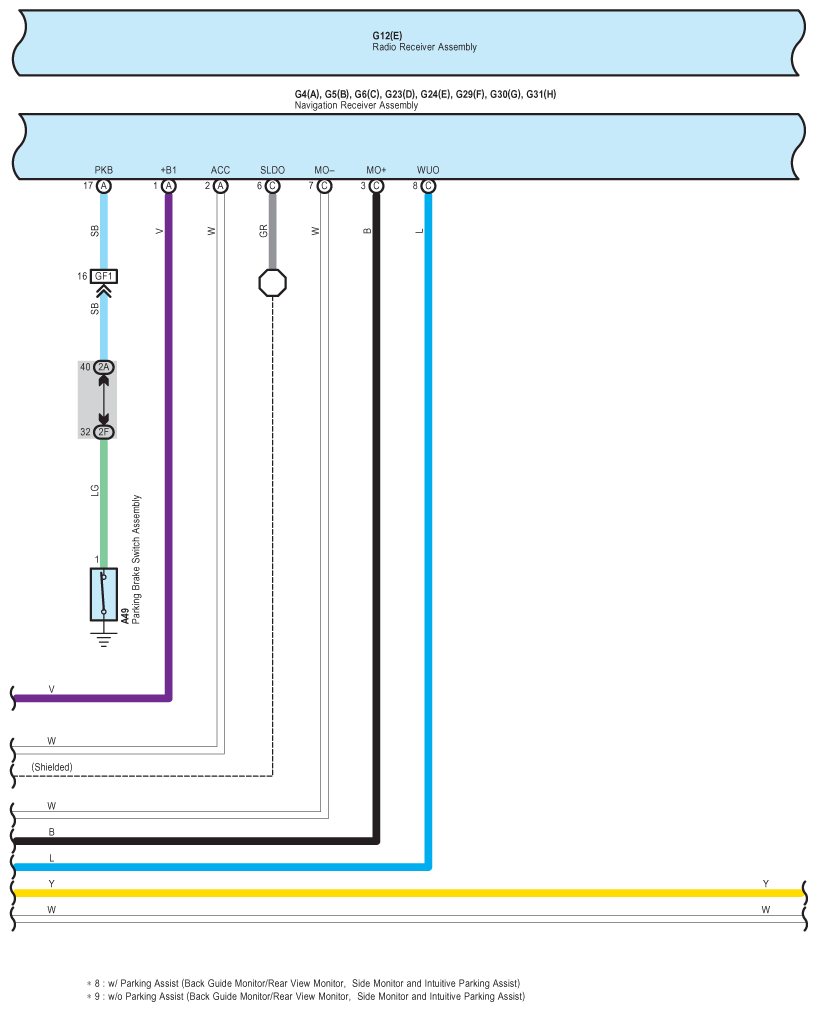

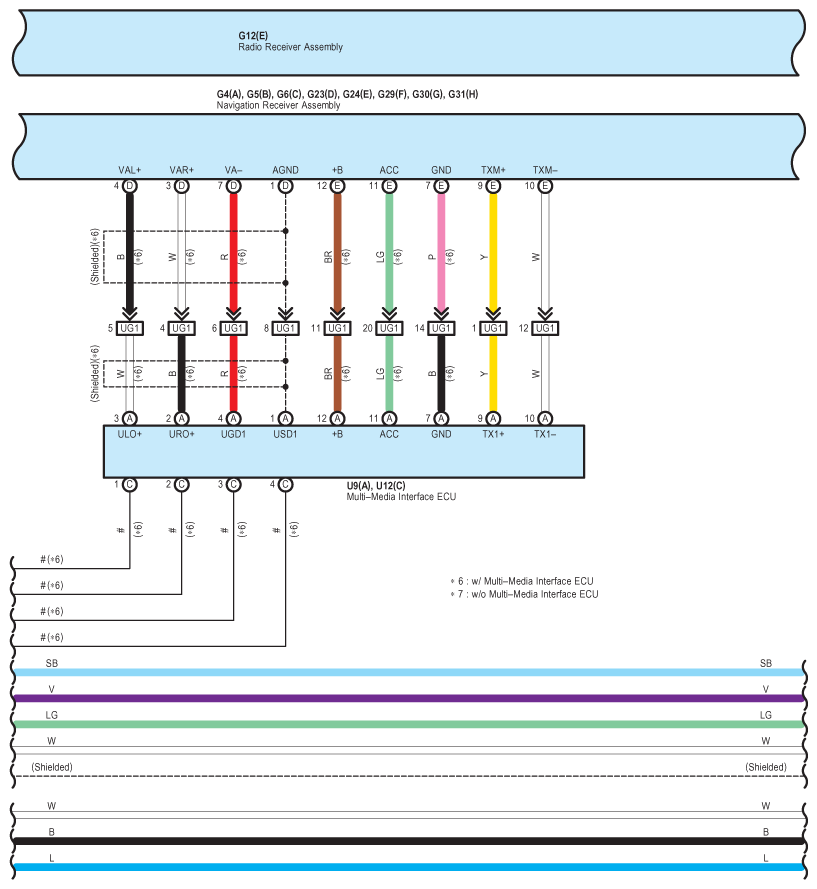

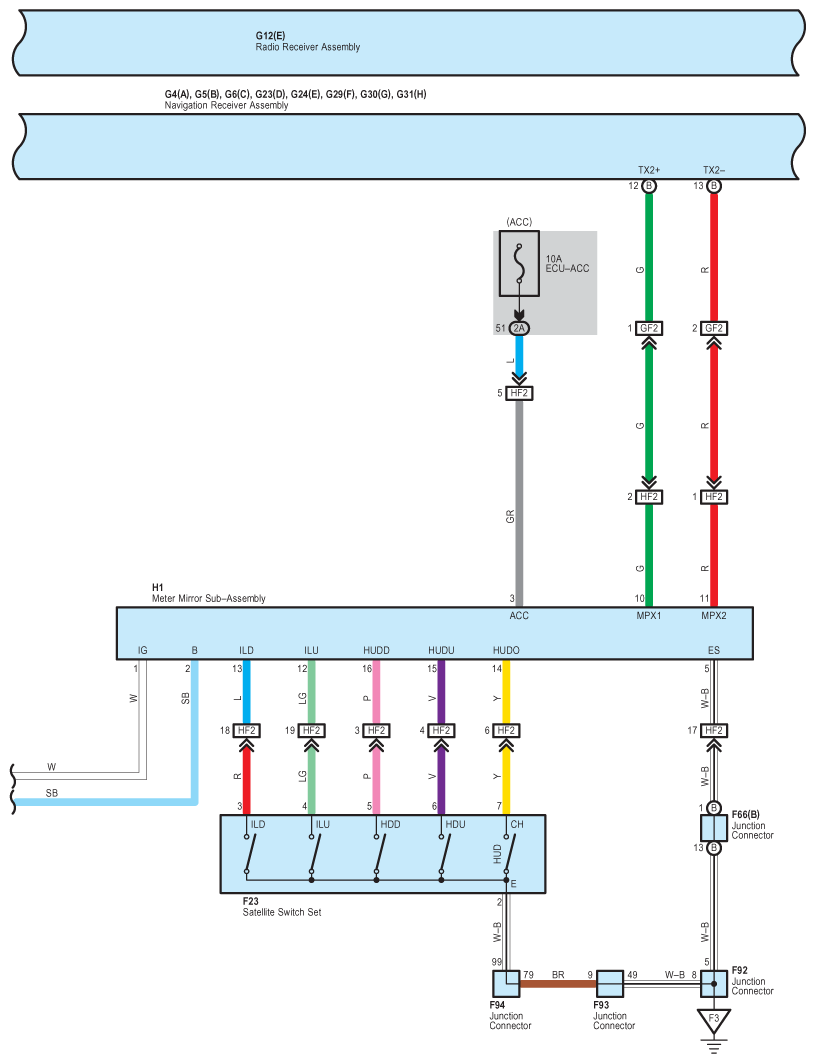

Fig 5: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (5 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

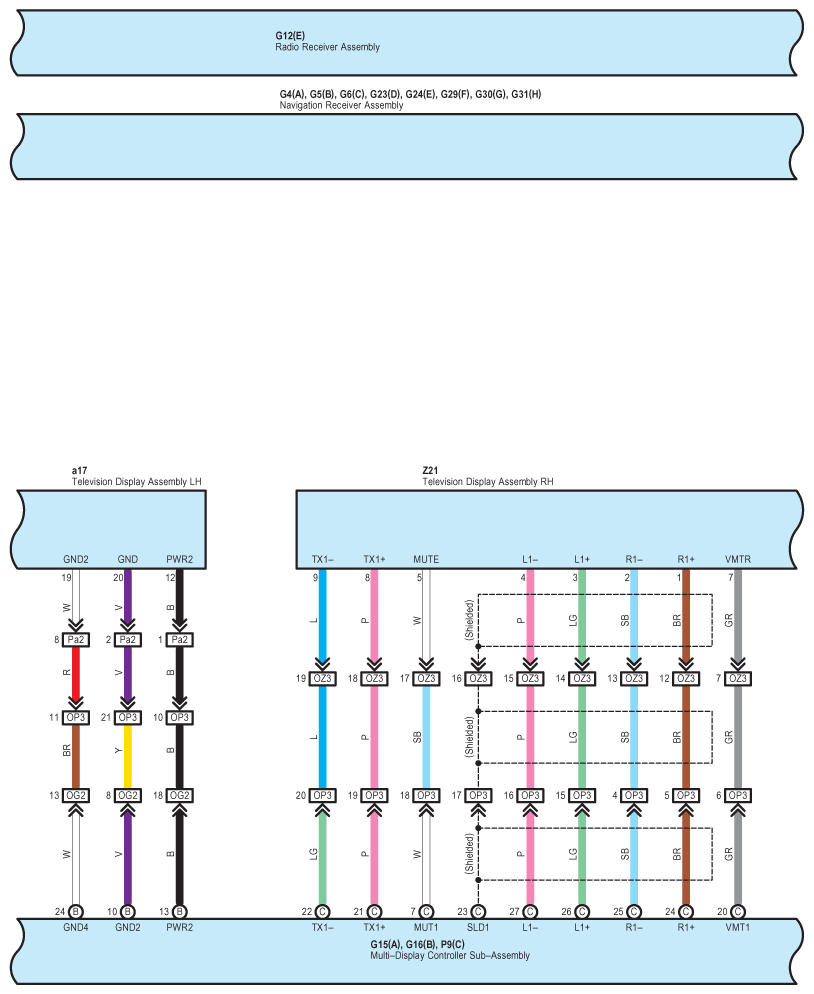

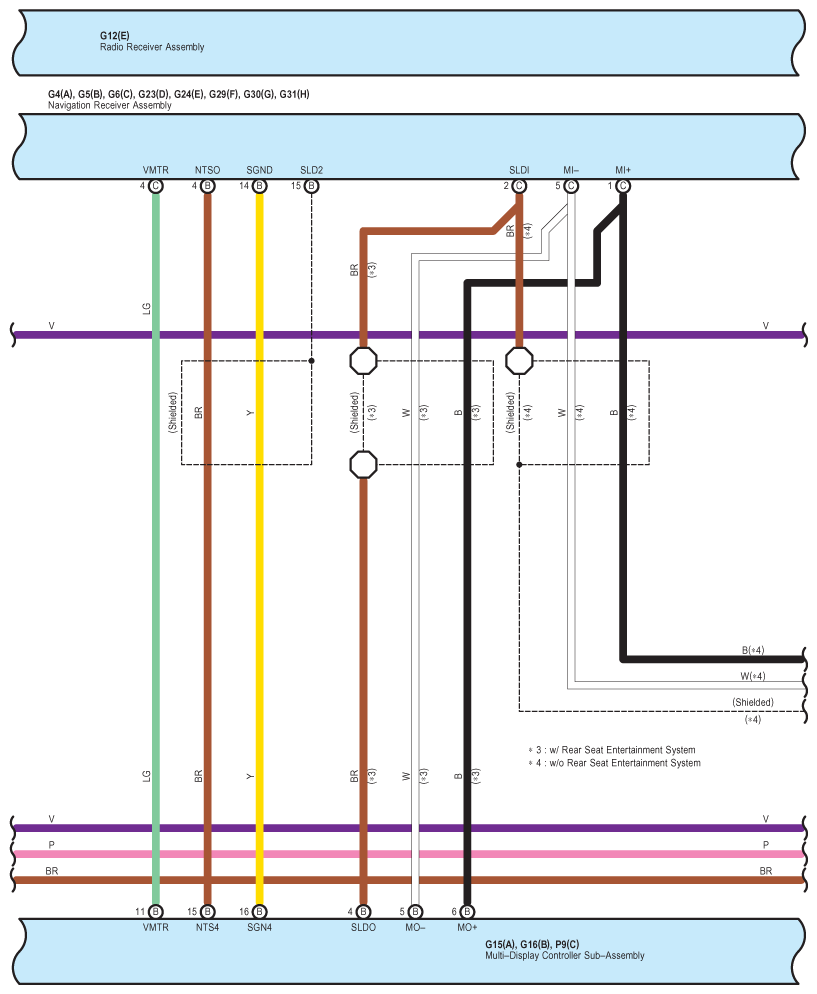

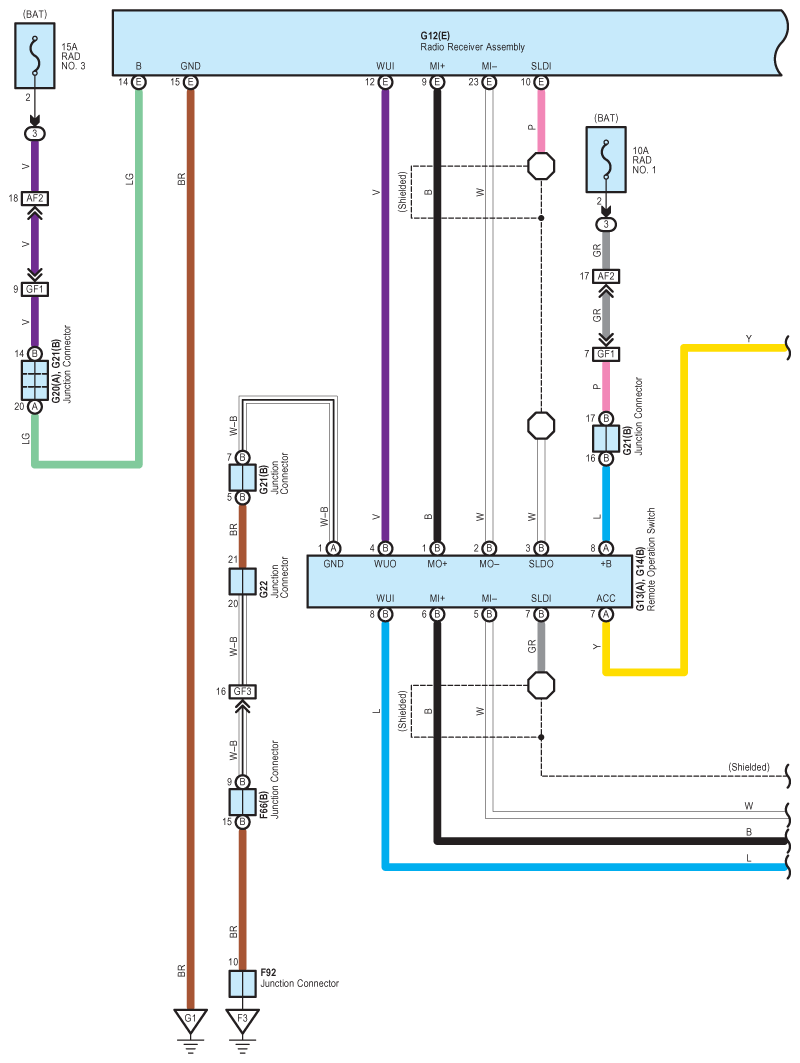

Fig 6: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (6 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

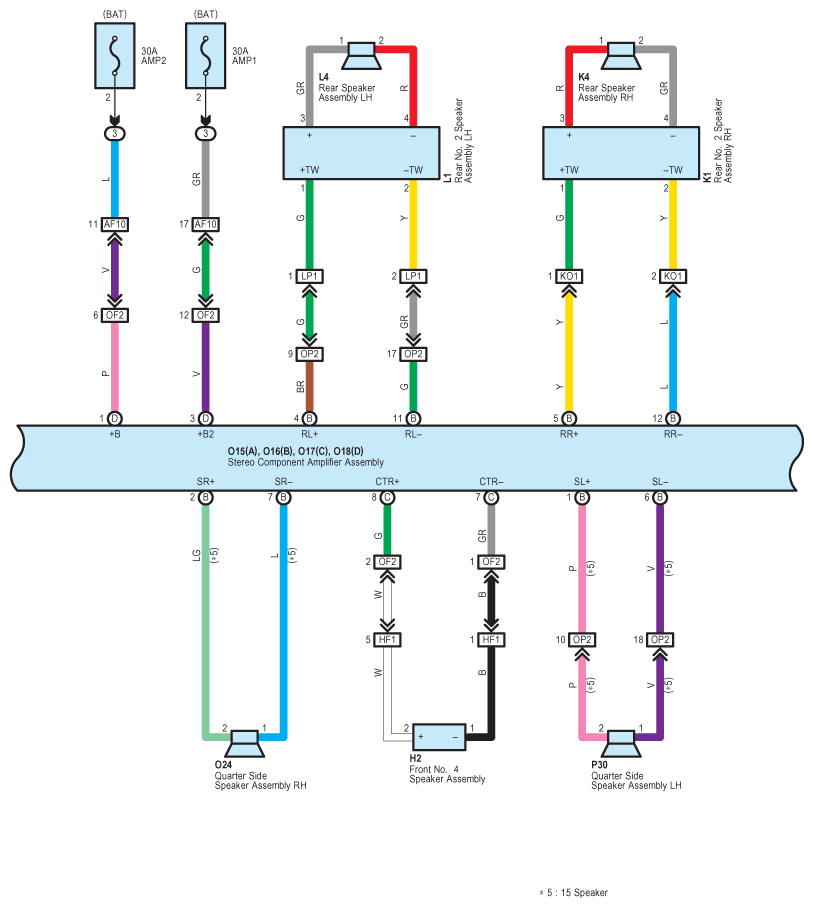

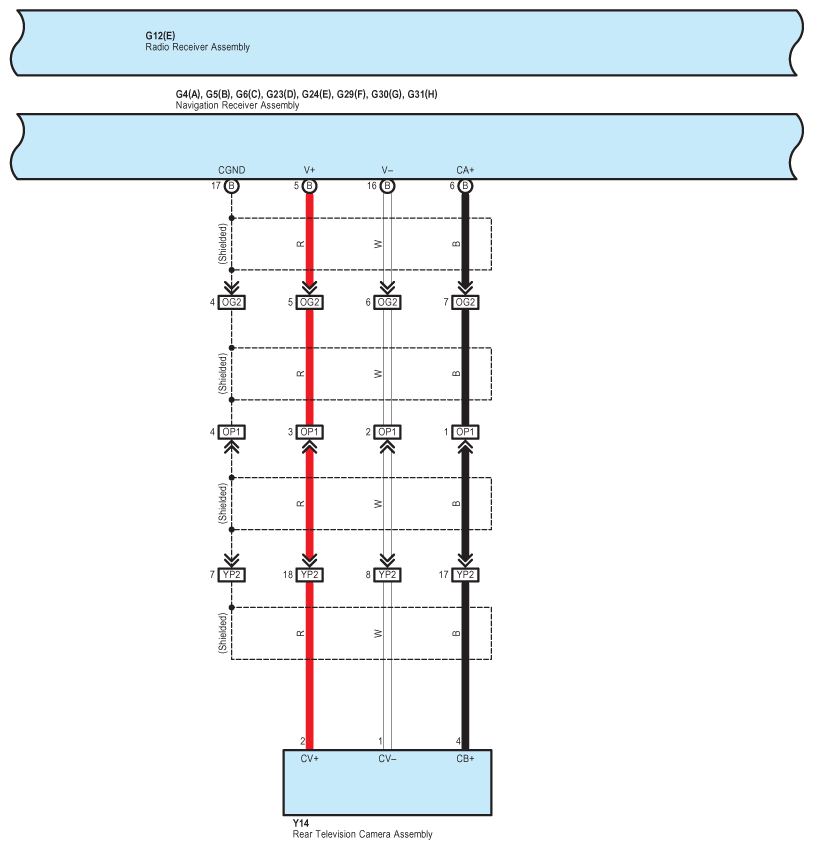

Fig 7: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (7 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

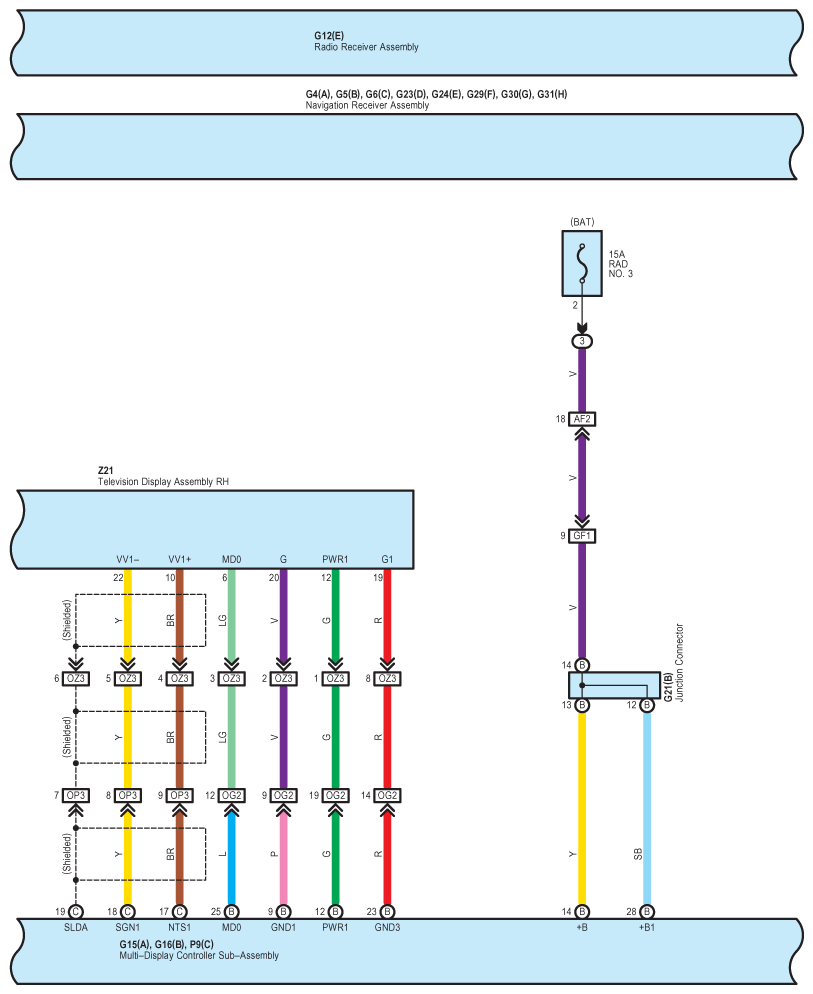

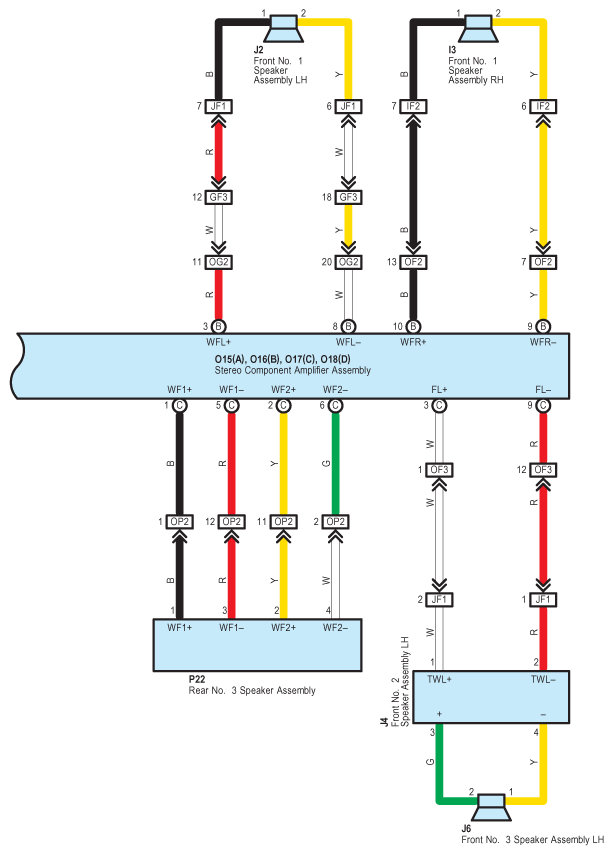

Fig 8: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (8 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (9 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (10 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (11 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (12 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (13 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (14 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (15 Of 22)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (16 Of 22)

Fig 17: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (17 Of 22)

Fig 18: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (18 Of 22)

Fig 19: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (19 Of 22)

Fig 20: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (20 Of 22)

Fig 21: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (21 Of 22)

Fig 22: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor W/LEXUS Navigation System) - Wiring Diagram (22 Of 22)
