Engine Control, Electronically Controlled Transmission and A/T Indicator: Notes

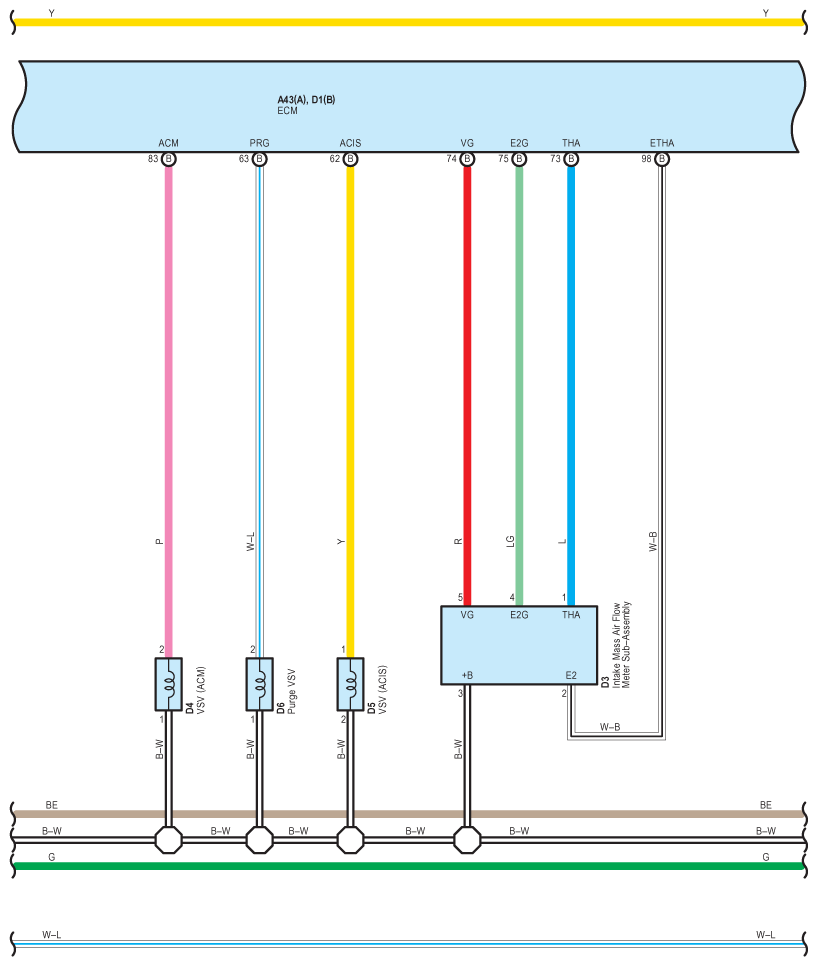

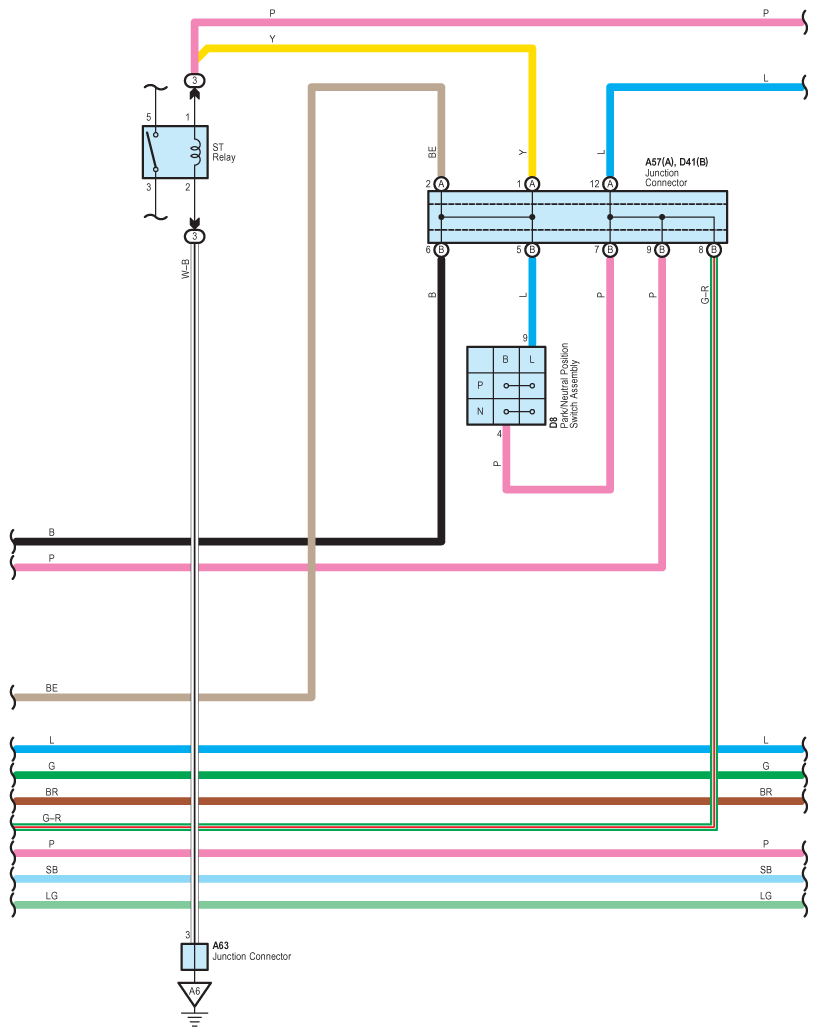

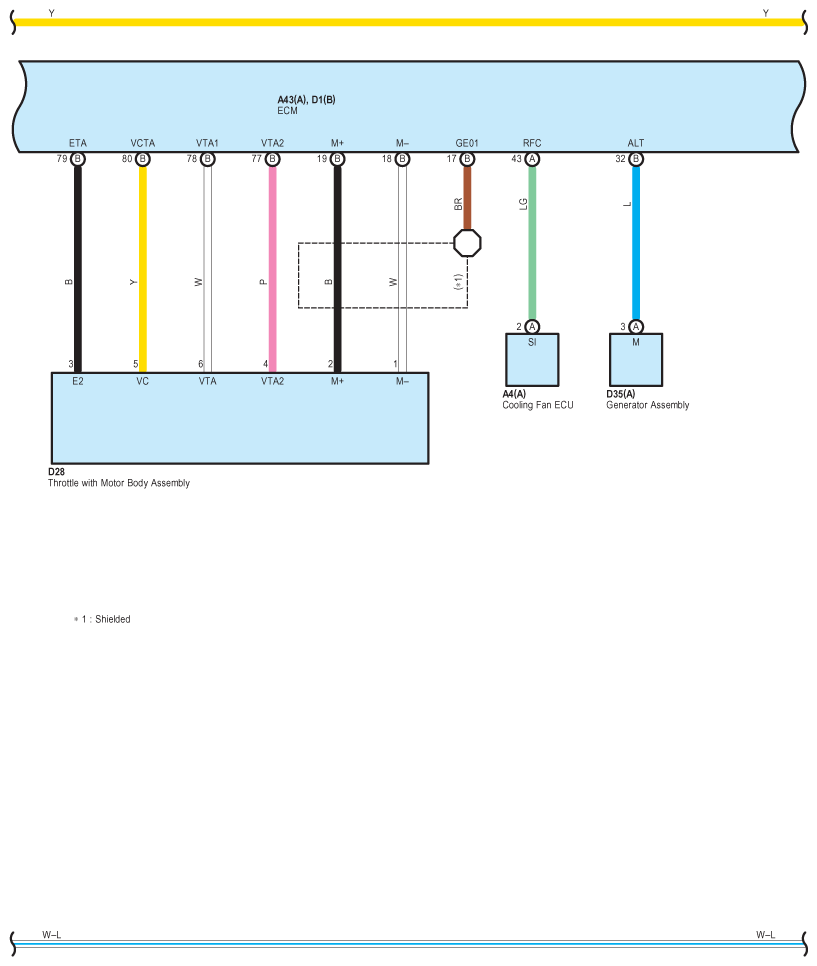

Fig 1: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (1 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

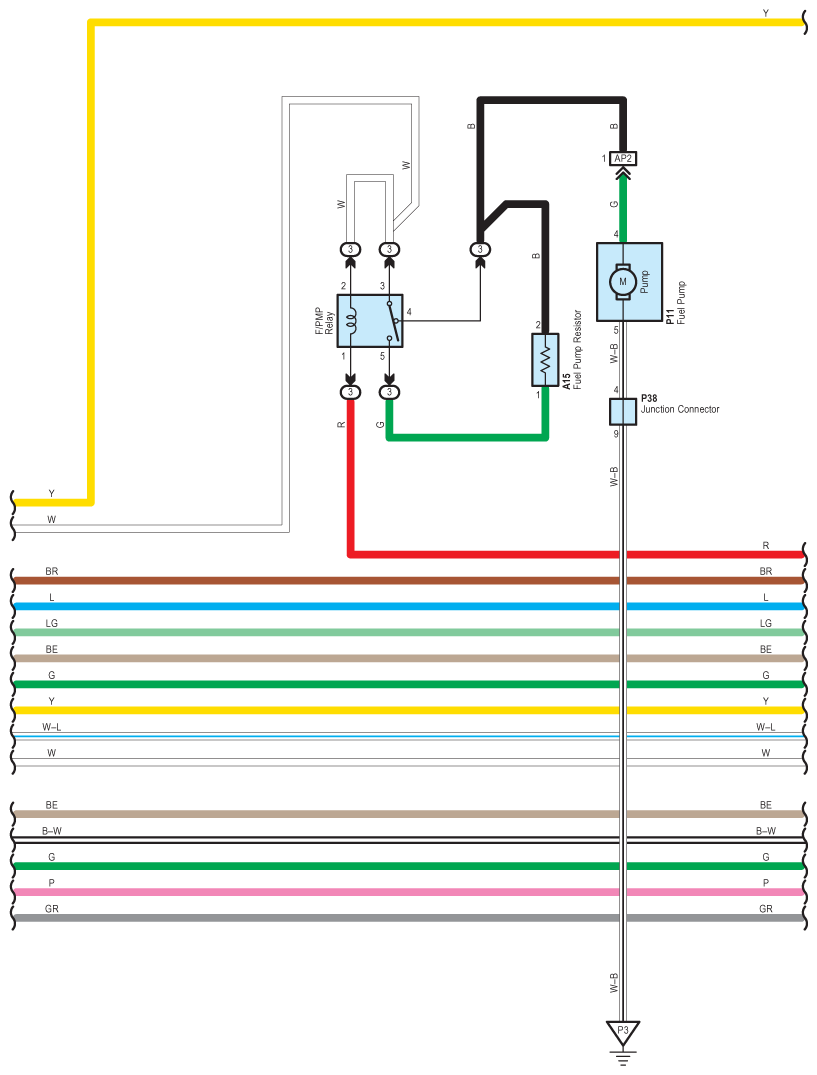

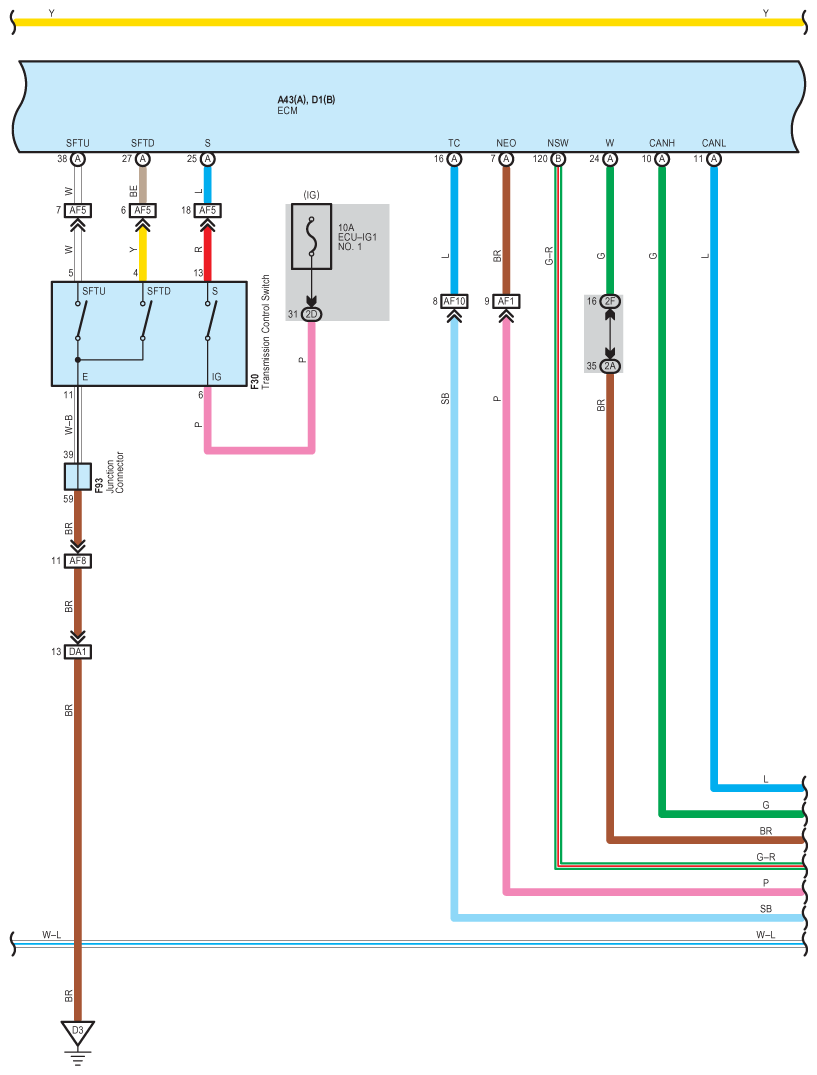

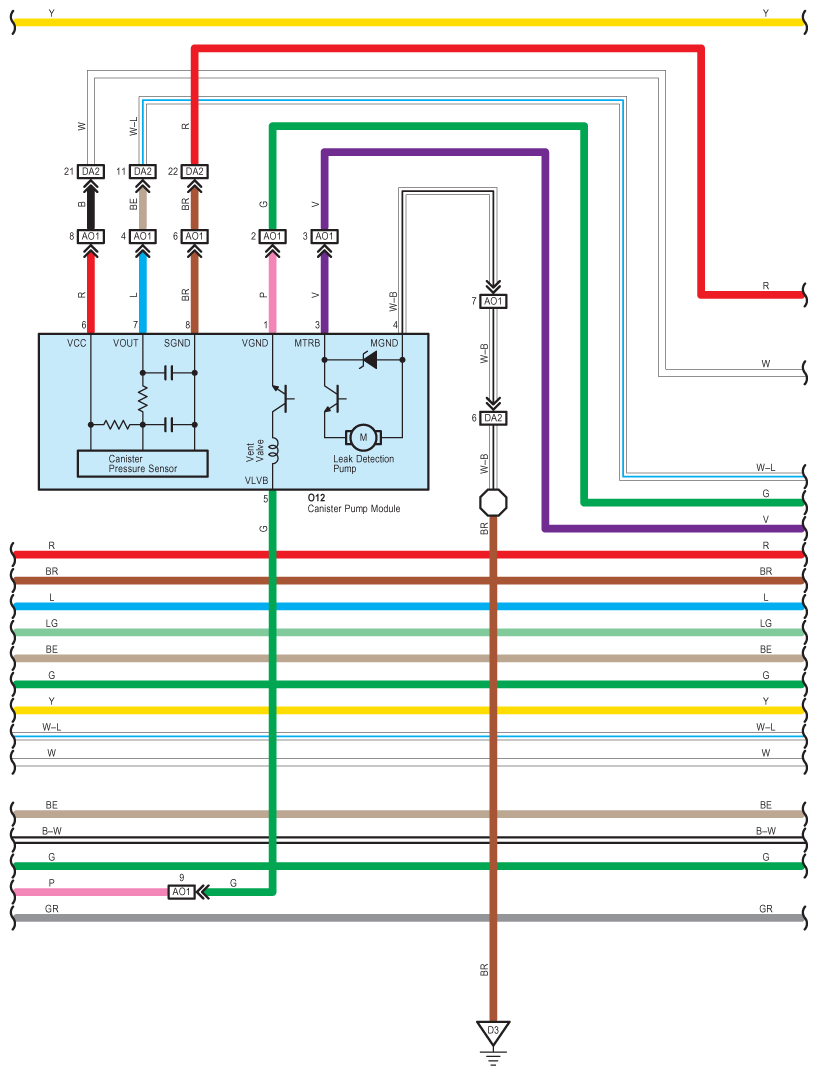

Fig 2: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (2 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

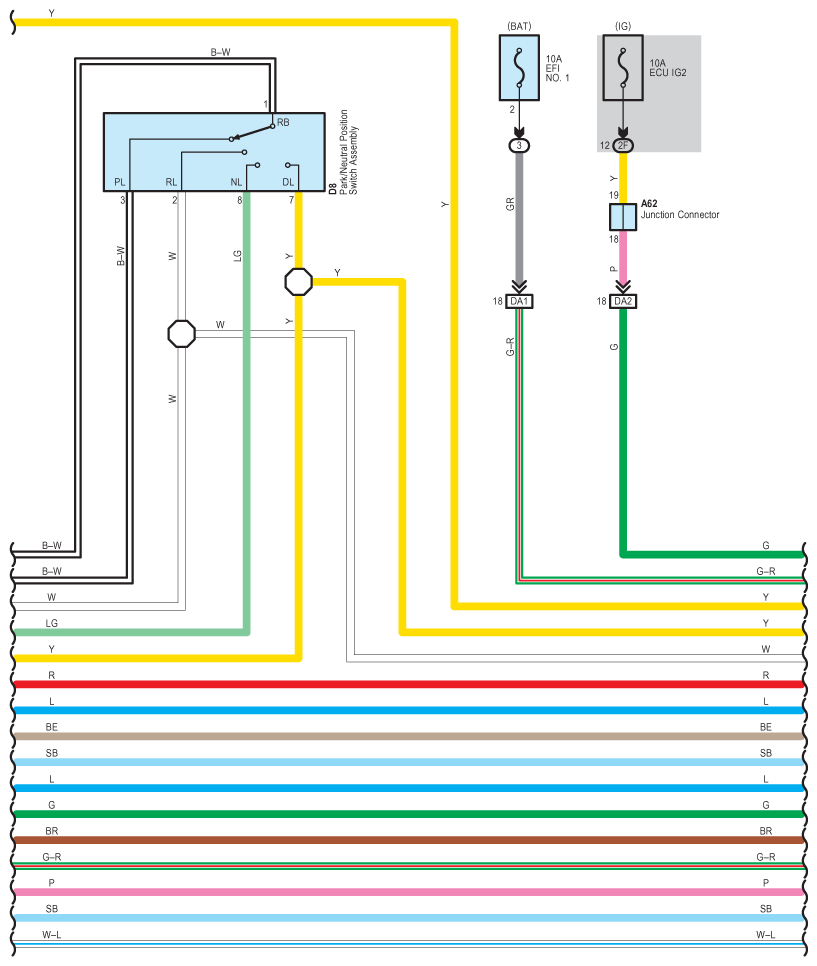

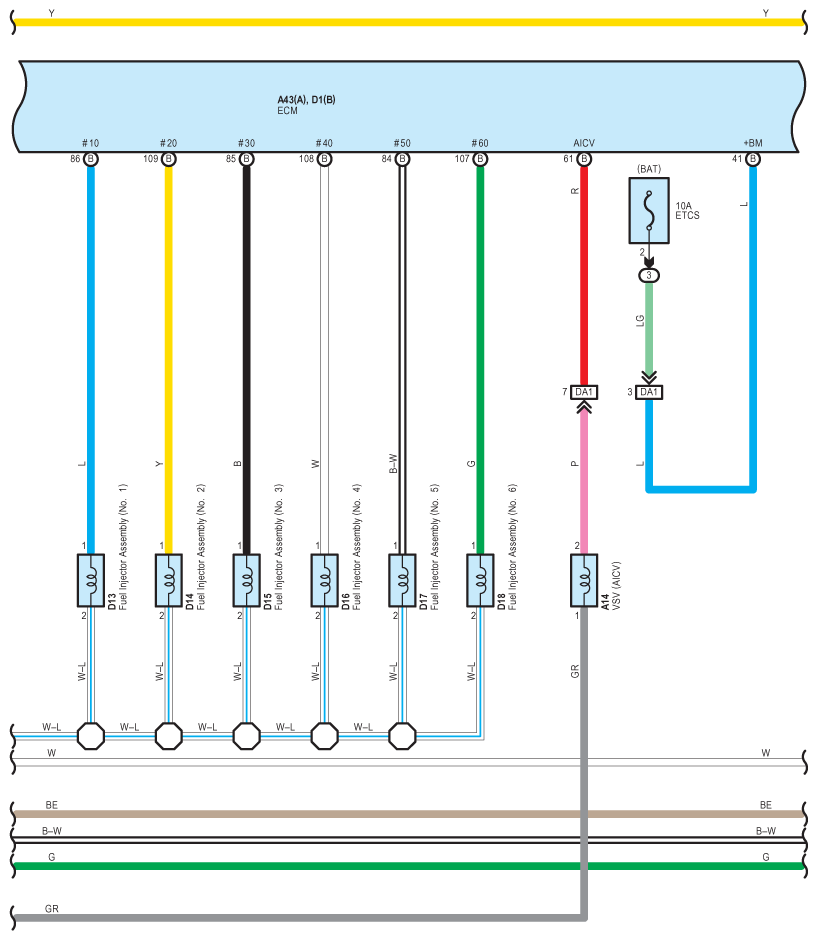

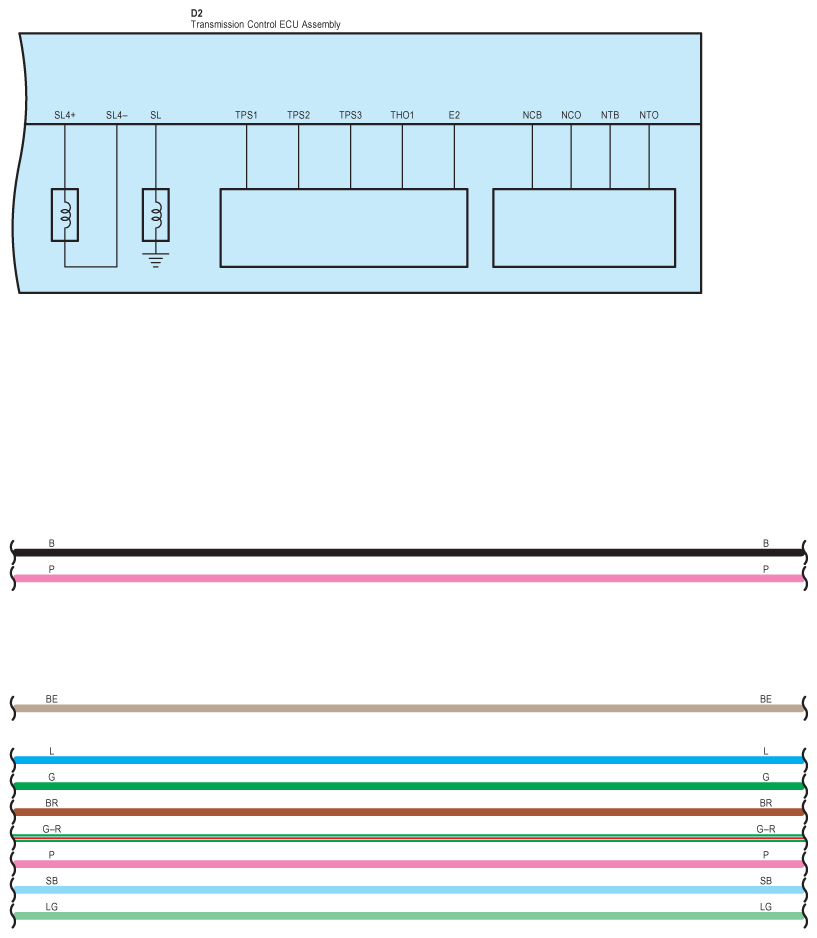

Fig 3: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (3 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

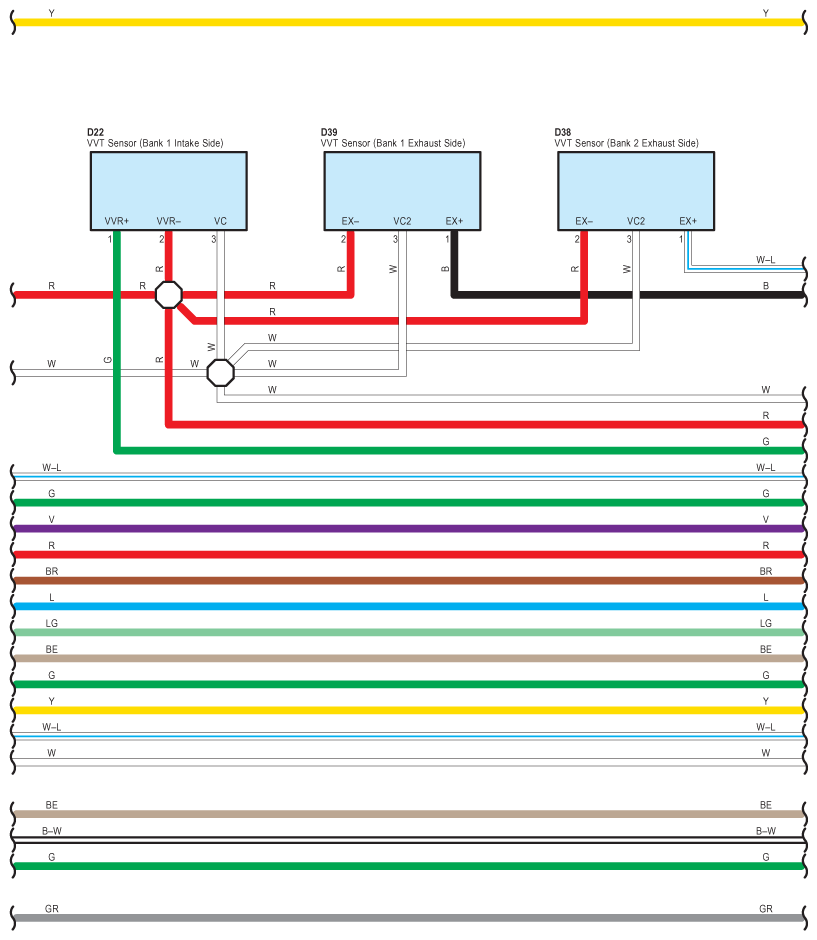

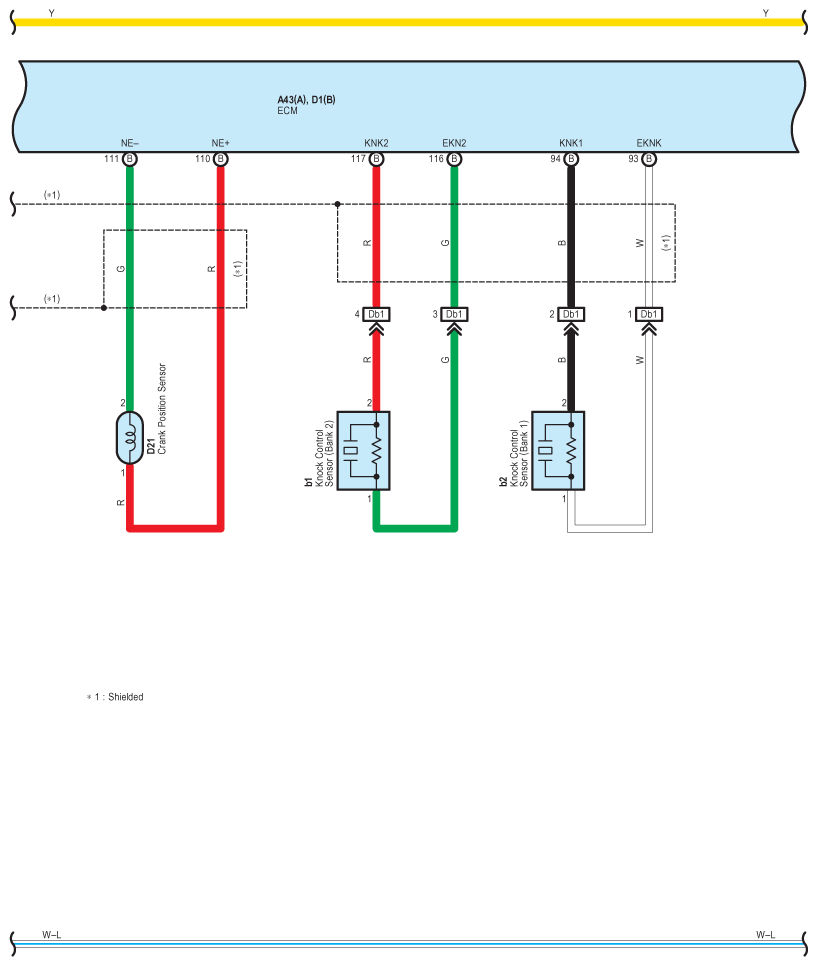

Fig 4: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (4 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

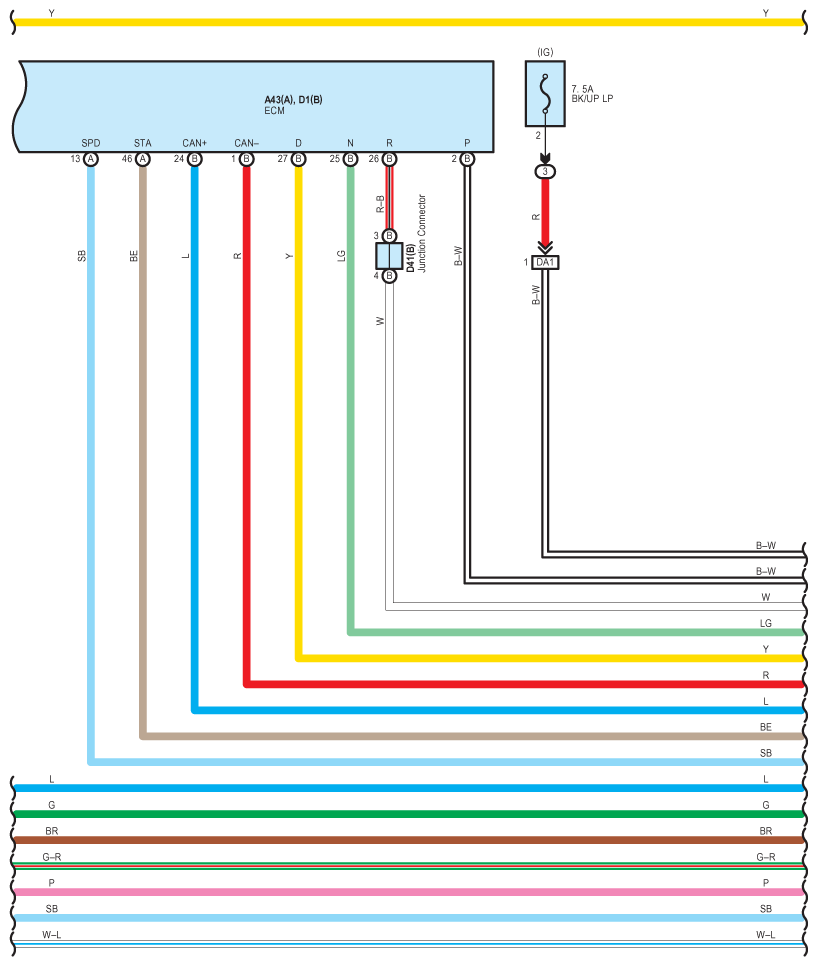

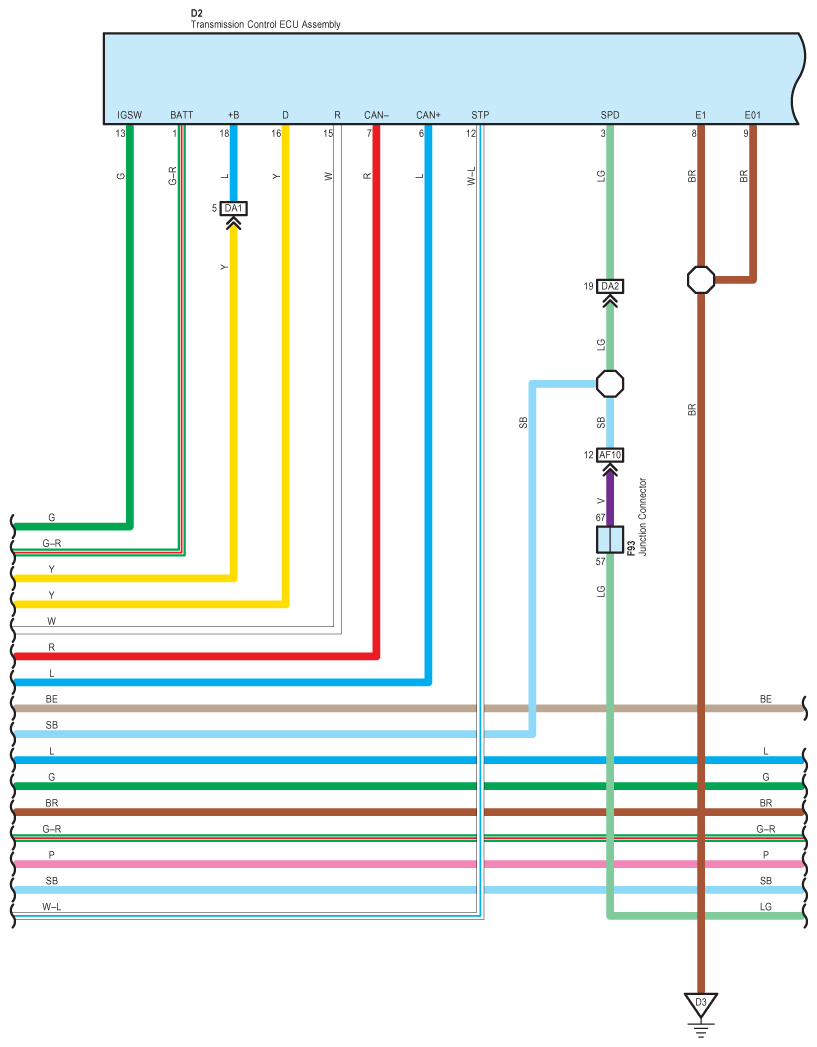

Fig 5: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (5 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

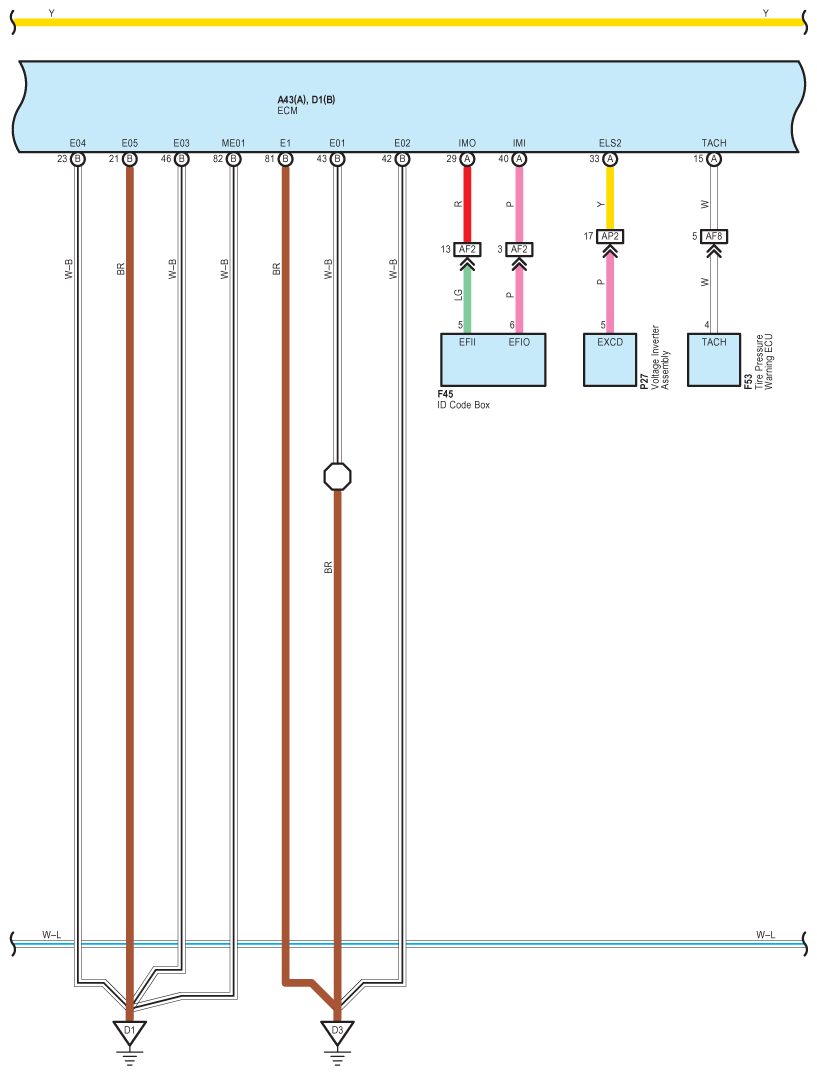

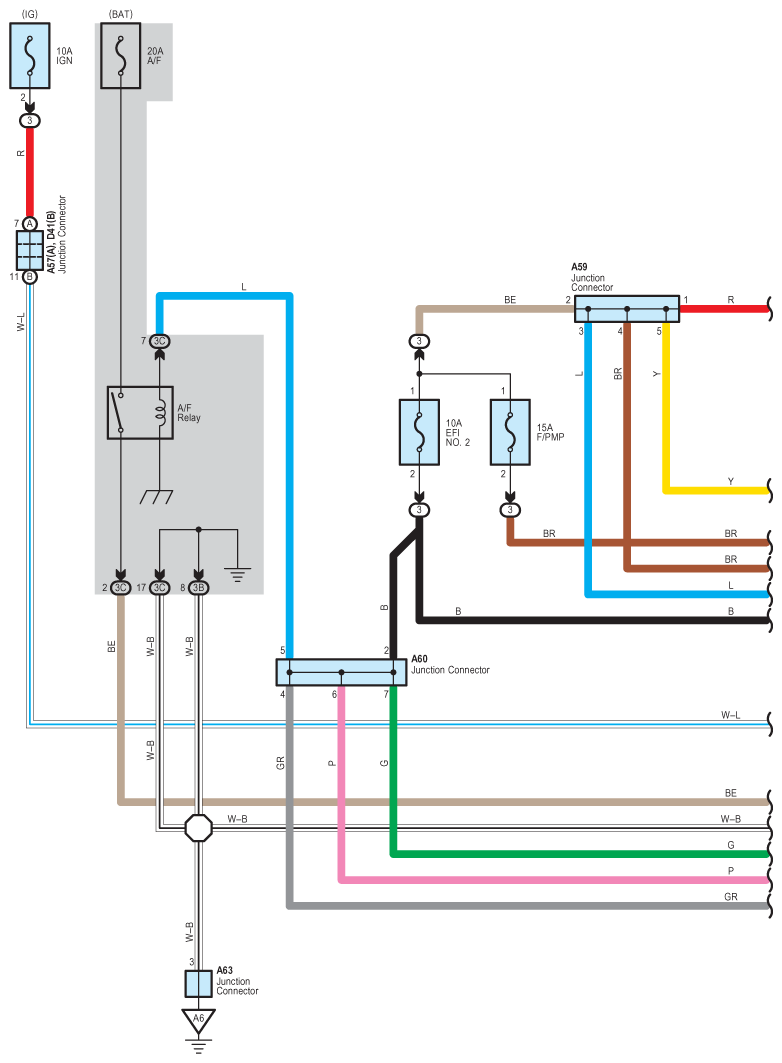

Fig 6: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (6 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

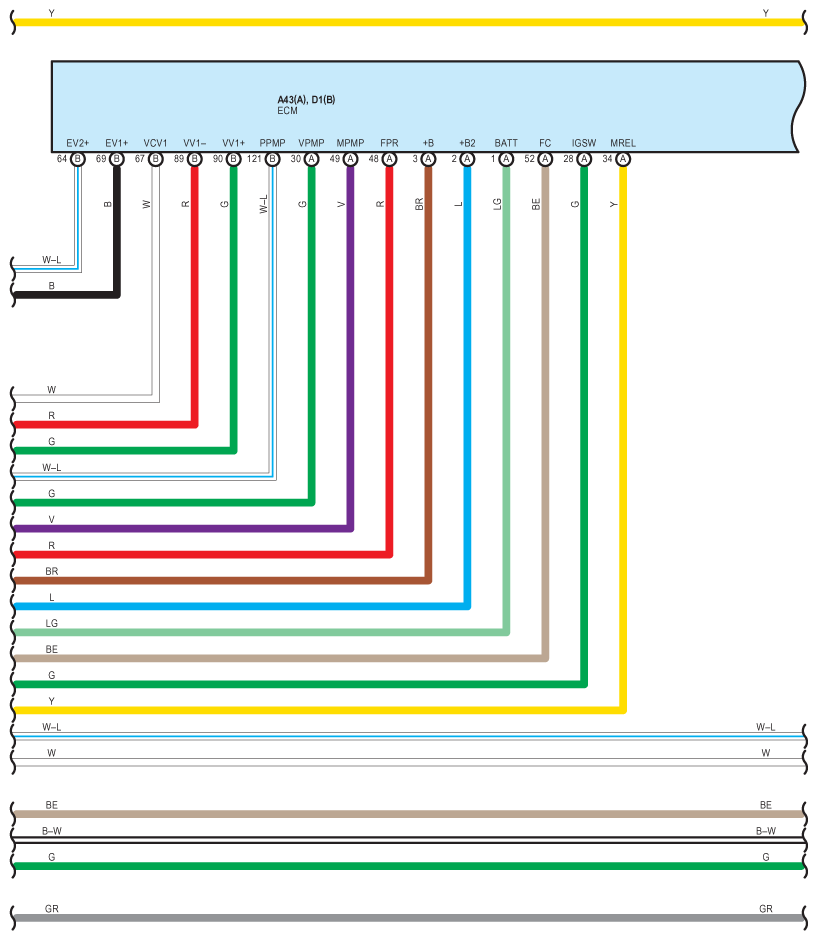

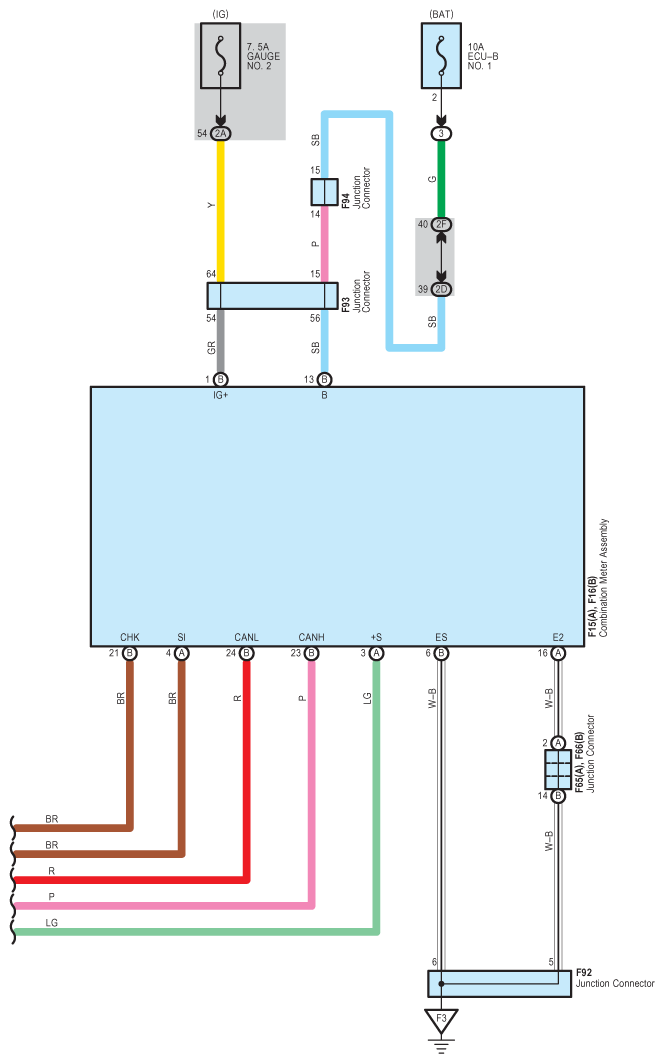

Fig 7: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (7 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

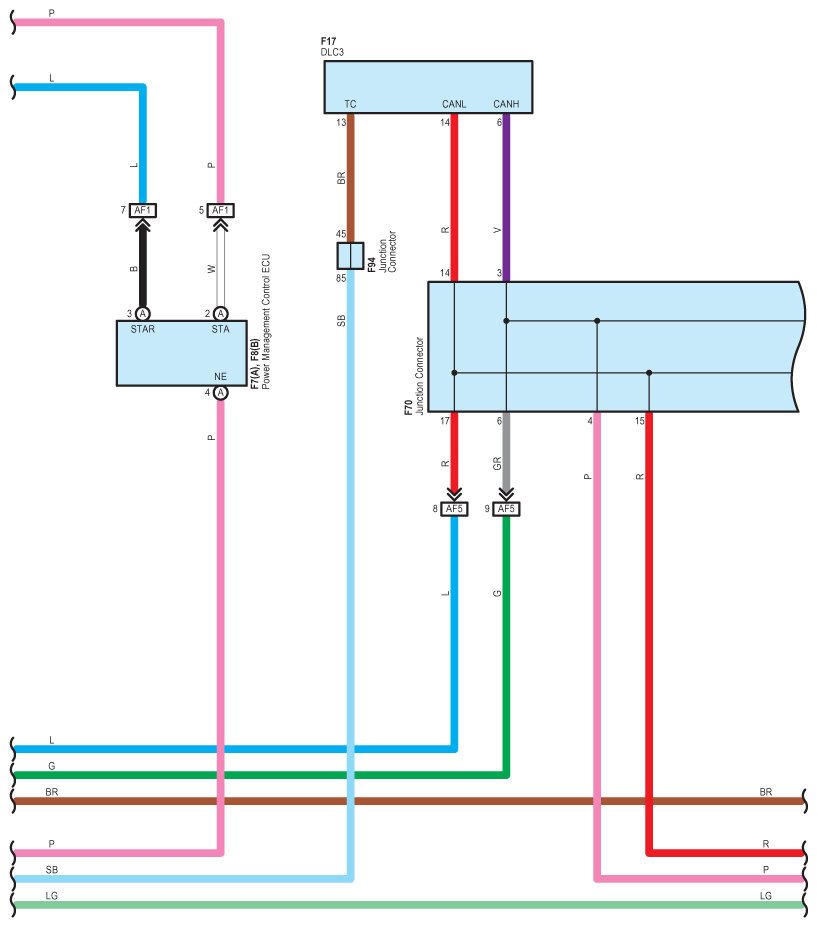

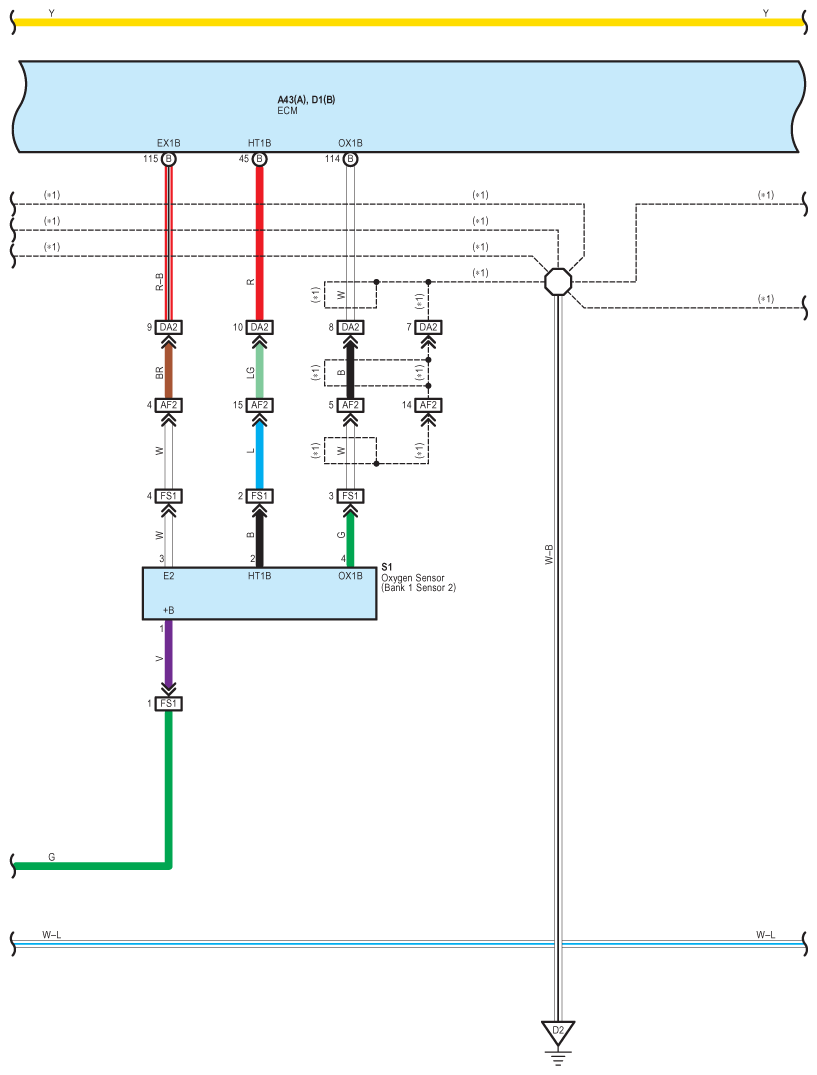

Fig 8: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (8 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

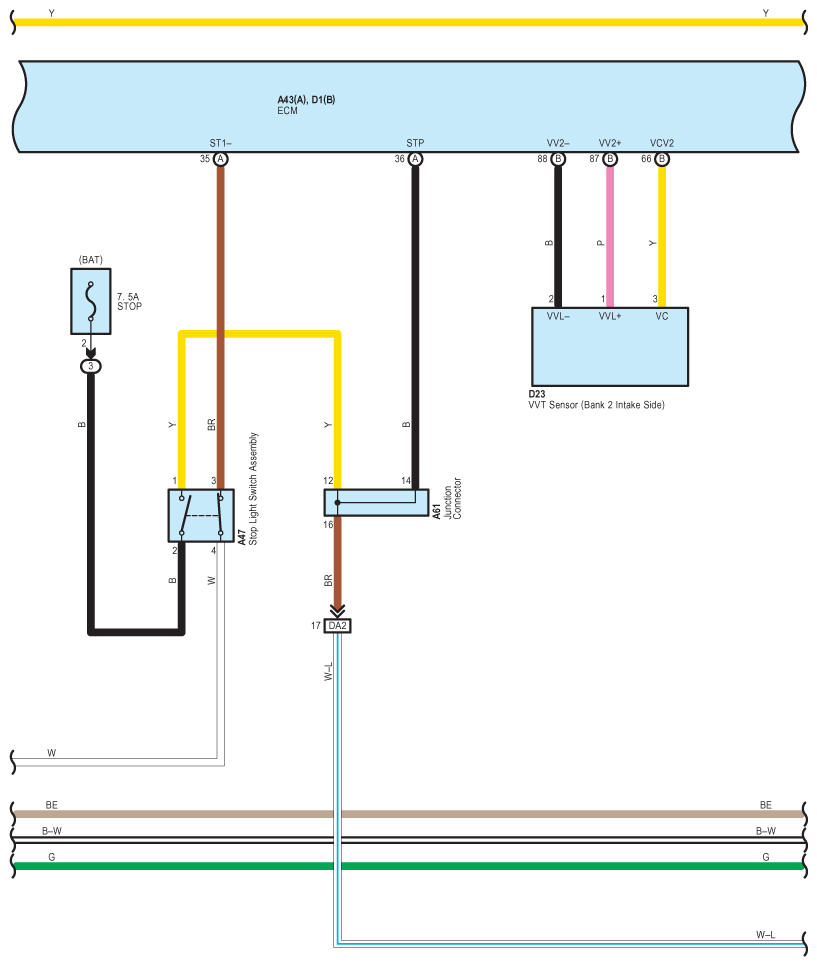

Fig 9: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (9 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

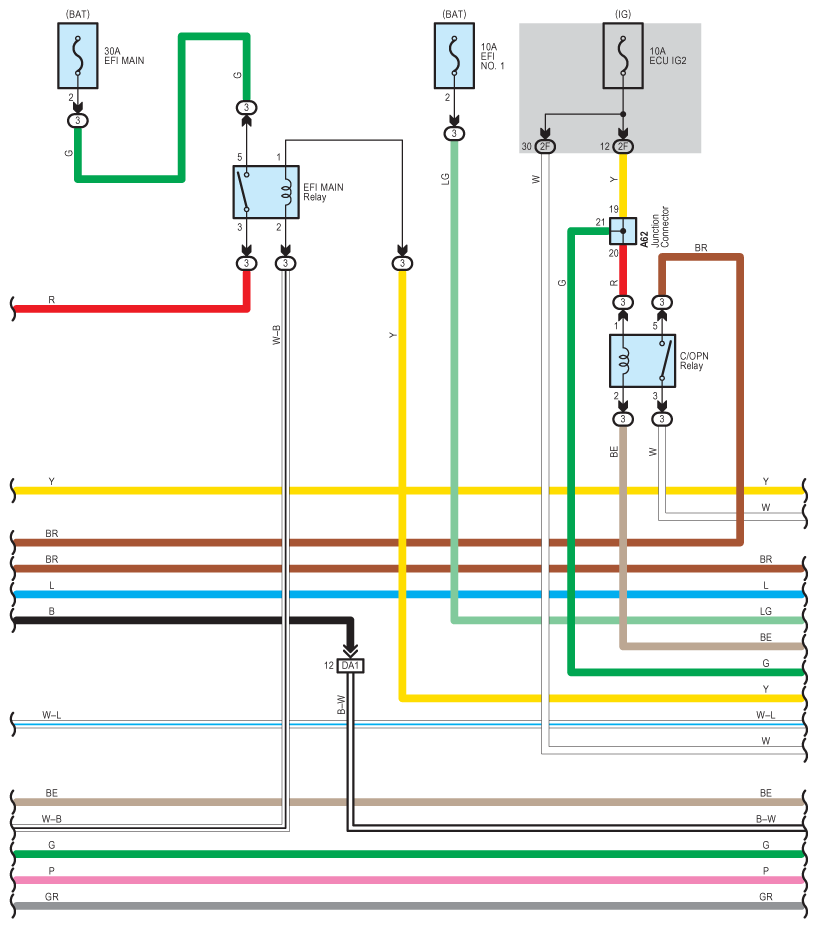

Fig 10: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (10 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

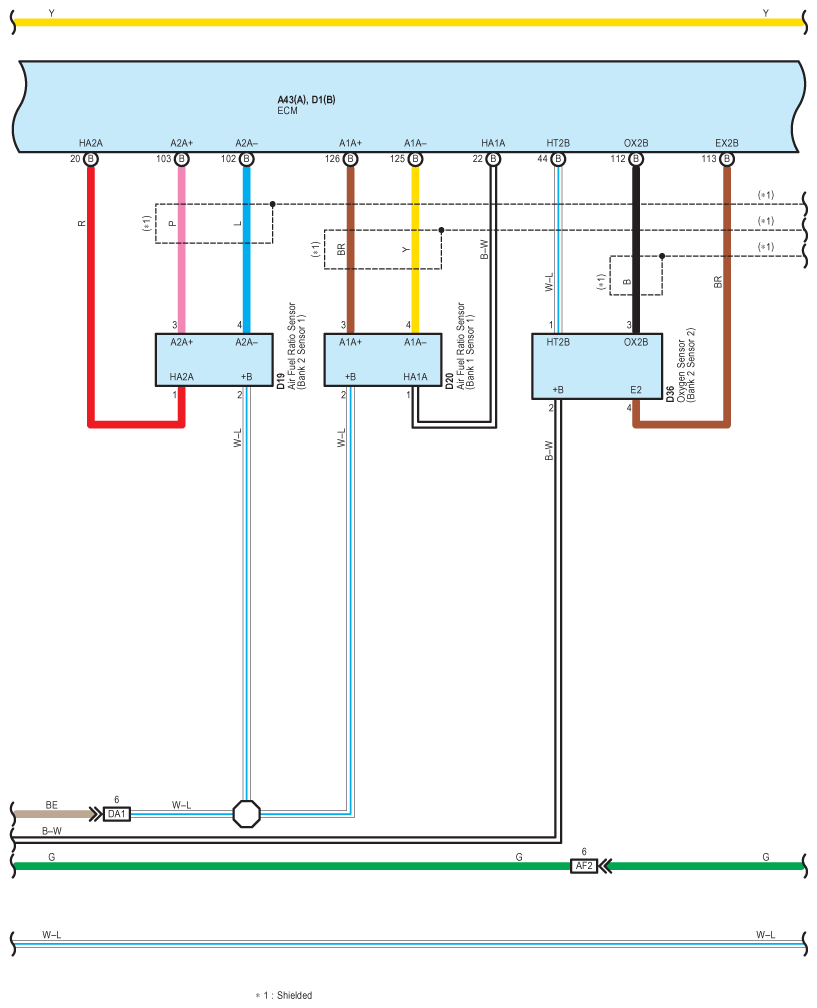

Fig 11: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (11 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

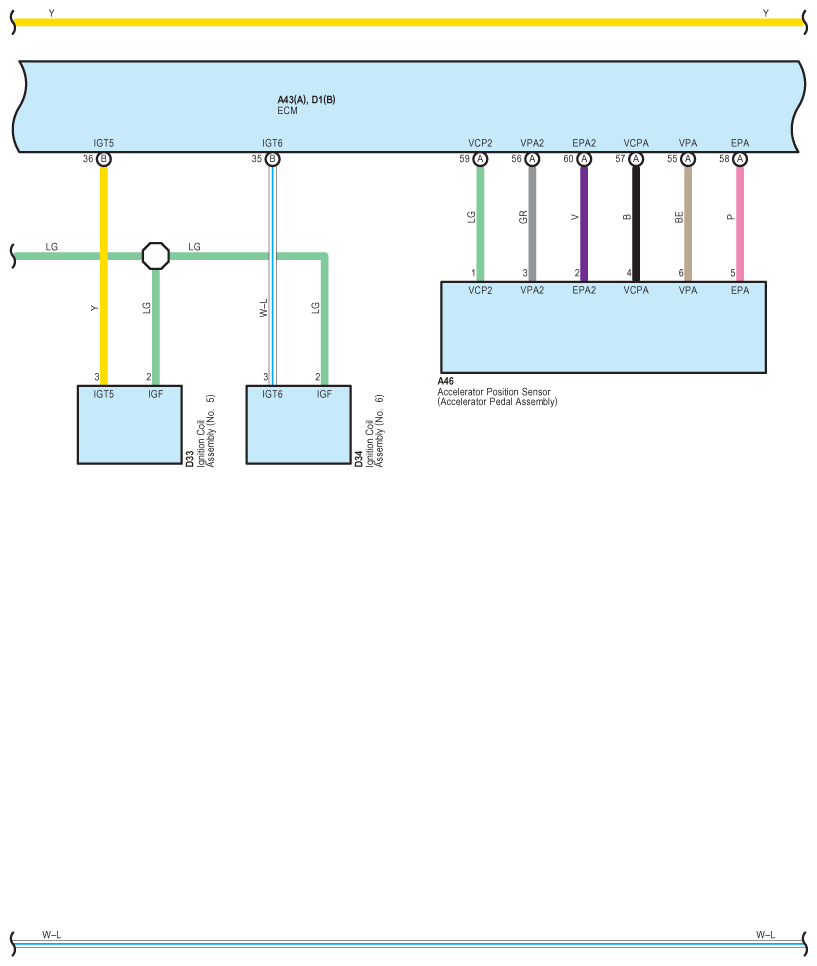

Fig 12: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (12 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

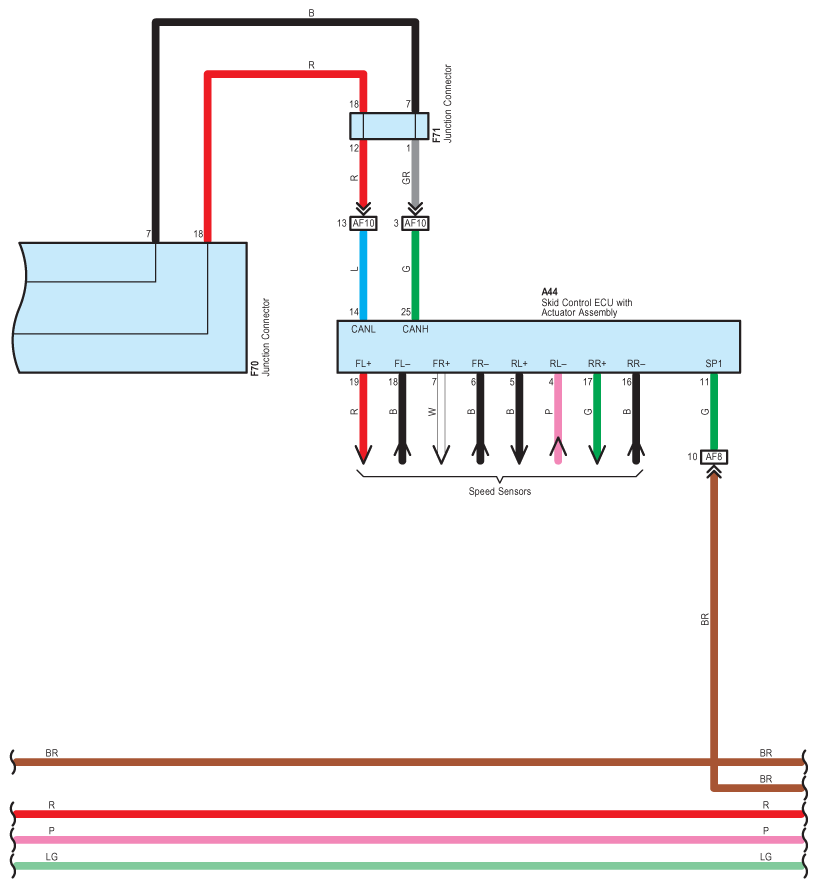

Fig 13: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (13 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

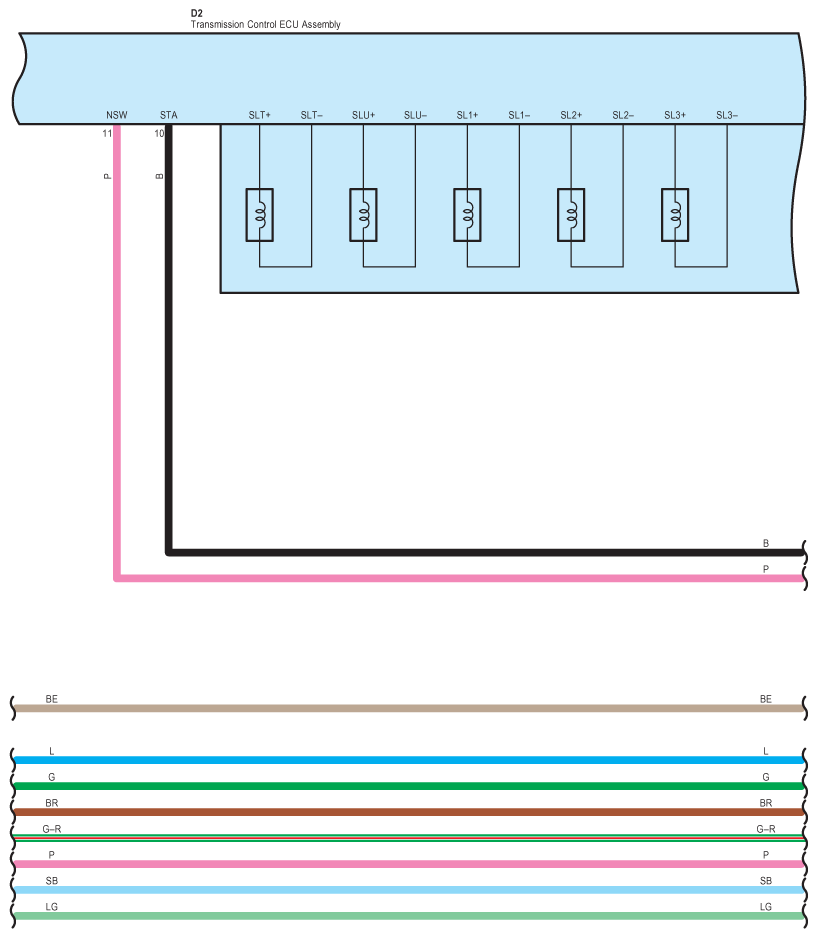

Fig 14: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (14 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

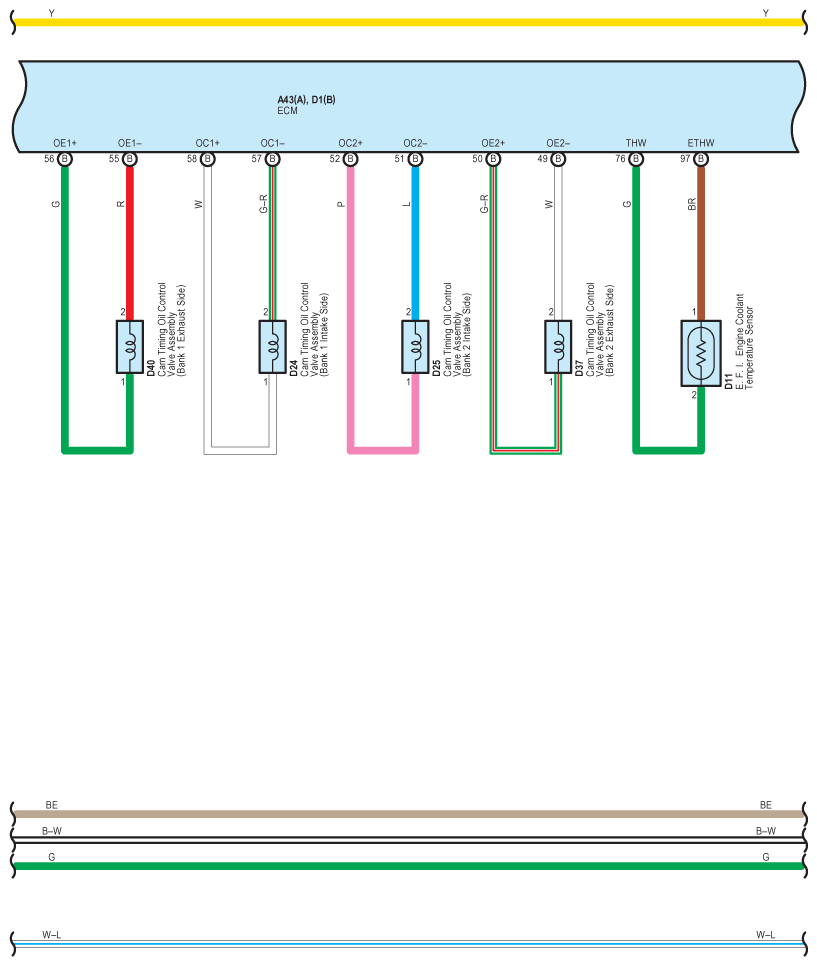

Fig 15: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (15 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

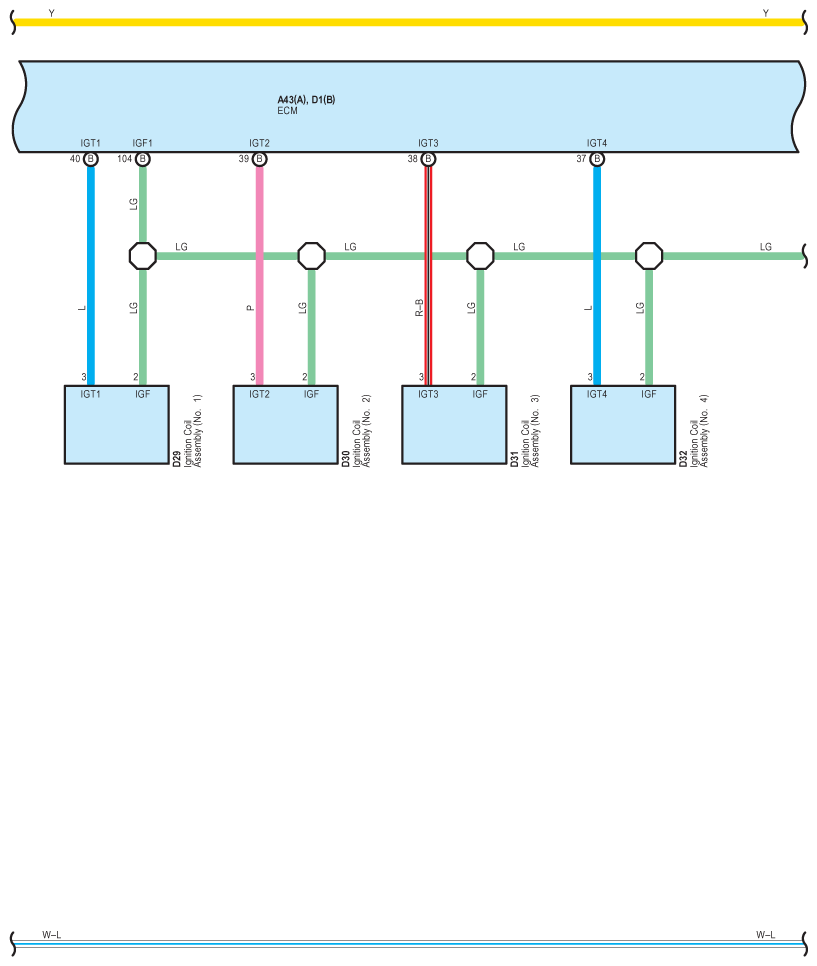

Fig 16: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (16 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (17 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (18 Of 27)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (19 Of 27)

Fig 20: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (20 Of 27)

Fig 21: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (21 Of 27)

Fig 22: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (22 Of 27)

Fig 23: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (23 Of 27)

Fig 24: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (24 Of 27)

Fig 25: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (25 Of 27)

Fig 26: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (26 Of 27)

Fig 27: Engine Control, Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (27 Of 27)
