LEXUS ENFORM or Safety Connect: Notes

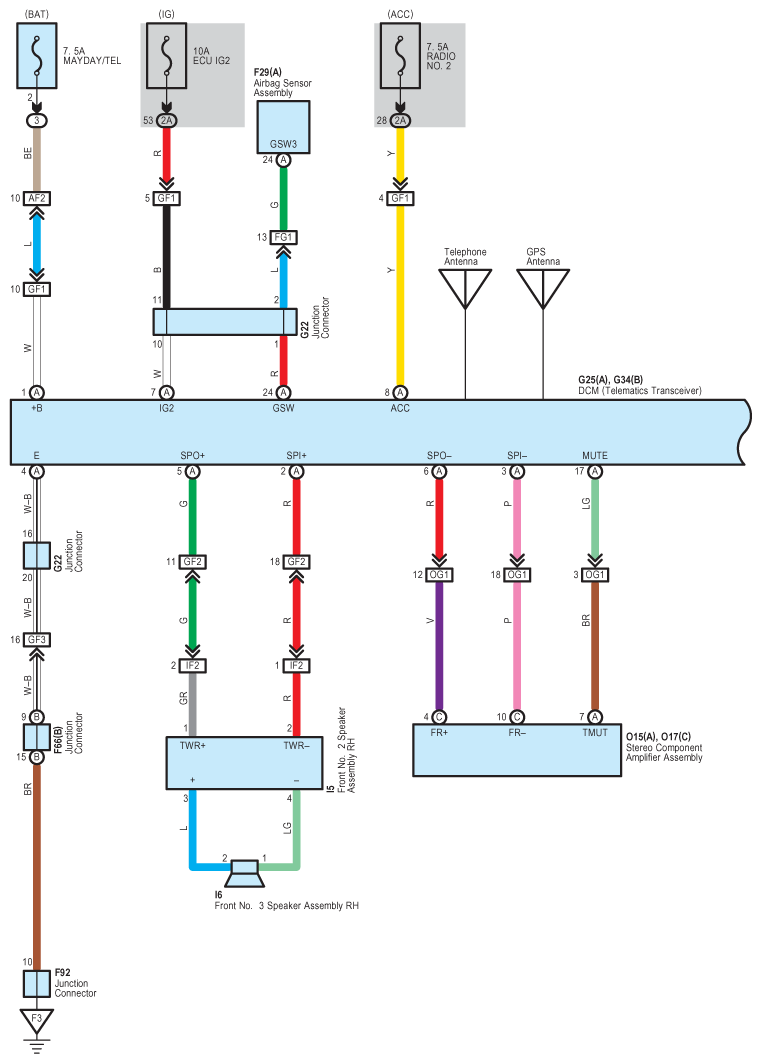

Fig 1: LEXUS ENFORM Or Safety Connect - Wiring Diagram (1 Of 5)
G08938421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

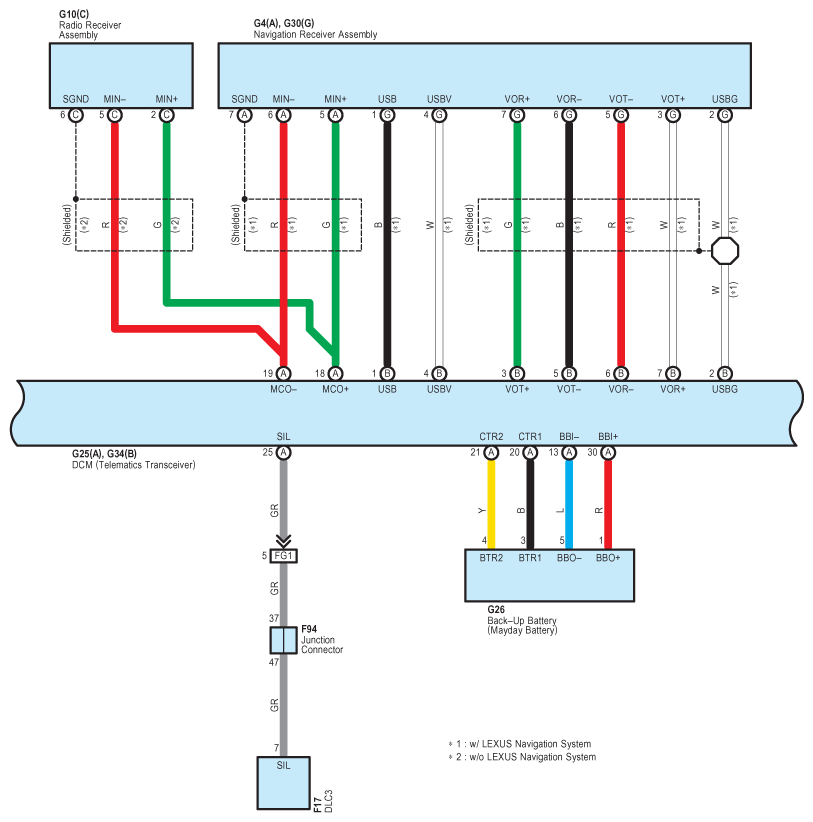

Fig 2: LEXUS ENFORM Or Safety Connect - Wiring Diagram (2 Of 5)
G08938422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

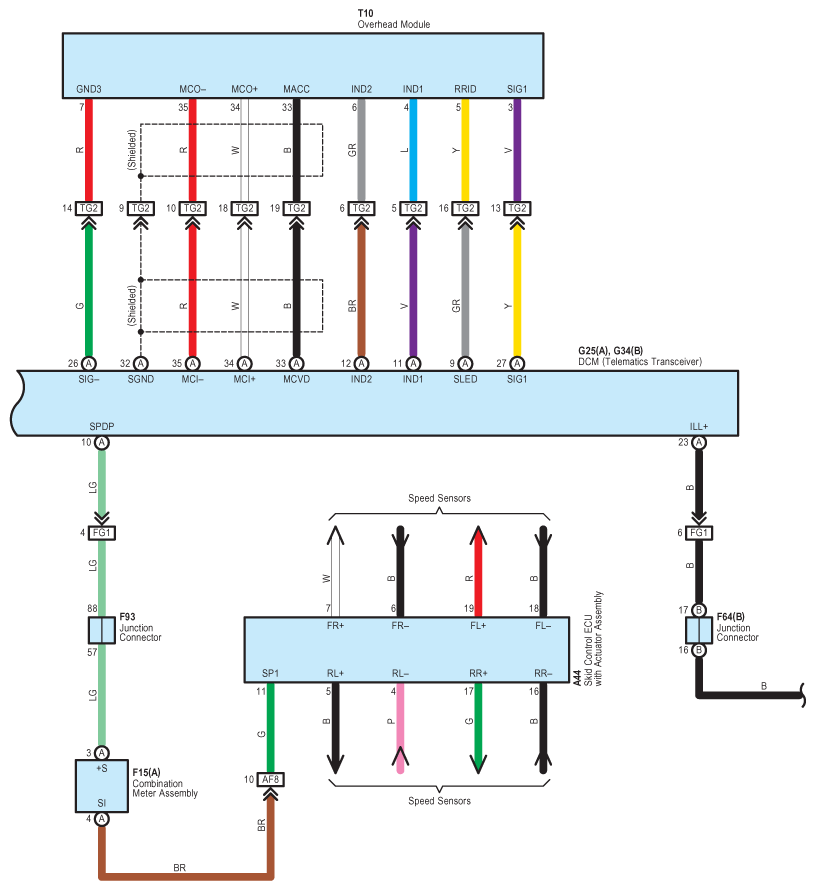

Fig 3: LEXUS ENFORM Or Safety Connect - Wiring Diagram (3 Of 5)
G08938423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: LEXUS ENFORM Or Safety Connect - Wiring Diagram (4 Of 5)
G08938424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

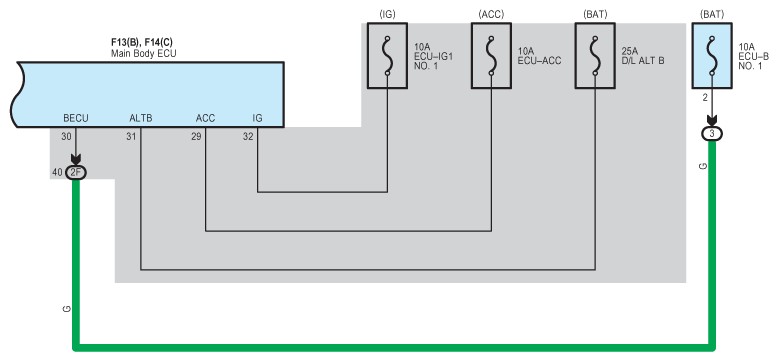

Fig 5: LEXUS ENFORM Or Safety Connect - Wiring Diagram (5 Of 5)
G08938425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
