Rear Wiper and Washer: Notes

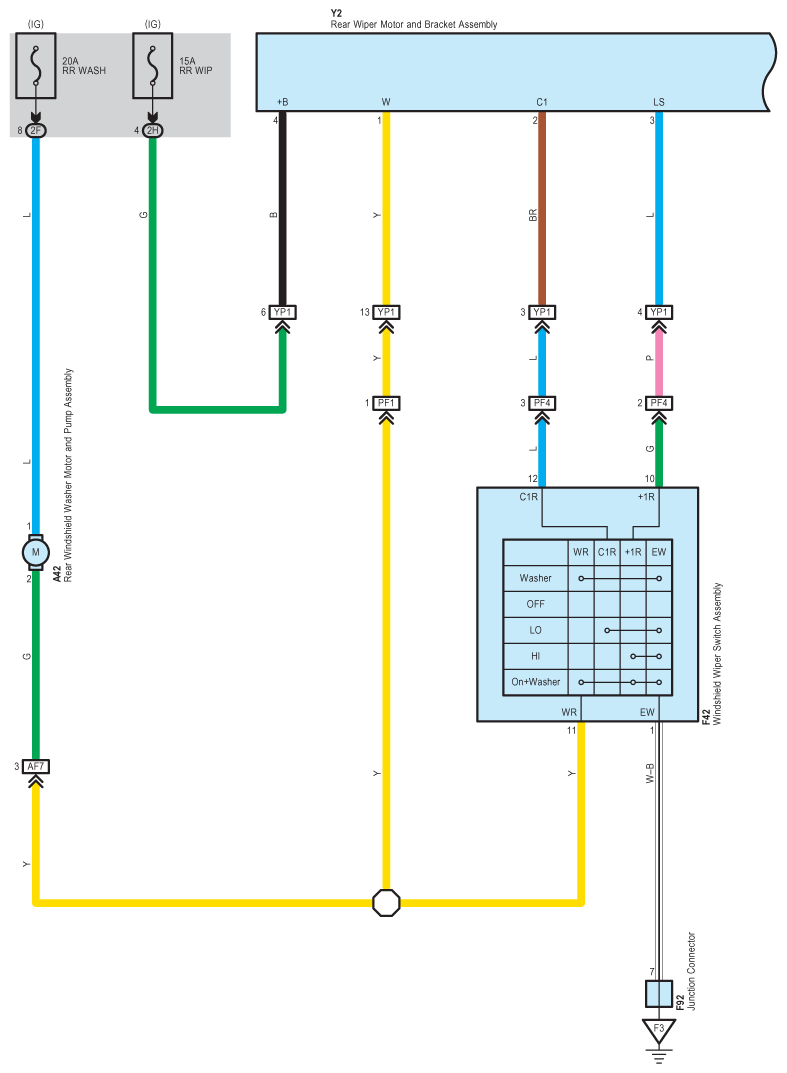

Fig 1: Rear Wiper And Washer - Wiring Diagram (1 Of 2)
G08938369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

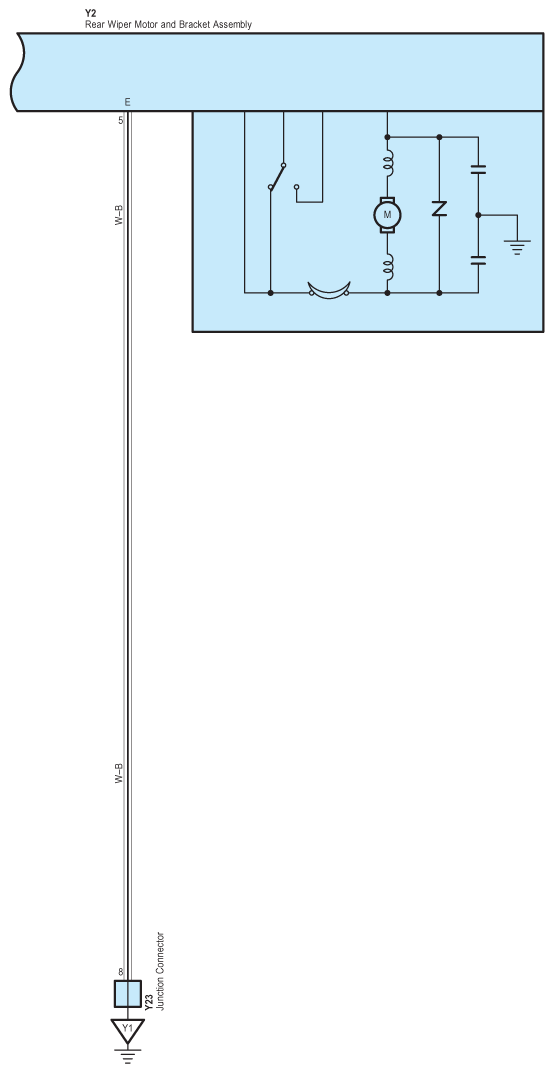

Fig 2: Rear Wiper And Washer - Wiring Diagram (2 Of 2)
G08938370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
