Charging System (Service Information): Generator: Components: Illustration

Fig 1: Identifying Generator Replacement Components With Torque Specifications (1 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

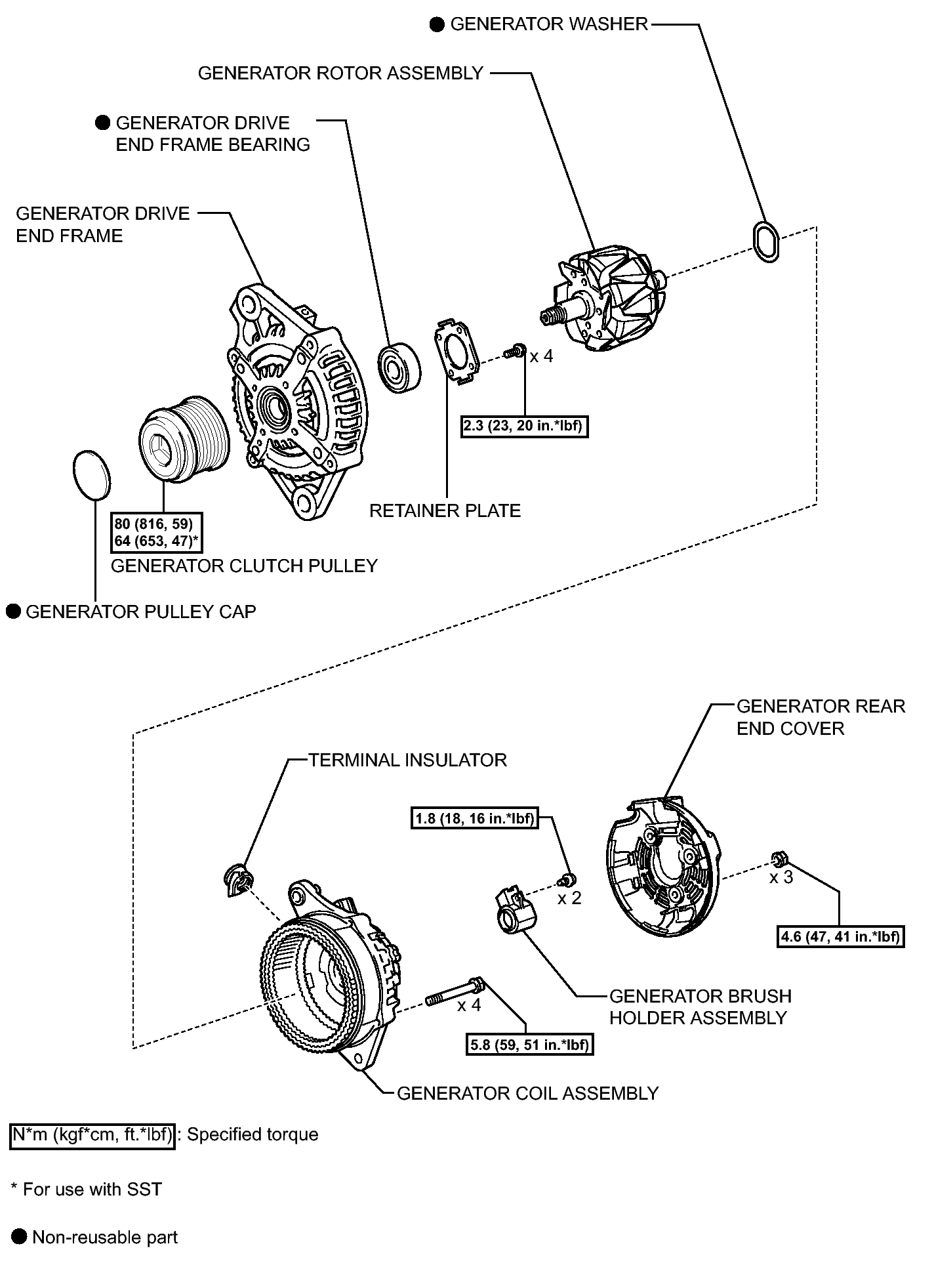

Fig 1: Identifying Generator Replacement Components With Torque Specifications (2 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Generator Replacement Components With Torque Specifications (3 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

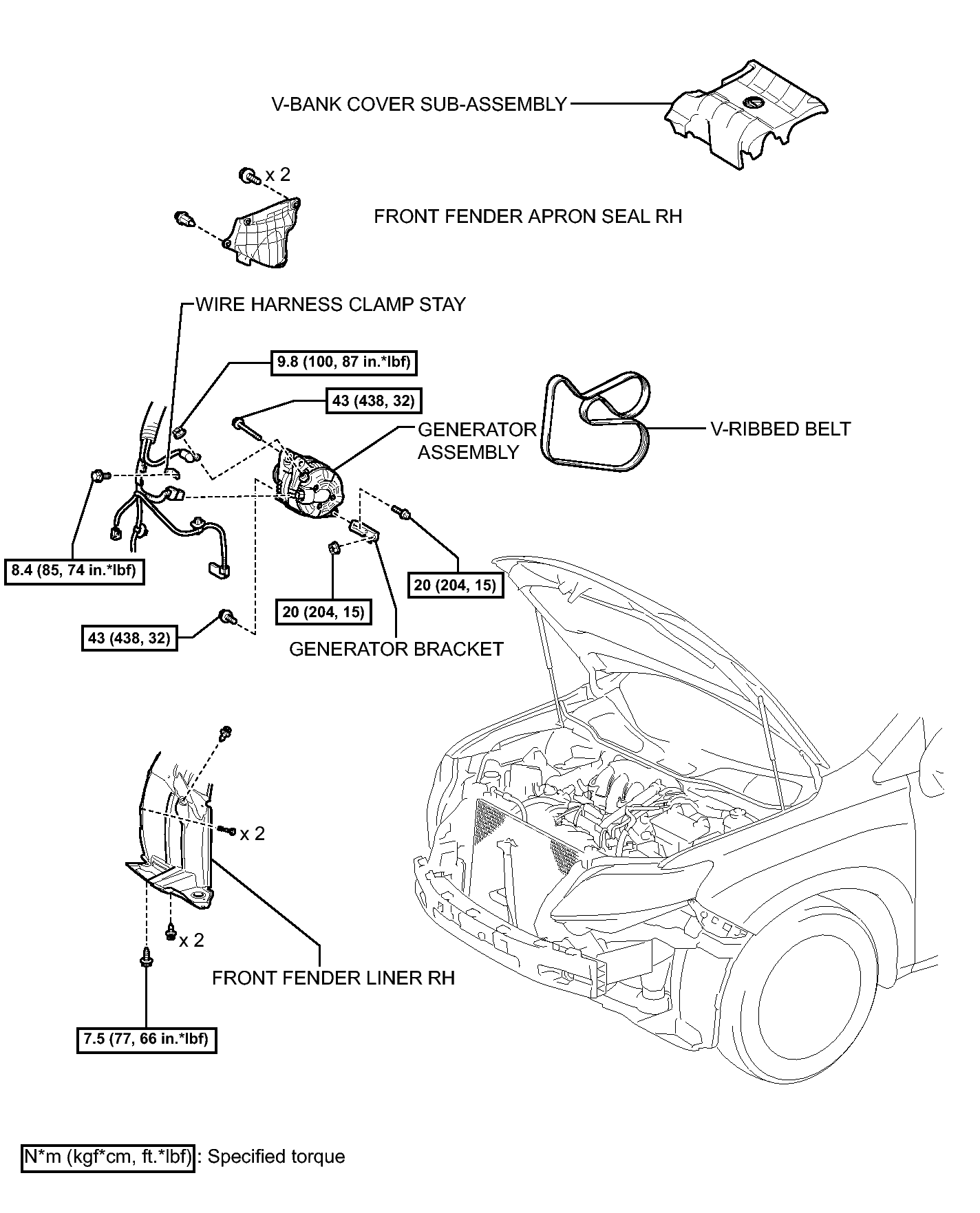

Fig 1: Identifying Generator Replacement Components With Torque Specifications (4 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
