Charging System (Service Information): Generator: Replacement: Replacement

REPLACE GENERATOR DRIVE END FRAME BEARING

Remove the 4 screws and retainer plate from the generator drive end frame.

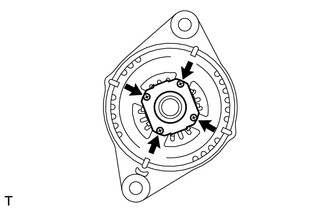

Fig 1: Location of Bearing Retainer Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using SST and a hammer, tap out the generator drive end frame bearing from the generator drive end frame.

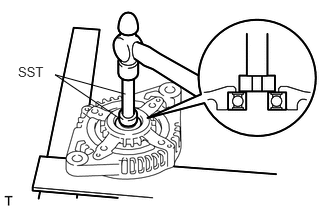

Fig 2: Tapping Out Drive End Frame Bearing Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- SST: 09950-60010
  - 09951-00250
- SST: 09950-70010
  - 09951-07100
Using SST and a press, press in a new generator drive end frame bearing.

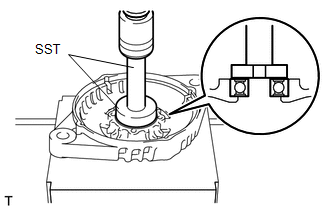

Fig 3: Pressing In Generator Drive End Frame Bearing Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- SST: 09950-60010
  - 09951-00470
- SST: 09950-70010
  - 09951-07100

Fit the tabs on the retainer plate into the cutouts on the generator drive end frame to install the retainer plate.

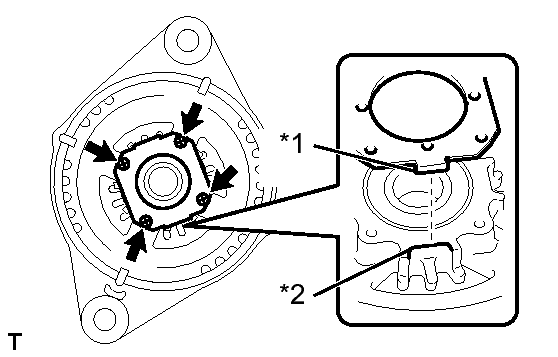

Fig 4: Location of Retainer Plate Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Tab
*2	Cutout
