Fuel Pressure Regulator: Installation: Installation

INSTALL FUEL PRESSURE REGULATOR ASSEMBLY
1. Apply a light coat of gasoline to 2 new O-rings, and install them onto the fuel pressure regulator.

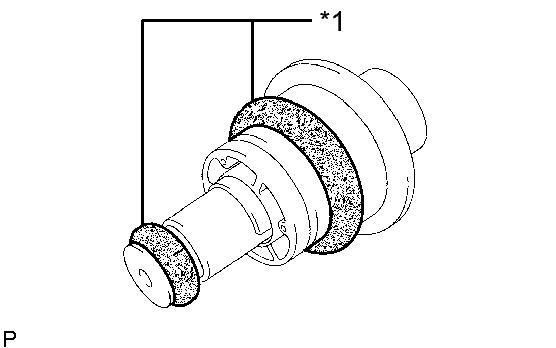

  Fig 1: Remove The 2 O-rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 O-ring
2. Install the fuel pressure regulator to the fuel filter.

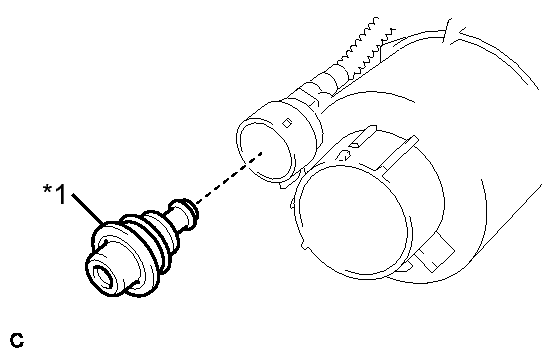

  Fig 2: Identifying Fuel Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Fuel Pressure Regulator
INSTALL NO. 1 FUEL SUCTION SUPPORT See step 1
INSTALL FUEL PUMP ASSEMBLY WITH FILTER See step 2
INSTALL FUEL SUCTION PLATE SUB-ASSEMBLY See step 3
INSTALL FUEL SENDER GAUGE ASSEMBLY See step 1
INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
1. Install the fuel suction tube assembly with pump and gauge. Refer to INSTALLATION .
