Fuel Sender Gauge Assembly: Installation: Installation

  1. INSTALL FUEL SENDER GAUGE ASSEMBLY
    1. Slide the fuel sender gauge to fit the claw.

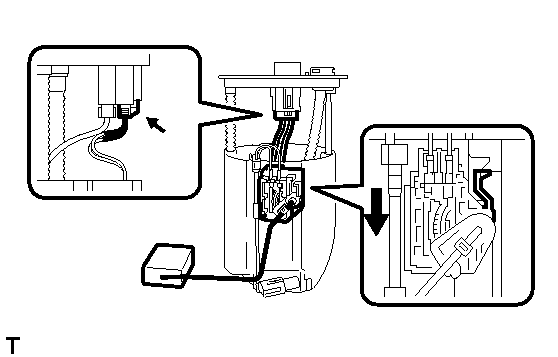

      Fig 1: Fuel Sender Gauge To Fit The Claw
      GTY353464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE
    1. Install the fuel suction tube assembly with pump and gauge. Refer to INSTALLATION .
