Mass Air Flow Meter: Removal: Removal

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Remove the windshield wiper motor and link assembly. Refer to REMOVAL .
  2. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 8
  3. REMOVE MASS AIR FLOW METER
    1. Separate the mass air flow meter connector.

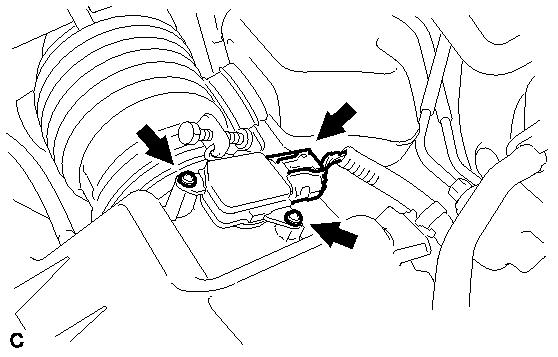

      Fig 1: Identifying Mass Air Flow Meter Connector
      GTY271281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and mass air flow meter.
