Ignition Coil And Spark Plug: Installation: Installation

INSTALL SPARK PLUG
1. Install the 6 spark plugs.

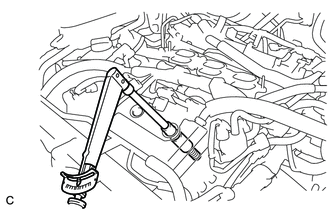

  Fig 1: Installing Spark Plugs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)
INSTALL IGNITION COIL ASSEMBLY
1. Install the 6 ignition coils with the 6 bolts.

  Fig 2: Removing/Installing Ignition Coils
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the 6 ignition coil connectors.

  Fig 3: Location of Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 3 wire harness clamps.

  Fig 4: Location of Ignition Coil Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 SURGE TANK STAY . Refer to INSTALLATION - Step 18
INSTALL INTAKE AIR SURGE TANK ASSEMBLY . Refer to INSTALLATION - Step 5
INSTALL AIR CLEANER ASSEMBLY See step 2
INSTALL BATTERY . Refer to INSTALLATION - Step 68
INSTALL NO. 1 AIR CLEANER INLET . Refer to INSTALLATION - Step 69
INSTALL NO. 2 AIR CLEANER INLET . Refer to INSTALLATION - Step 70
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 7
INSPECT FOR ENGINE COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 107
INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY . Refer to INSTALLATION - Step 12
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
1. Install the windshield wiper motor and link assembly. Refer to INSTALLATION .
INSTALL NO. 1 ENGINE UNDER COVER
