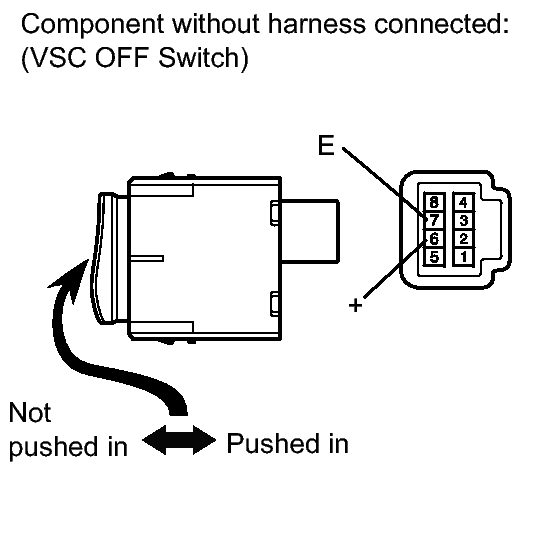

Measure the resistance according to the value(s) in the table below.Standard Resistance
| Tester Connection |
Switch Condition |
Specified Condition |
| 6 (+) - 7 (E) |
Switch is pushed in |
Below 25 Ω |
| 6 (+) - 7 (E) |
Switch is not pushed in |
10 kΩ or higher |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the switch.
