Audio System (w/o LEXUS Navigation System): Notes

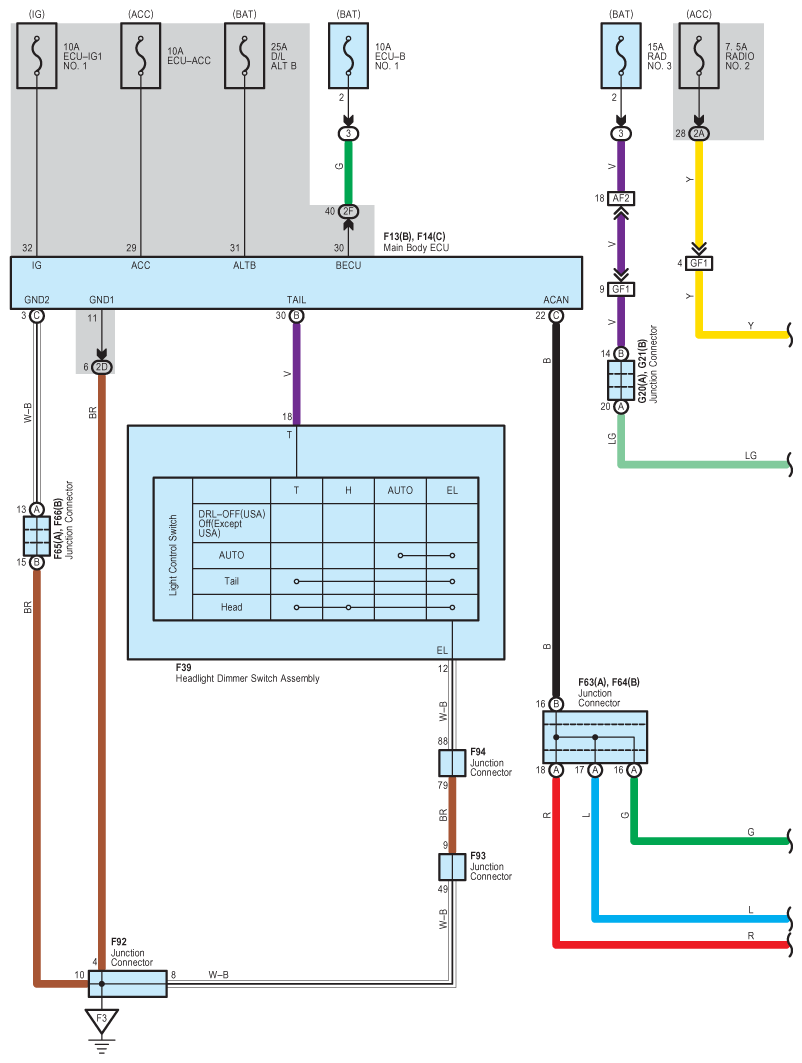

Fig 1: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (1 Of 10)
G08938448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

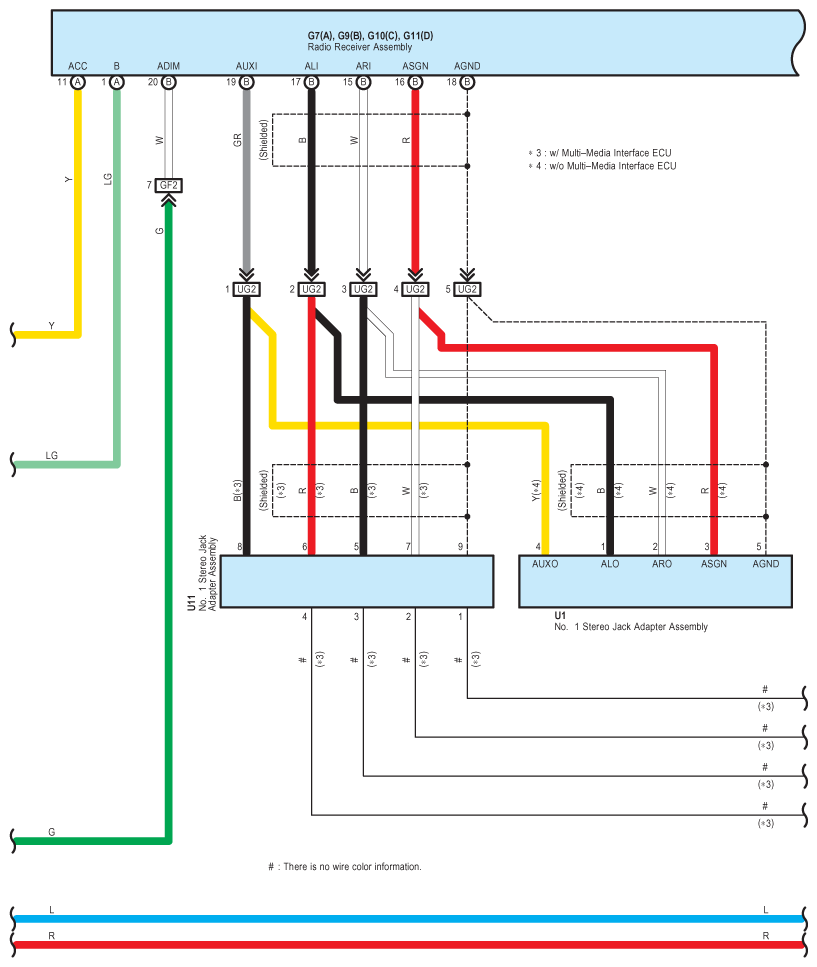

Fig 2: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (2 Of 10)
G08938449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

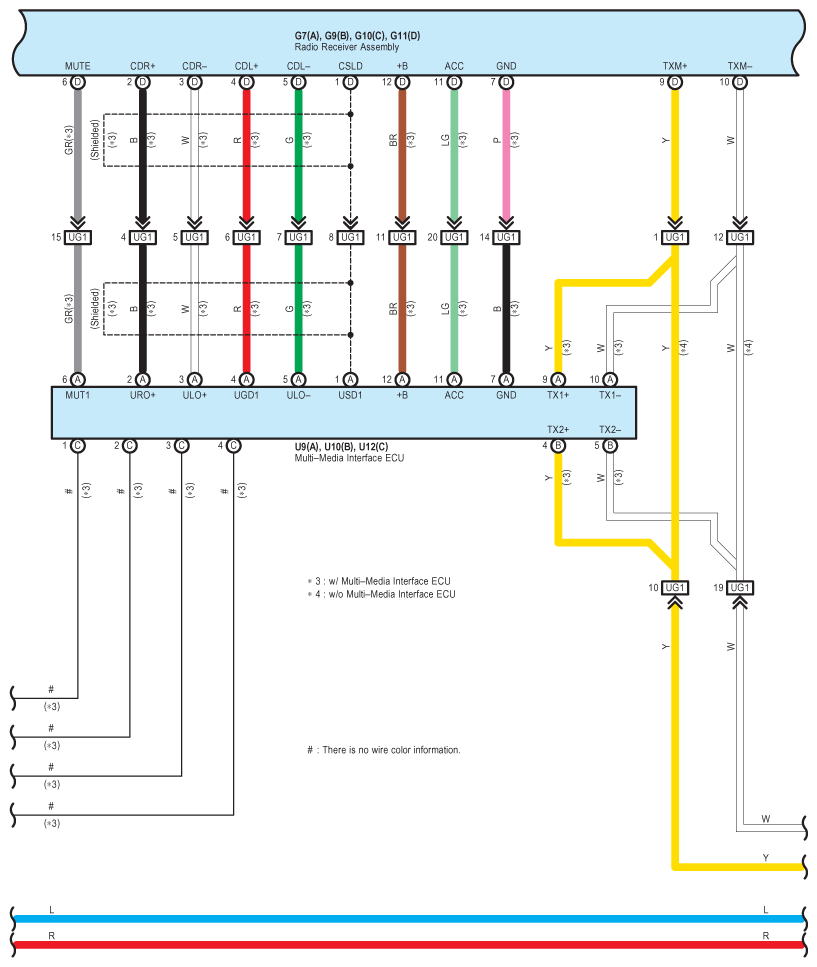

Fig 3: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (3 Of 10)
G08938450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

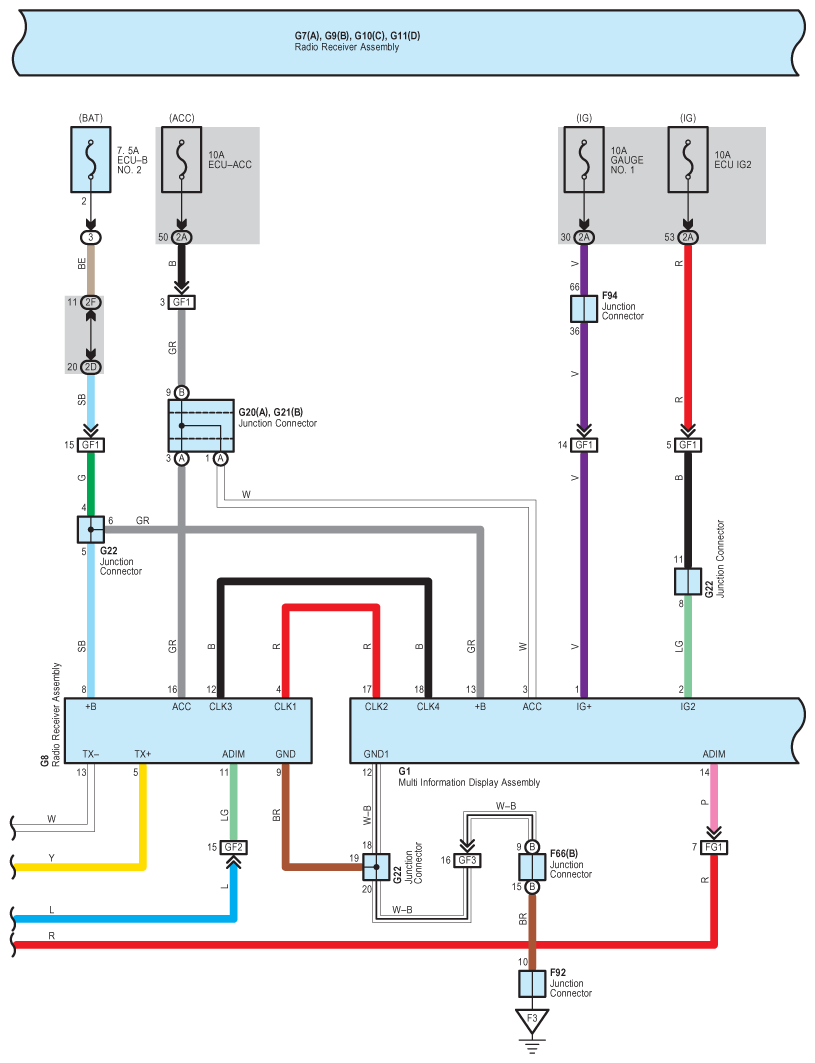

Fig 4: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (4 Of 10)
G08938451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

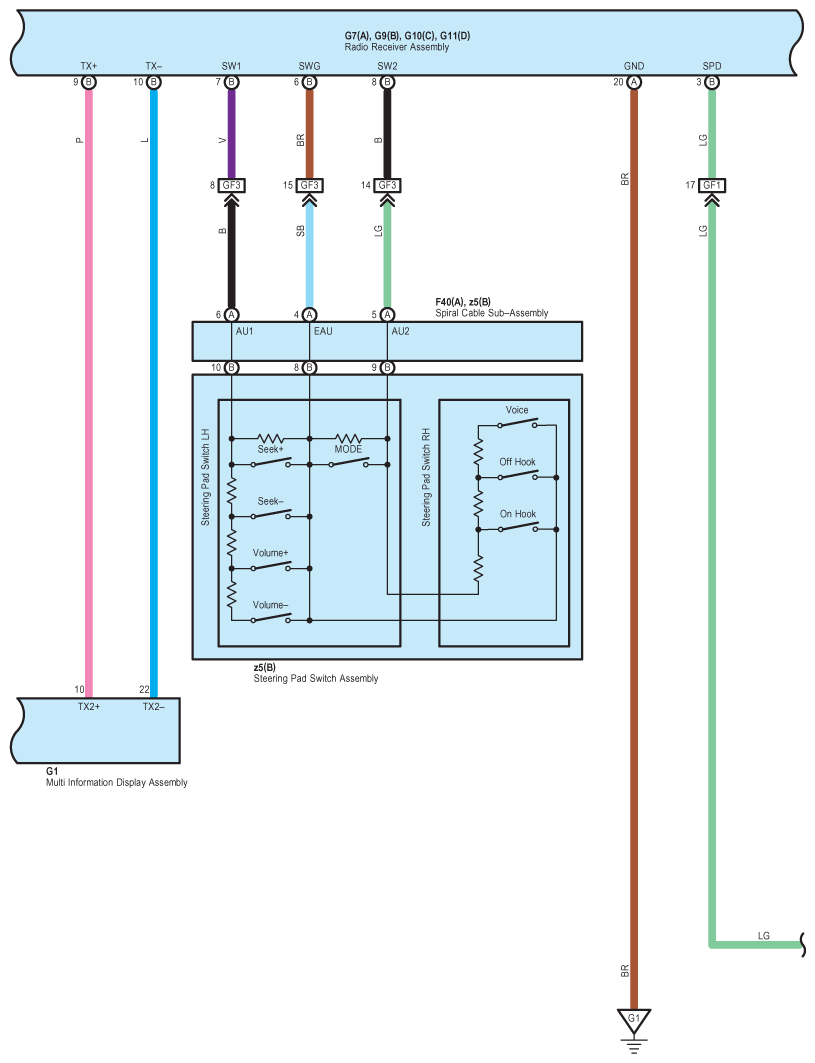

Fig 5: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (5 Of 10)
G08938452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

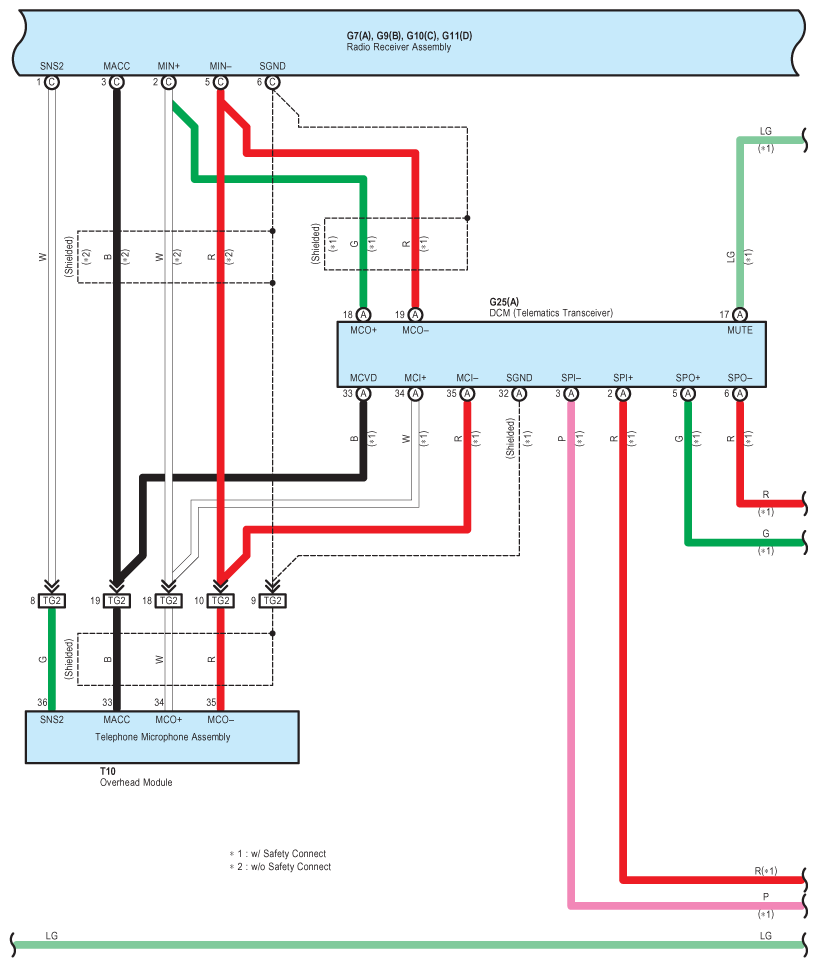

Fig 6: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (6 Of 10)
G08938453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

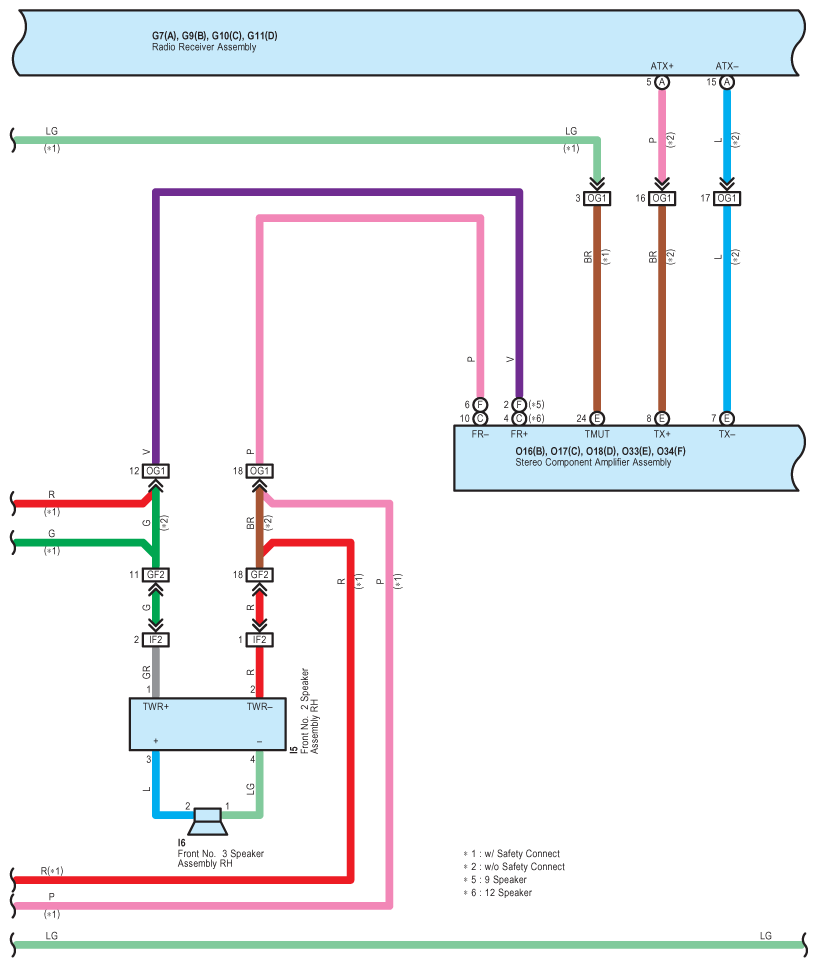

Fig 7: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (7 Of 10)
G08938454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

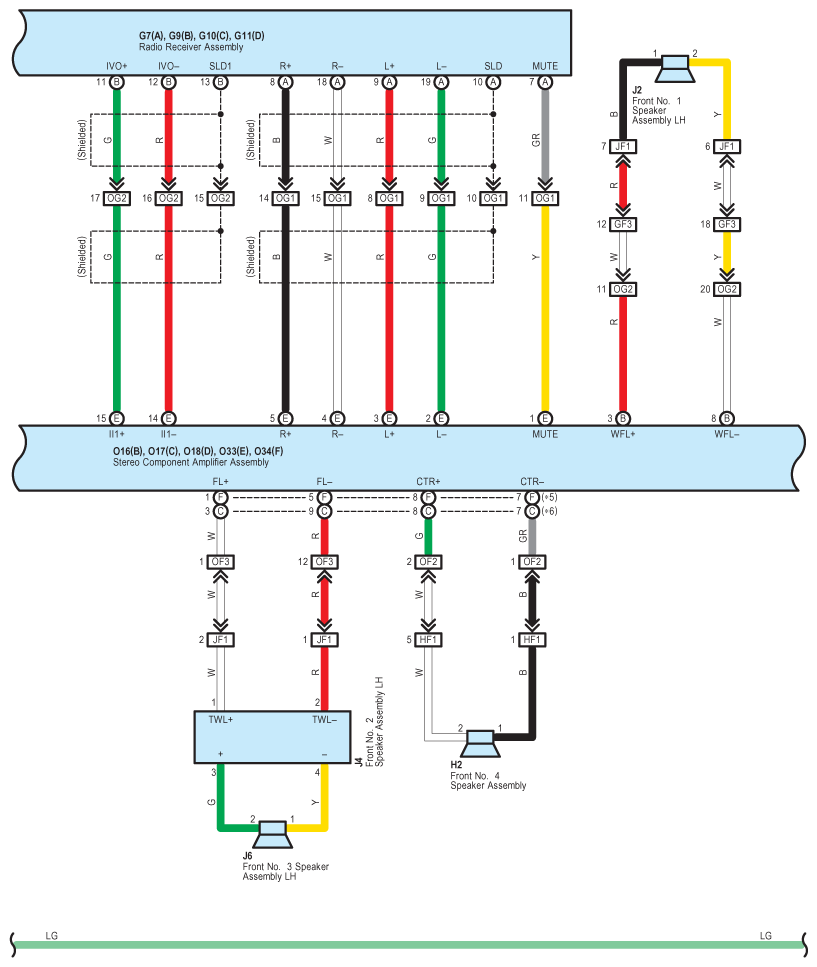

Fig 8: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (8 Of 10)
G08938455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

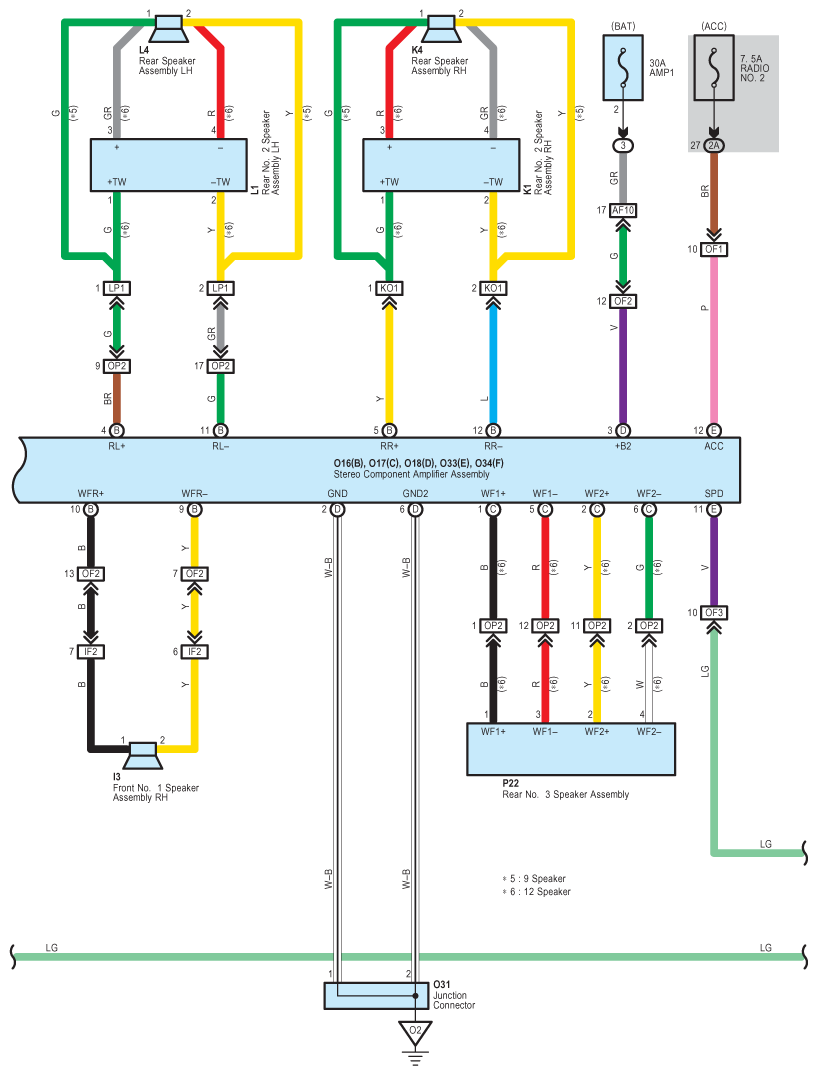

Fig 9: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (9 Of 10)
G08938456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

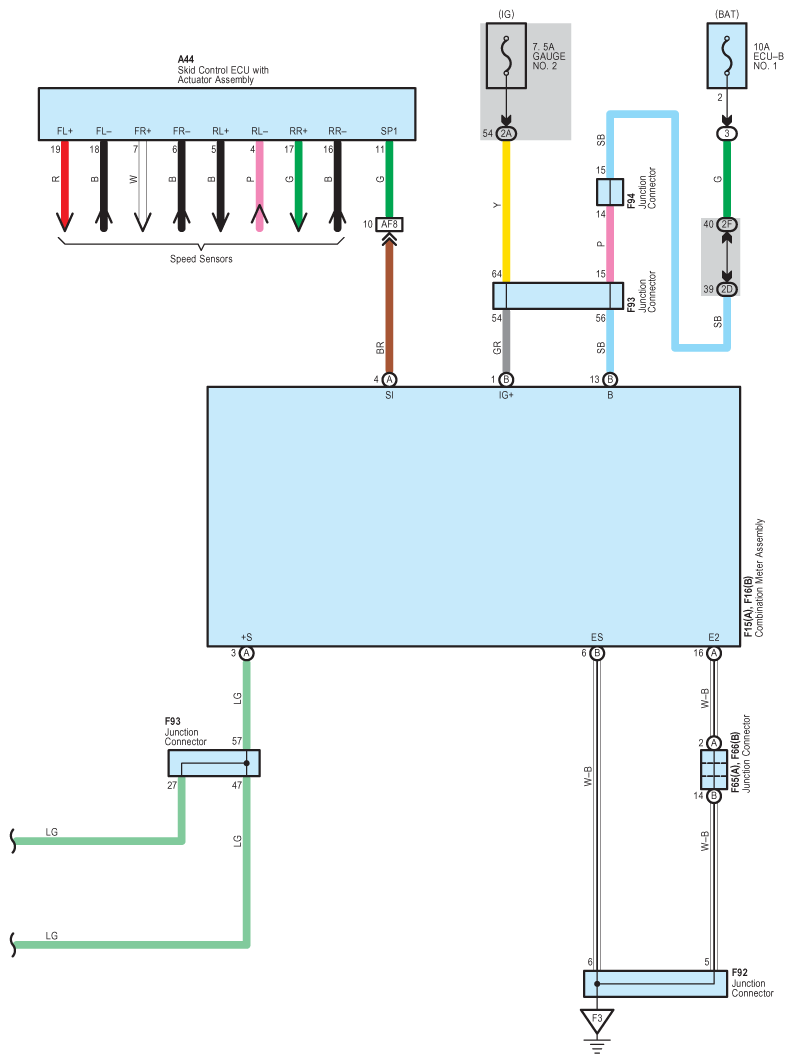

Fig 10: Audio System (W/O LEXUS Navigation System) - Wiring Diagram (10 Of 10)
G08938457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
