Combination Meter: Notes

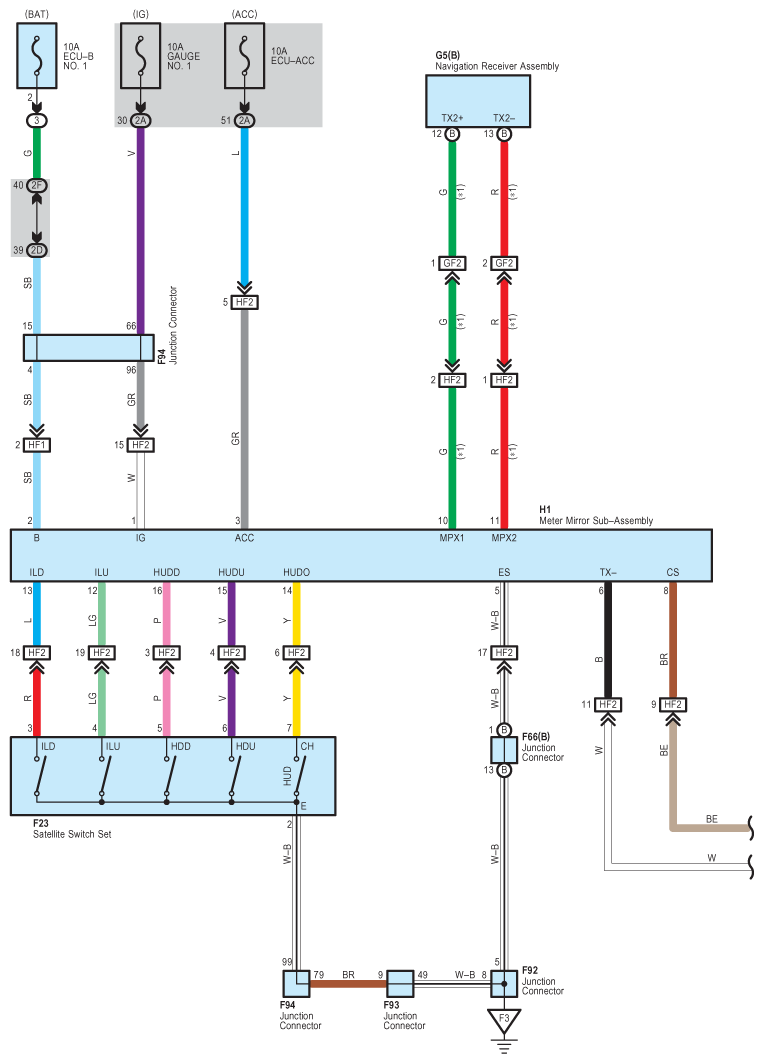

Fig 1: Combination Meter - Wiring Diagram (1 Of 10)
G08938458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Combination Meter - Wiring Diagram (2 Of 10)
G08938459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

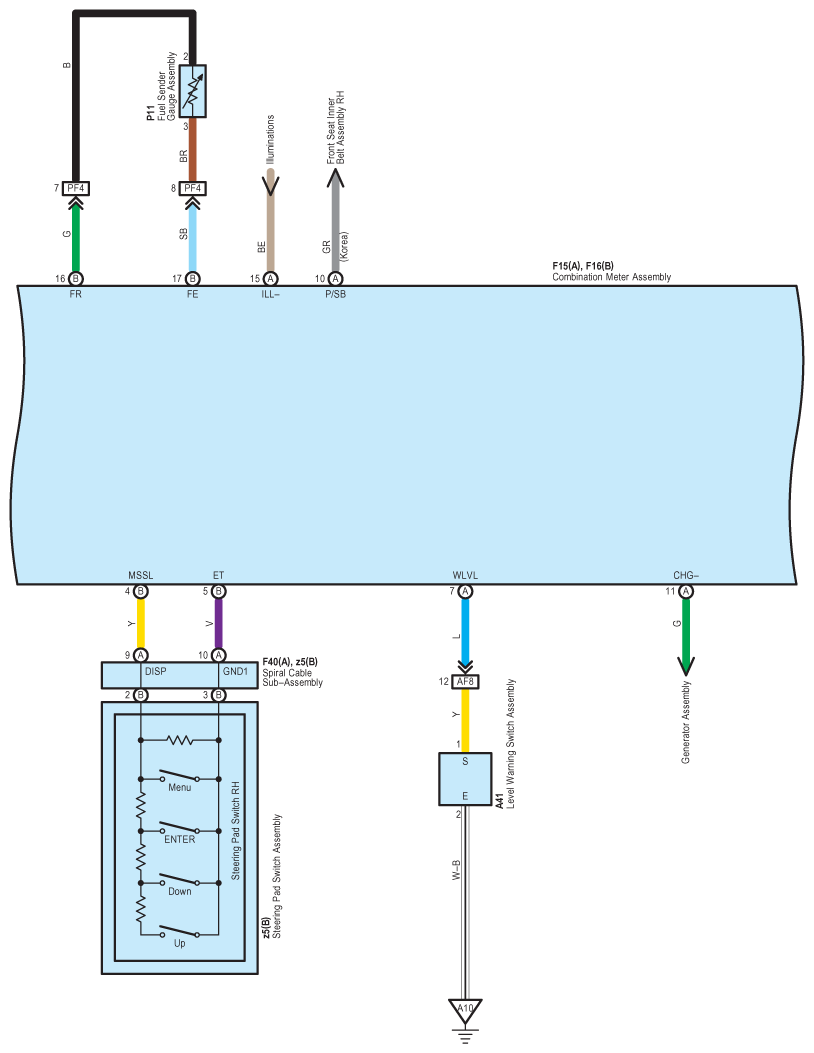

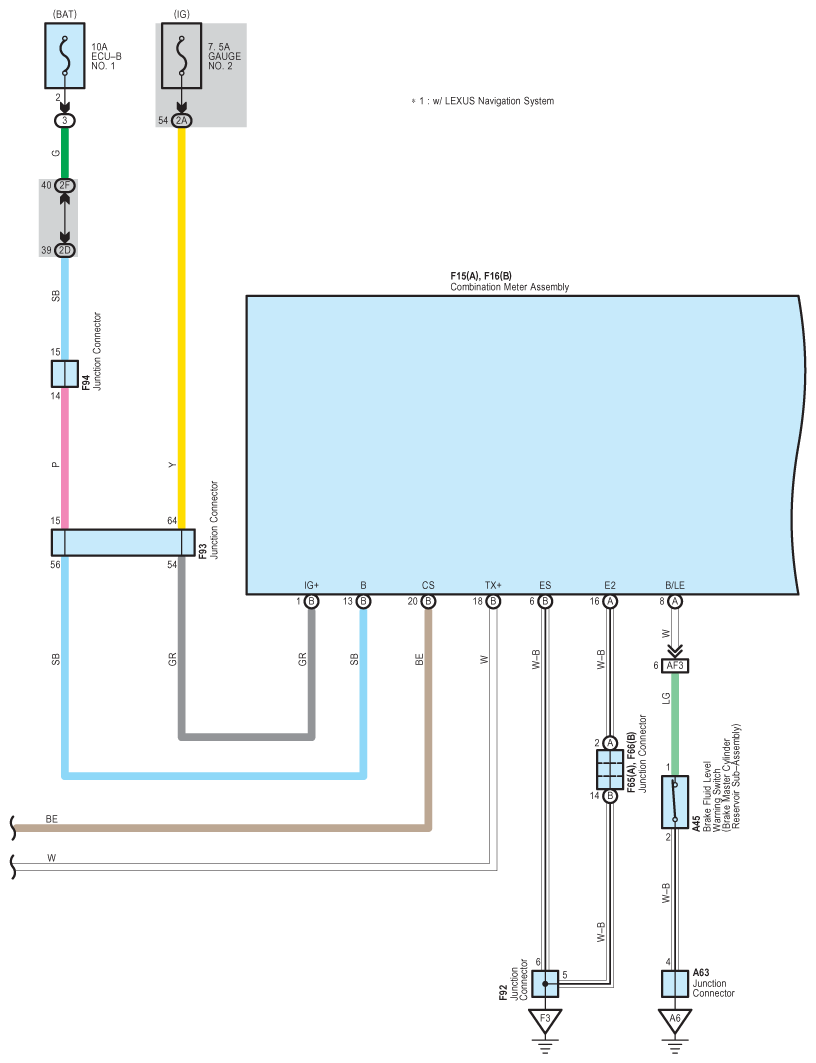

Fig 3: Combination Meter - Wiring Diagram (3 Of 10)
G08938460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

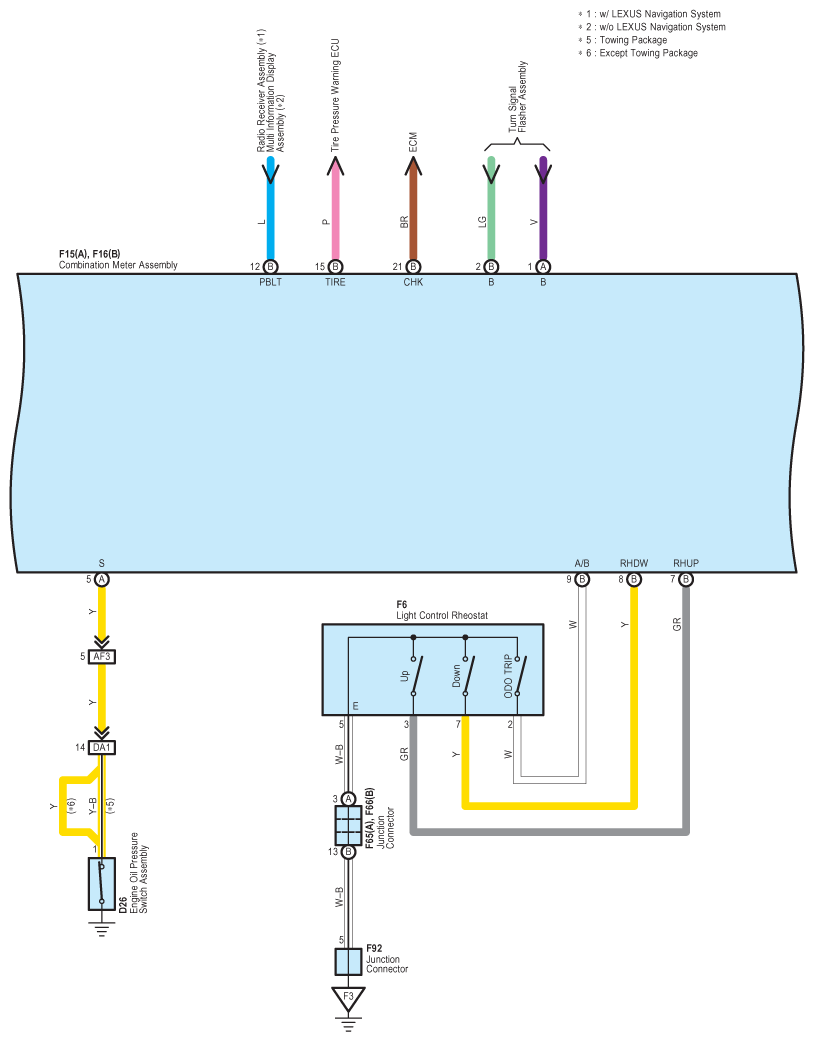

Fig 4: Combination Meter - Wiring Diagram (4 Of 10)
G08938461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

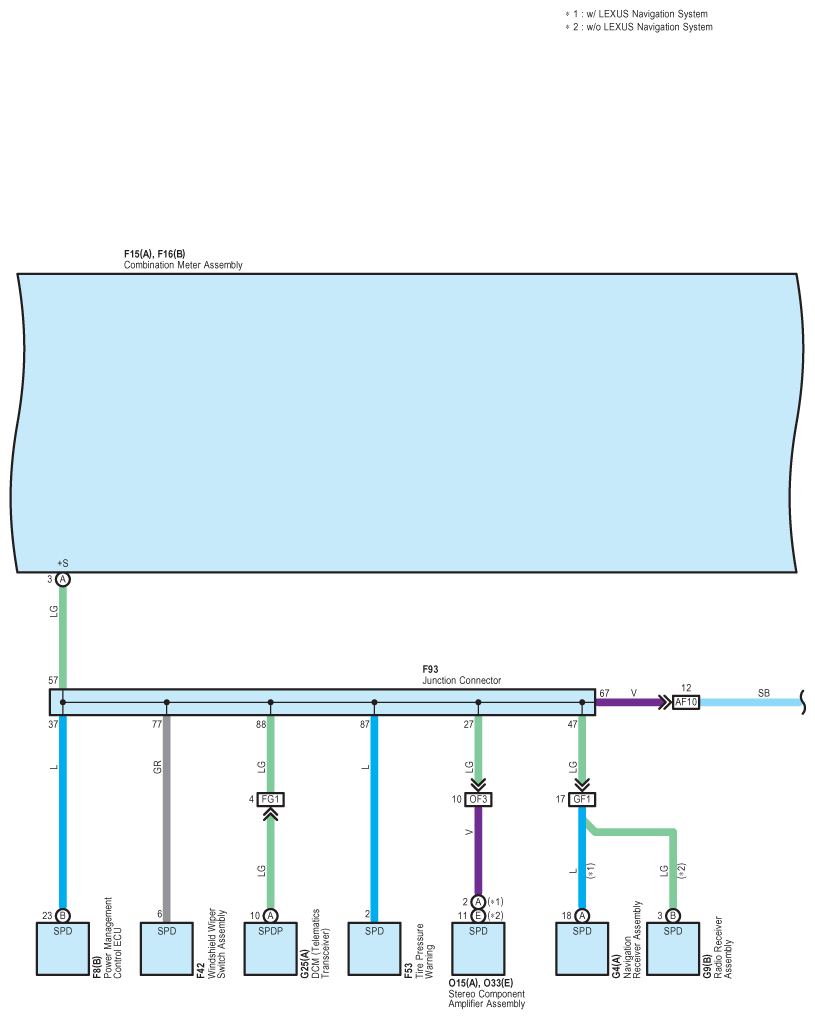

Fig 5: Combination Meter - Wiring Diagram (5 Of 10)
G08938462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

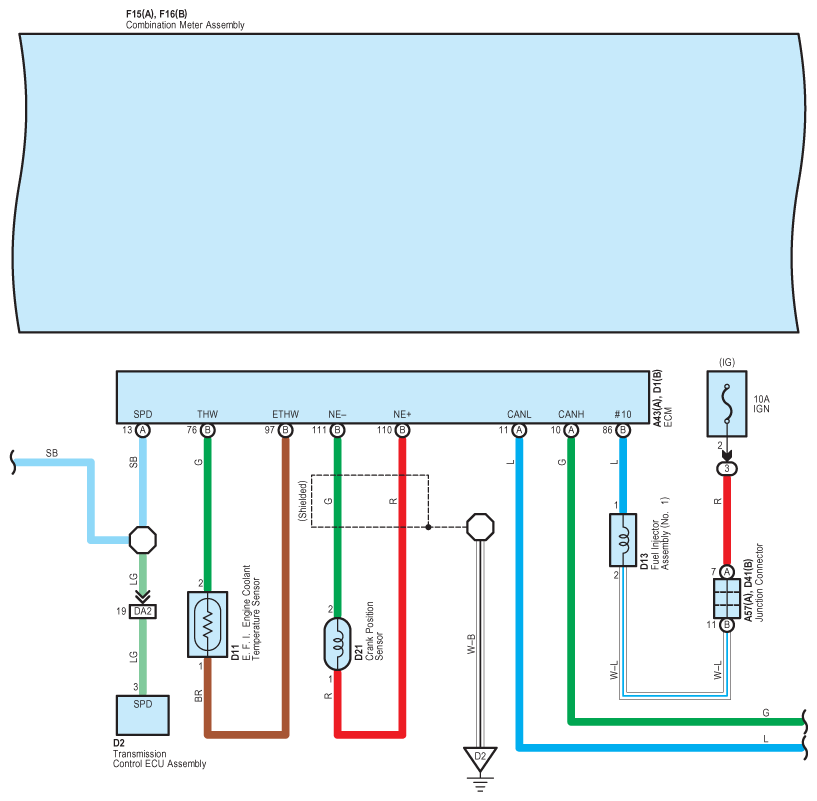

Fig 6: Combination Meter - Wiring Diagram (6 Of 10)
G08938463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

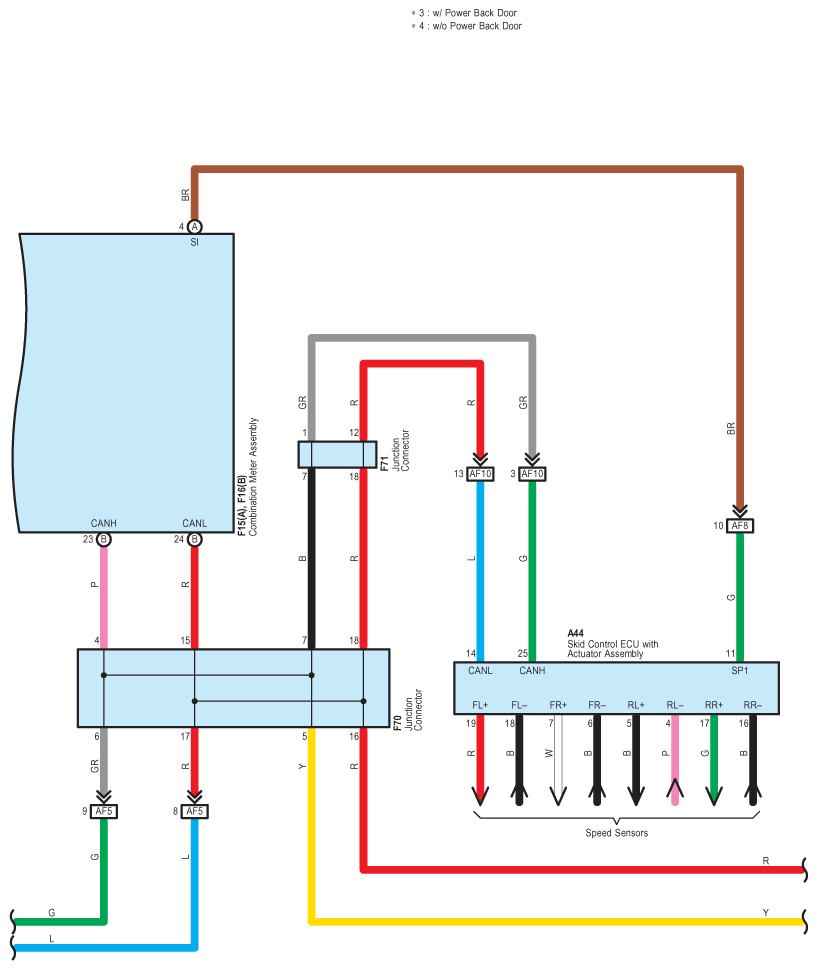

Fig 7: Combination Meter - Wiring Diagram (7 Of 10)
G08938464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

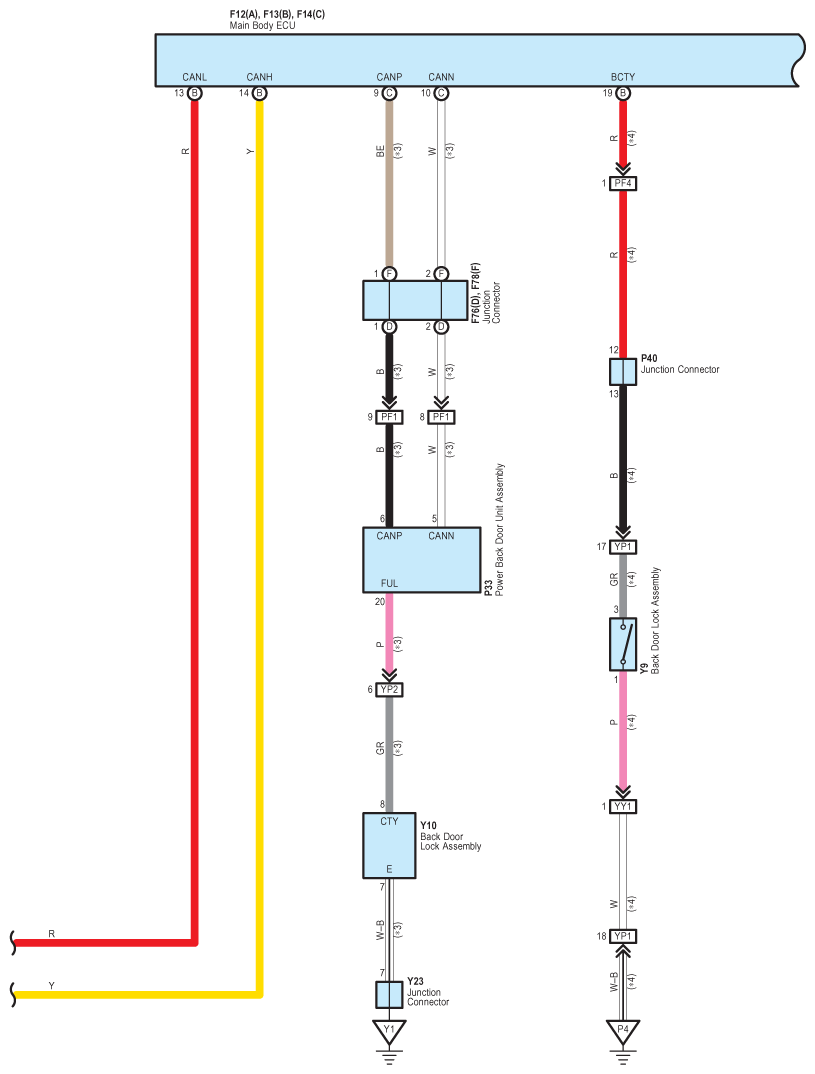

Fig 8: Combination Meter - Wiring Diagram (8 Of 10)
G08938465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

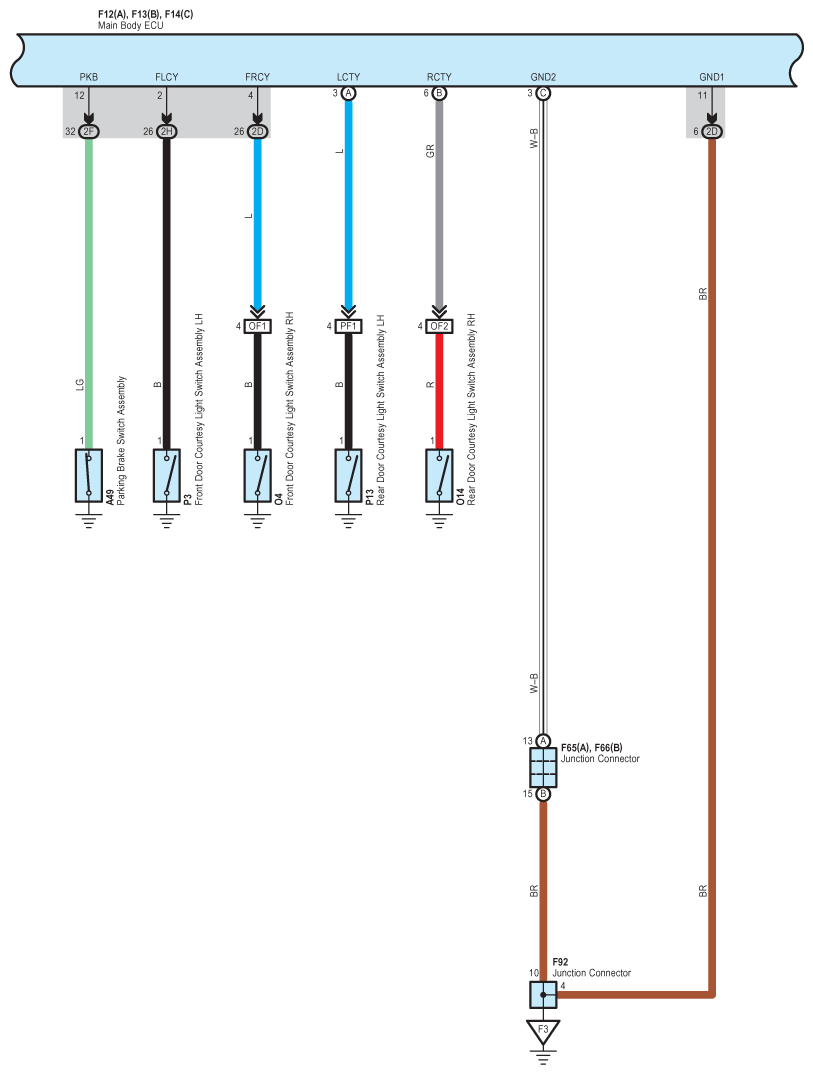

Fig 9: Combination Meter - Wiring Diagram (9 Of 10)
G08938466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

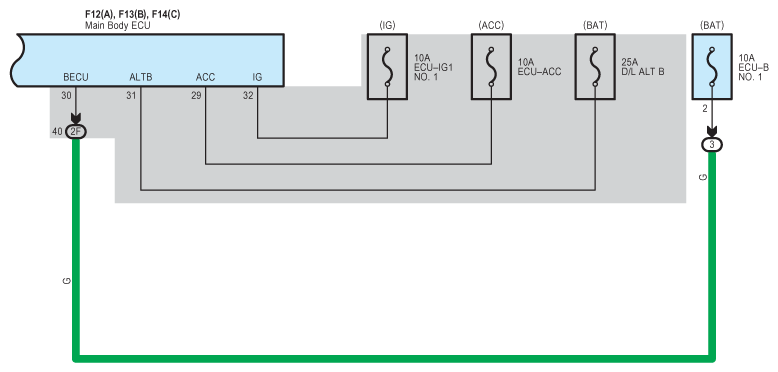

Fig 10: Combination Meter - Wiring Diagram (10 Of 10)
G08938467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
