Cooling Fan: Notes

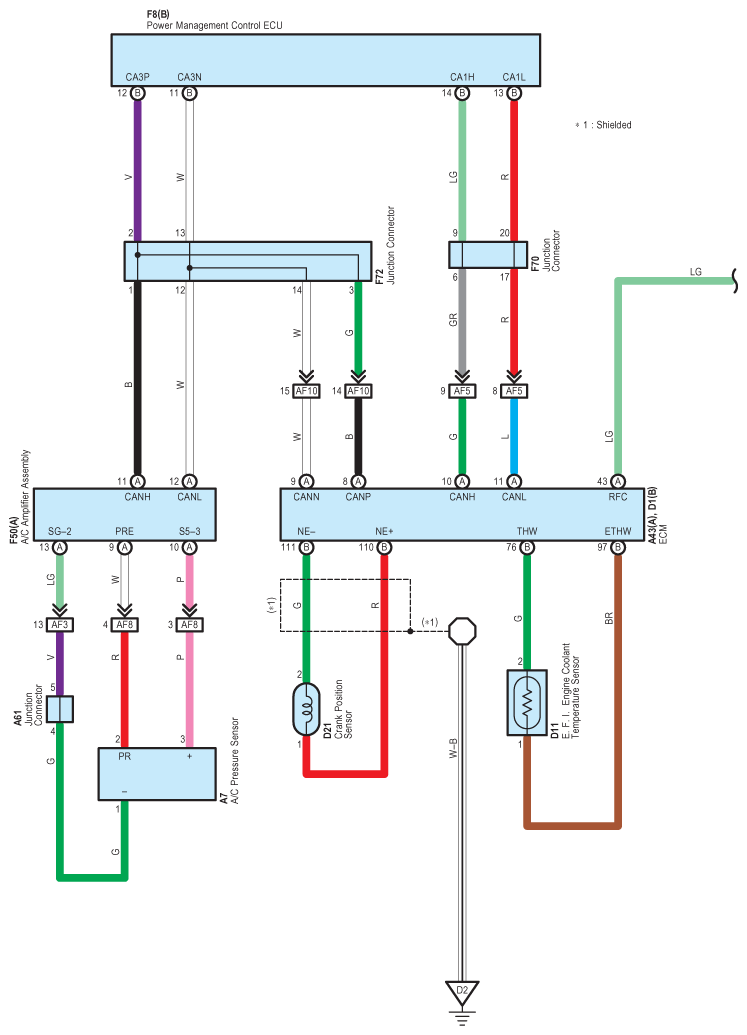

Fig 1: Cooling Fan - Wiring Diagram (1 Of 2)
G08938468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

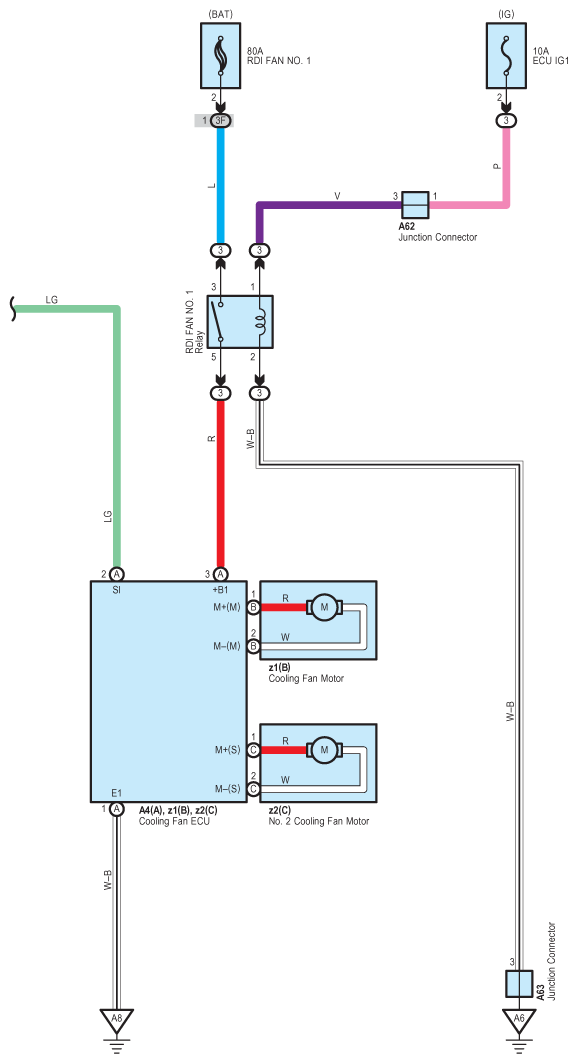

Fig 2: Cooling Fan - Wiring Diagram (2 Of 2)
G08938469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
