Power Tilt and Power Telescopic: Notes

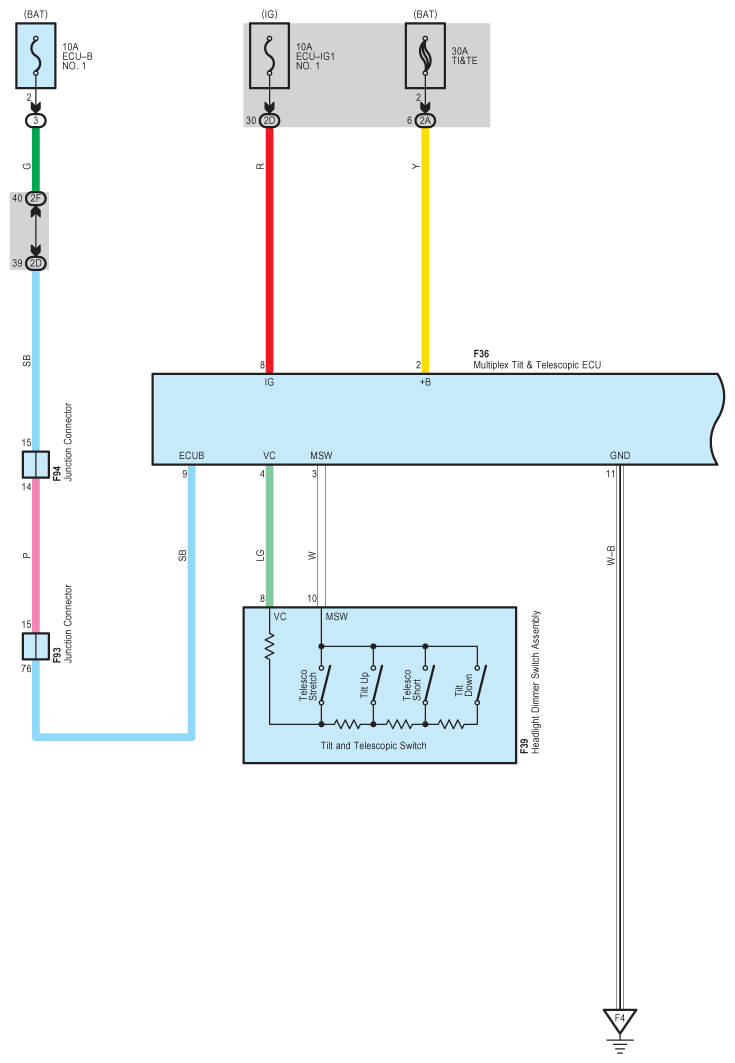

Fig 1: Power Tilt And Power Telescopic - Wiring Diagram (1 Of 5)
G08938371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

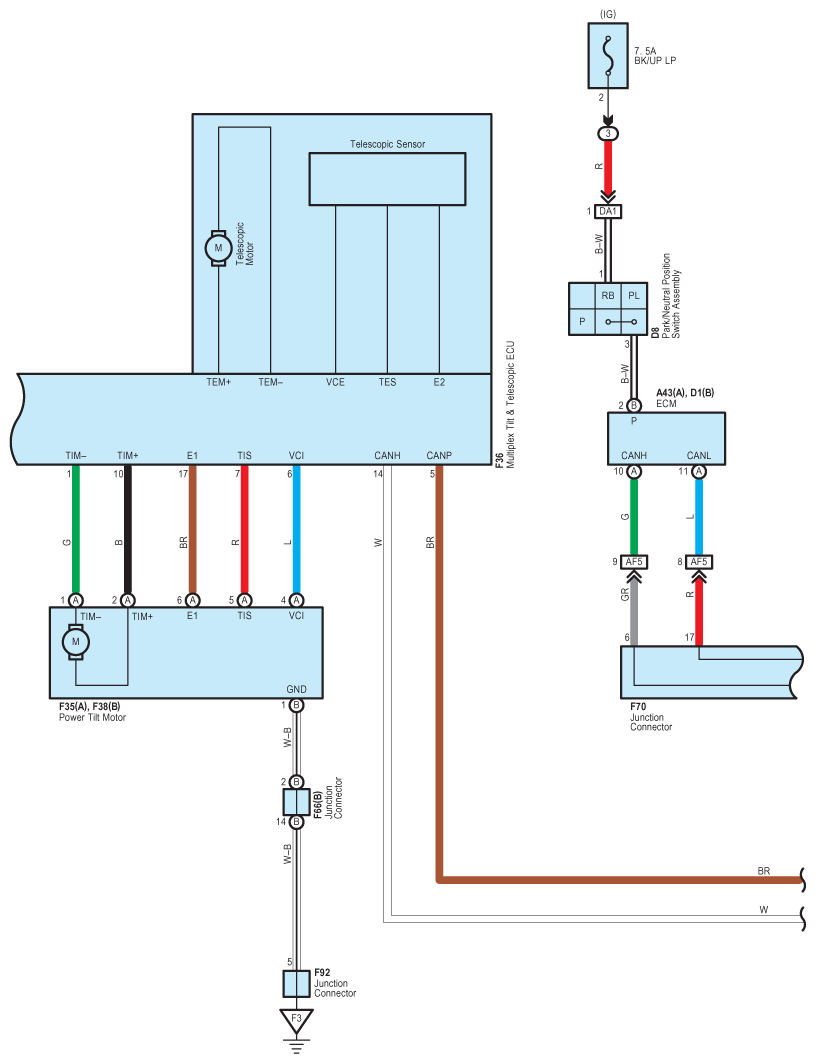

Fig 2: Power Tilt And Power Telescopic - Wiring Diagram (2 Of 5)
G08938372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

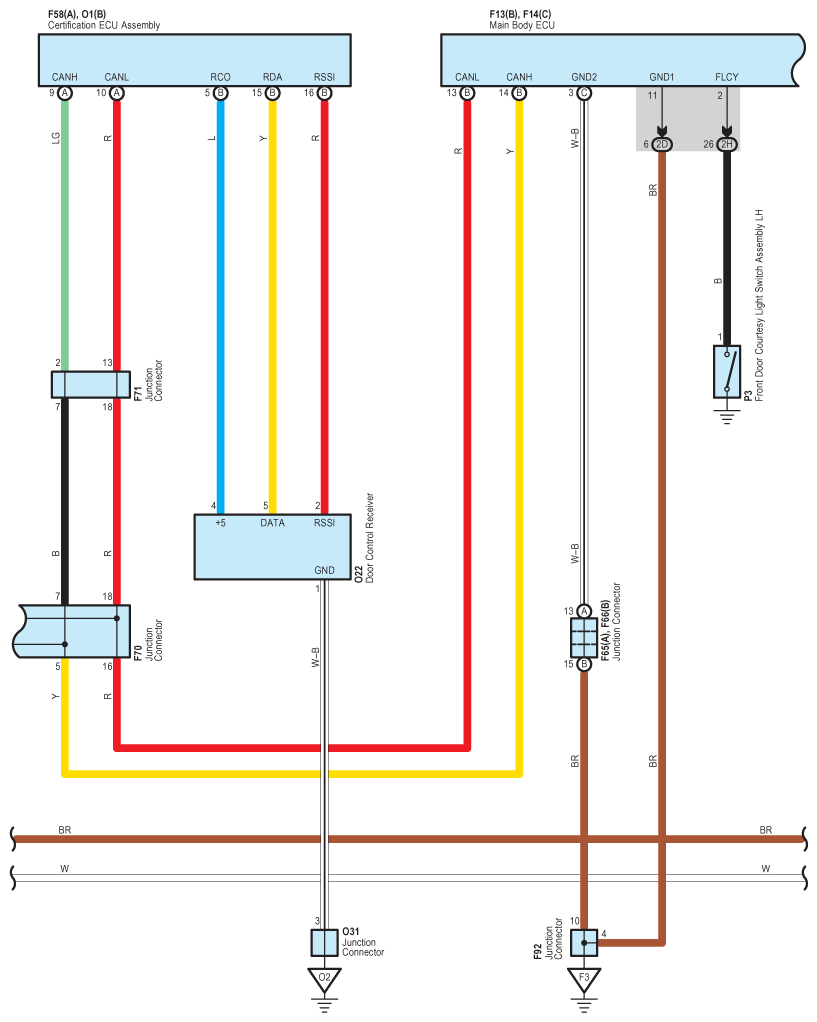

Fig 3: Power Tilt And Power Telescopic - Wiring Diagram (3 Of 5)
G08938373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

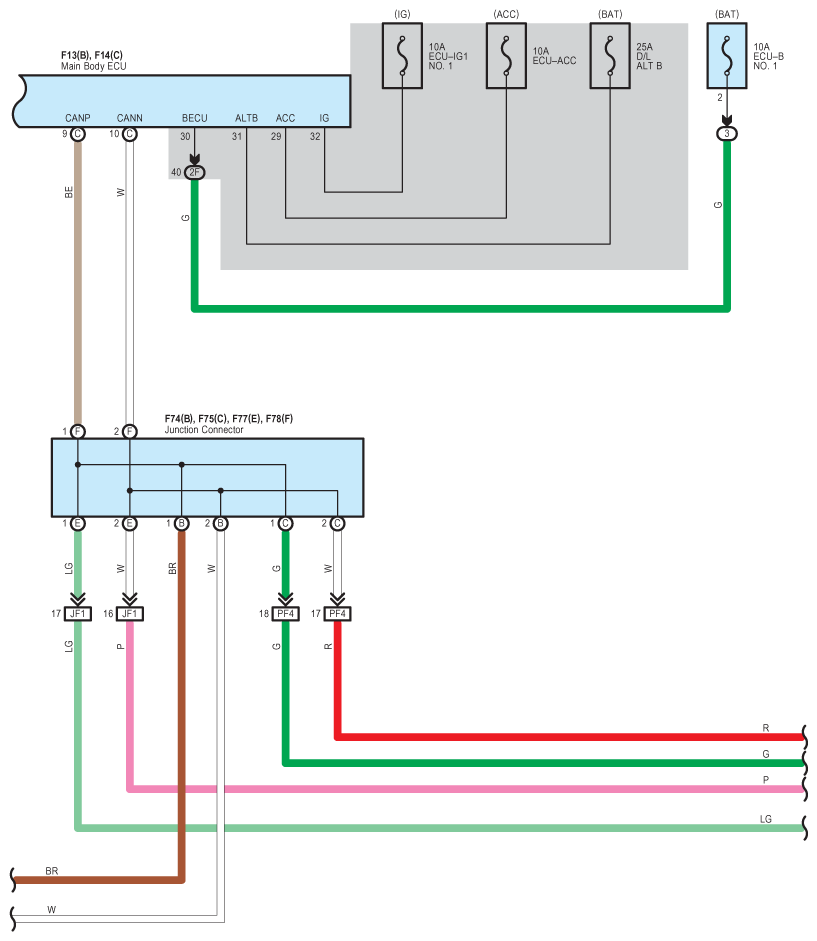

Fig 4: Power Tilt And Power Telescopic - Wiring Diagram (4 Of 5)
G08938374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Power Tilt And Power Telescopic - Wiring Diagram (5 Of 5)
G08938375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
