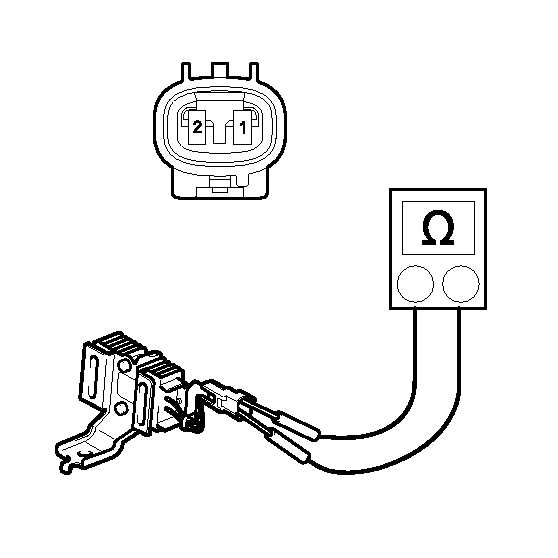

Using an ohmmeter, measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
| Tester Connection |
Condition |
Specified Condition |
| 1-2 |
Always |
0.30 to 0.34 Ω |
If the result is not as specified, replace the fuel pump resistor.
