Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (1 of 4)
GTY256703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Fuel Pump Replacement Components (2 of 4)
GTY270232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

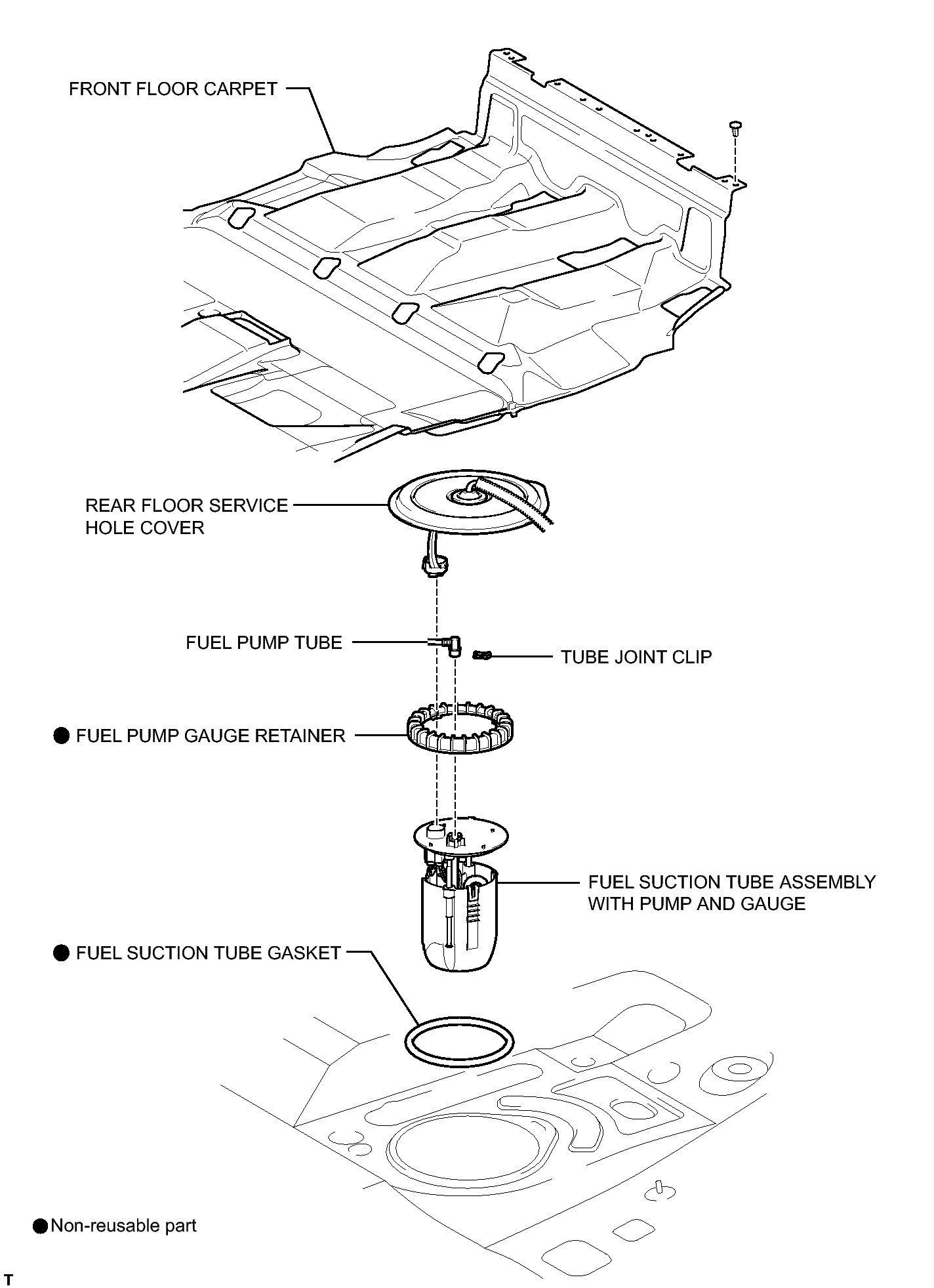

Fig 1: Identifying Fuel Pump Replacement Components (3 of 4)
GTY264773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

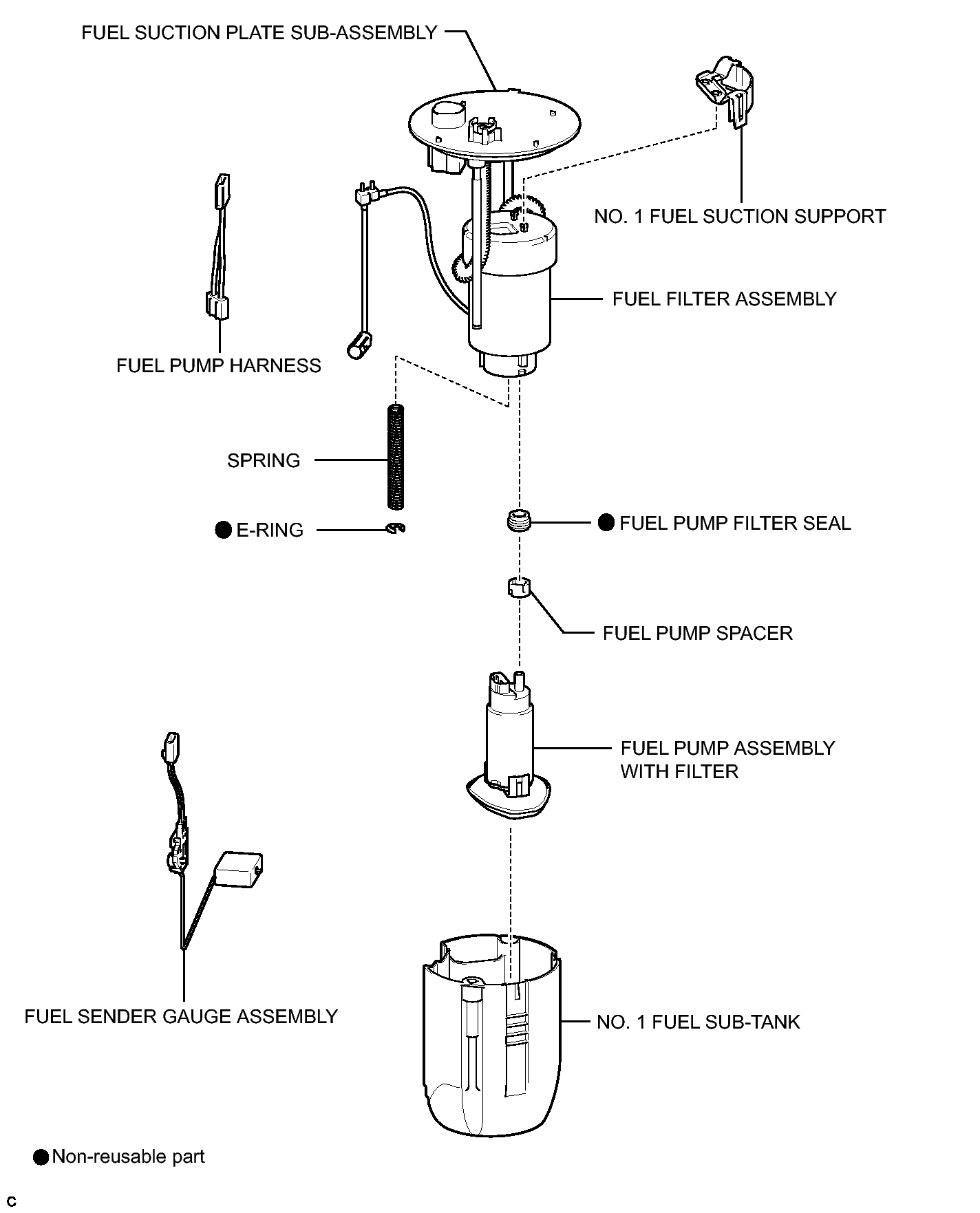

Fig 1: Identifying Fuel Pump Replacement Components (4 of 4)
GTY284173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
