Accelerator Pedal: Removal: Removal

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
  2. REMOVE ACCELERATOR PEDAL ASSEMBLY
    1. Disconnect the accelerator pedal assembly connector.

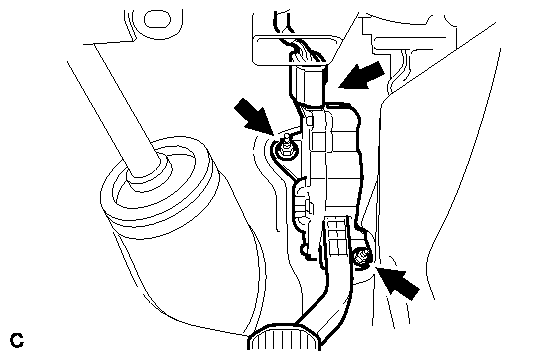

      Fig 1: Location of 2 Nuts
      GTY261428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal assembly.
      NOTE:
      • Avoid physical shocks to the accelerator pedal assembly.
      • Do not disassemble the accelerator pedal assembly.
