VACUUM SWITCHING VALVE (For Engine Mounting): Components: Illustration

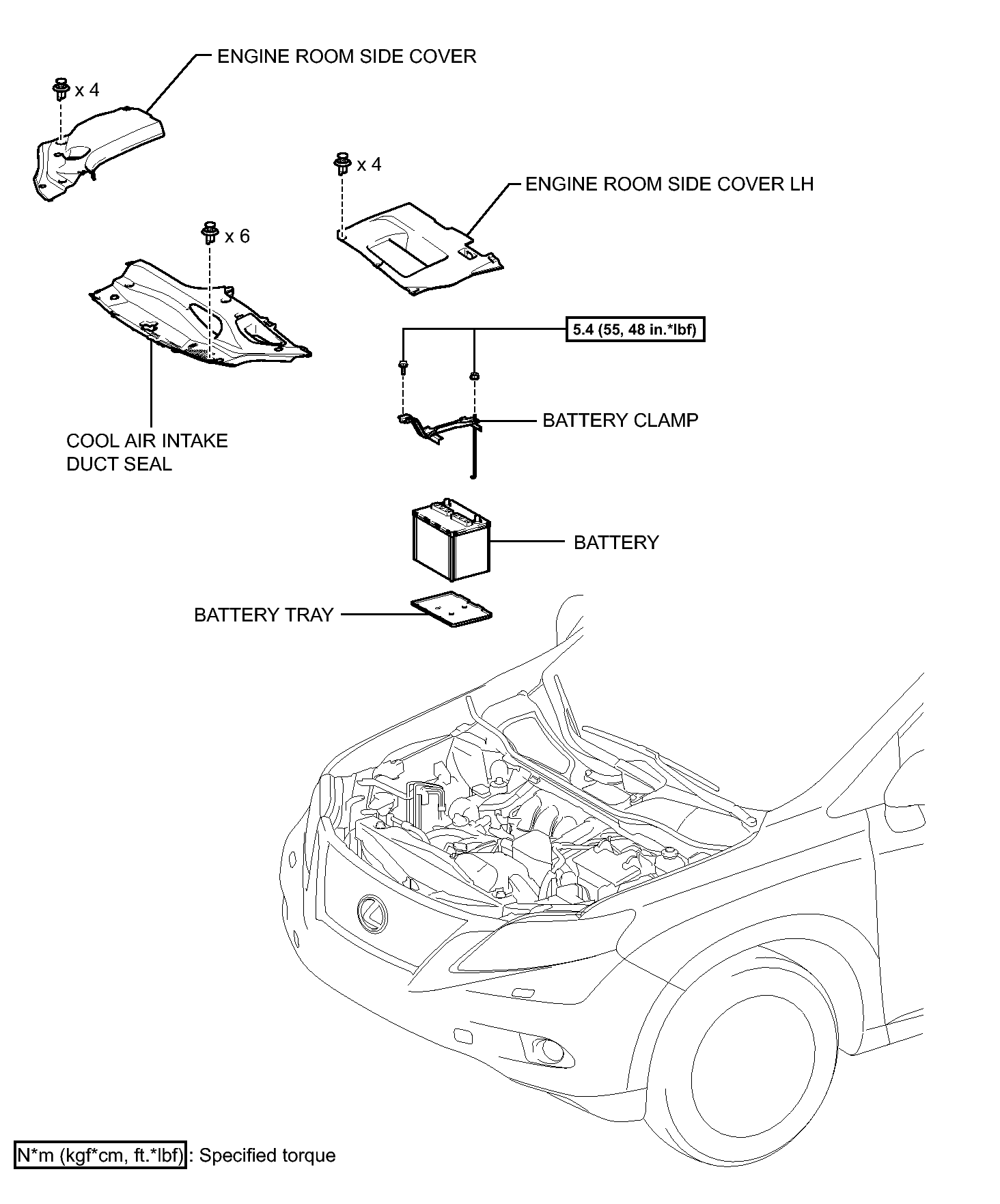

Fig 1: Identifying Vacuum Switching Valve (For Engine Mounting) Replacement Components With Torque Specifications (1 of 2)
GTY275269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

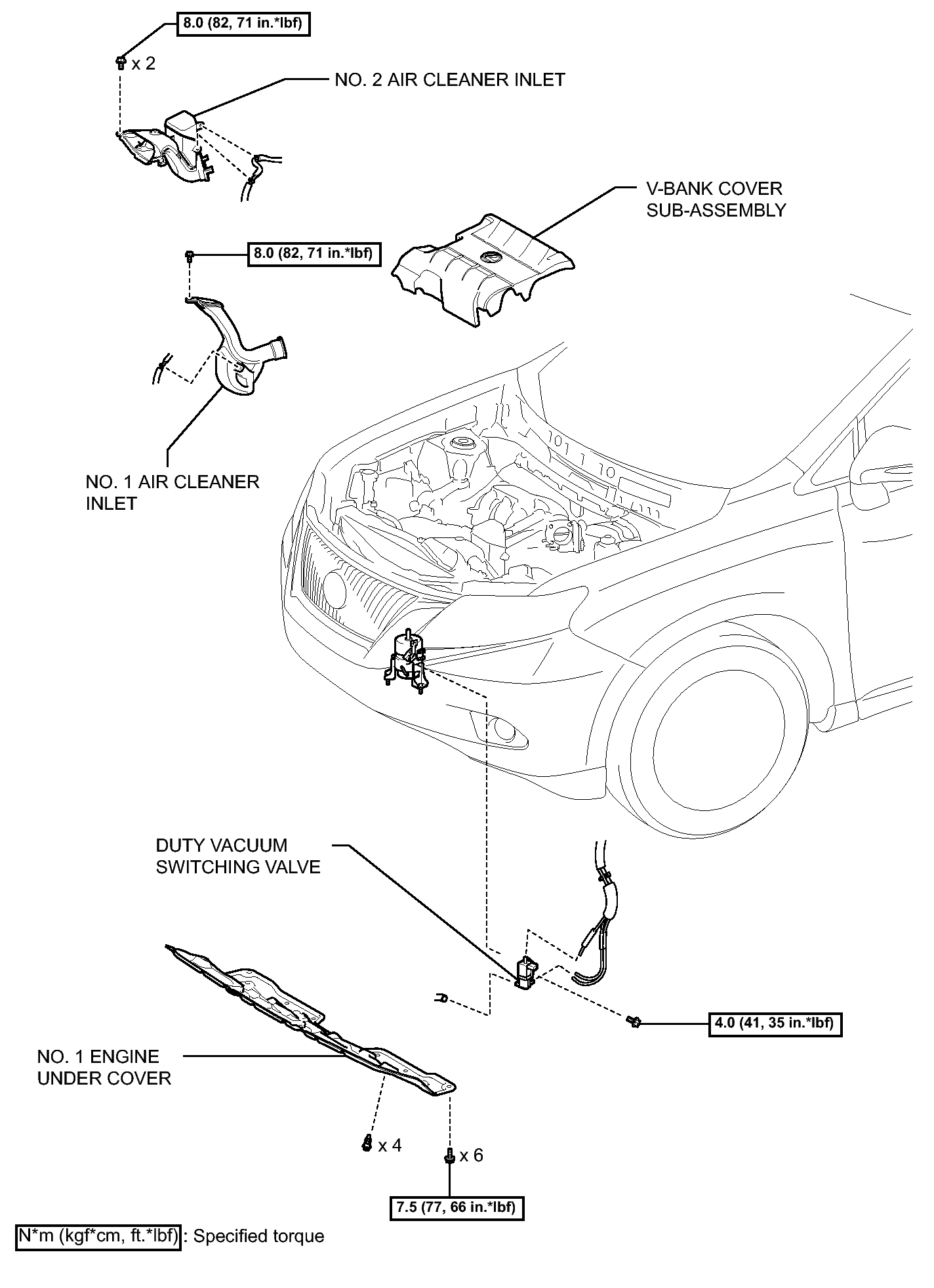

Fig 1: Identifying Vacuum Switching Valve (For Engine Mounting) Replacement Components With Torque Specifications (2 of 2)
GTY259594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
