Engine Control System (Service Information): ECM: Installation: Installation

1. Set the ECM in the engine room ECM box.

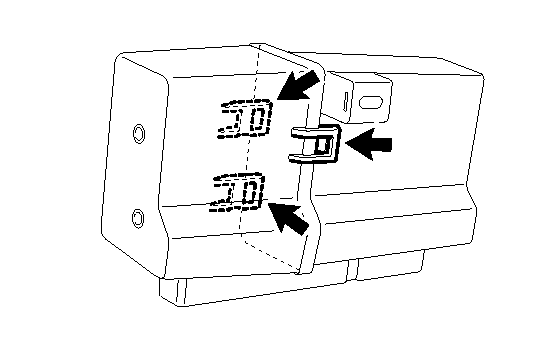

2. Install the engine room ECM cover with the 3 claws.
   Fig 1: Identifying Claws Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

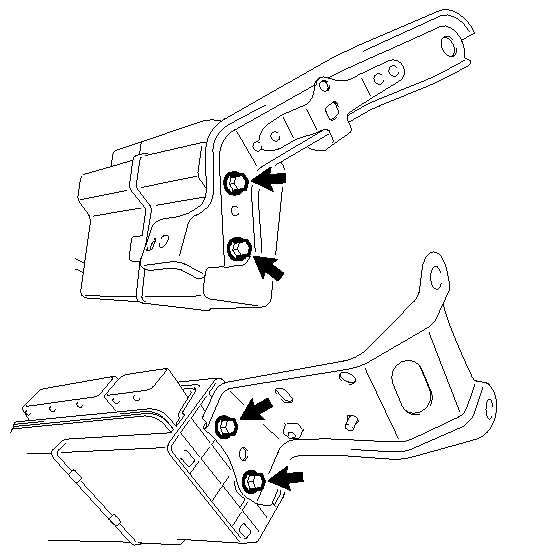

3. Install the No. 1 ECM bracket and No. 2 ECM bracket with the 4 bolts.
   Fig 2: Identifying Bolts Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

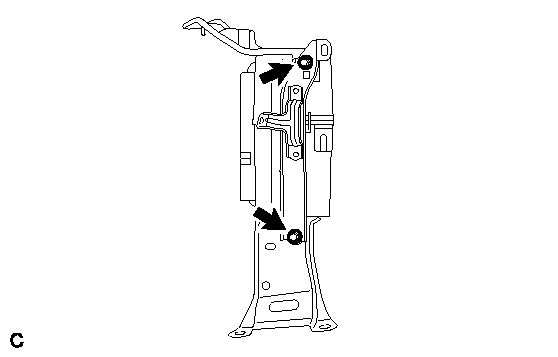

4. Install the wire harness clamp bracket with the 2 bolts.
   Fig 3: Identifying Bolts Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

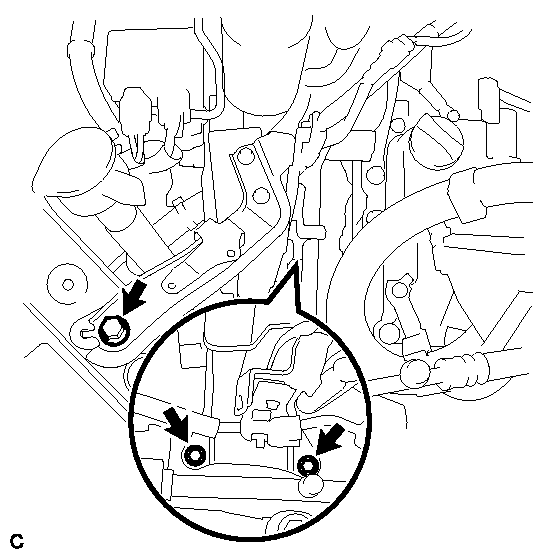

5. Install the ECM with bracket with the 3 bolts.
   Fig 4: Identifying Bolts & ECM With Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 19 N*m (193 kgf*cm, 14 ft.*lbf)

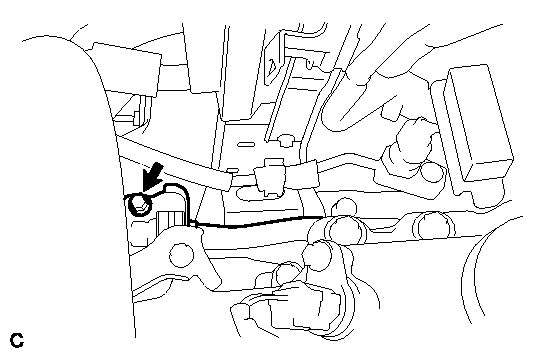

6. Install the cooler pipe with the bolt.
   Fig 5: Identifying Bolt & Cooler Pipe

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

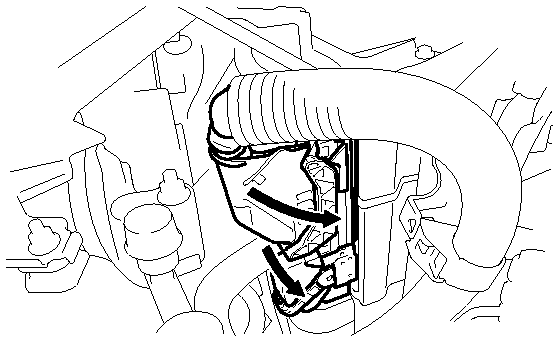

7. Connect the 2 ECM connectors and lower the 2 levers.
   Fig 6: Identifying ECM Connectors & Levers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • When connecting the connectors, make sure that dirt, water or other foreign matter does not become stuck between the connectors and other parts.
   • Make sure that the 2 levers are securely locked.

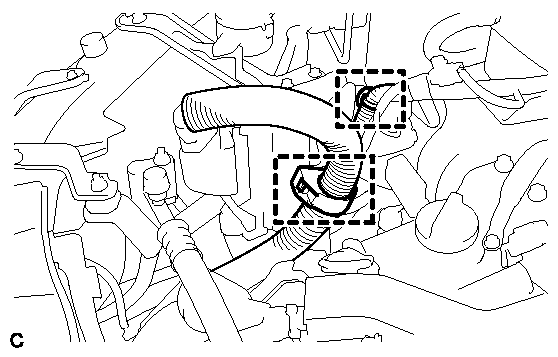

8. Install the 2 wire harness clamps.
   Fig 7: Identifying Wire Harness Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Initialization cannot be completed by only disconnecting and reconnecting the cable of the negative (-) battery terminal.

1. The Vehicle Identification Number (VIN) must be input into a replacement ECM. Refer to REGISTRATION .
2. Perform Initialization when replacing the ECM See step  13.
