Audio System (w/LEXUS Navigation System), LEXUS Navigation System and Parking Assist (Back Guide Monitor or Rear View Monitor w/LEXUS Navigation System): Notes

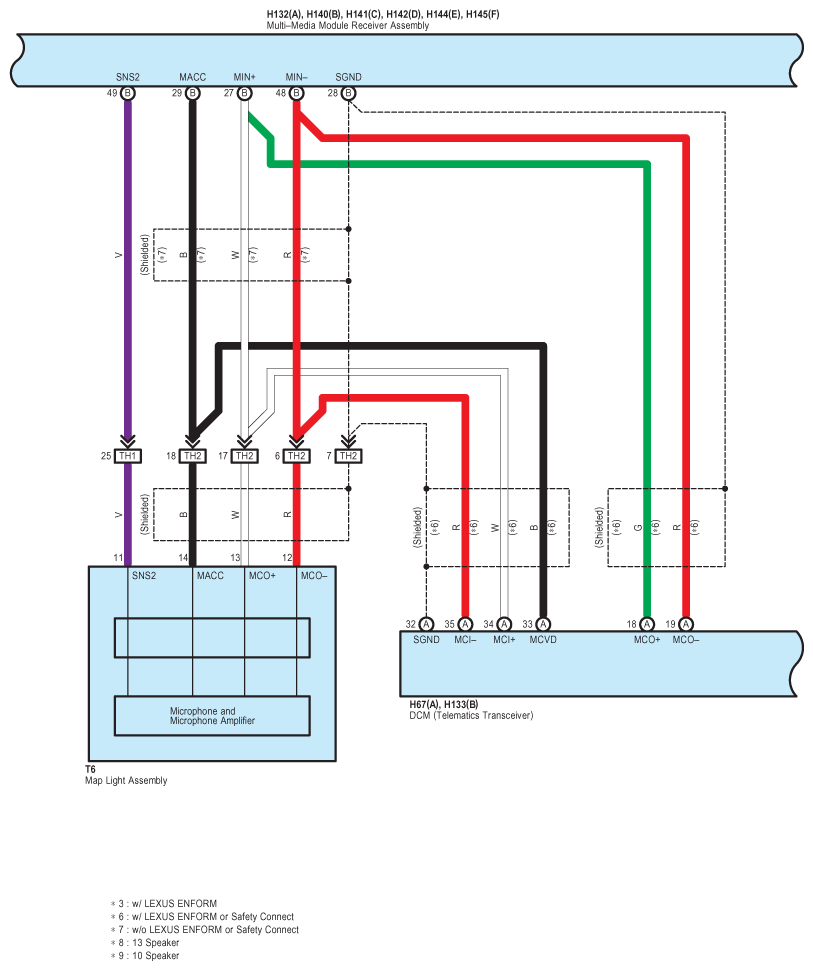

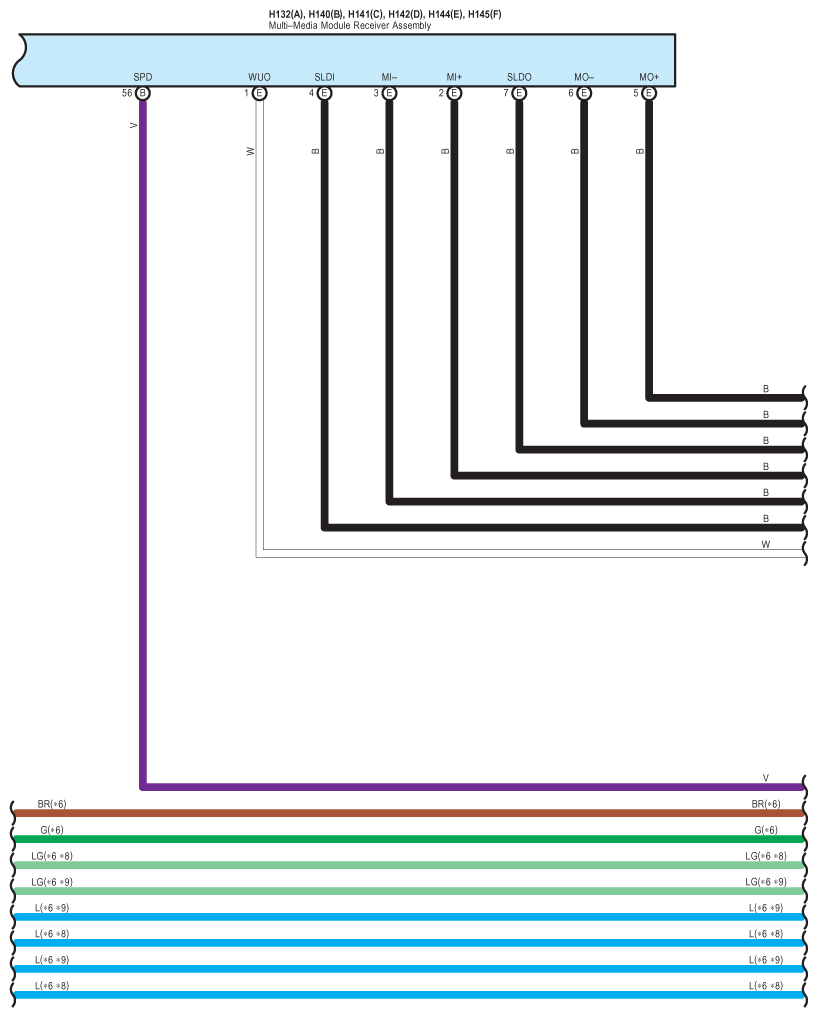

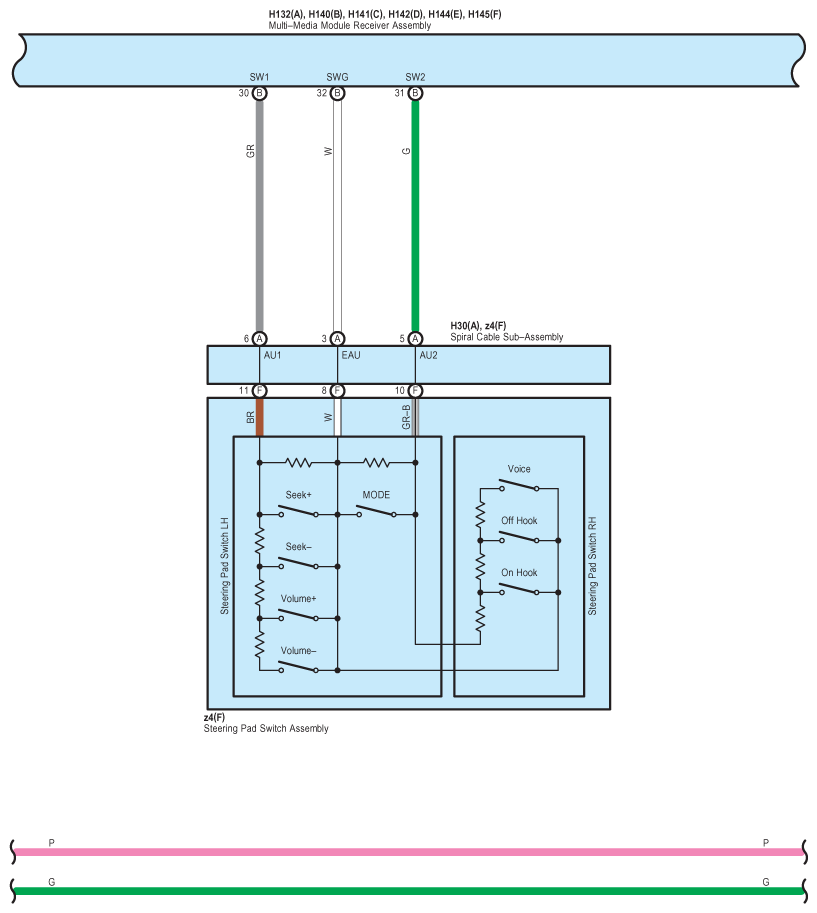

Fig 1: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

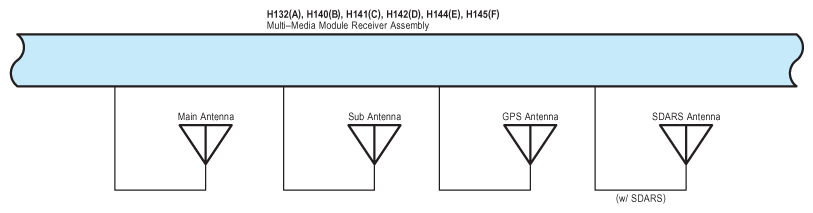

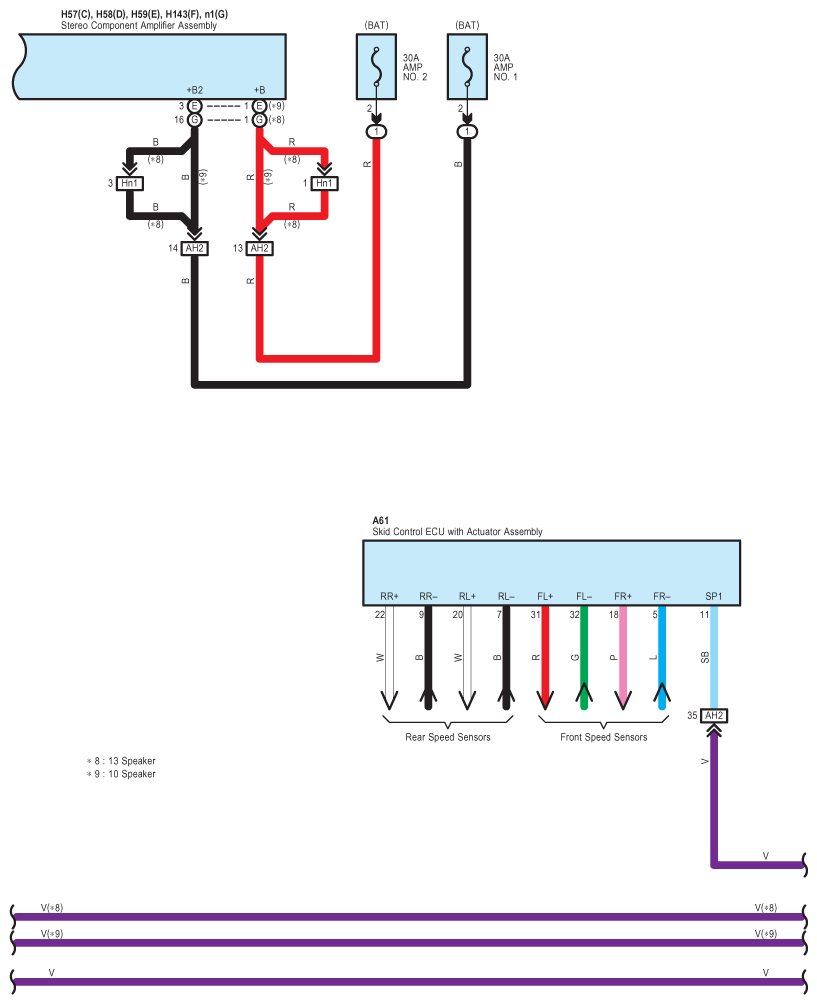

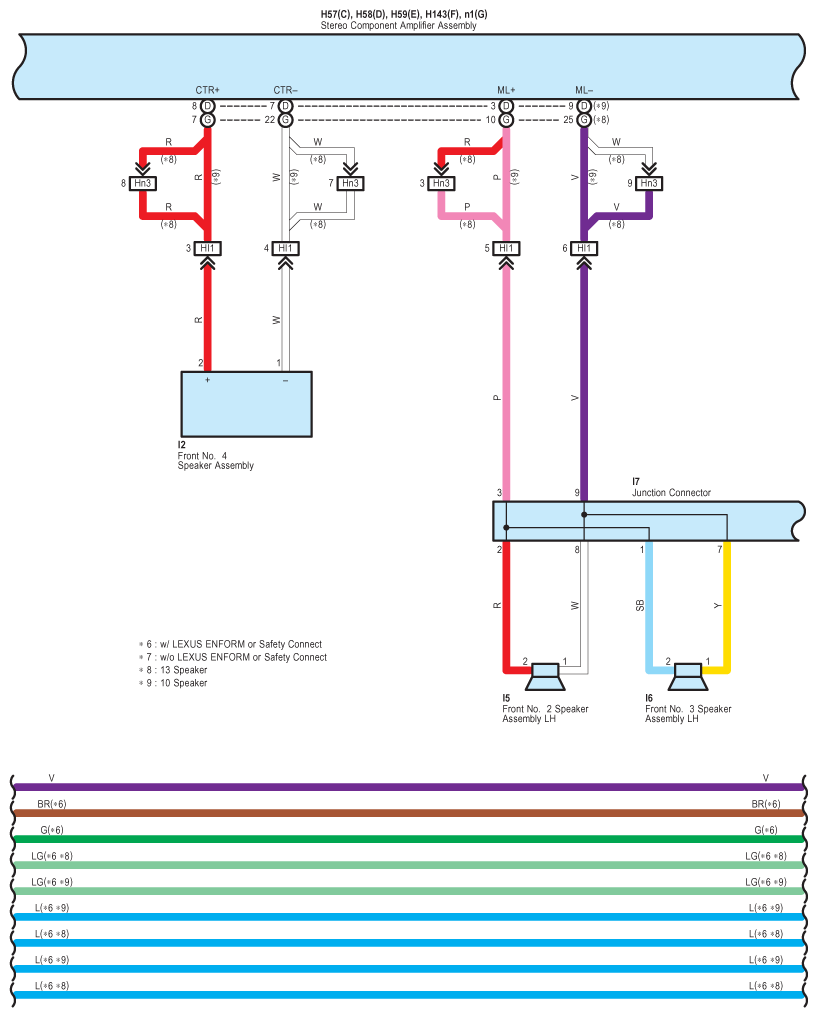

Fig 2: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

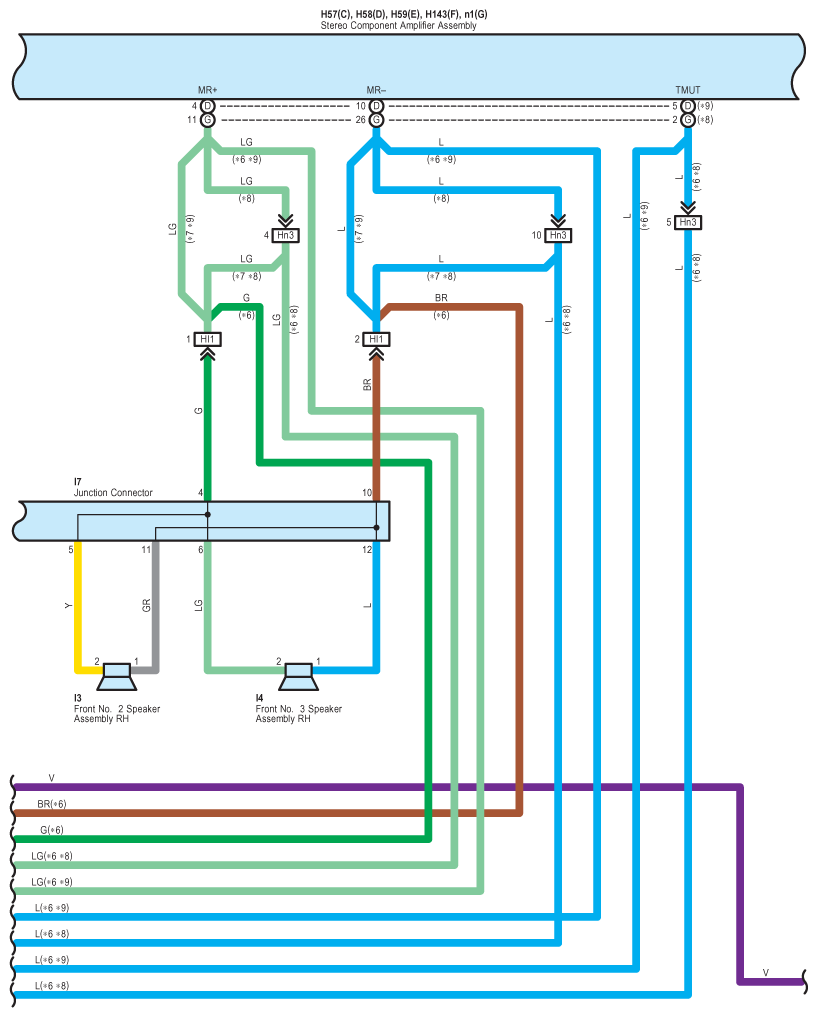

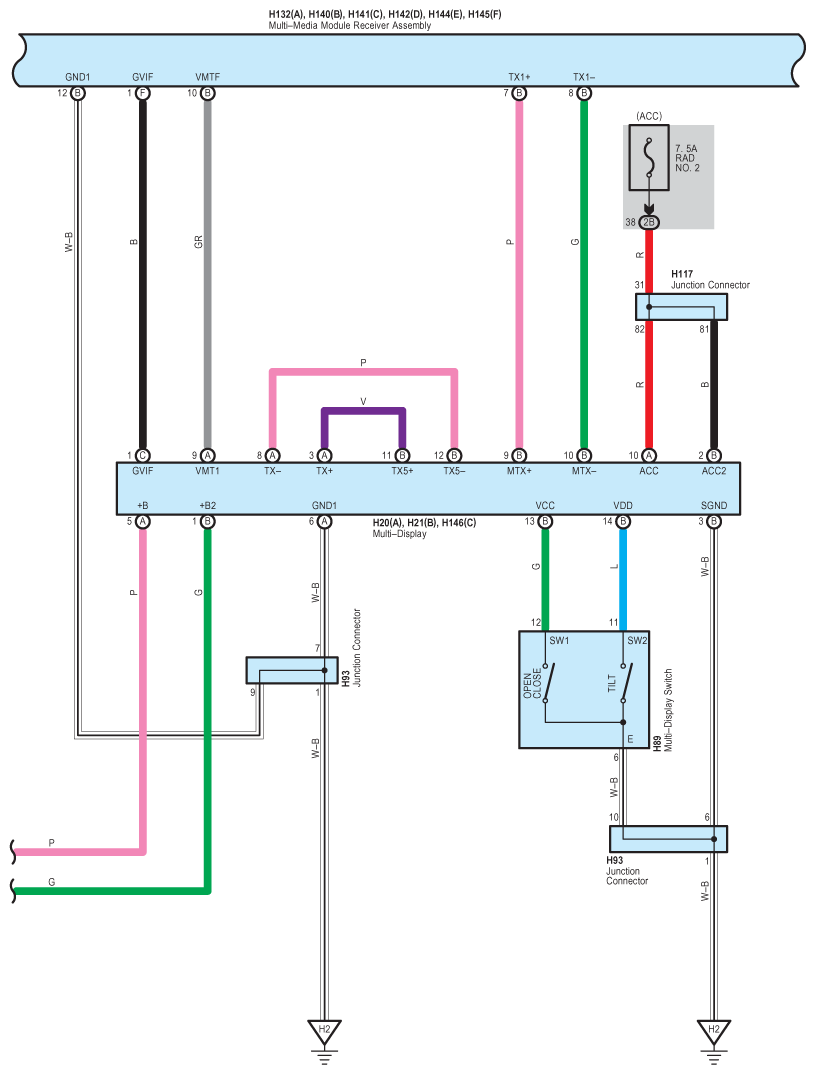

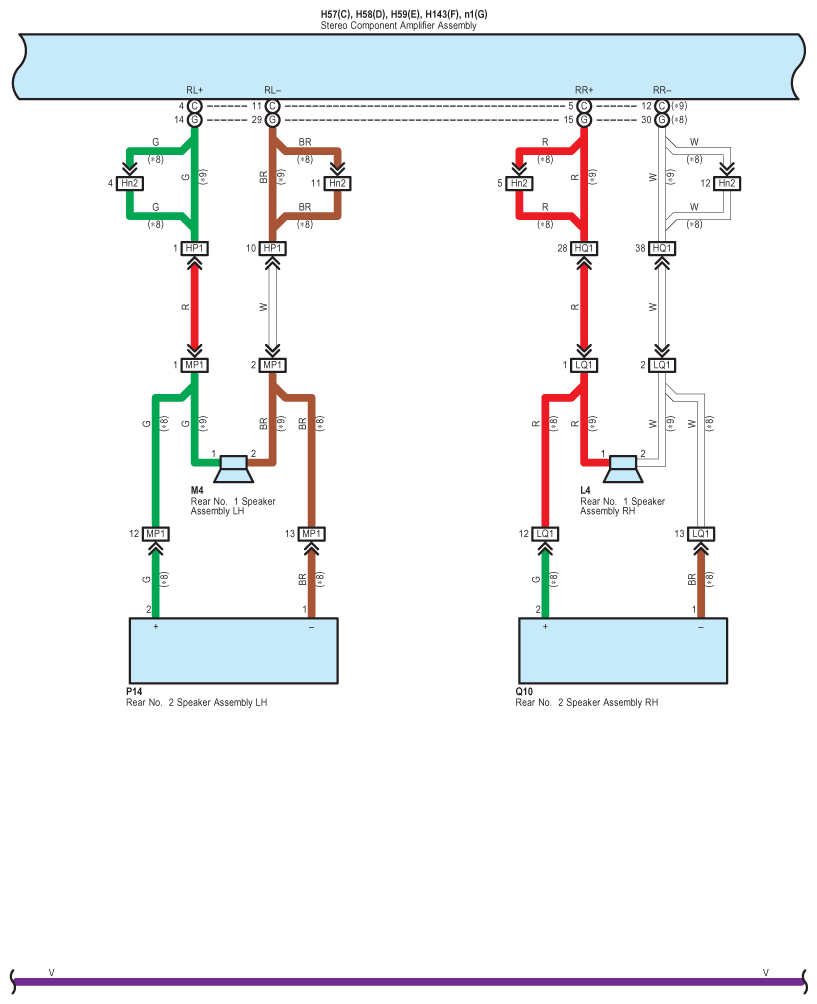

Fig 3: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

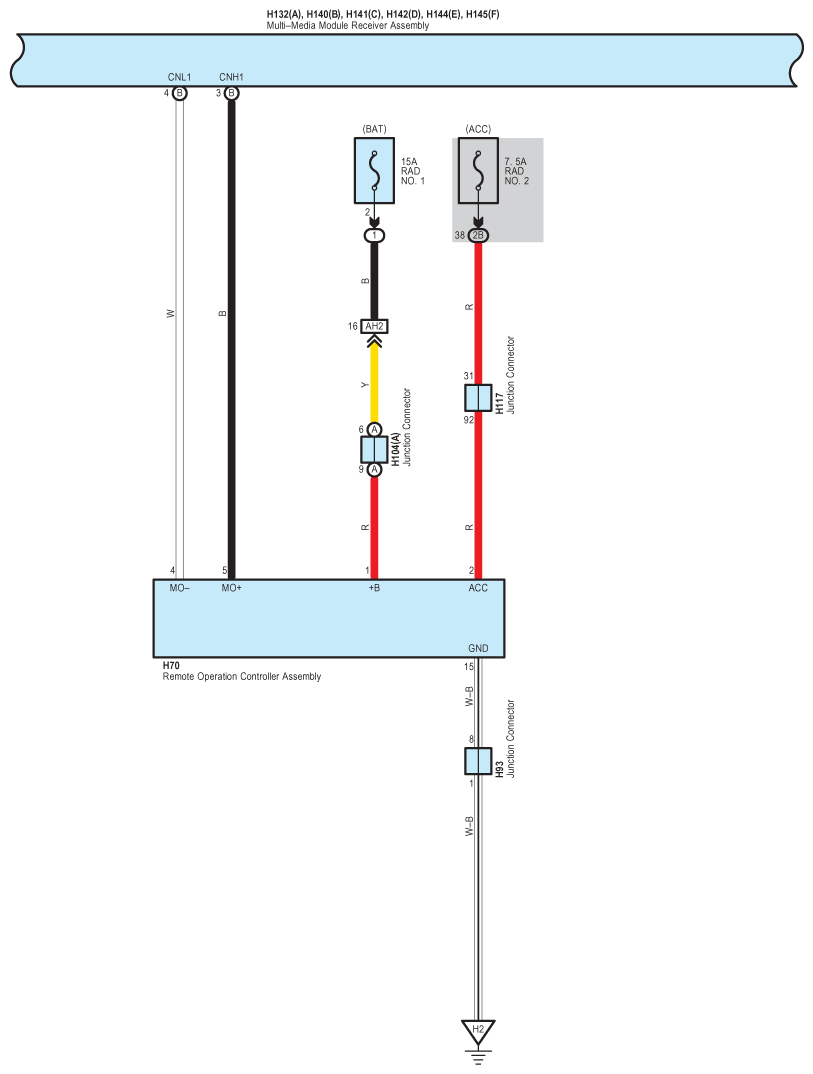

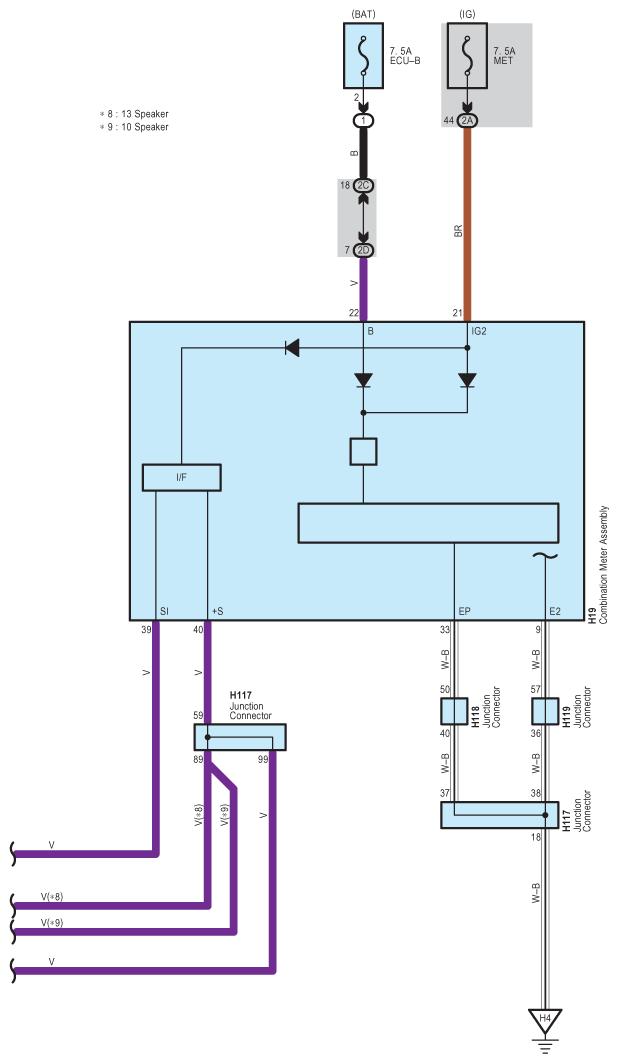

Fig 4: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

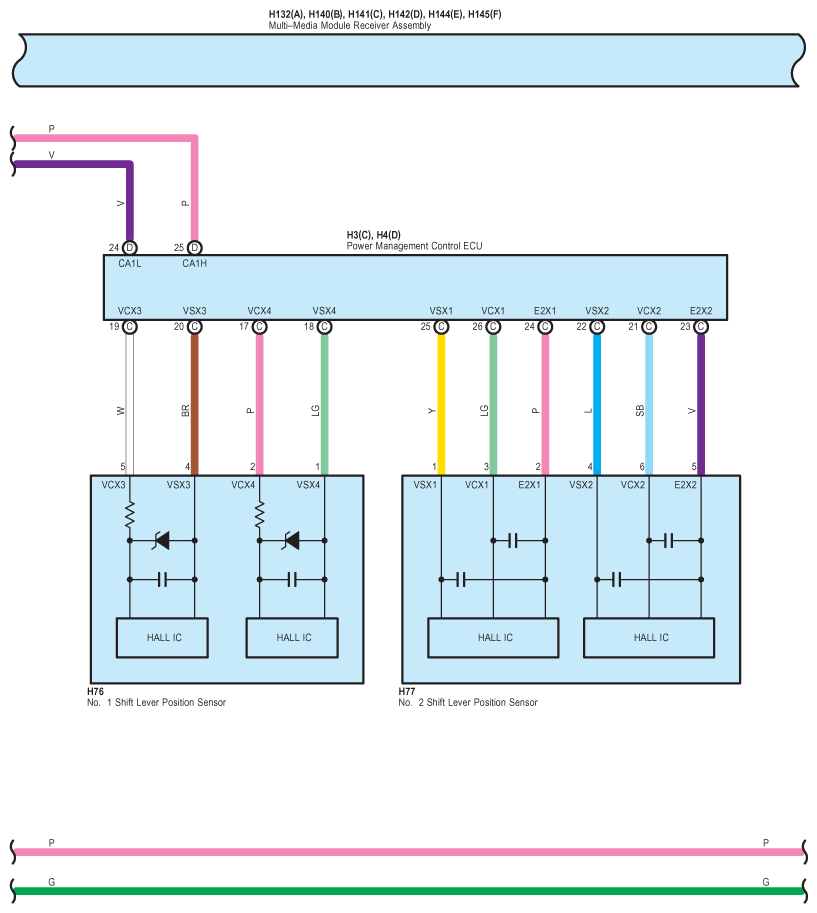

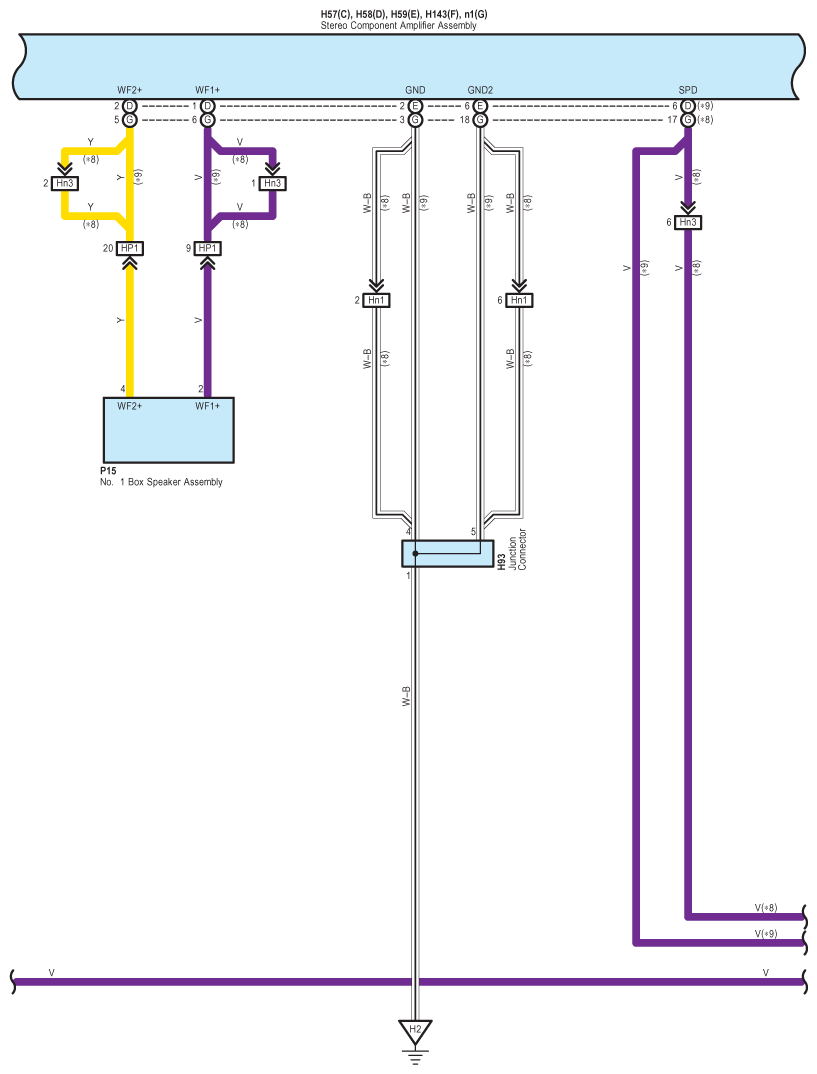

Fig 5: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

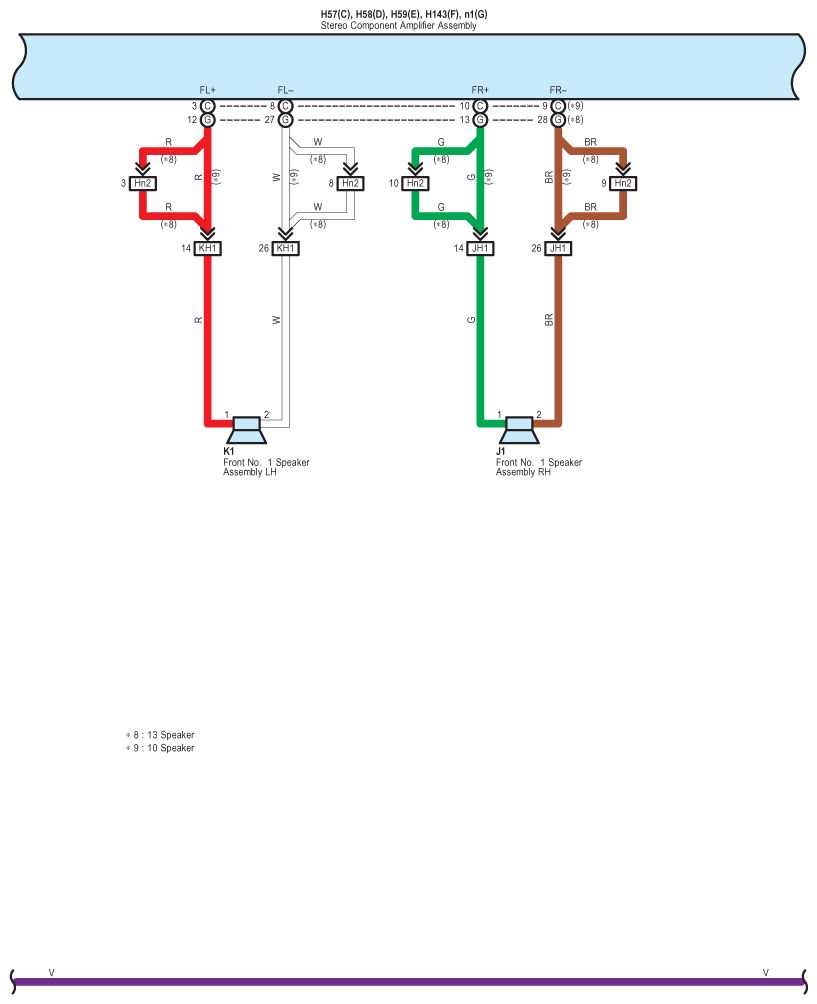

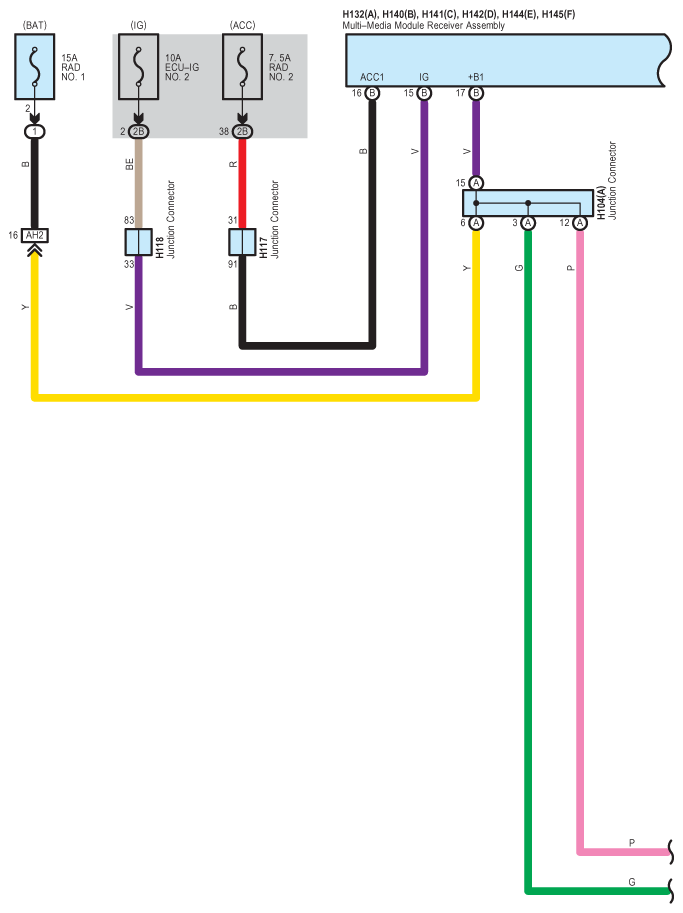

Fig 6: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

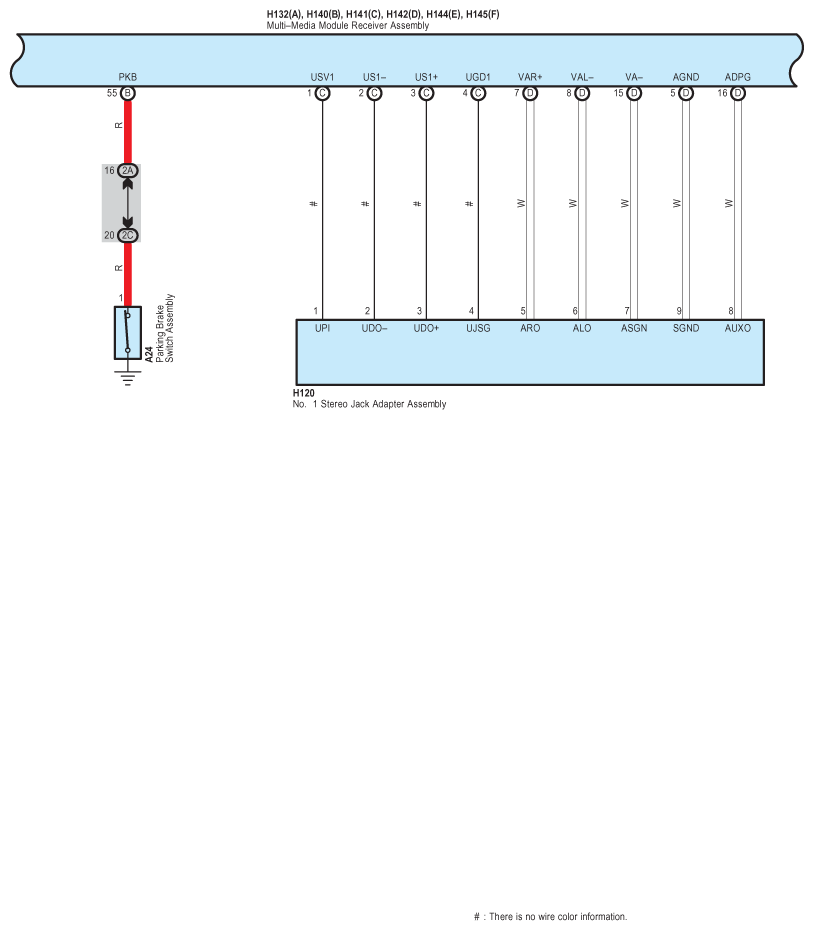

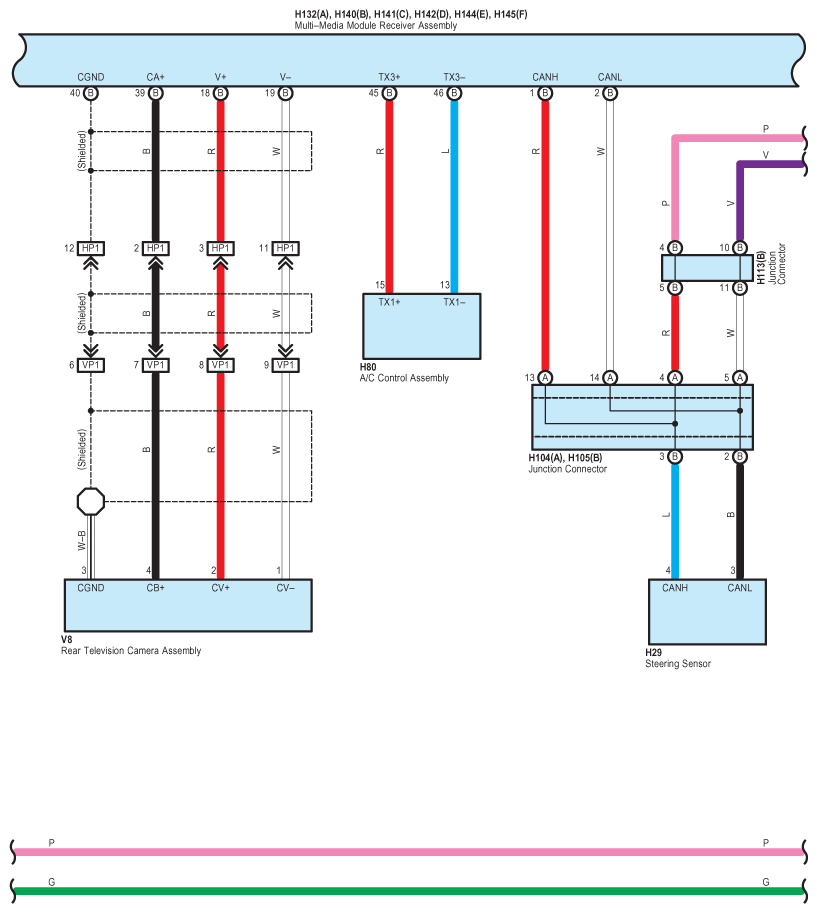

Fig 7: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

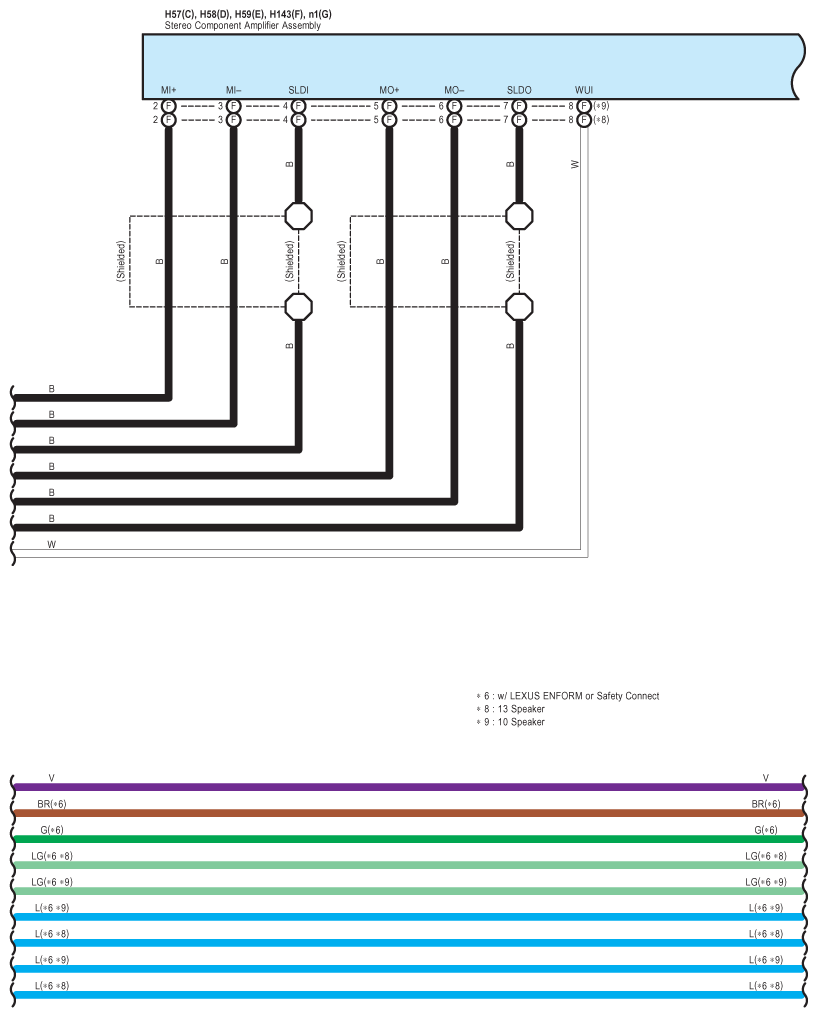

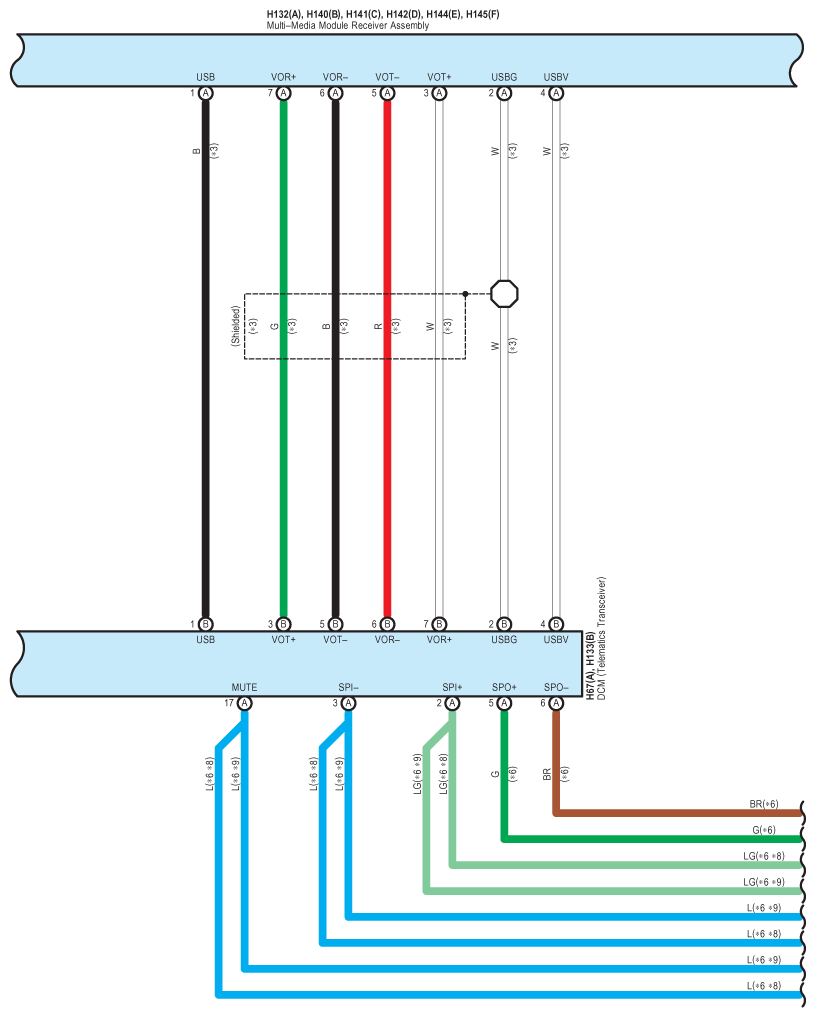

Fig 8: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (13 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (14 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (15 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (16 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (17 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (18 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Audio System, LEXUS Navigation And Parking Assist Back Guide Monitor Or Rear View Monitor W/LEXUS Navigation System Wiring Diagram (19 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
