Back Door Opener, Engine Immobilizer System, Smart Access System with Push-Button Start, Starting and Wireless Door Lock Control: Notes

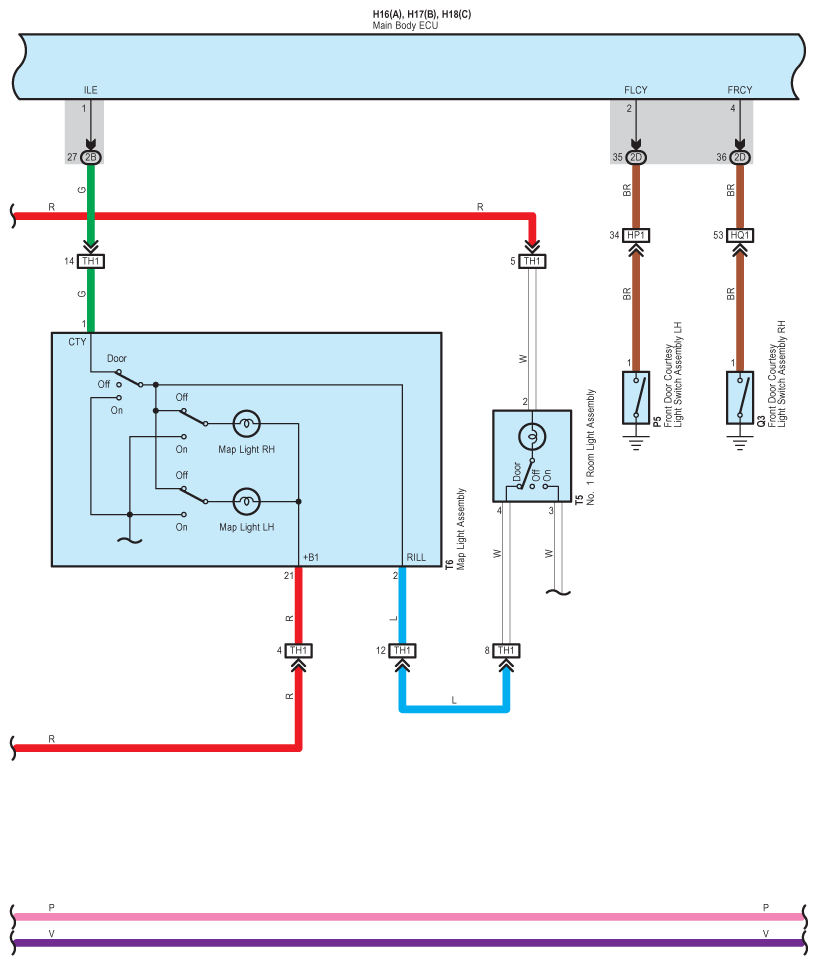

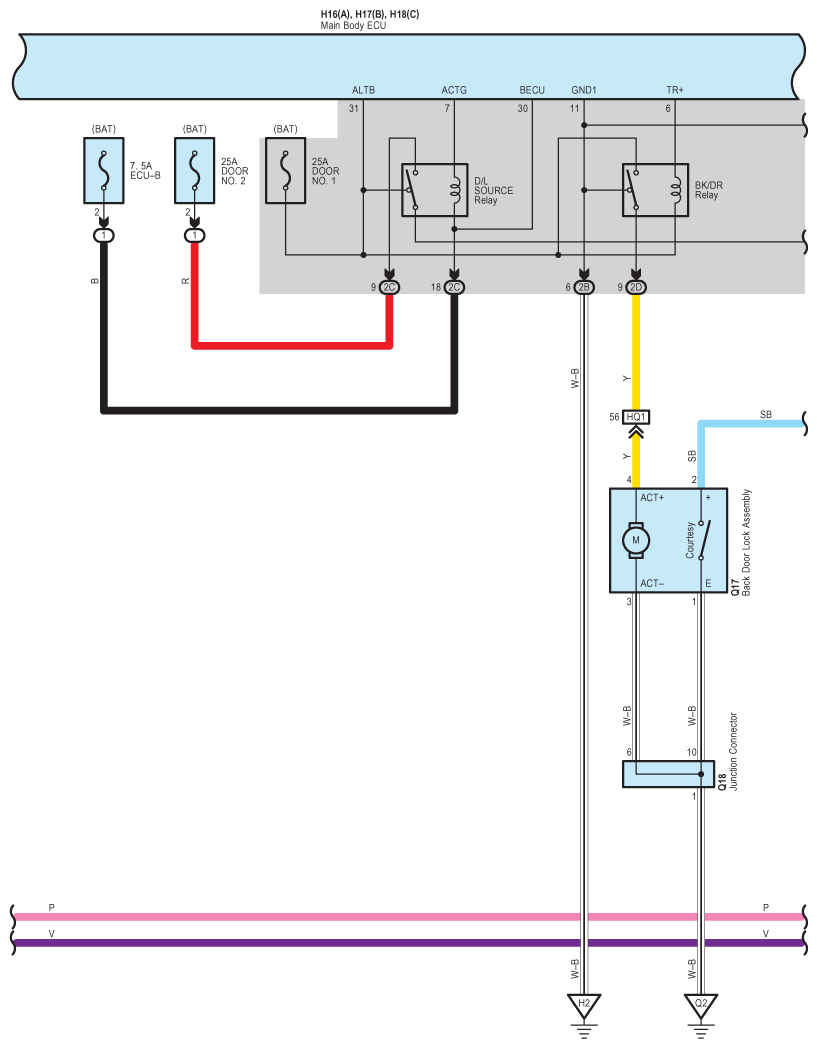

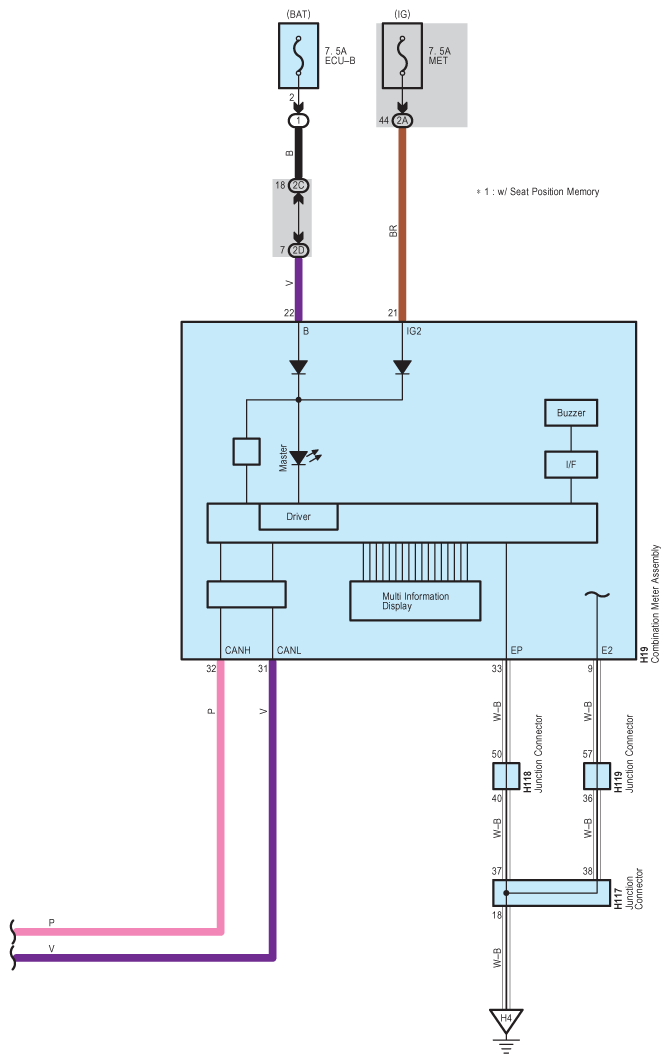

Fig 1: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (1 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

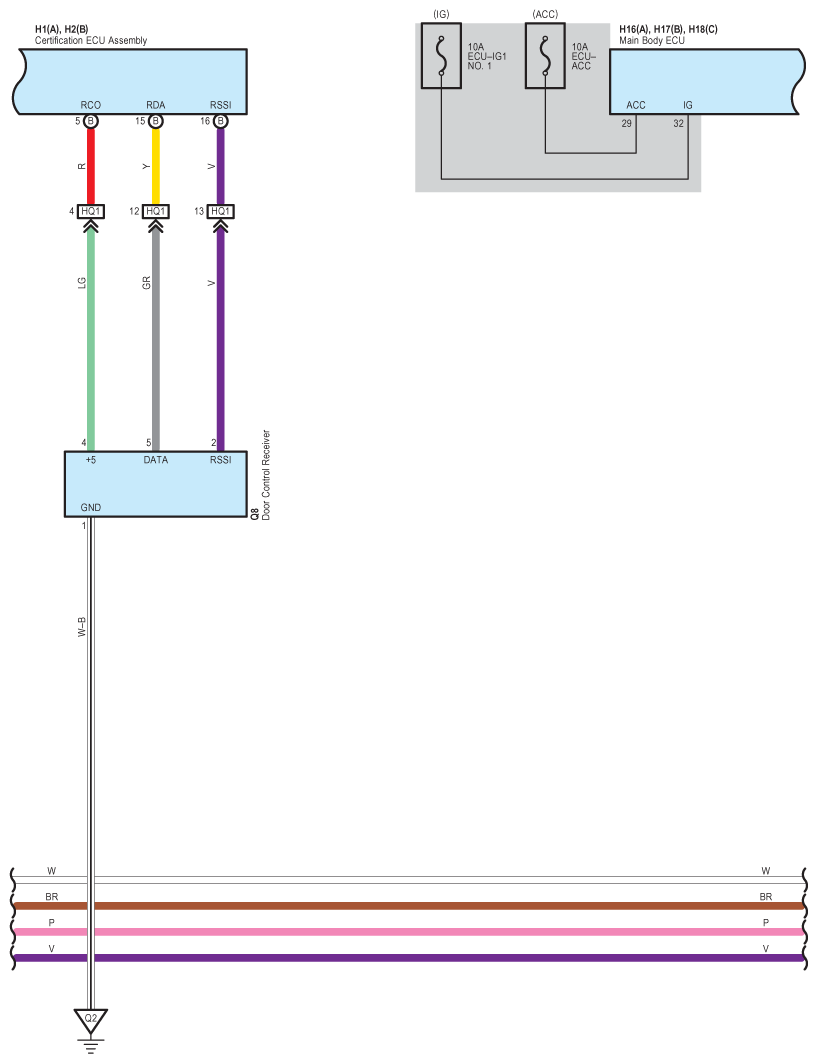

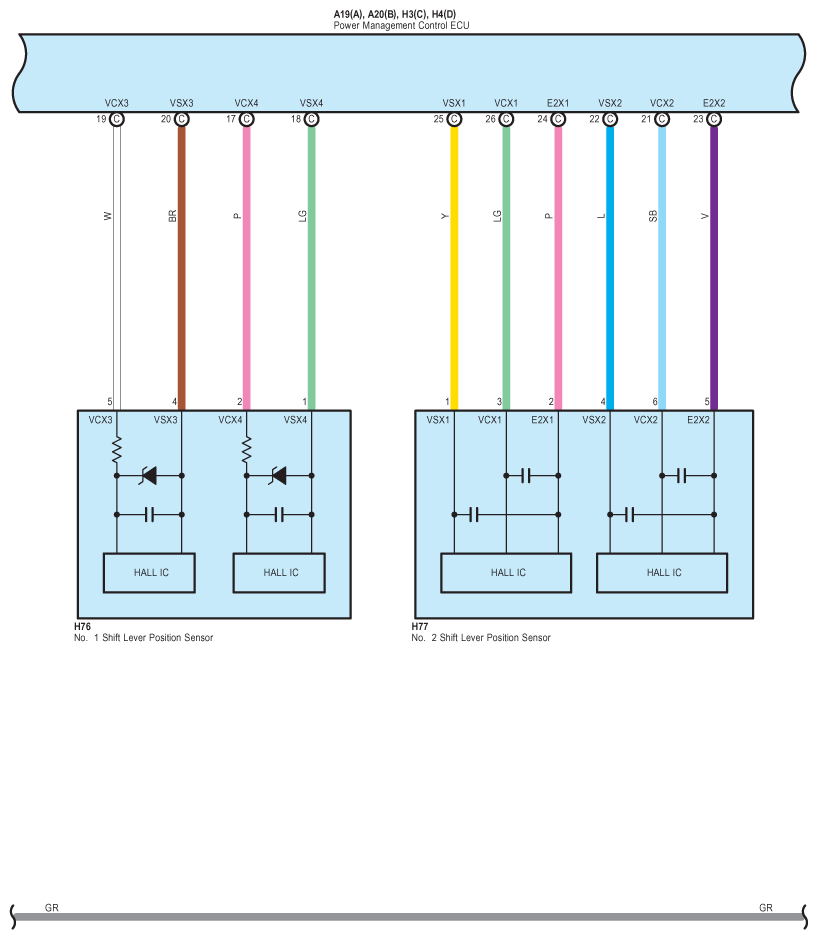

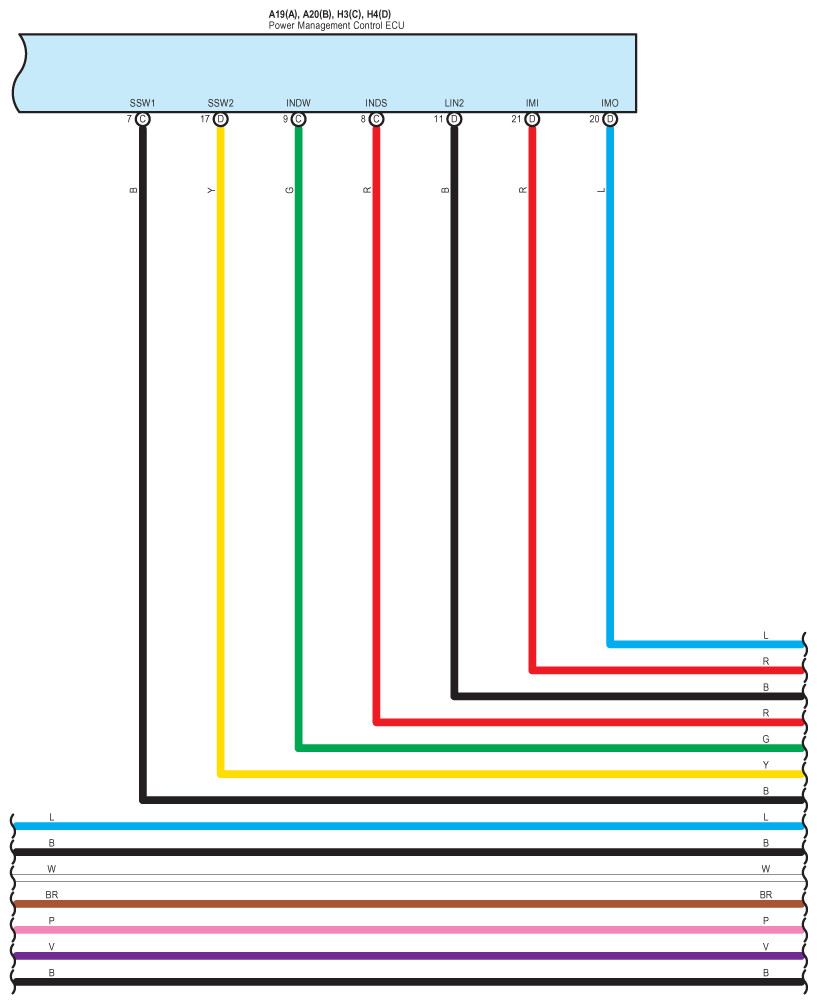

Fig 2: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (2 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

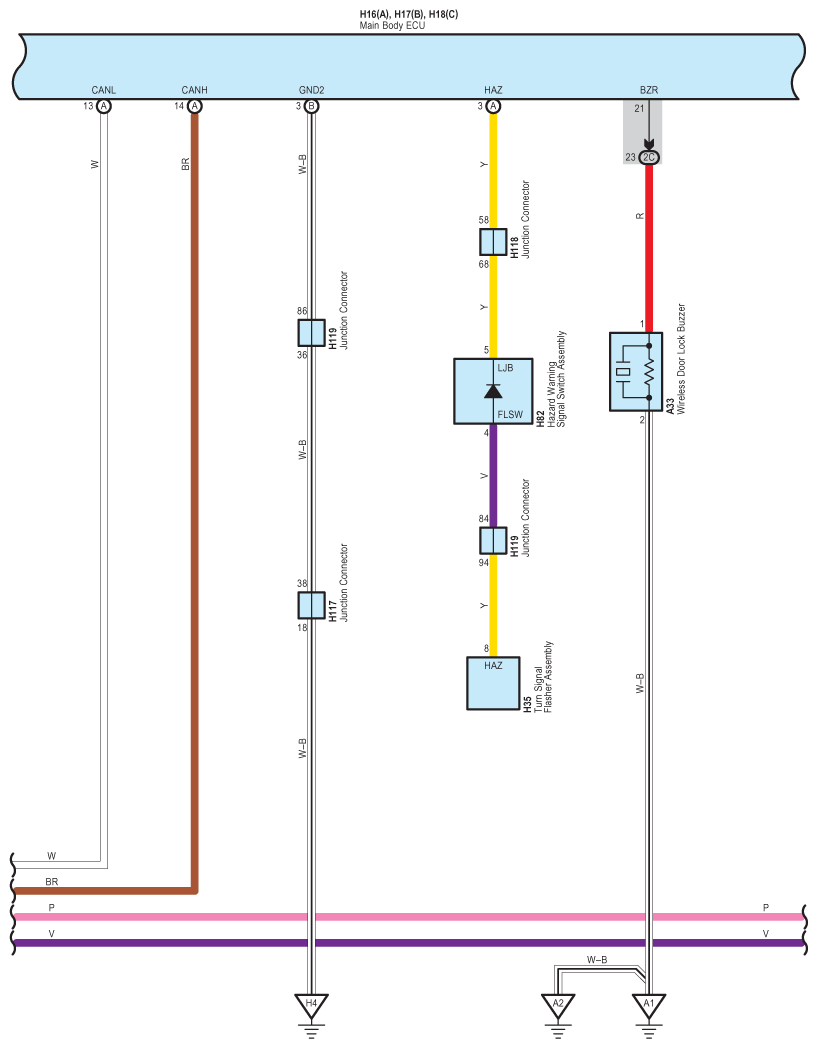

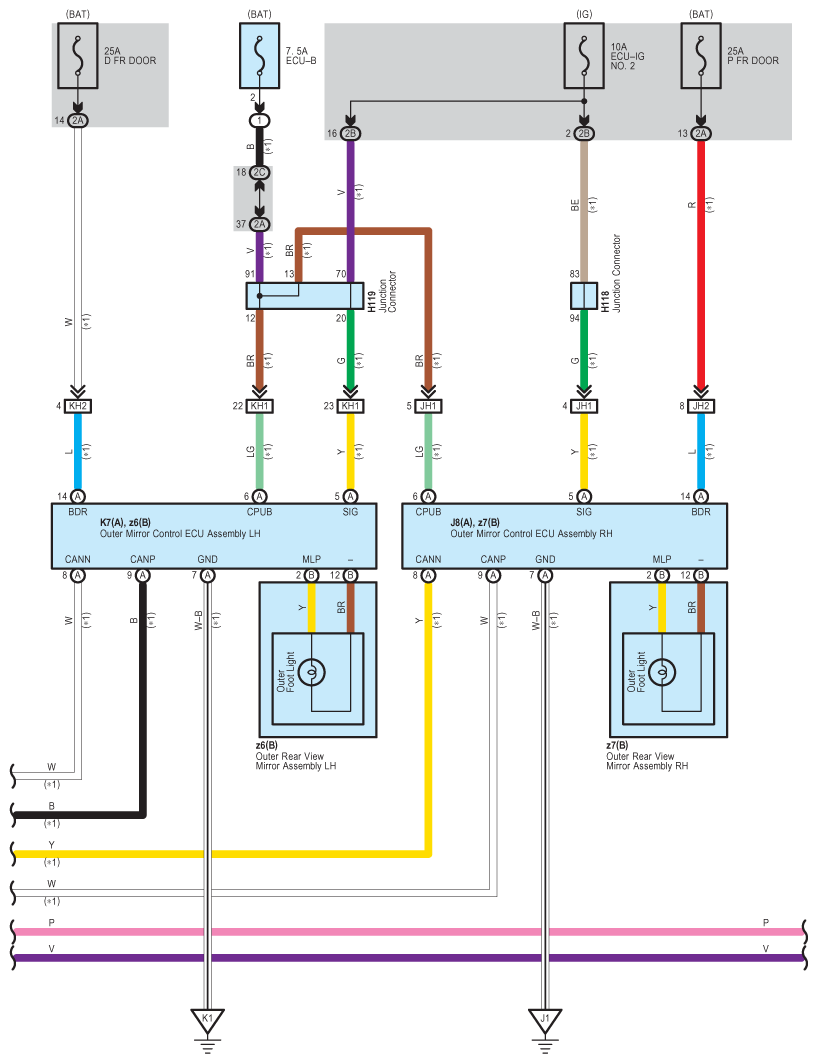

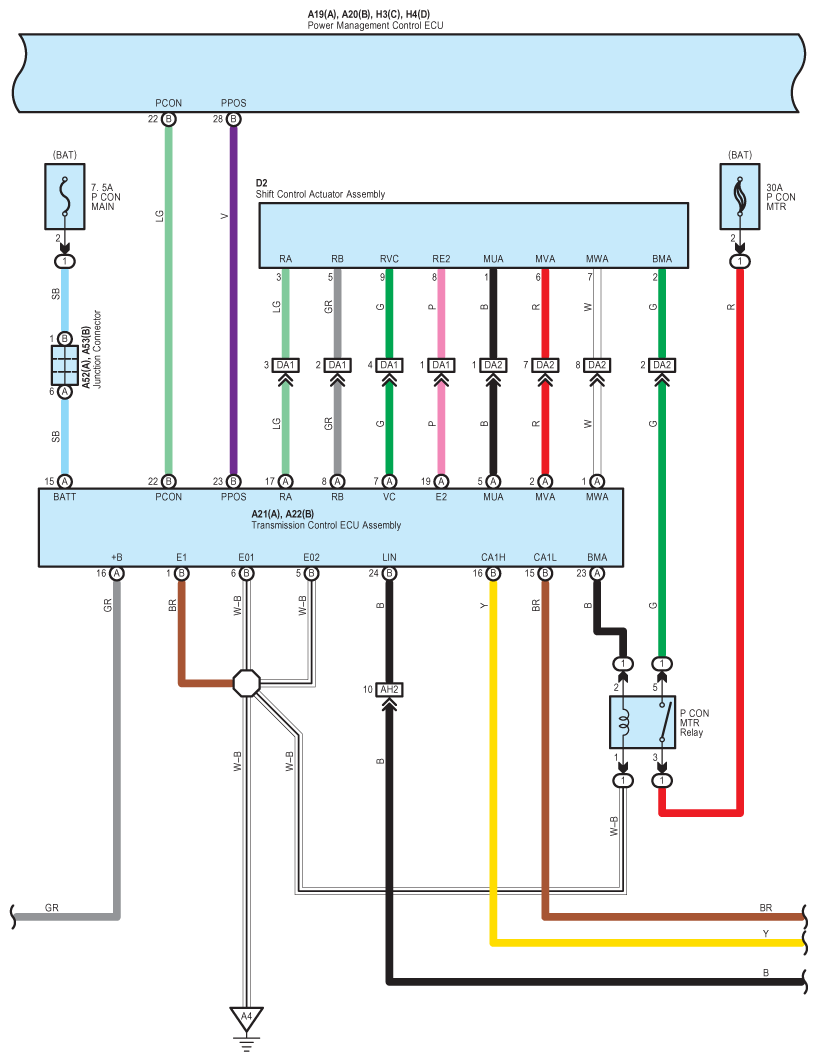

Fig 3: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (3 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

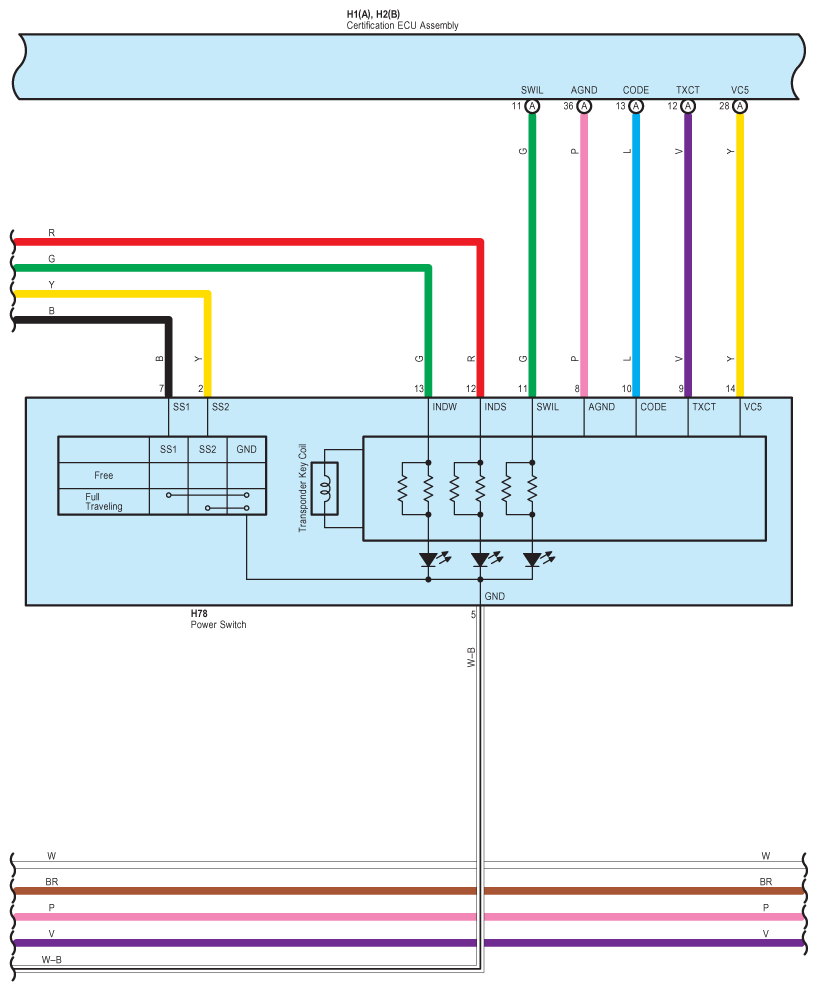

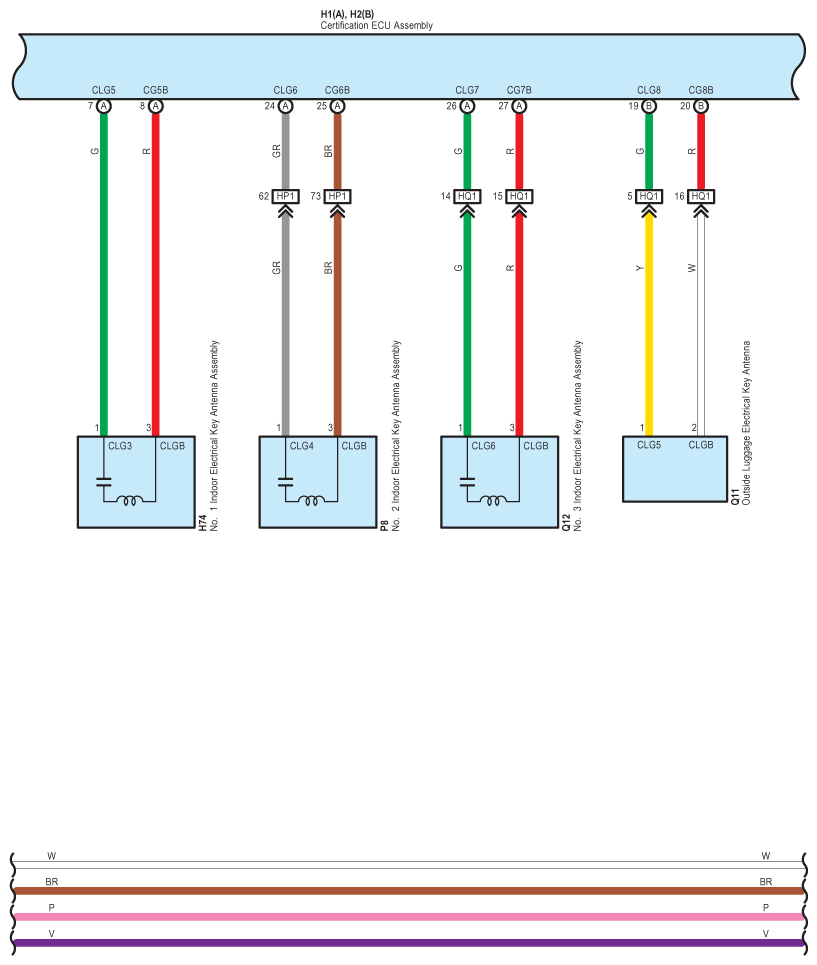

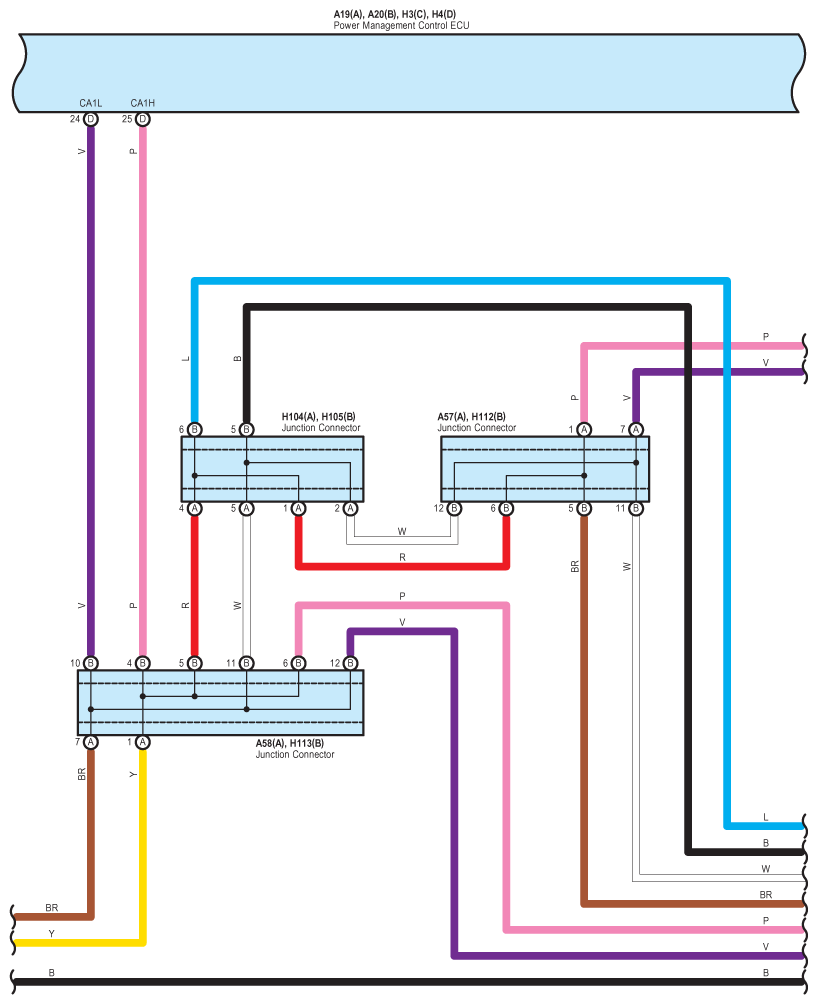

Fig 4: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (4 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

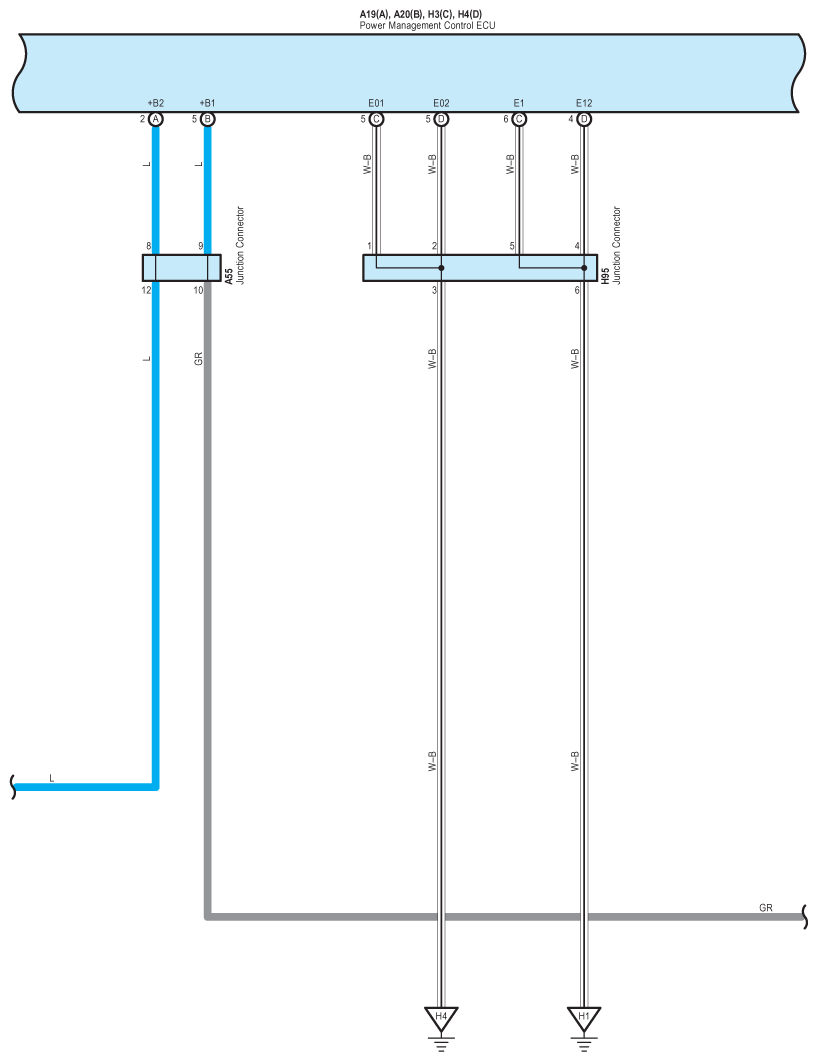

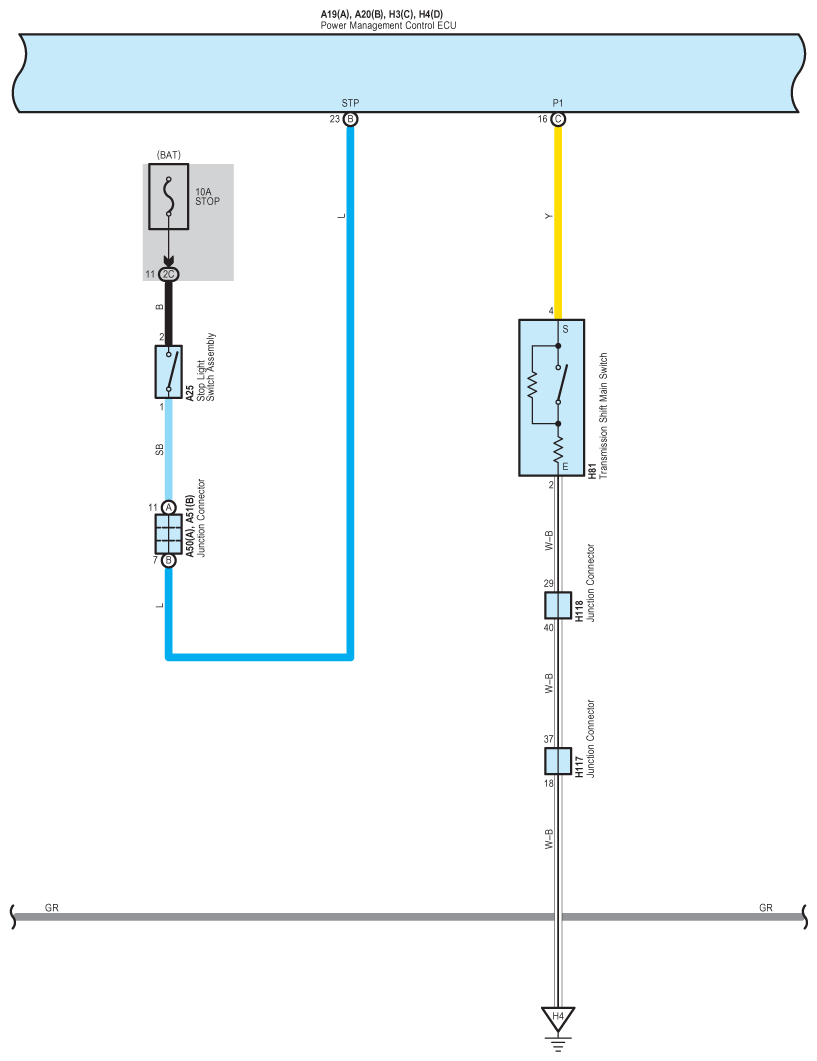

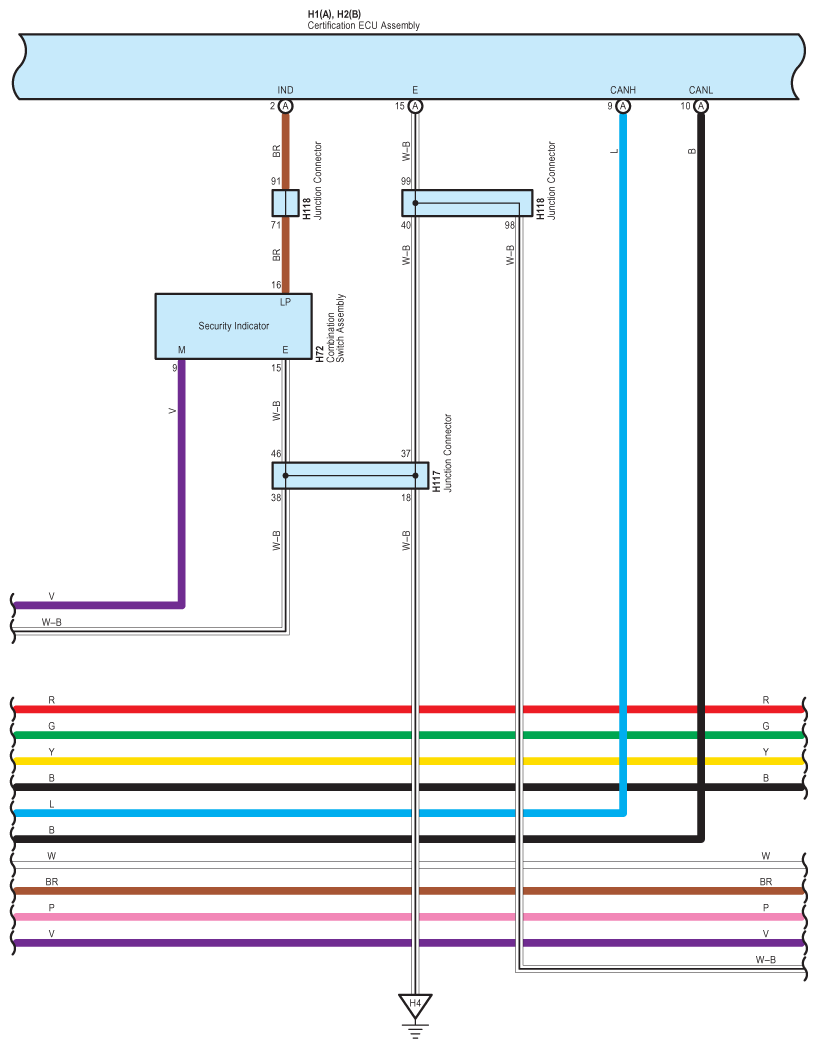

Fig 5: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (5 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

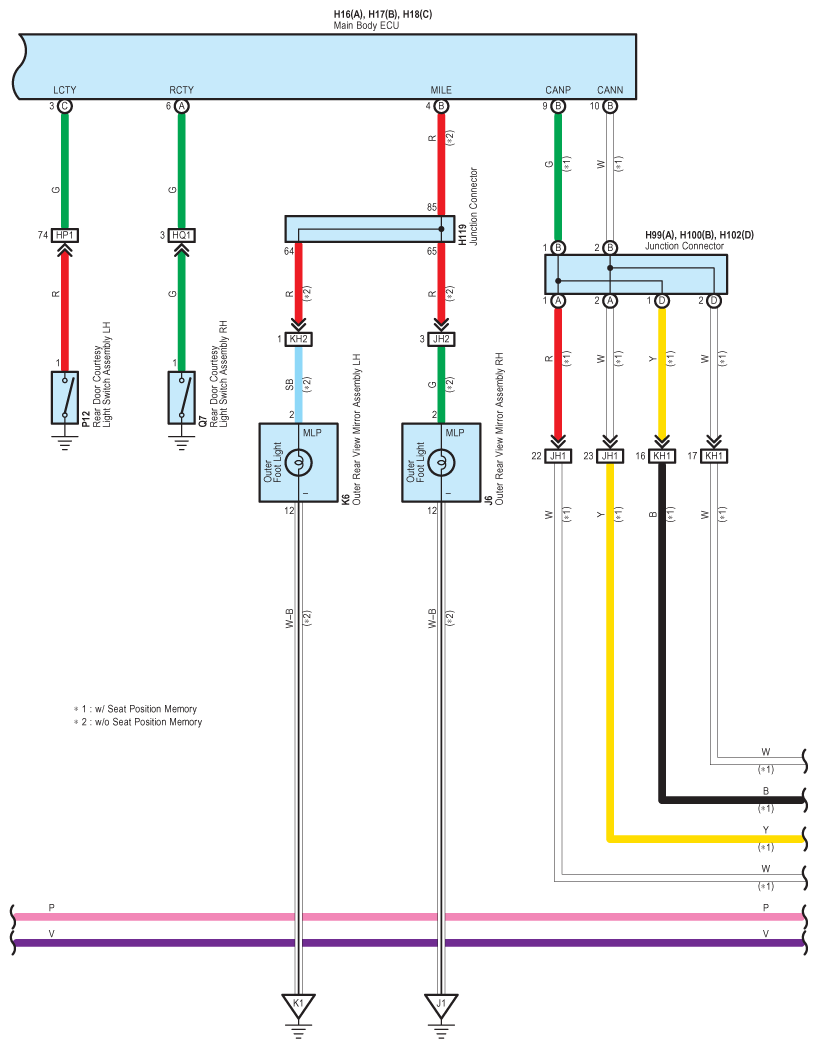

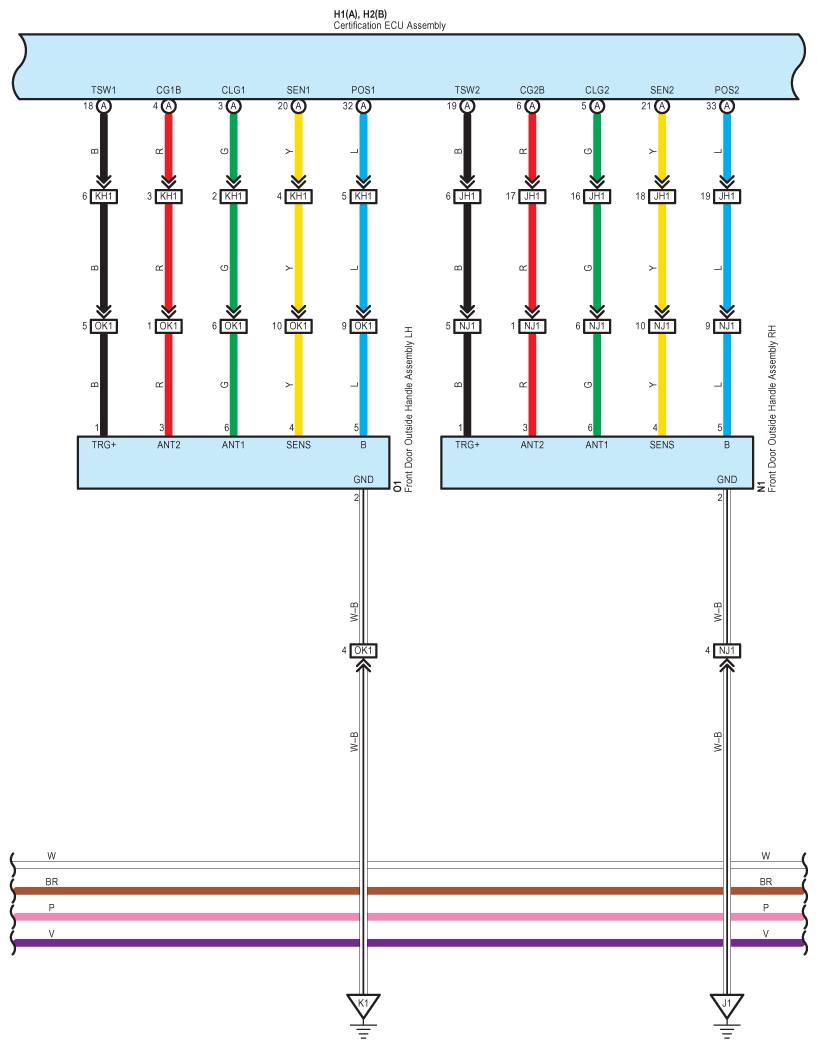

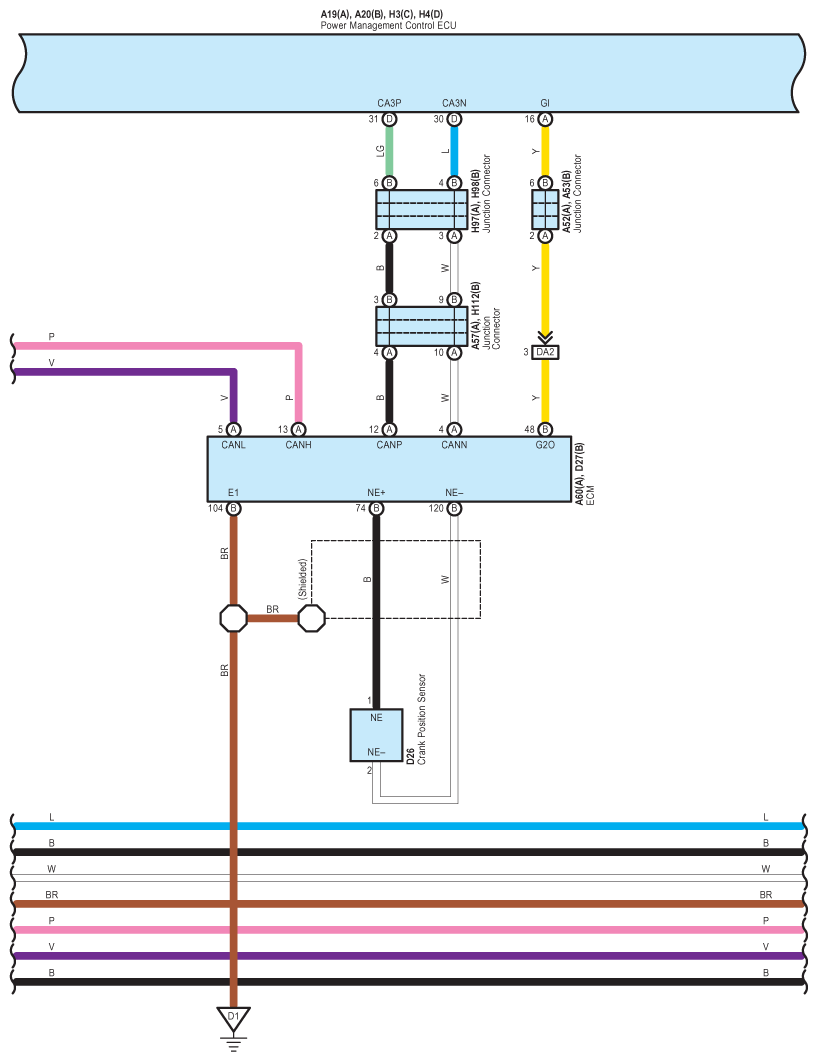

Fig 6: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (6 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

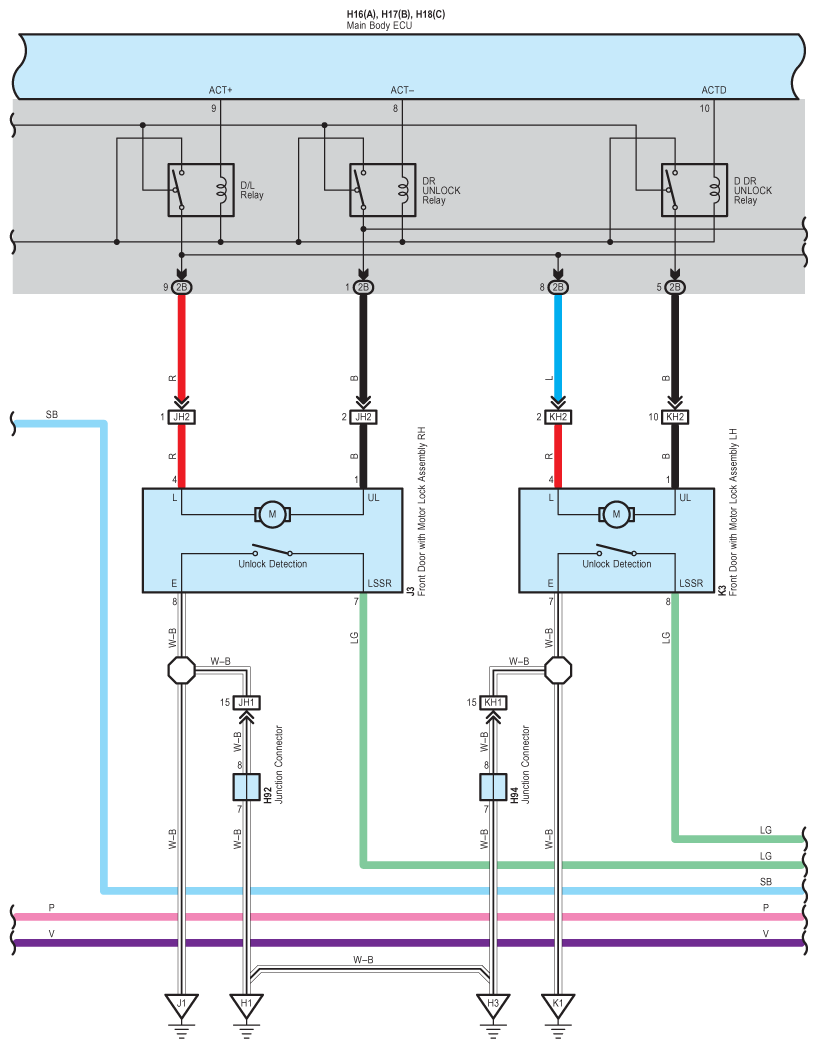

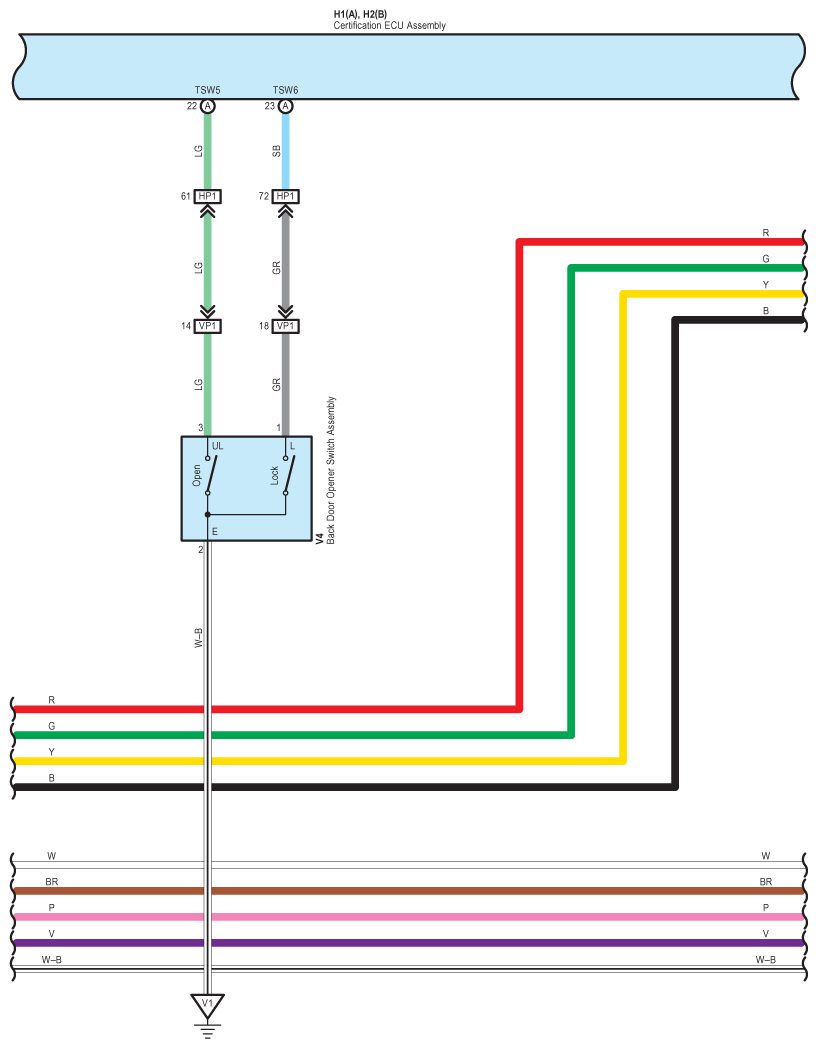

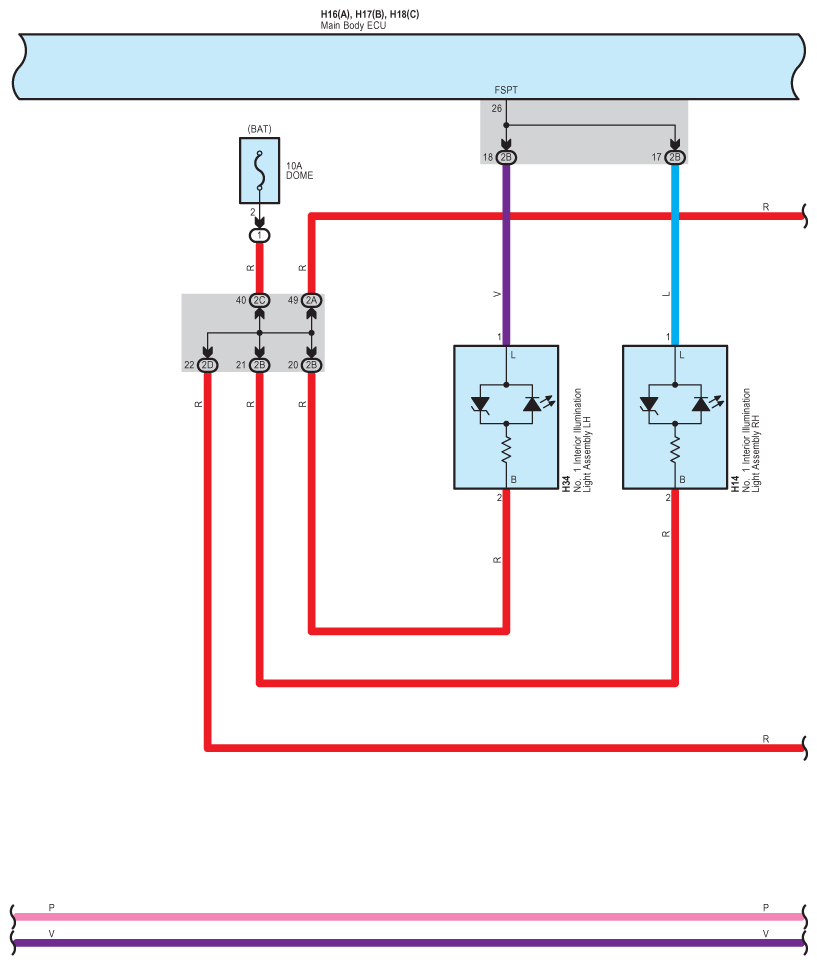

Fig 7: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (7 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

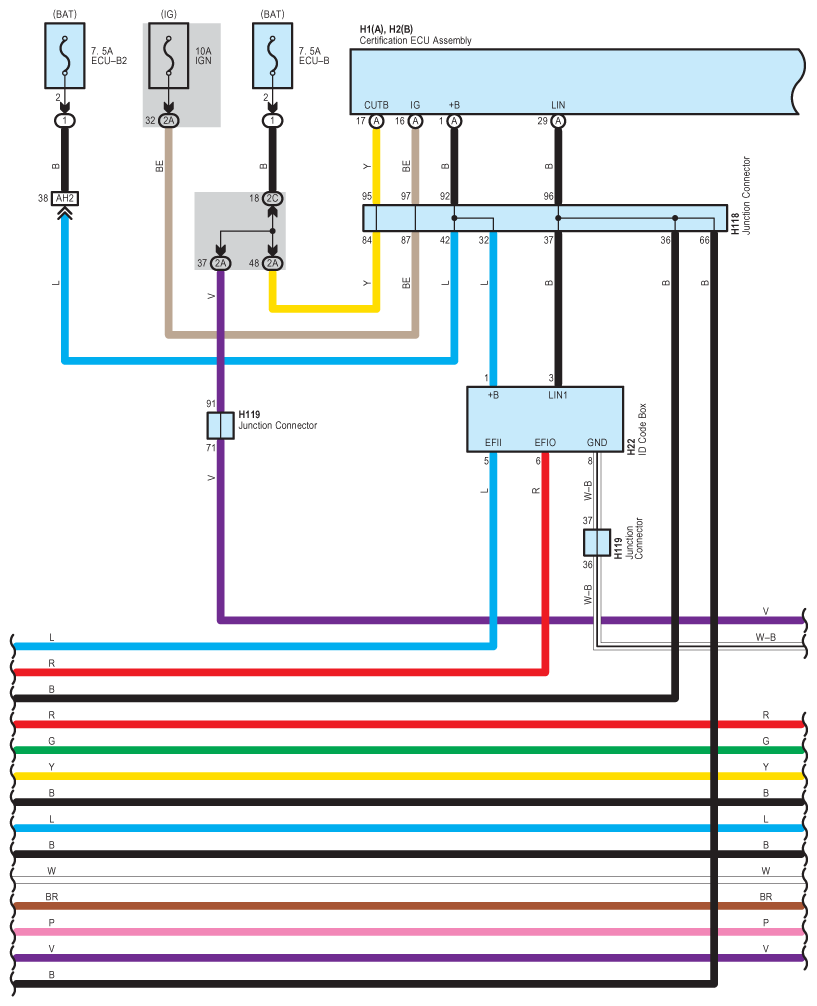

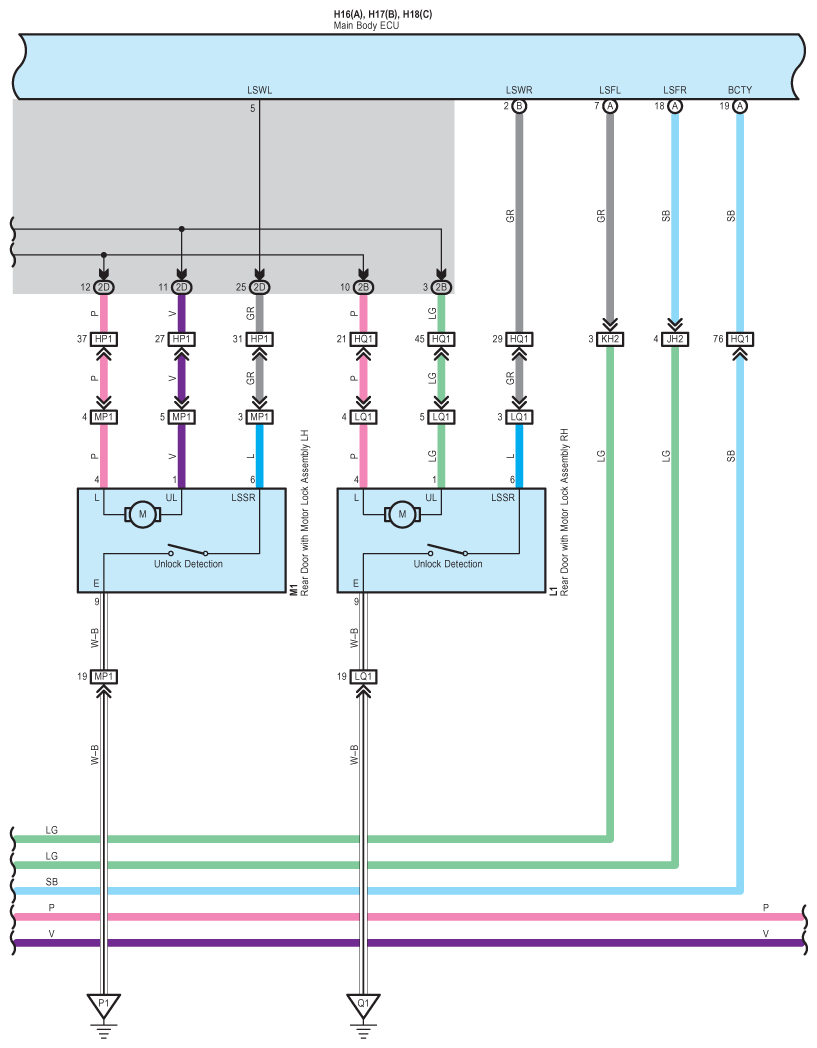

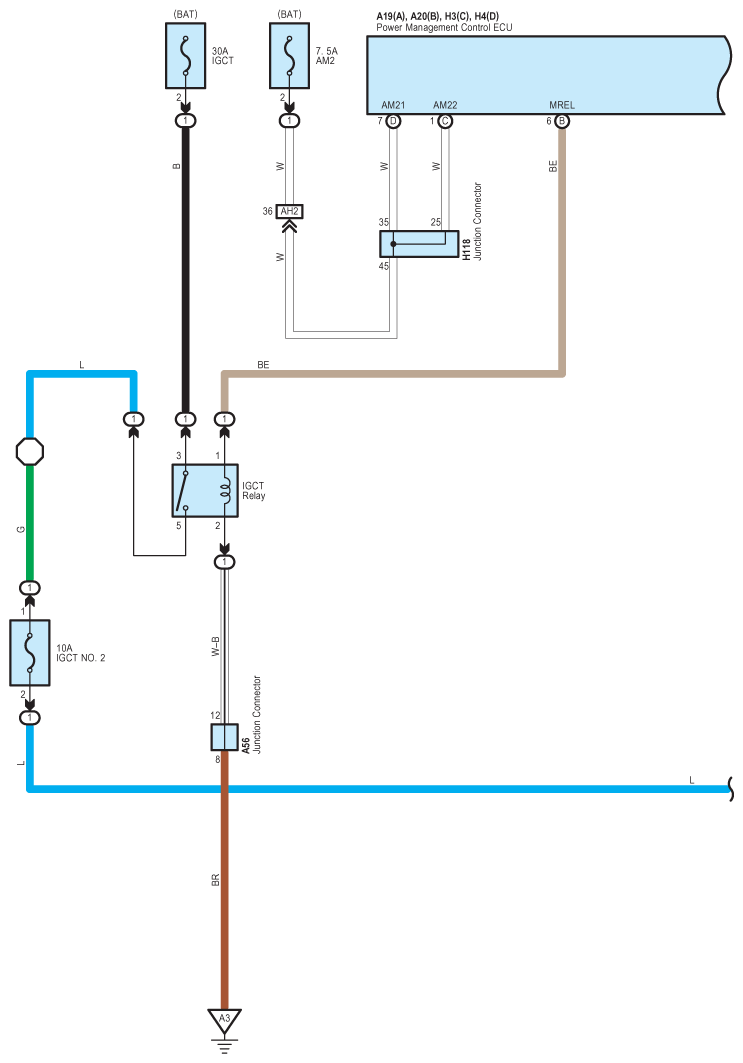

Fig 8: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (8 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (9 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (10 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (11 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (12 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (13 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (14 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (15 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (16 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (17 Of 24)

Fig 18: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (18 Of 24)

Fig 19: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (19 Of 24)

Fig 20: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (20 Of 24)

Fig 21: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (21 Of 24)

Fig 22: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (22 Of 24)

Fig 23: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (23 Of 24)

Fig 24: Back Door Opener, Engine Immobilizer, Smart Access With Push-Button Start, Starting And Wireless Door Lock Control System Wiring Diagram (24 Of 24)
