Front Fog Light: Notes

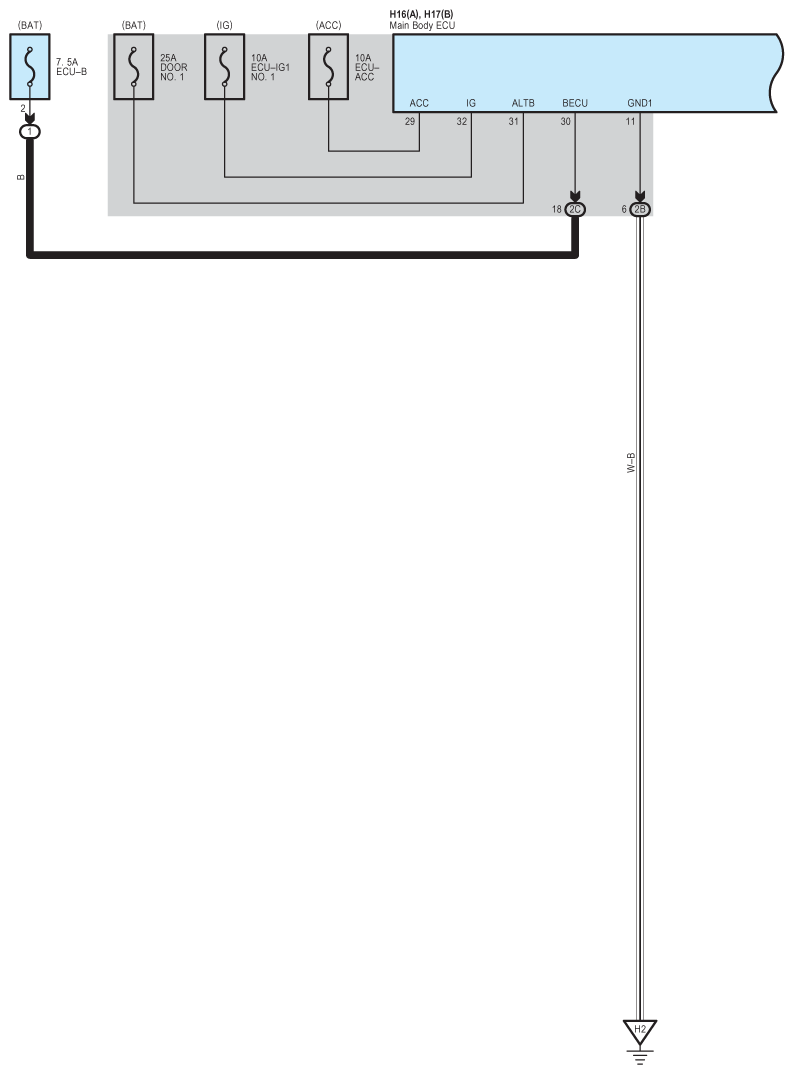

Fig 1: Front Fog Light System Wiring Diagram (1 Of 4)
G09113632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

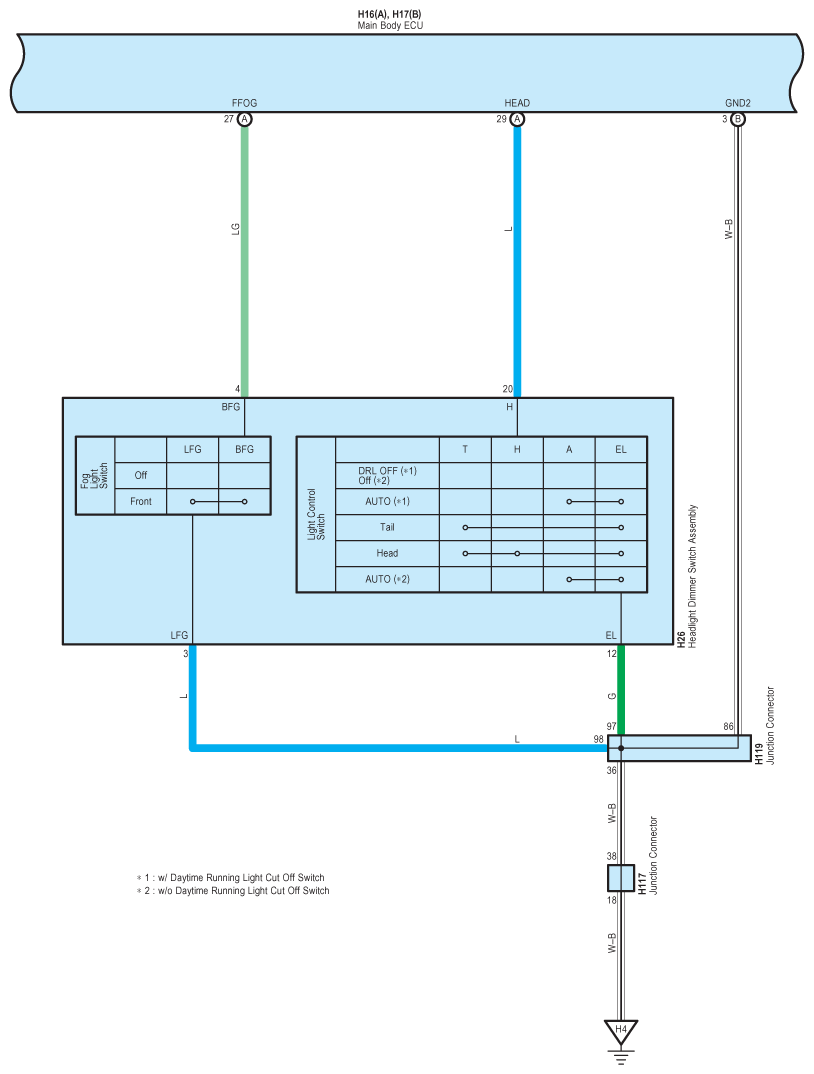

Fig 2: Front Fog Light System Wiring Diagram (2 Of 4)
G09113633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

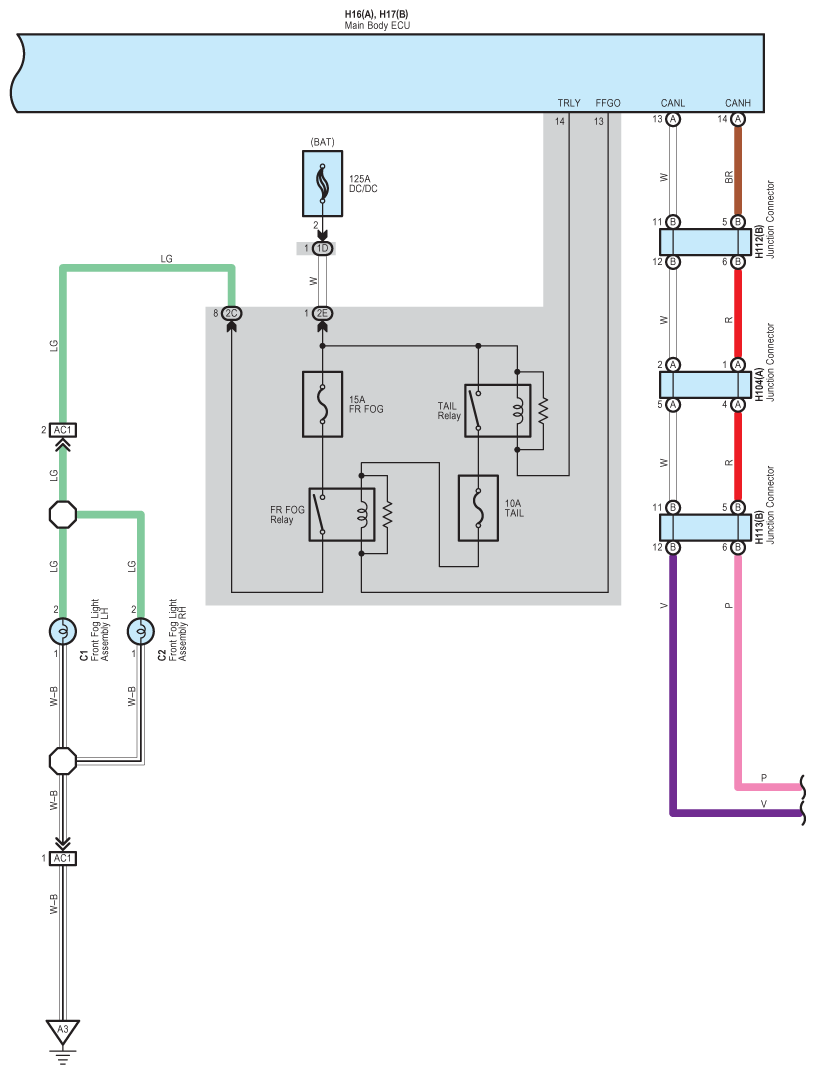

Fig 3: Front Fog Light System Wiring Diagram (3 Of 4)
G09113634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

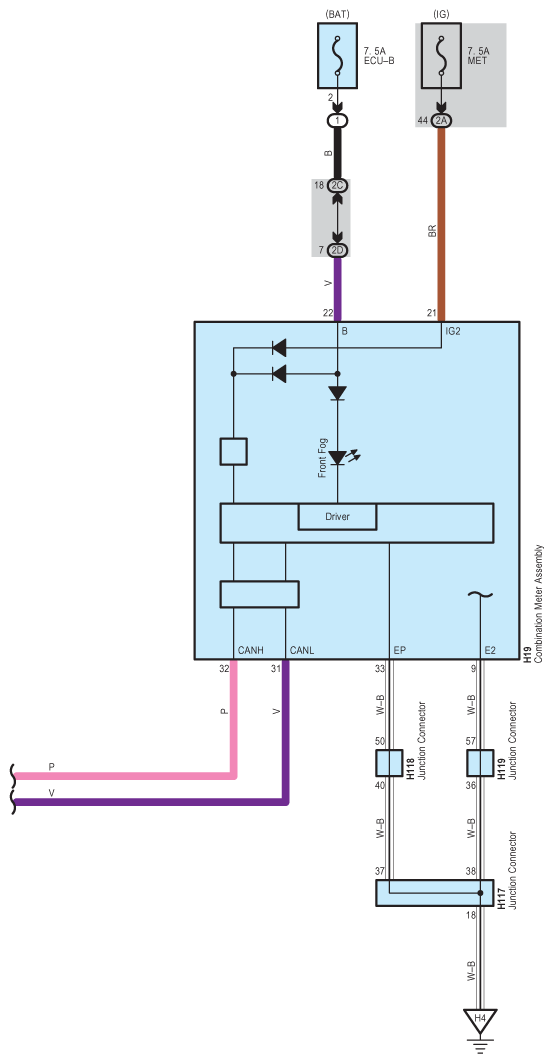

Fig 4: Front Fog Light System Wiring Diagram (4 Of 4)
G09113635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
