Multiplex Communication System (CAN): Notes

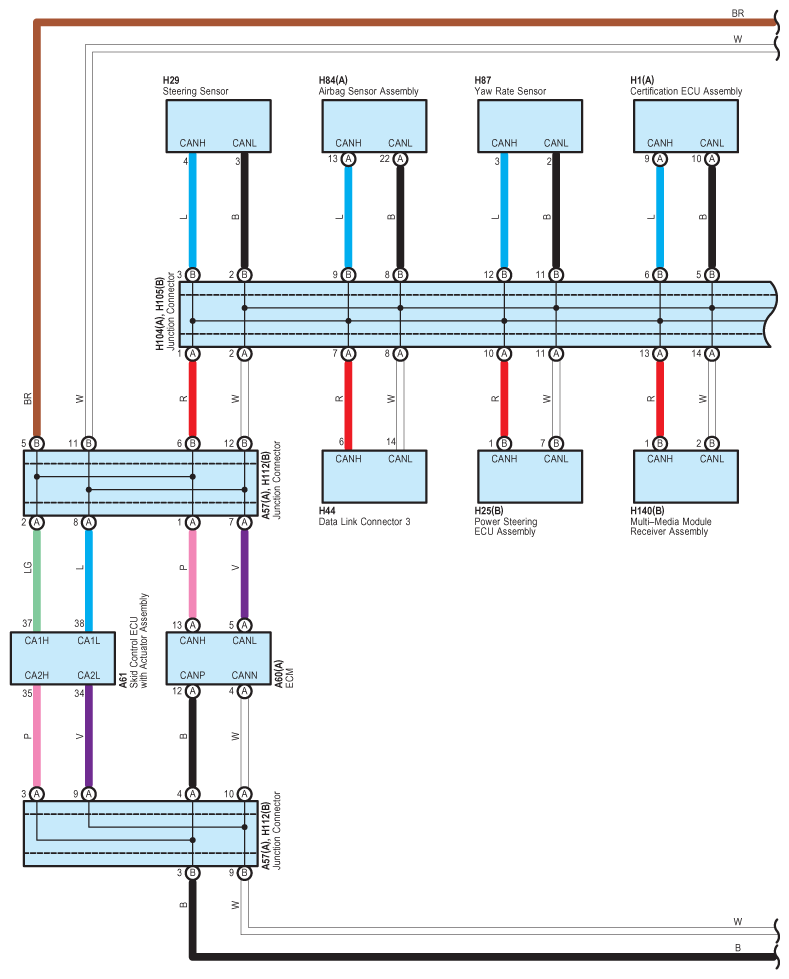

Fig 1: Multiplex Communication CAN System Wiring Diagram (1 Of 4)
G09113614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

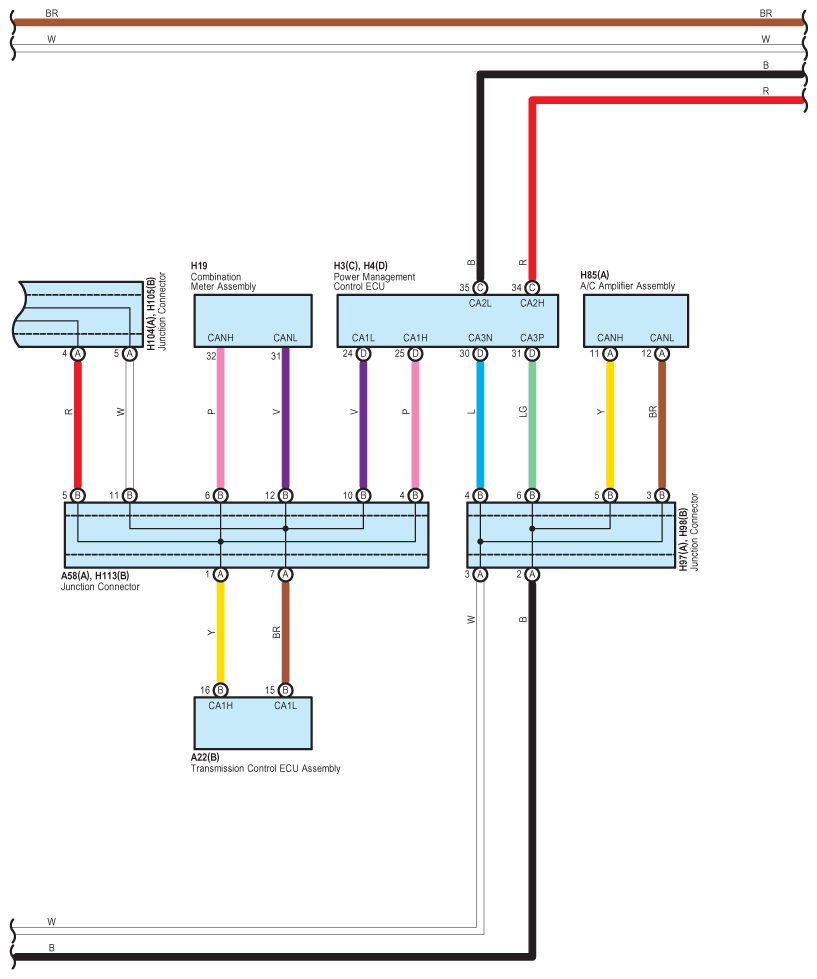

Fig 2: Multiplex Communication CAN System Wiring Diagram (2 Of 4)
G09113615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

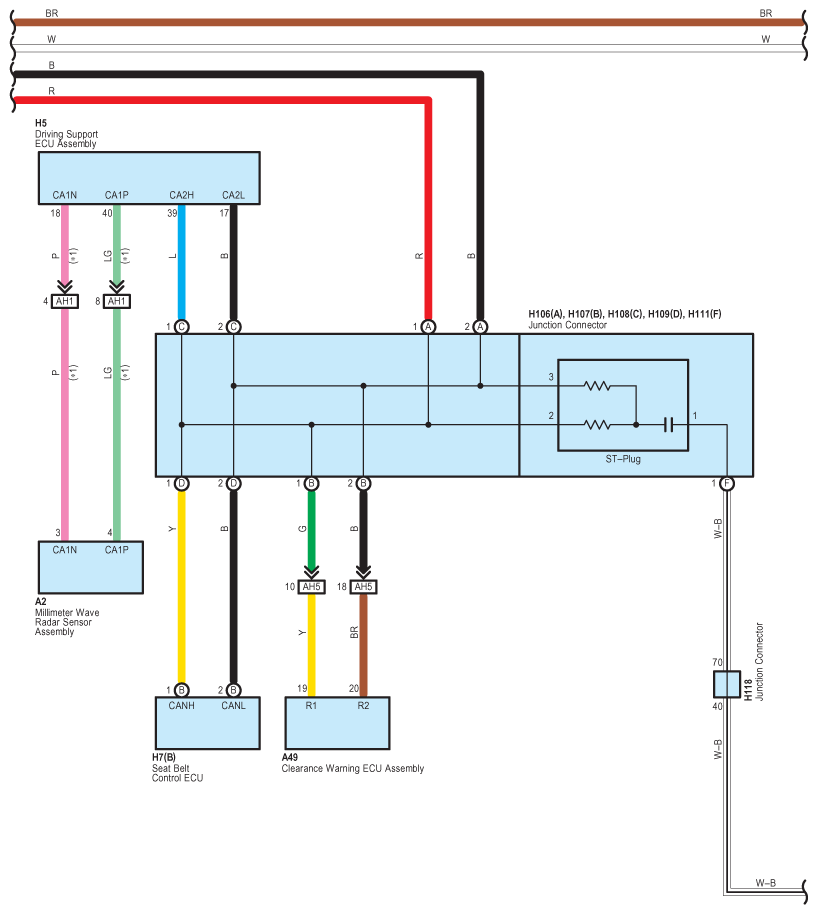

Fig 3: Multiplex Communication CAN System Wiring Diagram (3 Of 4)
G09113616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

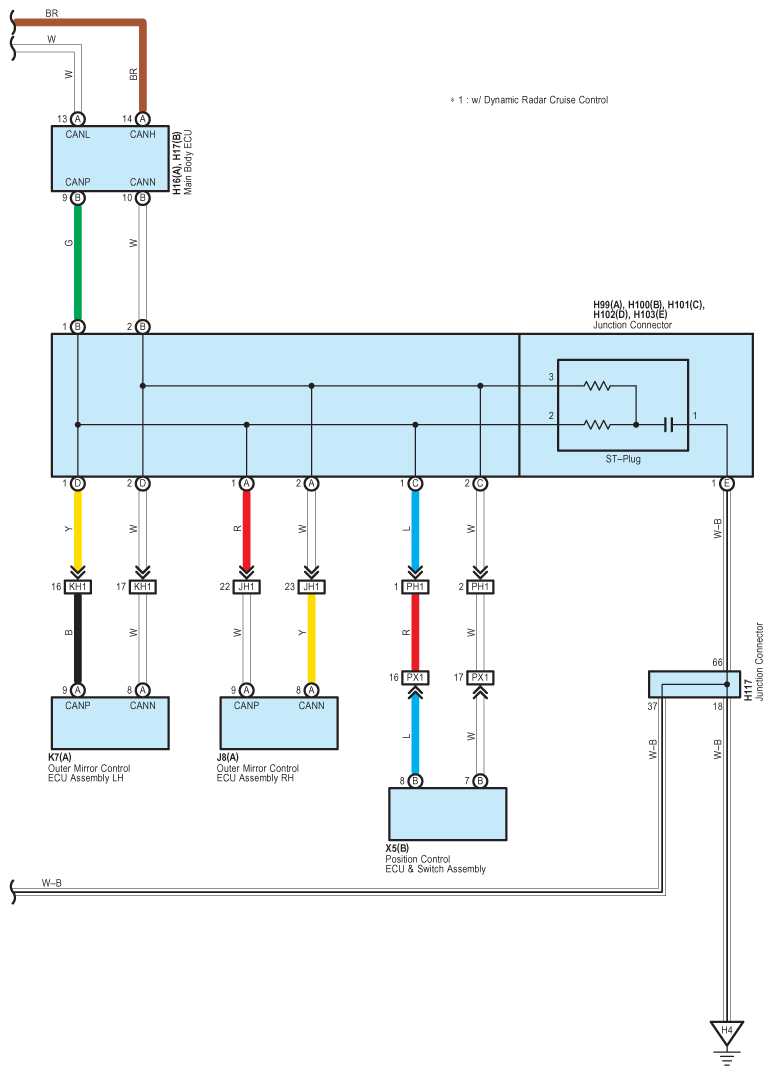

Fig 4: Multiplex Communication CAN System Wiring Diagram (4 Of 4)
G09113617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
