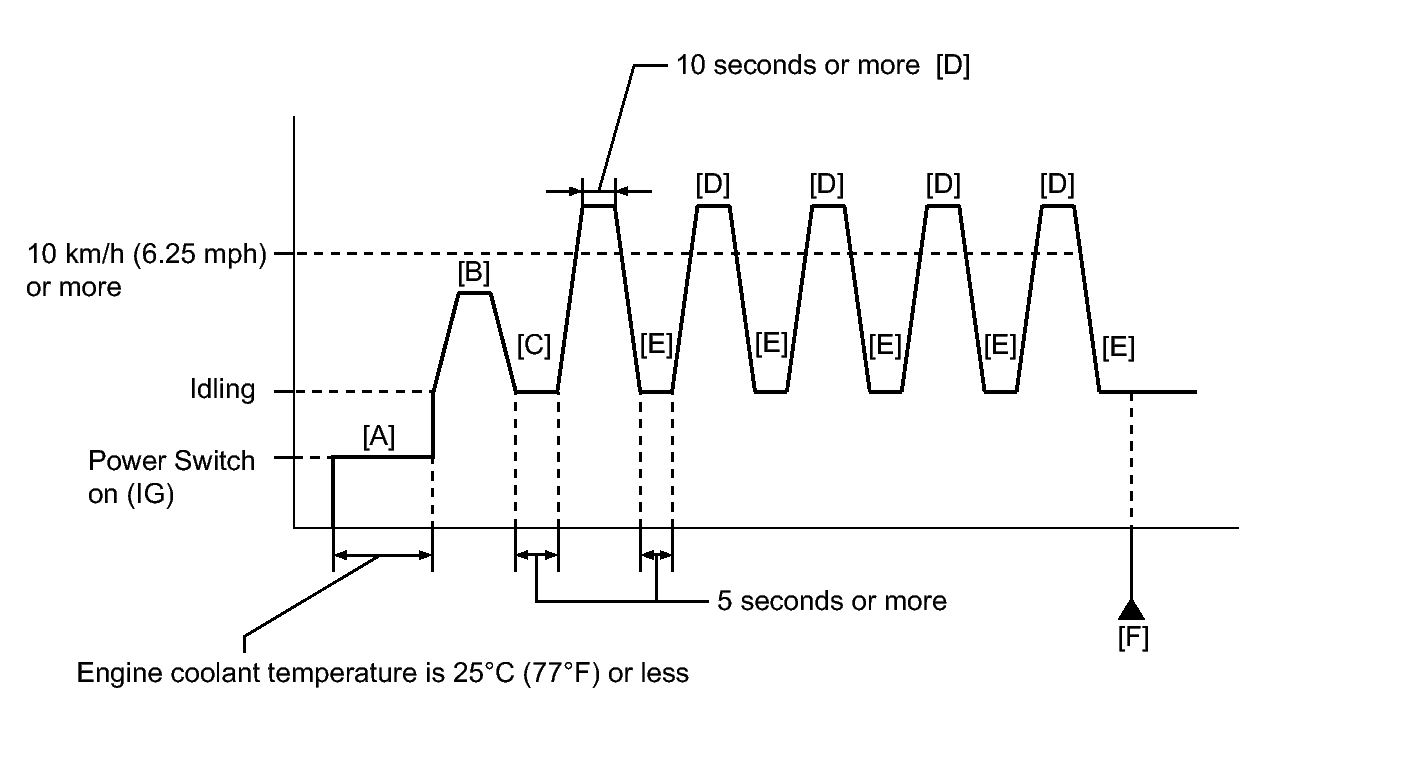

Confirmation Driving Pattern
- Connect the Techstream to the DLC3.
- Turn the power switch on (IG) and turn the Techstream on.
- Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / Coolant Temp.
- Make sure that the coolant temperature is 25°C (77°F) or less [A].
- Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure). Refer to DTC CHECK / CLEAR [08/2012 - ] .
- Turn the power switch off and wait for at least 30 seconds.
- Turn the power switch on (IG) and turn the Techstream on.
- Put the engine in inspection mode (maintenance mode). Refer to INSPECTION MODE PROCEDURE [08/2012 - ] .
- Start the engine and drive the vehicle until the coolant temperature reaches 70°C (158°F) [B].
HINT:
If the coolant temperature is 40°C (104°F) or higher, the engine may stop when idling.
- Stop the vehicle (0 km/h (0 mph)) for 5 seconds or more [C].
- Accelerate the vehicle to 10 km/h (6.25 mph) or more for 10 seconds or more [D].WARNING:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT:
- When accelerating the vehicle, depress the accelerator pedal more than normal to start the engine.
- The engine may stop during acceleration. However, this will not affect the confirmation driving.
- Stop the vehicle (0 km/h (0 mph)) for 5 seconds or more [E].
- Repeat steps [D] and [E] for 5 times or more.
- Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [F].
- Read the pending DTCs.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
- Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
- Input the DTC: P0505.
- Check the DTC judgment result.
Techstream Display Description NORMAL - DTC judgment completed
- System normal
ABNORMAL - DTC judgment completed
- System abnormal
INCOMPLETE - DTC judgment not completed
- Perform driving pattern after confirming DTC enabling conditions
N/A - Unable to perform DTC judgment
- Number of DTCs which do not fulfill DTC preconditions has reached ECU's memory limit
HINT:
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or N/A, repeat steps [D] and [E] for 5 times or more.
- If no pending DTC is output, perform a universal trip and check for permanent DTCs. Refer to DTC CHECK / CLEAR [08/2012 - ]
.
HINT:
- If a permanent DTC is output, the system is malfunctioning.
- If a permanent DTC is not output, the system is normal.
