Vehicle Proximity Notification System: Notes

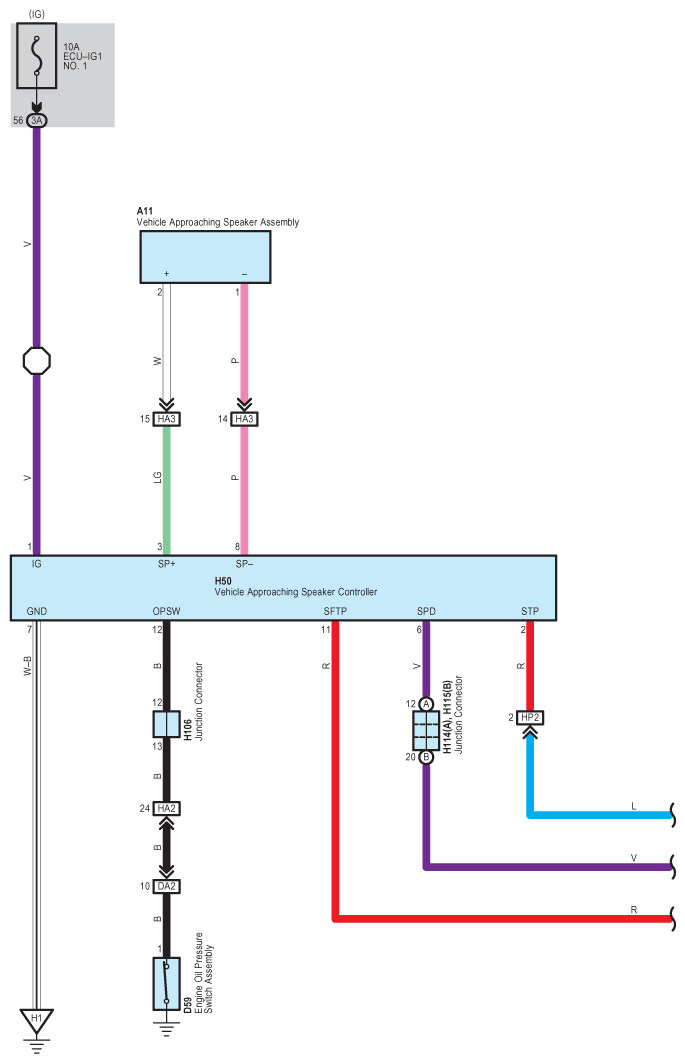

Fig 1: Vehicle Proximity Notification System - Circuit Diagram (1 Of 5)
G08953848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

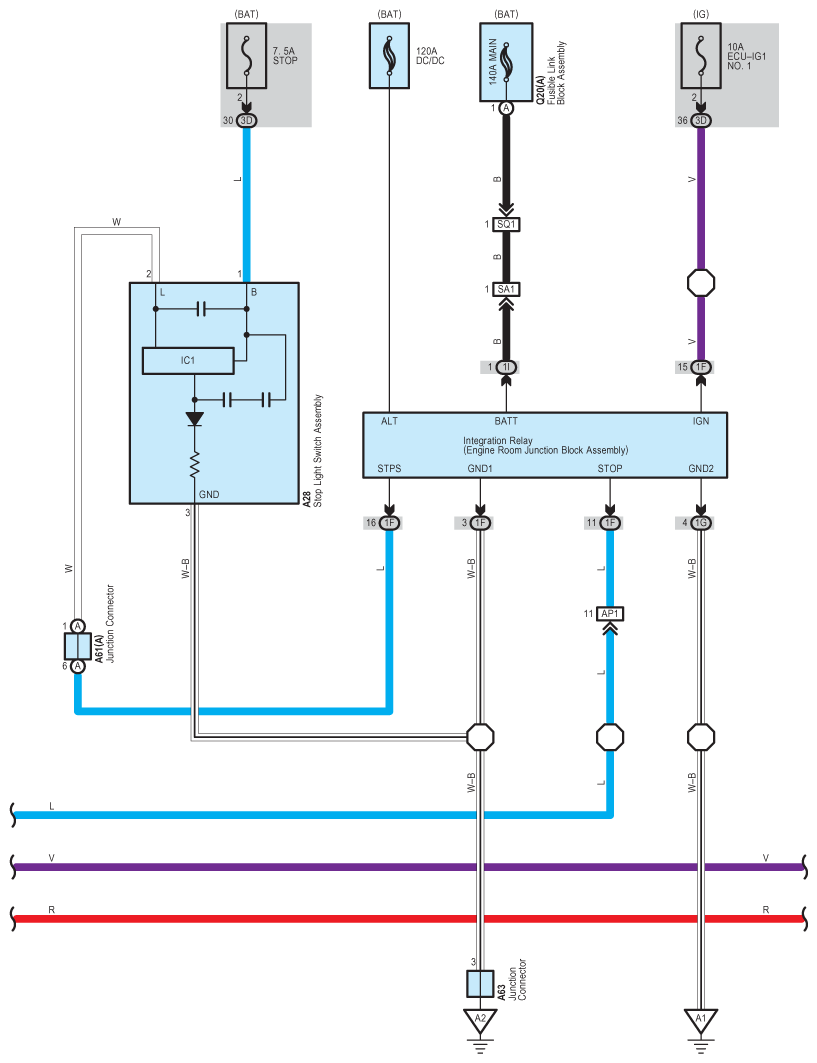

Fig 2: Vehicle Proximity Notification System - Circuit Diagram (2 Of 5)
G08953849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

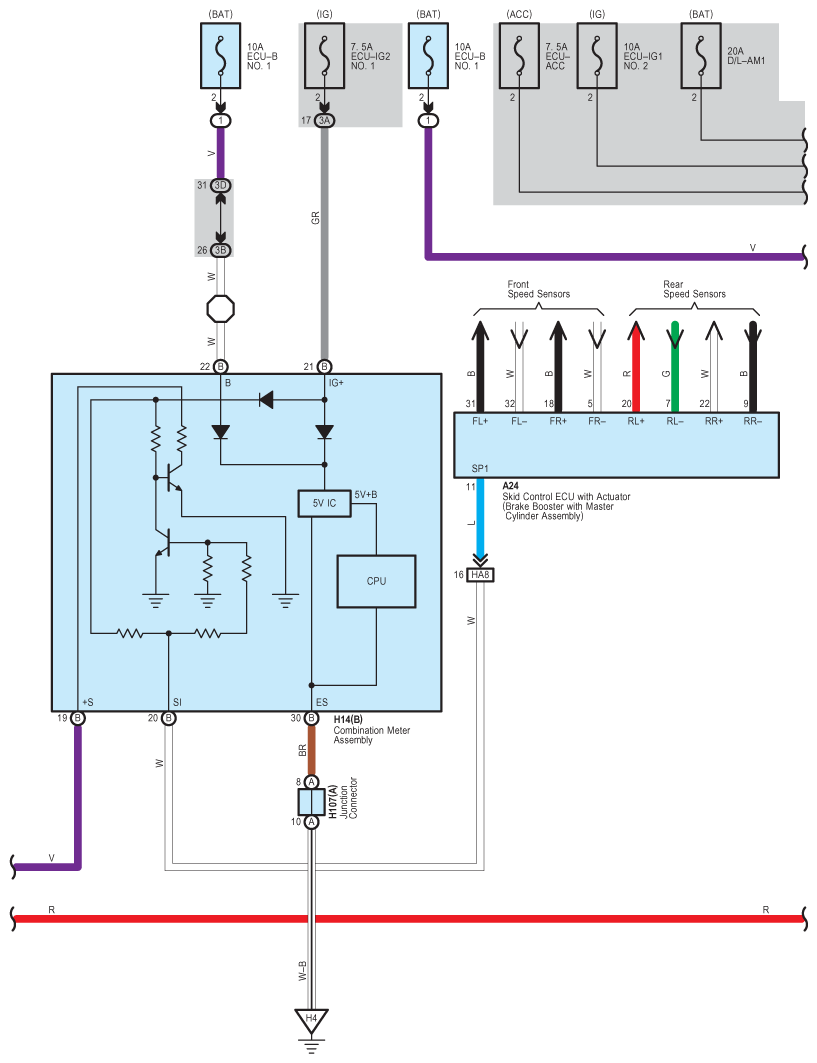

Fig 3: Vehicle Proximity Notification System - Circuit Diagram (3 Of 5)
G08953850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

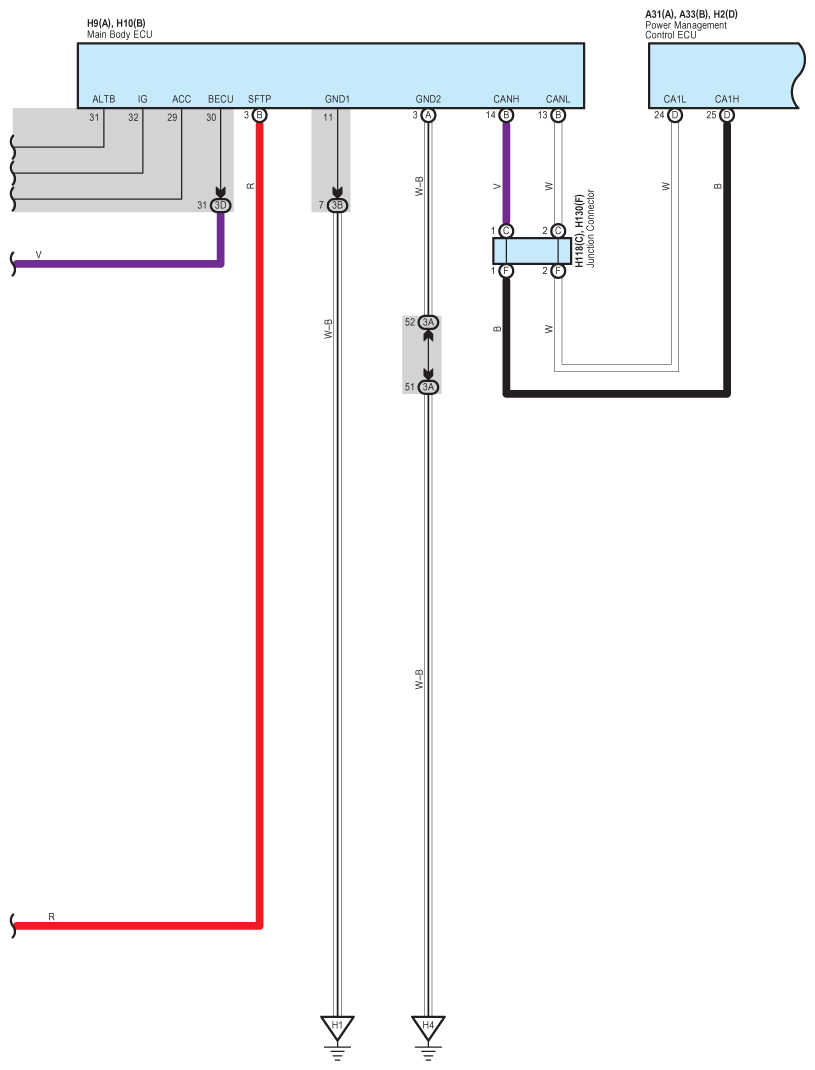

Fig 4: Vehicle Proximity Notification System - Circuit Diagram (4 Of 5)
G08953851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

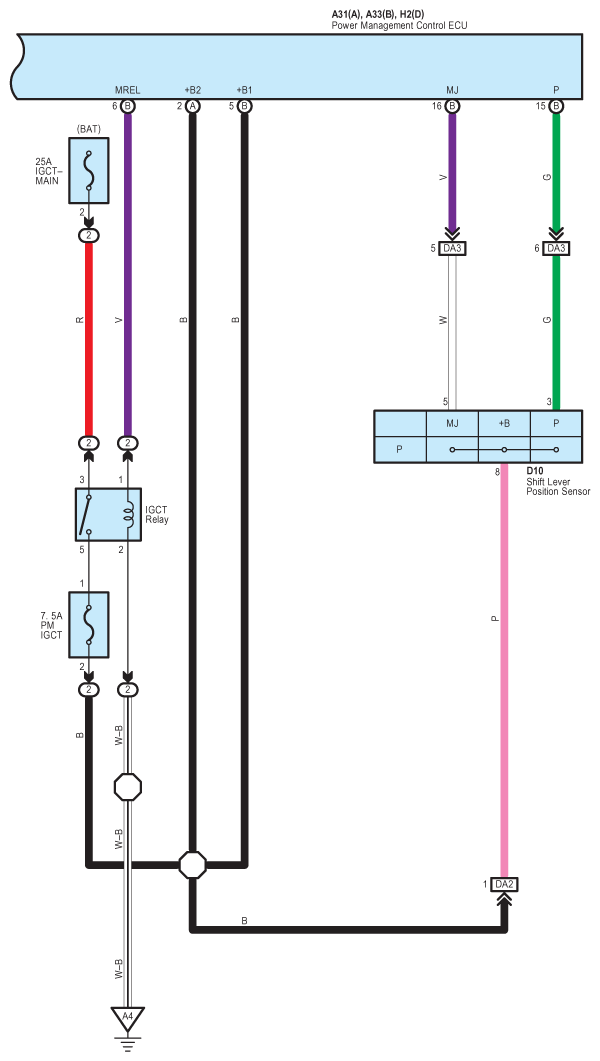

Fig 5: Vehicle Proximity Notification System - Circuit Diagram (5 Of 5)
G08953852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
